2009891014: DescriptionSLIM-GRID HEADER, 14 CIRCUITS, S; CategoryThe connector; File Size365KB，2 Pages; ManufacturerMolex Premise Network; Environmental Compliance

Download Datasheet Parametric View All

2009891014 Overview

SLIM-GRID HEADER, 14 CIRCUITS, S

2009891014 Parametric

Parameter Name	Attribute value
Connector type	Connector
Contact type	Male pin
Spacing - Mating	0.050"（1.27mm）
Number of pins	14
Number of rows	2
Line spacing - patching	0.050"（1.27mm）
Number of pins loaded	all
style	board to board
shield	Covered - 4 walls
Installation type	surface mount
Termination	welding
Fastening type	latch holder
Contact Length - Mating	-
Contact length - terminal	-
Overall contact length	-
Insulation height	0.280"（7.10mm）
Contact shape	Square
Contact surface treatment - mating	gold
Contact Surface Treatment Thickness - Mating	2.00µin（0.051µm）
Contact Surface Preparation - Column	tin
Contact material	copper alloy
Insulation Materials	Liquid crystal polymer (LCP), glass fiber reinforced
characteristic	Pick and place
Operating temperature	-55°C ~ 105°C
Intrusion protection	-
Material flammability rating	UL94 V-0
Insulation color	black
Rated current	-
Rated voltage	125V
Joint stack height	-
Contact Surface Treatment Thickness - Column	78.7µin（2.00µm）
application	automotive, general, telecommunications

Preview

Download Datasheet

View All

9

8

7

6

5

4

3

2

1

5.40

5.90

C

A

Y

CKT

SIZE

1.27

0.635

(

0.40

TYP)

⌖

0.30

Z

X Y

8

E

MX1

X

1.27

x

B

1.27

TYP

11

DETAIL

B

SCALE

10:1

(

0.40

TYP)

⌖

0.30

Z

Y X

8

½

8.60

½

4

6

8

10

12

14

16

18

20

22

24

A

1.27

2.54

3.81

5.08

6.35

7.62

8.89

10.16

11.43

12.70

13.97

B

3.25

4.52

5.79

7.06

8.33

9.60

10.87

12.14

13.41

14.68

15.95

DIMENSION

D

C

-

5.15

6.42 4.85

7.69 4.85

8.96 4.85

10.23 4.85

11.50 4.85

12.77 4.85

14.04 4.85

15.31 4.85

16.58 4.85

17.85 4.85

E

3.05

4.32

5.59

8.86

8.13

9.40

10.67

11.94

13.21

14.48

15.75

F

3.04

4.31

5.58

E

8.85

8.12

9.39

10.66

11.93

13.20

14.47

15.74

D

7.10

½

7.65

½

7

⌓

0.10

V

C

(E)

A

Z

½

6.50

½

0.635

1.27

5.58

±

0.30

1.27

B

(

0.40

TYP)

⌖

0.30

V

(

F

)

V

0.635

A

0.80

TYP

0.635

W

⌖

0.05

W

CONNECTOR

OUTLINE

NOTES:

D

1. FOR ILLUSTRATION PURPOSES, 24 CIRCUIT SIZE WAFER IS SHOWN.

2. MATERIAL :

HOUSING : LIQUID CRYSTALLINE POLYMER (LCP), GLASS-FILLED

UL94V-0, BLACK

BANDOLIER PIN :COPPER ALLOY, 0.40MM SQ. PIN

PICK AND PLACE CAP: POLYAMIDE (PA), GLASS-FILLED, UL94V-0, BLACK

3. FINISHES: SEE SHEET 2

4. PRODUCT SPECIFICATION: 2009890001 (PS)

5. PACKAGING SPECIFICATION: 2009890001(PK)

C

6. MATES WITH: 78120 SERIES

7. COPLANARITY IS TO BE MEASURED BY RESTING THE SOLDER TAIL

ON A GAUGE SURFACE

8. POSITIONING TO BE CONTROLLED BASED ON PIN TIP

9. BEND DEPRESSION ON SMT TAIL IS ACCEPTACLE SO LONG AS IT

DOES NOT AFFECT THE OVERALL COPLANARITY OF THE TAIL.

10. PARTS CONFORMS TO CLASS "B" REQUIREMENT OF COSMETIC

SPECIFICATION PS-45499-002

11. MOLEX LOGO AND CAVITY LOCATED AS SHOWN.

B

12. NON-FUNCTIONAL CORING IS SUBJECTED TO CHANGES WITHOUT

NOTICE.

13. THE ABOVE 24 CKT SHOWN IS FOR ILLUSTRATION ONLY.

2017/05/22

2017/04/06

DIMENSION UNITS

THIS DRAWING CONTAINS INFORMATION THAT IS PROPRIETARY TO MOLEX ELECTRONIC TECHNOLOGIES, LLC AND SHOULD NOT BE USED WITHOUT WRITTEN PERMISSION

5.58

RELEASED

GENERAL

TOLERANCES

(UNLESS SPECIFIED)

ANGULAR TOL ±

3.0

°

SCALE

MM

DRWN BY

DATE

NTS

3.00

TYP

0.67

TYP

A

4 PLACES

3 PLACES

EC NO:

115238

DRWN:

SCHEONG

CHK'D:

APPR:

KHLIM

±

SCHEONG

CHK'D BY

DATE

2016/01/15

2016/11/18

DATE

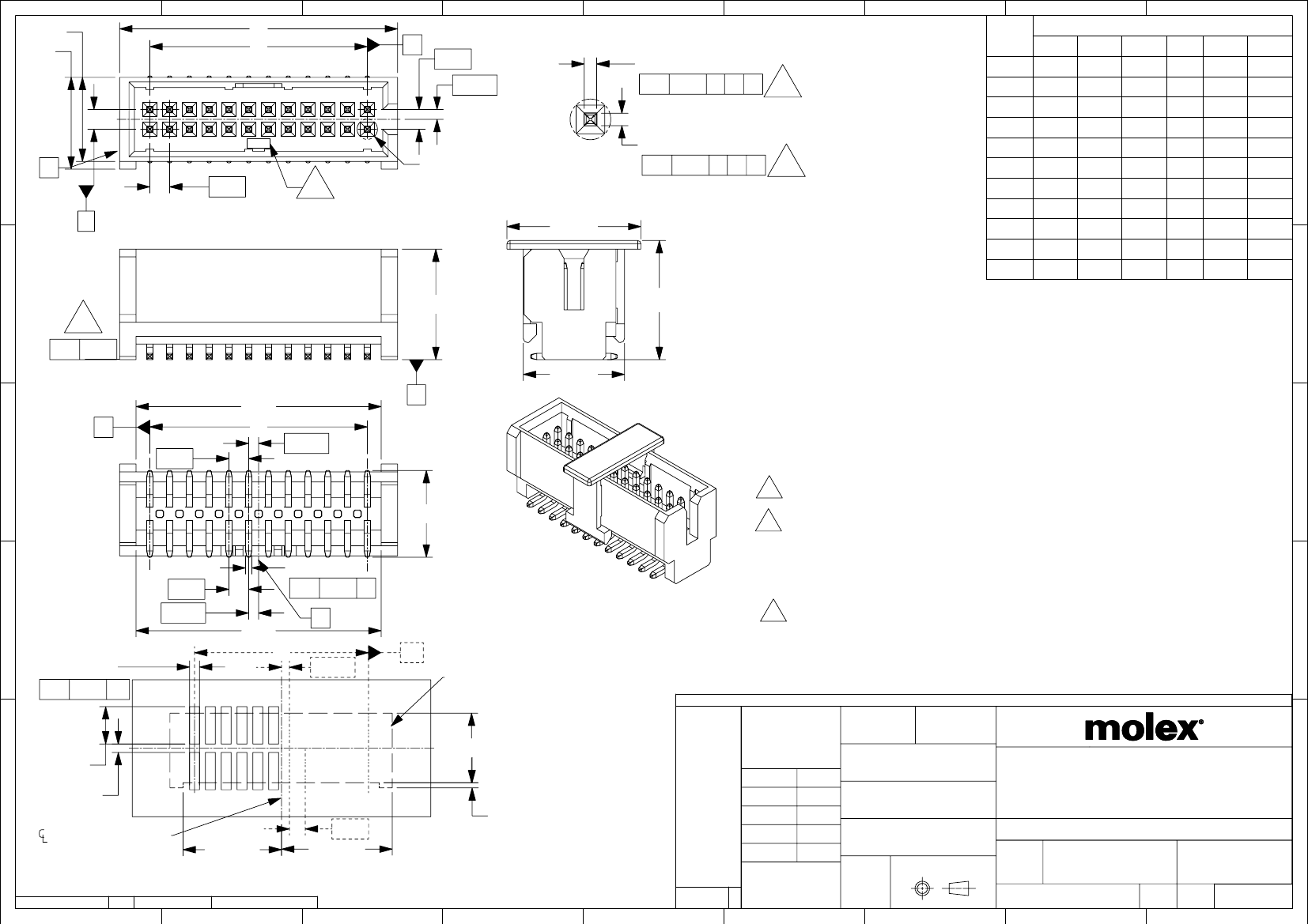

1.27MM PITCH SLIM-GRID

VERTICAL SMT SHROUDED HEADER

OF CONNECTOR

RELEASE STATUS

FORMAT: tb-prod-A3

REVISION: F

DATE: 2015/11/16

P1

RELEASE DATE

22.05.2017

07:34:18

A2

6

5

REV

1.27

TYP

C/2(2X)

F/2(2X)

RECOMMENDED PCB LAYOUT

TOLERANCE

±

0.05

8

7

0.41

2 PLACES

1 PLACE

0 PLACES

0.2

GMENARLY

APPR BY

A

PRODUCT CUSTOMER DRAWING

SERIES

MATERIAL NUMBER

CUSTOMER

KHLIM

DRAWING SIZE

2016/11/24

THIRD ANGLE PROJECTION

DRAFT WHERE APPLICABLE

MUST REMAIN

WITHIN DIMENSIONS

200989

DOCUMENT NUMBER

SEE TABLE

GENERAL MARKET

DOC TYPE

DOC PART

SHEET NUMBER

A3

3

2009890024

PSD

000

1 OF 2

9

4

2

1
