35RED: DescriptionPROBE NEEDLE TIP W/B-JACK RED; CategoryTopical application Test and measurement; File Size34KB，1 Pages; ManufacturerE-Z-HOOK

Download Datasheet Parametric Compare View All

35RED Overview

PROBE NEEDLE TIP W/B-JACK RED

35RED Parametric

Parameter Name	Attribute value
Pointed - Type	Needle tip, 0.080" (2.03mm) diameter
Rated voltage	-
Termination	Banana style, female socket (jack)
color	red
Length - Pointed	0.450"（11.40mm）
Length - total	5.800"（147.32mm）
Material - Body	plastic
Material - Pointed	-
grade	-
Operating temperature	-
quantity	1 item
include	-

Preview

Download Datasheet

View All

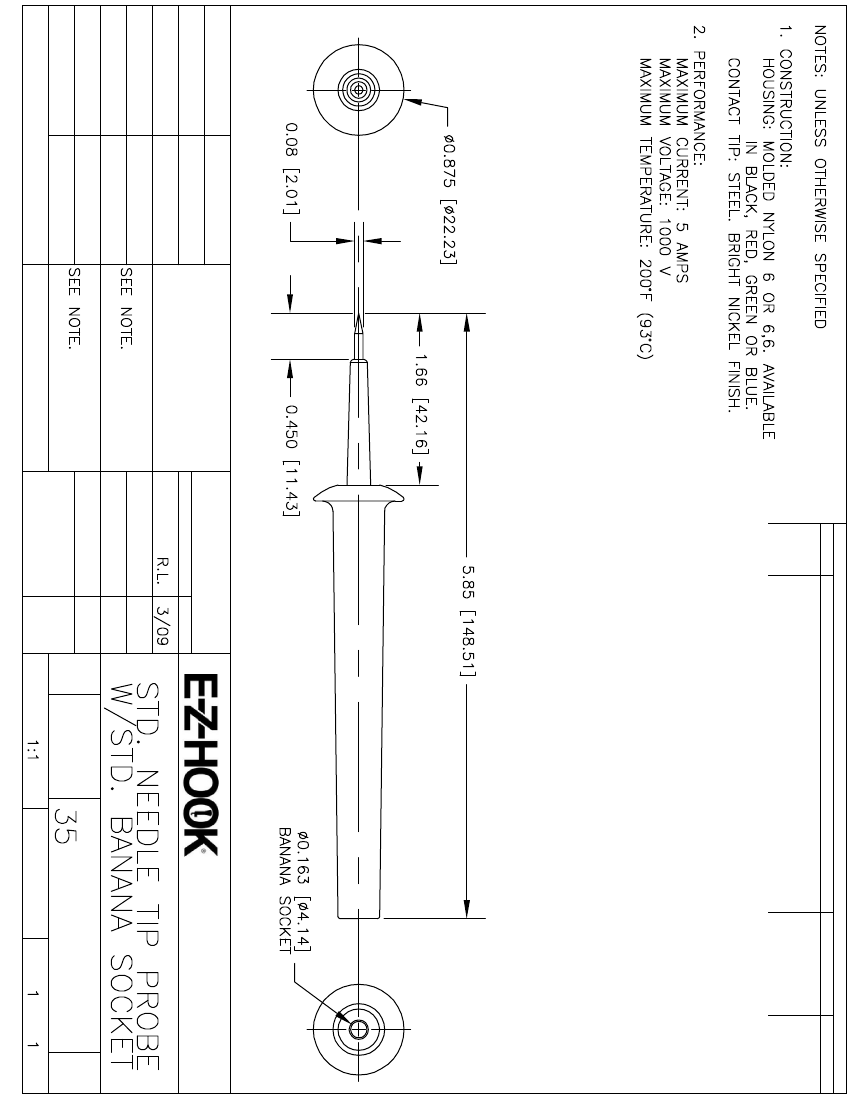

REVISIONS

LTR

DESCRIPTION

DATE

APPROVED

UNLESS OTHERWISE SPECIFIED

DIMENSIONS ARE IN INCHES

TOLERANCES ARE:

FRACTIONS DECIMALS ANGLES

±

.XX ±

.XXX ±

CONTRACT NO.

APPROVALS

DRAWN

MATERIAL

APPROVED BY

DATE

DESCRIPTION

DIVISION OF TEKTEST INC.

ARCADIA, CA 91006 U.S.A.

FINISH

NEXT ASSY

USED ON

APPLICATION

DO NOT SCALE DRAWING

SIZE

CODE IDENT NO. DRAWING NO.

DRAWING NO.

REV.

A 08505

SCALE

SHEET

OF

THE INFORMATION CONTAINED IN THIS DOCUMENT IS PROPRIETARY TO E-Z-HOOK. THE INFORMATION IS NOT TO BE REPRODUCED WITHOUT PRIOR WRITTEN PERMISSION OF E-Z-HOOK, DIV. OF TEKTEST INC.

MAXIMUM TESTED RATINGS IN A HANDS-FREE CONTROLLED ENVIRONMENT. MAXIMUM RATINGS ARE NOT TO BE USED CONCURRENTLY.

35RED Related Products

	35RED	35BLK	35 R/B
Description	PROBE NEEDLE TIP W/B-JACK RED	PROBE NEEDLE TIP W/B-JACK BLK	PROBE NEEDLE TIP W/STD BANA JACK
Pointed - Type	Needle tip, 0.080" (2.03mm) diameter	Needle tip, 0.080" (2.03mm) diameter	Needle tip, 0.080" (2.03mm) diameter
Termination	Banana style, female socket (jack)	Banana style, female socket (jack)	Banana style, female socket (jack)
color	red	black	black and red
Length - Pointed	0.450"（11.40mm）	0.450"（11.40mm）	0.450"（11.40mm）
Length - total	5.800"（147.32mm）	5.800"（147.32mm）	5.800"（147.32mm）
Material - Body	plastic	plastic	plastic
quantity	1 item	1 item	1 pair
