Wzzard™ Intelligent Edge Node
With SmartMesh IP and Bluetooth LE
• Ultra low power 802.15.4e SmartMesh IP technology
• Communicates with Spectre Network Gateway via
highly scalable and reliable wireless mesh networks
• Connect to industry standard analog or digital sensors
• Wzzard app lets you read or configure the nodes using
Android tablets and smart phones
• Rugged, IP66-rated, fiber reinforced polyester PBT
enclosure
• MQTT and JSON IoT protocol to application platform
• Class 1 DIV 2 approved for hazardous locations
SPECIFICATIONS
POWER
Internal
PRODUCT FEATURES
Battery Life
Optional External Input Voltage
MECHANICAL
Physical Connection
(2) 3.6V 2400 mAH Lithium Thionyl Chloride AA
batteries
Multiyear based on 1 min sensor sampling and
reporting
3.3 VDC +/- 5%
M12 Connector
1/2” (12.7 mm) Conduit, sensor interface cable
included; 8 wire, 26 gage, 6 ft. (1.8 m)
Analog Input (0 - 5 VDC, 0 – 20 mA, 4 – 20 mA)
Digital Input (0-48 VDC)
Digital Input Frequency 1-1K Hz
(Accuracy + or – 1 Hz)
Digital Input Counter
Integrated Accelerometer 3 Axis
Integrated Temperature
Thermocouple J, K Type
Digital Output (0-30 VDC)
RP-SMA, Omnidirectional, 3.8 dBi, 2.4 GHz
Dimensions 7.64 inches (194 mm)
Magnetic mounting via internal magnet
Pull force 4.7 lbs (2.13 kg)
(4) Mounting ears, M5 (#10)
IP66-rated, fiber reinforced polyester PBT
0.75 lbs (0.34 kg)
Wireless Connectivity Where You Need It
The Wzzard™ intelligent wireless sensor platform creates a complete, quick
and easy connectivity stack between your sensors and your application, on your
network or on the Internet. The platform uses Intelligent Edge Nodes, a wireless
802.15.4e SmartMesh IP network to transmit sensor data to the Spectre Network
Gateway. The Spectre Network Gateway can connect to the Internet via wired
connections or the cellular data networks and communicate with application
platforms using the MQTT IoT protocol and JSON data formats.
The Wzzard Intelligent Edge Nodes nodes accommodate virtually any industry-
standard external sensors. Connections can be made via conduit fitting, cable
gland or an M12 connector. The Nodes provide a wide variety of sensor interface
options, including general purpose analog inputs, digital input/output and
thermocouple. They can also contain internal sensors like an accelerometer,
depending upon the model number. All 802.15.4e Wzzard Intelligent Edge Nodes
contain an internal temperature sensor.
Secure, Reliable and Highly Scalable Wireless Networking
The Wzzard platform uses mesh networking and time-synchronized channel
hopping to provide up to 99.999% connectivity, even in the most demanding RF
environments. New nodes may be added at any time, and the SmartMesh IP
network will dynamically self-configure as new nodes are added or removed.
This is a function of the mesh network itself, and does not need to be controlled
by the network gateway.
Easy Configuration and Installation
Configuration of the Wzzard sensor platform is easy via Android smart phones
or tablets. Using the Wzzard app, your handheld devices can configure the
Wzzard Intelligent Edge Nodes over their Bluetooth LE connections. The Wzzard
Intelligent Edge Nodes can be configured with calibration and scaling information,
eng. units, friendly names, geolocation and other descriptive information.
The platform simplifies physical installation as well. The Wzzard Intelligent Edge
Nodes can be attached to any surface using screws or their embedded magnetic
bases. The IP66-rated, fiber reinforced polyester PBT housing makes the units
deployable in virtually any industrial or commercial environment.
Intelligence at the Network Edge
The Wzzard wireless platform places intelligence at the network edge. The
Wzzard Intelligent Edge Nodes can be configured to communicate data only
when specified threshold or alert levels are exceeded. When reporting, they
can associate useful information like geolocation, device name and uptime.
This eliminates unnecessary network traffic, eases the processing burden on
upstream resources, and cuts the cost of cellular data plans when the Gateway
is using the cellular data network. Thanks to low-power wireless technology and
programmable time synchronization, the Intelligent Edge Nodes can operate for
multiple years on battery power
Sensor Inputs
Optional External Antenna
Mounting
Enclosure
Weight
TECHNOLOGY
Wireless
802.15.4e, SmartMesh IP
Protocols
MQTT-SN, MQTT, JSON
Bluetooth
Bluetooth 4.0 Low Energy (LE)
LED
Network Connectivity
ENVIRONMENTAL
Installation
Indoor or outdoor
Operating Temperature
-40 to 80°C (-40 to 176°F)
Storage Temperature
-40 to 85°C
Operating Humidity
0 to 95% Non-condensing
WIRELESS SECURITY
Device Authentication
128 bit AES-based encryption with multiple keys
Message integrity check (MIC)
Synchronized key changeovers
Customized key rotation
www.advantech-bb.com
/
Enabling an Intelligent Planet
All product specifications are subject to change without notice.
955-22600 series_PCI Express Adapters_4915ds
Wzzard™ Intelligent Edge Node
With SmartMesh IP and Bluetooth LE
SENSOR INTERFACE SPECIFICATIONS
DIGITAL INPUTS
Voltage range
0 – 48 VDC
V
IL
0.97 V Maximum
V
IH
1.8 V Minimum
Pull up current
32uA
Type
Sourcing (PNP)/Sinking (NPN) Software selectable input
Isolation
None
RATE/FREQUENCY INPUTS
Does a 1 second measurement at each measurement/publish interval
Frequency
Digital Input Frequency 1-1K Hz (Accuracy + or – 1 Hz)
Uses the falling edge or rising edge based on the Invert Enabled setting
COUNTER INPUT
Actively counts either the falling edge (Invert enabled) or rising edge (Invert disabled)
Can use a multiplier to convert to a unit type or count
Channels
2 selectable/shared with Digital inputs
Rolls over at 999999.9
ANALOG INPUTS
Input ranges
0 - 5 VDC, 0 – 20 mA, 4 – 20 mA
Resolution
12 bit
Input load resistance
100 Mega ohm (0-5VDC), 250 ohm (0 - 20 ma)
Voltage: 0.10% of full scale reading, 0.20% max.
Accuracy
Current: 0.11% of full scale reading, 0.24% max.
THERMOCOUPLE INPUT
Types Supported
J and K
Type J -210 to +1,200 °C
Ranges Supported
Type K -270 to +1,372 °C
Resolution
0.25 °C
Typical +/- 2 °C
Accuracy
+/- 6 °C over the temperature range of -40 to 80 °C
DIGITAL OUTPUTS
Voltage range
0 - 30 VDC
Output Type
Open Drain
Output Current
Not to be less than 100ma
Protection
Current Limit Protection
Isolation
None
INTEGRATED SENSORS
TEMPERATURE
CONDITIONS
MIN
TYP
Offset
Temperature Offset Error @ 25 °C
+/- 0.25
Slope Error
+/- 0.033
3 AXIS ACCELEROMETER
+/-2 g, resolution of 1 mg/LSB
Configurable measurement ranges
+/-4 g
+/-8 g
Configurable output data rates
12.5Hz, 5Hz, 50Hz, 100Hz, 200Hz, 400Hz
SMARTMESH IP 802.15.4E RADIO SPECIFICATIONS
PARAMETER
CONDITIONS
MIN
TYP
Frequency Band
2,400
Number of Channels
15
Channel Separation
5
Channel Clear Frequency
Where k = 11 to 25, as defined by IEEE 802.4.15
2405 + 5*(k-11)
Modulation
IEEE 802.15.4 Direct Sequence Spread Spectrum (DSSS)
Raw data rate
250
25 °C, 50% RH, +2dBi Omni-Directional Antenna, Antenna 2 m above ground
Range
Indoor
100
Outdoor
300
Receiver Sensitivity
Packet Data Error Rate (PER) = 1%
Receiver Sensitivity
PER = 50%
Output Power
Delivered to a 50 Ω load
orders@advantech-bb.com
support@advantech-bb.com
MAX
UNITS
°C
°C/ °C
MAX
2,4835
UNITS
GHz
MHz
MHz
kbps
m
m
dBm
dBm
dBm
-93
-95
8
Corporate Headquarters:
707 Dayton Road, PO Box 1040 Ottawa, IL 61350 USA 815-433-5100 Fax 433-5104
European Office:
Westlink Commercial Park, Oranmore Co. Galway Ireland +353 91 792444 Fax +353 91 792445
Wzzard™ Intelligent Edge Node
With SmartMesh IP and Bluetooth LE
BLUETOOTH LE RADIO SPECIFICATIONS
NO.
1
2
3
4
CHARACTERISTICS
Operation Frequency Range
Channel Spacing
Output Power
Sensitivity, High Gain Mode
CONDITIONS
MIN
2402
TYP
2
4
-24
-93.0
-92.5
MAX
2480
BT SPEC.
UNIT
MHz
Mhz
dBm
dBm
dBm
dBm
Maximum setting, measured at single ended 50ohm.
Minimum setting, measured at single ended 50ohm.
High Gain Mode
Standard Mode
-70
-70
THIONYL CHLORIDE LITHIUM BATTERIES (2 SUPPLIED WITH PRODUCT)
CHARACTERISTICS
CONDITIONS
Temperature Range
-40 to 85°C
Nominal Capacity
2.4 Ah
Nominal Voltage
3.6 V
Diameter
14.5 mm
Height
50.5 mm
*Potential hazard: Do not recharge, crush, disassemble or heat above 212°F (100°C)
ORDERING INFORMATION
MODEL NUMBER
WSD2CTJ
WSD1CTJ
WSD2CTK
WSD1CTK
MODEL NUMBER
WSD2XV0
WSD1XV0
MODEL NUMBER
WSD2MA2
WSD1MA2
WSD2CA2
WSD1CA2
WSD2CJA
WSD2MA3
WSD1MA3
WSD2CA3
WSD1CA3
MODEL NUMBER
WSD2MD2
WSD1MD2
WSD2CD2
WSD1CD2
ACCESSORIES
PART NUMBER
ACH2-DBAT-DP003
ACH2-AT-DP011
WSCAC0-6
WSCAM12-6
ZXTMT
DESCRIPTION
External Antenna, 2.4 GHz, 2 dBi, Dipole, RP-SMA, hinged, 3.8 dBi
Magnetic Mount Antenna, 2.4 GHz, 3.8 dBi
Pigtail Cable 6 ft (1.8m)
M12 Wiring harness cable, 8 pin, 6 ft (1.8 m)
Cable Gland/Conduit Kit
THERMOCOUPLE INPUT
Wireless Mesh 802.15.4e, 2 Thermocouple J-type Inputs, 1 Digital Output; External Antenna, Conduit Connector
Wireless Mesh 802.15.4e, 2 Thermocouple J-type Inputs, 1 Digital Output; Internal Antenna, Conduit Connector
Wireless Mesh 802.15.4e, 2 Thermocouple K-type Inputs, 1 Digital Output; External Antenna, Conduit Connector
Wireless Mesh 802.15.4e, 2 Thermocouple K-type Inputs, 1 Digital Output; Internal Antenna, Conduit Connector
ACCELEROMETER
Wireless Mesh 802.15.4e Integrated Accelerometer; External Antenna
Wireless Mesh 802.15.4e Integrated Accelerometer; Internal Antenna
ANALOG INPUT
Wireless Mesh 802.15.4e; 2 Analog Inputs, 1 Digital Output; External Antenna, M12 Connector
Wireless Mesh 802.15.4e; 2 Analog Inputs, 1 Digital Output; Internal Antenna, M12 Connector
Wireless Mesh 802.15.4e; 2 Analog Inputs, 1 Digital Output; External Antenna, Conduit Connector
Wireless Mesh 802.15.4e; 2 Analog Inputs, 1 Digital Output; Internal Antenna, Conduit Connector
Wireless Mesh 802.15.4e; 2 Analog Inputs, 1 Digital Output, 2 Thermocouple J-type Inputs; External Antenna, Conduit
Connector
Wireless Mesh 802.15.4e; 3 Analog Inputs; External Antenna, M12 Connector
Wireless Mesh 802.15.4e; 3 Analog Inputs; Internal Antenna, M12 Connector
Wireless Mesh 802.15.4e; 3 Analog Inputs; External Antenna, Conduit Connector
Wireless Mesh 802.15.4e; 3 Analog Inputs; Internal Antenna, Conduit Connector
DIGITAL INPUT
Wireless Mesh 802.15.4e; 2 Digital Inputs, 2 Digital Outputs; External Antenna, M12 Connector
Wireless Mesh 802.15.4e; 2 Digital Inputs, 2 Digital Outputs; Internal Antenna, M12 Connector
Wireless Mesh 802.15.4e; 2 Digital Inputs, 2 Digital Outputs; External Antenna, Conduit Connector
Wireless Mesh 802.15.4e; 2 Digital Inputs, 2 Digital Outputs; Internal Antenna, Conduit Connector
orders@advantech-bb.com
support@advantech-bb.com
Corporate Headquarters:
707 Dayton Road, PO Box 1040 Ottawa, IL 61350 USA 815-433-5100 Fax 433-5104
European Office:
Westlink Commercial Park, Oranmore Co. Galway Ireland +353 91 792444 Fax +353 91 792445
Wzzard™ Intelligent Edge Node
With SmartMesh IP and Bluetooth LE
APPROVALS AND CERTIFICATIONS
CE
EN55022
CISPR (EN55022) Class A
EN 61000-6-2:2005
Generic immunity standard for (heavy) industrial environments
EN 61000-6-4:2006+A1:2011
Emission standard for (heavy) industrial environments
EN61000-4-2
ESD +/- 8kV air, +/- 4kV contact
EN61000-4-3
RFI
EN61000-4-4
EFT
EN61000-4-5
Surge
EN61000-4-6
CI
EN60255-21-1
Vibration, 2g, 10-500Hz 0.3mm displacement
EN60255-21-2
Shock, 50g, 11ms half sine wave, 18 shocks
ENVIRONMENTAL
IEC 60068-2-6:2007
Vibration, 2g, 10-500 Hz,1.5mm displacement
IEC 60068-2-27:2008
Shock, 50g, 11ms half sine wave, 18 shocks
FCC/IC
FCC Part 15 Class A
FCC - Part 15.247
Industry Canada - RSS210
SAFETY
UL/CSA Class 1, Division 2 Group A, B, C, D
REGULATORY APPROVALS
ROHS and WEEE Compliant

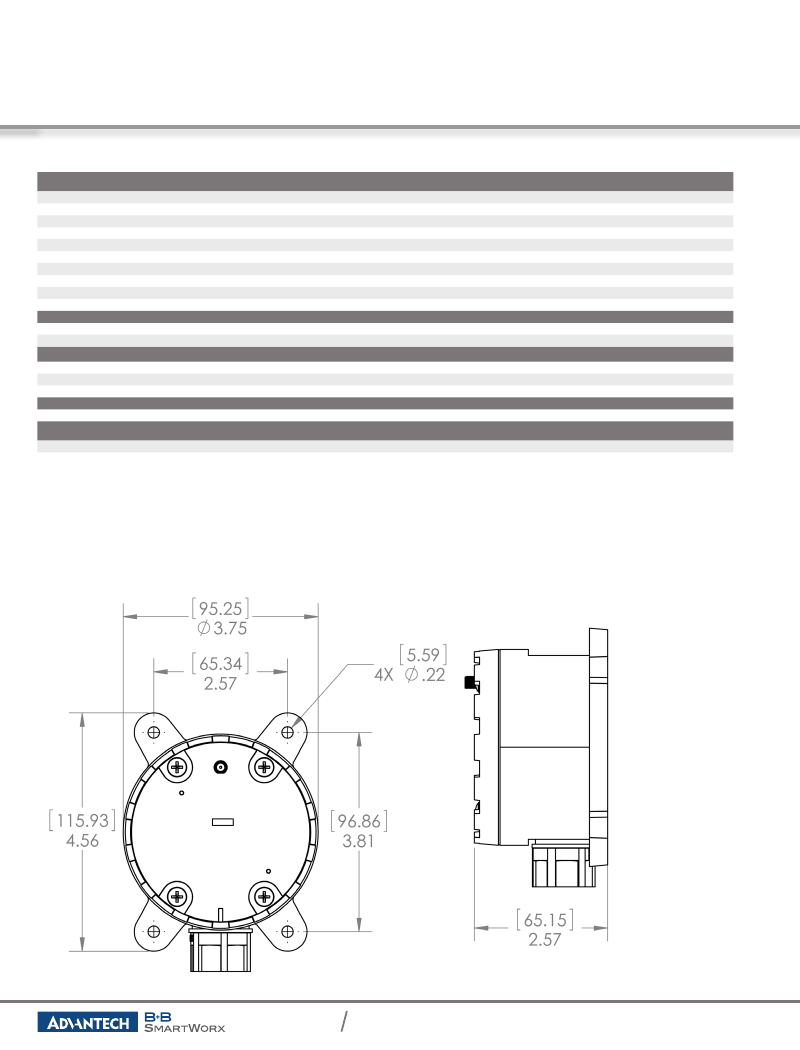

MECHANICAL DIAGRAM
[ Millimeters ]
Ø Inches
orders@advantech-bb.com
support@advantech-bb.com
Corporate Headquarters:
707 Dayton Road, PO Box 1040 Ottawa, IL 61350 USA 815-433-5100 Fax 433-5104
European Office:
Westlink Commercial Park, Oranmore Co. Galway Ireland +353 91 792444 Fax +353 91 792445
京公网安备 11010802033920号
EEWORLD
