FC75-04-025 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Wire/cable> FC75-04-025

Preview

FC75-04-025: DescriptionCABLE COAXIAL 30AWG 25'; CategoryWire/cable; File Size883KB，1 Pages; ManufacturerCicoil; Environmental Compliance

Download Datasheet Parametric Compare View All

FC75-04-025 Overview

CABLE COAXIAL 30AWG 25'

FC75-04-025 Parametric

Parameter Name	Attribute value
Cable type	Coaxial
cable set	-
Wire gauge	30 AWG
Number of wire strands	-
Sheath (insulation) material	Flexx-Sil™
Sheath (insulation) diameter	-
Shield type	braided wire
impedance	75 Ohms
length	25.0'（7.62m）
Casing color	transparent
use	-
characteristic	-
conductor material	Copper, tin plated
dielectric materials	-
Dielectric diameter	-
shielding material	-
Shielding range	90%
Operating temperature	-65°C ~ 165°C

Preview

Download Datasheet

View All

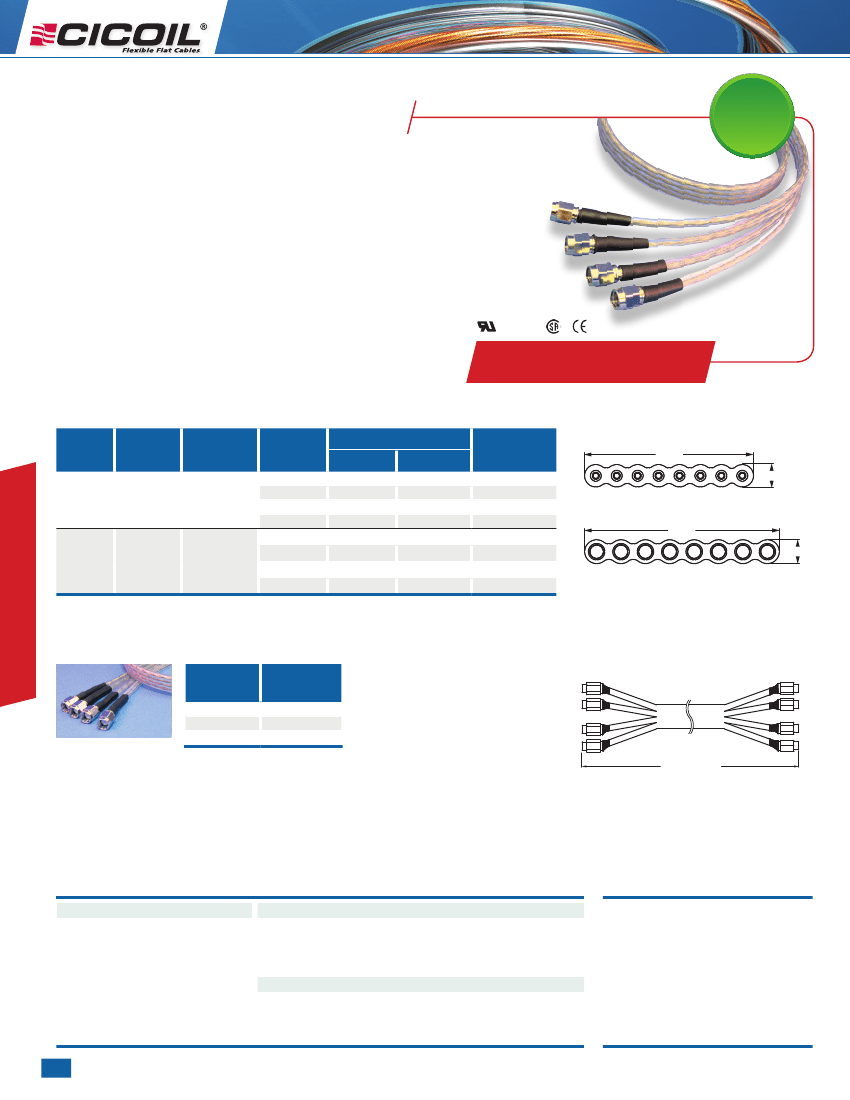

Flexible Coaxial Cables

Ideal for High Performance Video Transmission Applications

Ultra Flexible Cable for Confined Area and Continuous Motion

1 - 8 Individual 50 or 75 Ohm Coax Conductors

NEED

CUSTOMS?

See Page

25

Cicoil Flexible Coaxial Cables are ideal for high speed data and

video applications that require flexibility, high & low temperature

resistance and protection from very rugged environments. These

50 ohm and 75 ohm low capacitance cables feature low line to line

skew, maximum signal integrity, low EMI and suppress crosstalk.

And the flat cable construction guarantees clear, high speed data

transmission, even in the toughest of environments.

MEETS 94V-0

UL

COMPLIANT

RoHS

REACH

COMPLIANT

FLAME TESTED

FAA

Applications

Aerospace Surveilance, Surgical Robotics,

Medical Diagnostics, Automated Test Systems

Cable

Dimensions

Ohms

Amp Rating

1

Conductor

Gauge

30 AWG

No. of

Conductors

1

2

4

8

1

2

4

8

Dimensions [inches]

Width

0.12

0.25

0.50

1.01

0.18

0.36

0.73

1.47

Height

0.12

0.18

Part

Number

FC50-01

FC50-02

FC50-04

FC50-08

FC75-01

FC75-02

FC75-04

FC75-08

50 Ohm

WIDTH

HEIGHT

50

3

75 Ohm

WIDTH

HEIGHT

Data & Video

75

3

30 AWG

Note

1. Amp rating is the maximum value for each conductor at room temperature of 70°F (21°C). Amp rating decreases as

temperature increases.

Cable Assemblies

Cable Length

(feet)

3

6

12

Part Number

Addition

-CA003

-CA006

-CA012

Notes

1. Append onto base cable Part Number for

complete assembly.

Example: FC50-01-CA003

2. Connector ratings may differ from cable

ratings; refer to manufacturer specifications.

Assembly Dimensions

J1

CABLE LENGTH

J1

Please contact Cicoil for other

connectors and length options.

Connectors

• Signal (J1): SMA Male

Cable Specifications

Mechanical

Conductors:

Ultra flexible, finely stranded,

tinned copper

Shielding:

Ultra flexible, braided shields, with

90% nominal coverage

Minimum Bend Radius:

- 6x cable height for intermediate flex

- 10x cable height for continuous flex

Flex Life:

10,000,000 cycles nominal

Outer Jacket Durometer Rating:

65 (Shore A)

All engineering values are nominal and subject to change.

Environmental

Temperature Rating:

-65°C to +165°C

Moisture Rating:

Submersible, Salt Water Resistant

Clean Room Rating:

Class 1, Zero Particulates

Extreme Environments:

Sunlight, UV Light, Alcohol, Chemical and Oil Resistant

Electrical

Outer Jacket Dielectric Strength:

450 volts/mil (17.7 kv/mm)

See Electrical Rating Chart on Page 47

Options

Additional Conductors

Low Friction Options

StripMount™ Integrated Mounting Strip

Integrated Tubing

SuperTuff™ Jacket

Colored Jacketing

Strip and Tin Cable Ends

FlexRail™ Self-Supporting Cable

Complete Assembly

Page

26

28

29

30

31

14

Flexible Flat Cables & Cable Assemblies

xxx / p1of1 / 08-MAY-14

661-295-1295

§

Cicoil.com

FC75-04-025 Related Products

	FC75-04-025	FC50-01-025	FC50-08-025	FC50-02-025	FC75-08-025	FC50-04-025	FC75-02-025	FC75-01-025
Description	CABLE COAXIAL 30AWG 25'	CABLE COAXIAL 30AWG 25'	CABLE COAXIAL 30AWG 25'	CABLE COAXIAL 30AWG 25'	CABLE COAXIAL 30AWG 25'	CABLE COAXIAL 30AWG 25'	CABLE COAXIAL 30AWG 25'	CABLE COAXIAL 30AWG 25'
Cable type	Coaxial	Coaxial	Coaxial	Coaxial	Coaxial	Coaxial	Coaxial	Coaxial
Wire gauge	30 AWG	30 AWG	30 AWG	30 AWG	30 AWG	30 AWG	30 AWG	30 AWG
Sheath (insulation) material	Flexx-Sil™	Flexx-Sil™	Flexx-Sil™	Flexx-Sil™	Flexx-Sil™	Flexx-Sil™	Flexx-Sil™	Flexx-Sil™
Shield type	braided wire	braided wire	braided wire	braided wire	braided wire	braided wire	braided wire	braided wire
impedance	75 Ohms	50 Ohms	50 Ohms	50 Ohms	75 Ohms	50 Ohms	75 Ohms	75 Ohms
length	25.0'（7.62m）	25.0'（7.62m）	25.0'（7.62m）	25.0'（7.62m）	25.0'（7.62m）	25.0'（7.62m）	25.0'（7.62m）	25.0'（7.62m）
Casing color	transparent	transparent	transparent	transparent	transparent	transparent	transparent	transparent
conductor material	Copper, tin plated	Copper, tin plated	Copper, tin plated	Copper, tin plated	Copper, tin plated	Copper, tin plated	Copper, tin plated	Copper, tin plated
Shielding range	90%	90%	90%	90%	90%	90%	90%	90%
Operating temperature	-65°C ~ 165°C	-65°C ~ 165°C	-65°C ~ 165°C	-65°C ~ 165°C	-65°C ~ 165°C	-65°C ~ 165°C	-65°C ~ 165°C	-65°C ~ 165°C
