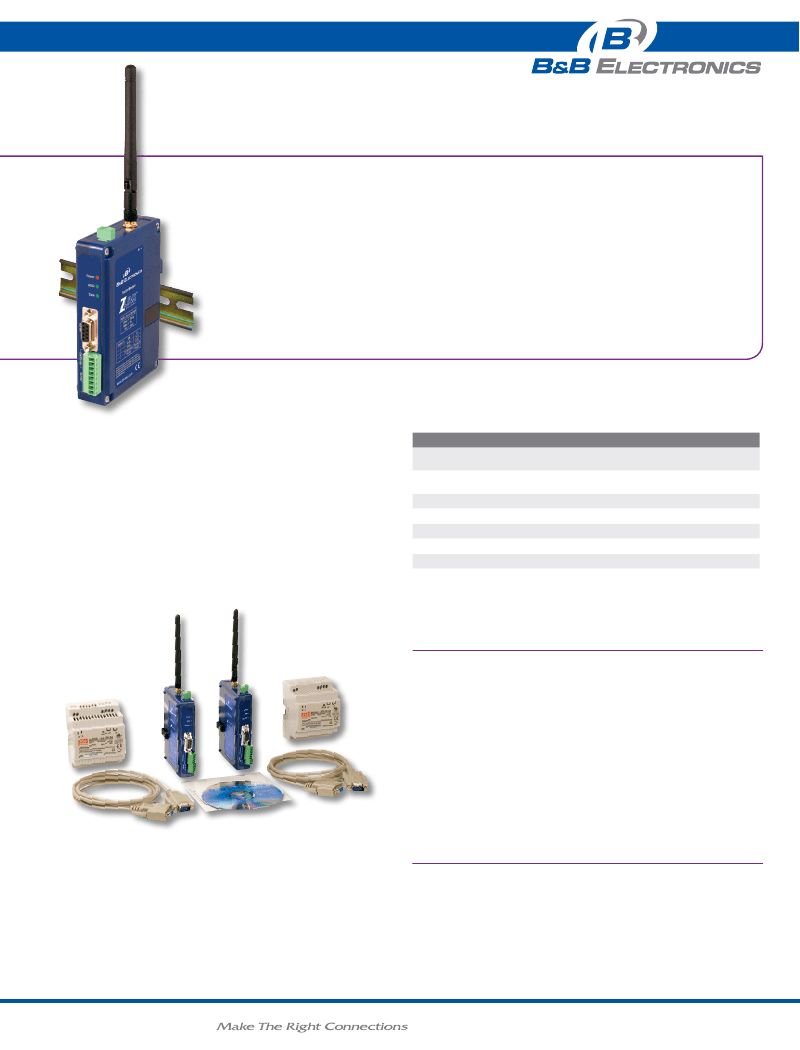

Industrial grade radio modems
– up to 40mi/64km range
Zlinx Wireless Radio Modems
produCt FEaturEs
•
•
•
•
•
•
•
•
•
•
RS-232/422/485, Serial communications
Modbus compatible – no additional converters needed
Ranges up to 40 miles (64 km)
Heavy duty DIN mount industrial grade case and components
Signal strength indicator aids trouble shooting
900 MHz, 868 MHz, 2.4 GHz Versions
Wide temperature range -40º to 85º C
Wide Range Power Input: 10 to 48 VDC or 18 to 30 VAC
AES Encryption
UL Class1/Division2 (Long Range Only)
Do you need to get a digital signal across a highway or river or to the
other end of your big warehouse? Zlinx radio modems can do the job
faster, easier, and less expensively than stringing cable. Easy plug-and-
play set-up saves installation and maintenance time. These compact and
rugged units are compatible with Modbus and Profibus so no additional
converters are required.
Despite their low prices, these are not wimpy consumer or office grade
products. Select the power level you need to punch through whatever
distance and interference situations you encounter. Zlinx radio modems
are built to handle the heat, cold, and environments of industrial
operations.
ordErIng InFormatIon
Model nuMBer
deSCriPtion
Zlinx Radio Modem 2.4 GHz Short Range, RS
ZP24D-250RM-SR
232/422/485
Zlinx Radio Modem 900 MHz Long Range, RS-
ZP9D-115RM-LR
232/422/485
ZP9D-115RM-LR-AU
Zlinx Radio Modem 900 MHz Australian Version
ZP8D-24RM-LR*
Zlinx Radio Modem, 868 MHz, Long Range
RM-LR-KIT
900 MHz Radio Modem, Long Range Starter Kit
RM-SR-KIT
2.4 GHz Radio Modem Short Range Starter Kit
RM-LR824-KIT
868 MHz Radio Modem Kit
Kits contain: (2) radio modems, (2) power supplies, 24VDC 30W, and (2) 6ft/1.8m serial cables
World-wide.
Check with your local distributor for availability and options.
* European - Check wireless regulations/standards in your geographic area.
aCCEssorIEs
DR-75-24
ZP9D-ANT1
ZP24D-ANT1
ZP9D-DIN1
ZP24D-DIN1
ZP9D-TB1
DRPM25
75W Power Supply
900 MHz Spare Antenna
2.4 GHz Spare Antenna
Replacement DIN clip kit for ZP9D radio
modems
Replacement DIN clip kit for ZP24D radio
modems
Replacement terminal block kit for radio
modems. Contains complete set of terminal
blocks and dip switch cover
Panel Mount Adapter
www
.
bb
-
elec
.
com
|
Zlinx Wireless Radio Modems_3713ds
Industrial grade radio modems
– up to 40mi/64km range
Zlinx Wireless Radio Modems
Model nuMBer:
rF ProPertieS
Standard
Range(with included antenna)
Frequency
Transmit Power
SoFtware
Support
Features
inCluded oMni antenna
antenna ConneCtor
Serial ProPertieS
Baud
Data Bit; Parity; Stop Bit
RS-232
RS-422
RS-485
wireleSS link Failure
Power
Power Supply
Power Consumption
diMenSionS
enVironMental
Operating Temperature
Storage Temperature
Operating Humidity
enCloSure rating
Rating
Mounting
LED Status
CertiFiCationS
FCC
CE
UL
RoHS directive (lead free)
ZP24d-250rM-Sr
ZP8d-24rM-lr
IEEE 802.15.4
Proprietary Radio
up to 300ft/91m indoor
Up to 24.9mi/40km outdoor
or 1mi/1.6km outdoor
2.4 GHz
868 MHz
100mW
316mW
Win XP, Win 7
RSSI signal range test Modem emulation
2.1 dBi
3 dBi
ZP9d-115rM-lr
Proprietary Radio
up to 3000ft/.91km indoor
or 14mi/22.5km outdoor
900 MHz
1W
3 dBi
External Reverse Polarity SMA male jack connector, omni directional (included with product)
1200, 2400, 4800, 9600,
1200, 2400, 4800, 9600,
19200, 38400, 57600,
19200, 38400, 57600,
1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200, 230400
115200
115200, 230400
7, 8; None, even, odd, mark, 7, 8; None, even, odd, mark, space; 1, 2
8 only; none only; 1 only
space; 1, 2
DB9F DCE or Terminal Block (TX, RX, GND available on Terminal Block
Removeable terminal block, 2 or 4 wire - TX+, TX-, RX+, RX-, GND, 120 Ohm Dipswitch selectable
Removeable terminal block, 2 or 4 wire - TX+, TX-, RX+, RX-, GND, Bit wise, 120 Ohm Dipswitch selectable
Removeable terminal block, Open collector, dry contact, 40mA
10-48 VDC, 18-30 VAC, Removeable terminal block
2.0W max
6W max
5.0W max
1.2W x 3.3D x 4.7H
-40° to 85ºC
-40° to 85ºC
10 to 90% non-condensing
IP30
DIN rail mount, 35mm
Power, Signal Strength, Wireless Data
FCC Part 15 Class B
CISPR (EN55022) Class B
EN61000-6-1 Generic Standards for Residential, Commercial, & Light Industrial
EN61000-4-2-ESD, EN61000-4-3 RFI, EN61000-4-4 EFT, EN61000-4-5 Surge, EN61000-4-6 CI, EN61000-4-8 Power Frequency
Magnetic, EN61000-4-11 Voltage Dips & Interruptions
UL, cUL
UL, cUL
UL, cUL, Class 1 Div 2 Groups A, B, C, D File E245458
Yes
orders@bb-elec.com
support@bb-elec.com
International Office:
707 Dayton Road PO Box 1040 Ottawa, IL 61350 USA 815-433-5100 Fax 433-5104
European Office:
Westlink Commercial Park Oranmore Co. Galway Ireland +353 91 792444 Fax +353 91 792445
