ADVANCED ENGINEERING
Technical Data Sheet
poo
L&
htdi kooH
W
A DVA N C ED EN G I N E E R I N G
Te c hni c a l D a t a S h e e t
lanim
rete
maiD
oN
Put-Ups
Standard Put-Ups
Bulk
A
500’
250’
200’
150’
100’
75’
50’
Complies to HL2 According to
the Railway Standard
DIN EN 45545-2
UL and VW-1
Passes Smoke Density Test
ASTM E-662
Passes Surface Flammability
Test ASTM E-162
Passes Smoke Toxicity Test
SMP 800-C
Melt Temp. 482°F
Nominal
Size
3/16”
3/8”
1/2”
3/4”
1”
1 1/4”
1 1/2”
Part
#
F6V0.19TB
F6V0.38TB
F6V0.50TB
F6V0.75TB
F6V1.00TB
F6V1.25TB
F6V1.50TB
Wall
Thickness
.027”
.027”
.027”
.027”
.027”
.027”
.027”
B
100’
100’
75’
50’
50’
25’
25’
Available
Colors
TB
TB
TB
TB
TB
TB
TB
Overlap
*A
51%
41%
35%
28%
26%
25%
23%
Lbs/
100’
0.8
1.2
1.6
2.5
3.2
3.7
4.8
3,000’
2,000’
1,500’
1,000
460’
330’
260’

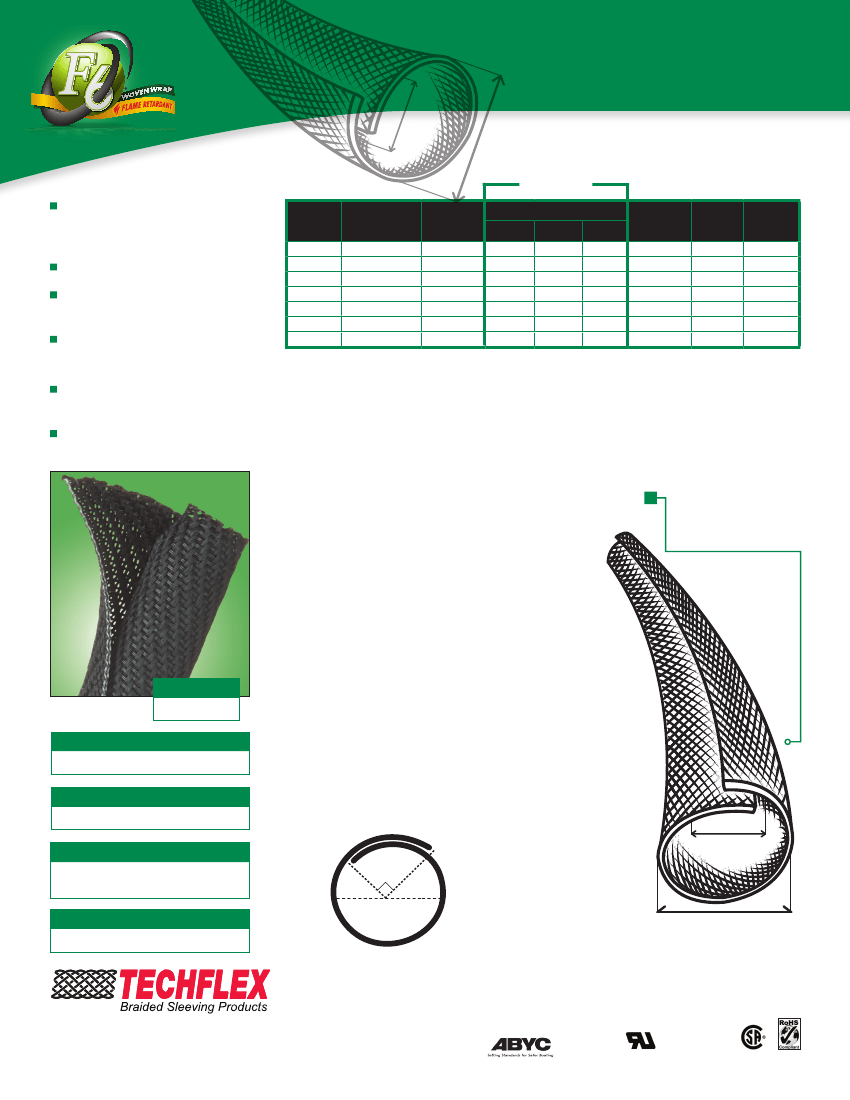

Woven, Flame Retardant Split Tubular
Harness Wrap
F6 Woven Wrap FR (F6V) is a VW-1 Rated version our
industry recognized F6 Woven Wrap, with the added
advantage of a flame inhibitor to provide an extra level
of safety. It utilizes many of the same
characteristics as our original F6 split braided
sleeving including the easy wrap around design
and the extra overlap to ensure complete protection
of important electronic communication and power
systems. The new woven construction provides superior
elastic flexibility with unbeatable coverage over any
harness assembly. Through a unique process, the blend
of monofilament and multifilament polyester fibers are
formed into a sleeving with memory that causes the
sleeve to self close, and also snap back when opened.
The combination of flame retardance, ease of
installation, and complete coverage makes F6 Woven FR
an ideal solution for many commercial and aerospace
applications.
The Right Overlap
For Your Harness
Hook & Loop
Width
Black w/White Tracer
(TB)
Colors Available:
Cuts Cleanly
Hot Knife
Material
PET Polyethylene Terepthalate
Grade
F6V
Filament Diameter
.010” Monofilament Polyester
1200 Denier Multifilament
Drawing Number
TF001FWPT-WD
*A
The engineered overlap allows ideal
flexibility without exposing wires and cables.
Nominal Diameter
800.323.5140 • 973.300.9242 • fax: 973.300.9409
104 Demarest Road • Sparta, NJ 07871
www.techflex.com
VW-1
DIN EN
45545-2
ADVA NC ED ENGI NEE R ING
ADVANCED ENGINEERING
Tech n i cal Data Shee t
Technical Data Sheet
Loop
k&
Hoo idth
W
i
Nom
eter
Diam
nal

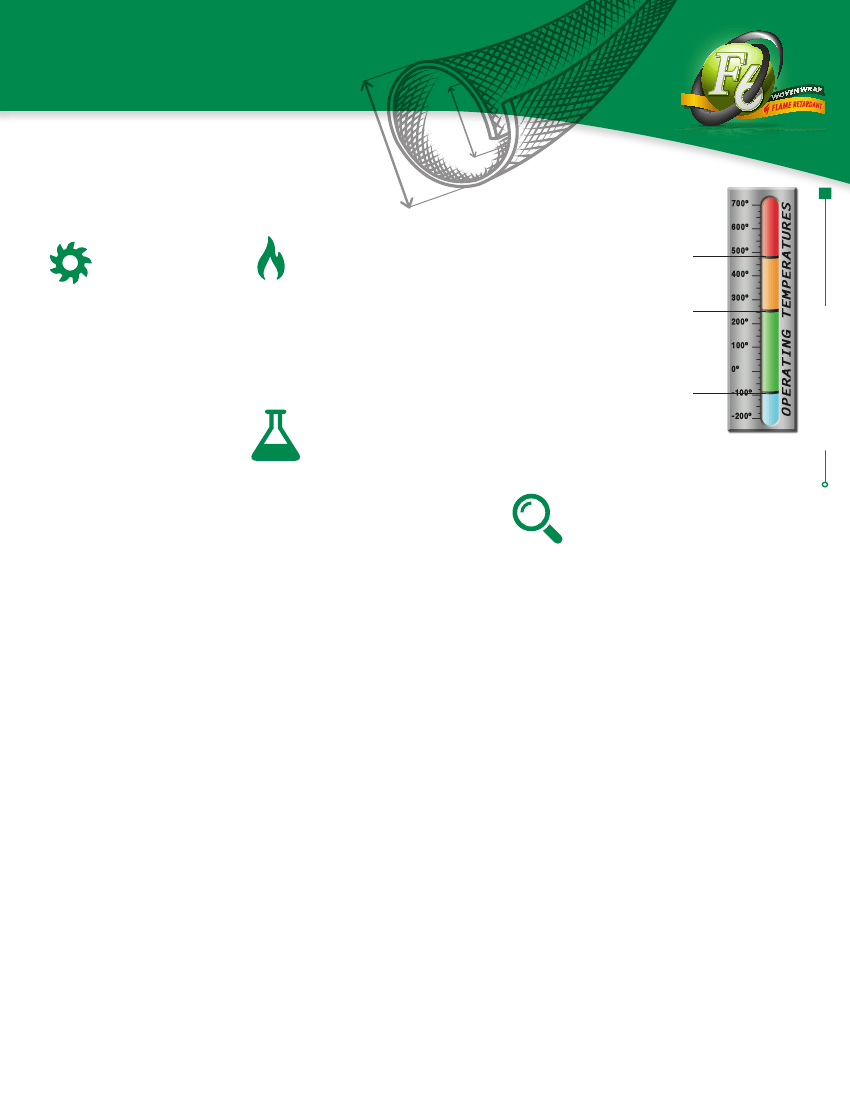

Melt Point
ABRASION
Abrasion Resistance
FLAMMABILITY
Rating _______________________ VW-1
482°F (250°C)
Maximum Continuous
257°F (125°C)
Minimum Continuous
-94°F (-70°C)
Mil-I-23053
www.techflex.com
ASTM D-2117
Medium
Abrasion Test Machine
Taber 5150
Abrasion Test Wheel
Calibrase H-18
500g
Abrasion Test Load
CHEMICAL
RESISTANCE
1=No Effect
2=Little Effect
3=Affected
4=More Affected
5=Severely Affected
PHYSICAL
PROPERTIES
Filament Diameter:
Monofilament Polyester ______ .010
Multifilament ________1200 Denier
Flammability Rating: ___________VW-1
Self Extinguishing, Type A
Recommended Cutting _____Hot Knife
Colors _________________________ 1
Wall Thickness_________________ .027
Hard Vacuum Data ________________
ASTM E-595 at 10-5 torr
TML (%) ______________________ .19
CVCM (%) _____________________ .00
WVR (%) ______________________ .06
Smoke D-Max _________________ 275
Outgassing __________________ Med
Oxygen Index __________________ 31
Aromatic Solvents ________________ 2
Aliphatic Solvents _________________ 1
Chlorinated Solvents ______________ 3
Weak Bases ______________________ 1
Salts ____________________________ 1
Strong Bases _____________________ 2
Salt Water
0-S-1926
________________ 1
Hydraulic Fluid
MIL-H-5606
_________ 1
Lube Oil
MIL-L-7808
_______________ 1
De-Icing Fluid
MIL-A-8243
__________ 1
Strong Acids _____________________ 3
Strong Oxidants __________________ 2
Esters/Ketones ___________________ 2
UV Light ________________________ 1
Petroleum _______________________ 1
Fungus
ASTM G-21
________________ 1
Halogen Free ___________________Yes
RoHS __________________________Yes
SVHC ________________________ None
