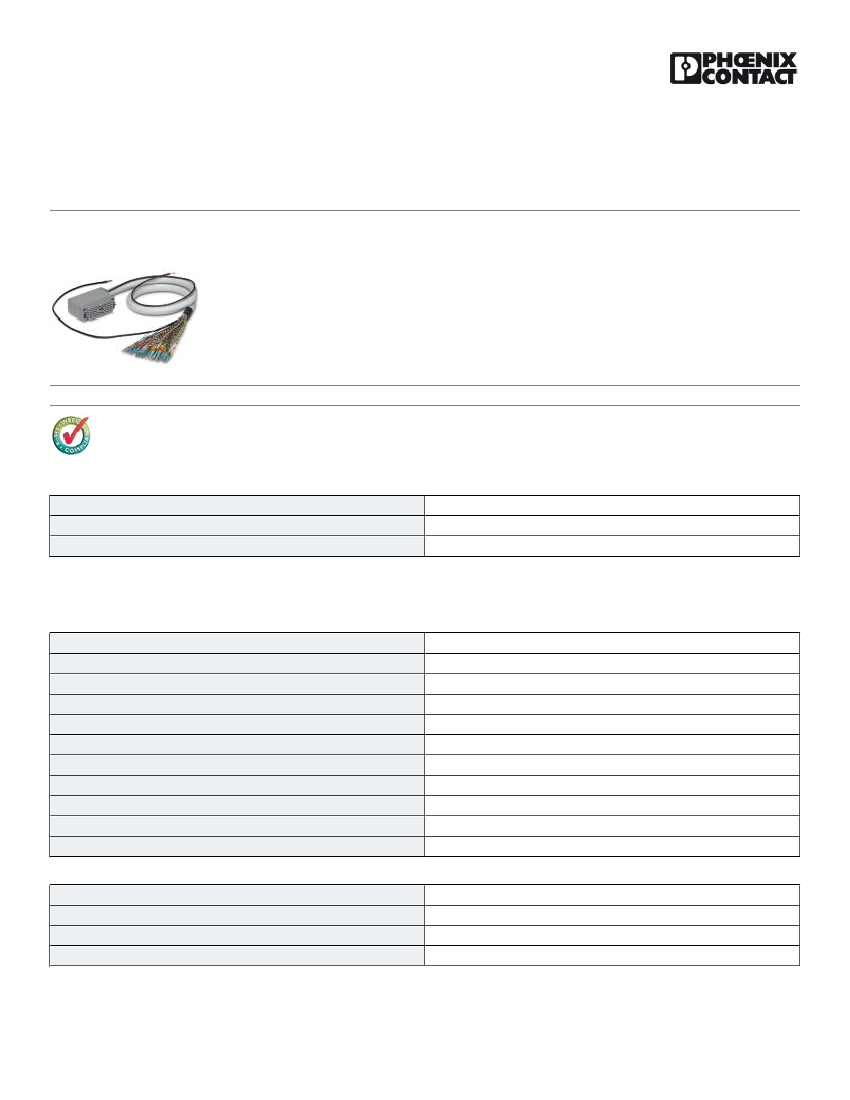

Cable - CABLE-EC56/F/OE/0,34/S/15,0M - 2903401
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Shielded cable with a 56-pos. EDAC/ELCO socket and open end. The individual wires are labeled 1 to 54, Y and
Z, and fitted with ferrules. The braided shield is routed to a separate cable end on both sides. Cable length: 15 m
Key Commercial Data
Packing unit
Custom tariff number
Country of origin
1 pc
85444290
Germany
Technical data
General
Nominal voltage U
N
Max. current carrying capacity per path
Max. conductor resistance
Length of cable
Single wire, cross section
Conductor construction: Number of litz wires:
Single wire, material
External diameter
Shielding
25 V AC
60 V DC
1.5 A
≤ 0.056 Ω/m (at 20 °C)
15 m
0.34 mm²
19
Cu uninsulated
14.2 mm
yes
Tinned copper-braided shield, approx. 85% covering
Environmental conditions
Ambient temperature (operation)
Ambient temperature (storage/transport)
Flame resistance
-20 °C ... 60 °C
-20 °C ... 70 °C
IEC 60332-1
DIN VDE 0482 Part 332-1
10/29/2015 Page 1 / 3
https://www.phoenixcontact.com/us/products/2903401
Cable - CABLE-EC56/F/OE/0,34/S/15,0M - 2903401
Technical data
Connector, module side
Connection method
Number of connections
Number of positions
AWG conductor cross section
EDAC/ELCO socket strip
1
56
22
Connector, controller side
Connection method
Number of positions
Open end
56
Classifications
eCl@ss
eCl@ss 4.0
eCl@ss 4.1
eCl@ss 5.0
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
eCl@ss 8.0
27060306
27060306
27061801
27061801
27061801
27061801
27249205
ETIM
ETIM 3.0
ETIM 4.0
ETIM 5.0
EC000237
EC000830
EC000237
UNSPSC
UNSPSC 6.01
UNSPSC 7.0901
UNSPSC 11
UNSPSC 12.01
UNSPSC 13.2
26121620
26121620
26121620
26121620
26121620
Approvals
Approvals
Approvals
EAC
10/29/2015 Page 2 / 3
https://www.phoenixcontact.com/us/products/2903401
Cable - CABLE-EC56/F/OE/0,34/S/15,0M - 2903401
Approvals
Ex Approvals
Approvals submitted
Approval details
EAC
Drawings
Dimensional drawing
81
60,5
46,5
22,5
Individual
wire
marking
Connection diagram
EDAC socket
plug-in
connector
Individual
wire
marking
EDAC socket
plug-in
connector
A
N
N
Z
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
Z
A
B
C
D
E
F
H
J
K
L
M
N
P
R
S
T
U
V
W
X
a
b
c
d
e
f
h
j
k
l
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
Y
m
n
p
r
s
t
u
v
w
x
y
z
AA
BB
CC
DD
EE
FF
HH
JJ
KK
LL
MM
NN
Y
Phoenix Contact 2015 © - all rights reserved
http://www.phoenixcontact.com
71,2
10/29/2015 Page 3 / 3
