Four Port Industrial Ethernet
Serial Servers
VESR424 Series
PRODUCT FEATURES
•
•
•
•
•
•
Ruggedized for extreme applications
UL Class 1/Division 2
-40 to +80 C° operating temperature
Shock and vibration tested
Dual Ethernet ports with fiber options
NEMA TS2 (Model# VESR424D)
Vlinx
™
VESR424 series Serial Servers connect serial devices (RS-232, RS-
422 or RS-485) to Ethernet networks, allowing the serial device to become
a node on the network. Serial ports can be accessed over a LAN/WAN using
Direct IP Mode, Virtual COM Port, or Paired Mode connections. VESR424
series Serial Servers feature 10BaseT or 100BaseTX copper network
media and several fiber optic media options, depending on the model.
Many models feature an additional copper Ethernet pass-through port.
These Class 1/Division 2 VESR424 series Serial Servers are built for use in
industrial environments with heavy duty metal enclosures that are panel
and DIN rail mountable. The product operates from a range of DC power
supply voltages and features pluggable terminal block power connectors as
well as a locking barrel connector that facilitates redundant power sources.
Fiber Optic Ethernet Ports
Choose a serial server with fiber optic Ethernet ports when the application
requires long distance runs or high RFI/EMI noise is present. Many
applications require a high level of noise immunity and fiber eliminates this
problem between devices. Fiber optic connections far exceed the 100m
limitation of standard Ethernet copper ports. Multi-mode fiber can be
extended up to 2km distance while single-mode fiber can run as far as 20km.
Ease of Use
Configuration, upgrades and monitoring of the serial server are simple,
Easy tasks with Vlinx
™
Manager Software. It installs right on your PC giving
you access to the serial server via your desktop. Remotely manage the
serial server over a LAN or WAN via the build-in web server. This is helpful
for off-site troubleshooting and can be done with a simple web browser.
ORDERING INFORMATION
MODEL
NUMBER
VESR424D
†
VESR424D-MC
VESR424D-MT
VESR424D-SC
VESR424D-ST
VESR424T
VESR424T-MC
VESR424T-MT
VESR424T-SC
VESR424T-ST
ETHERNET
PORTS
2
2
2
2
2
2
2
2
2
2
ETHERNET
CONNECTOR 1
ETHERNET
CONNECTOR
2
RJ-45
RJ-45
Multi-mode SC RJ-45
Multi-mode ST RJ-45
Single-mode SC RJ-45
Single-mode ST RJ-45
RJ-45
RJ-45
Multi-mode SC RJ-45
Multi-mode ST RJ-45
Single-mode SC RJ-45
Single-mode ST RJ-45
SERIAL
CONNECTOR
(X4)
DB9 Male
DB9 Male
DB9 Male
DB9 Male
DB9 Male
Terminal Block
Terminal Block
Terminal Block
Terminal Block
Terminal Block
Mounting included: DIN Rail Kit and Panel Mount Kit
†
NEMA TS2
ACCESSORIES
MDR-40-24
- DIN rail mount power supply 24VDC, 1.7 A output power
ERS35
- 1 M DIN Rail, 35MM STEEL
WWW.BB-SMARTWORX.COM
|
ENABLING CONNECTED INTELLIGENCE
VESR424 Series_4315ds
Four Port Industrial
Ethernet Serial Servers
VESR424 Series
SPECIFICATIONS
SERIAL TECHNOLOGY
RS-232 (DB9)
TD, RD, DTR, DSR, RTS, CTS, DCD plus Signal Ground
RS-232 (terminal block) TD, RD, RTS, CTS, plus Signal Ground
RS-485 2-Wire
Data A(-), Data B(+), GND
RS-422/485 4-Wire
TDA(-), TDB(+), RDA(-), RDB(+), GND
Serial Connector
DB9M or Removable Terminal Blocks
Data Rate
Up to 230.4 Kbps
FIBER OPTIC TECHNOLOGY
VESR424x-Mx
VESR424-Sx
Type / Wavelength
Multi-mode / 1310 nm
Single-mode / 1310 nm
Output Power
(-) 19 to (-) 14 dBm
(-) 15 to (-) 8 dBm
Receive Sensitivity
< / = (-) 32 dBm
< / = (-) 32 dBm
Cable
62.5 / 125 µm
9 / 125 µm
Connector
SC or ST
SC or ST
Range
2 km (1.2 miles)
20 km (12.4 miles)
POWER
Source
External
Input Voltage
10 to 48 VDC (58 VDC maximum)
Connector
Removable Terminal Block (16 – 28 AWG)
Power Consumption
6.0 Watts Max.
MECHANICAL
LED Indicators
Serial Port, Ethernet Link, Speed
Switches
Reset Button
Dimensions
17.145 x 11.237 x 4.572 cm (6.750 x 4.424 x 1.800 in)
Enclosure
35 mm DIN Rail, Panel Mount, metal, IP30
ENVIRONMENTAL
Operating Temperature
-40 to 80°C (-40 to 176°F)
Operating Humidity
10 to 95% Non-condensing
MTBF
VESR424: 70273 hours
MTBF Calc Method
Parts Count Reliability Prediction
NETWORK
Serial Memory
8 KB per port
Network Memory
4 KB
NETWORK COMMUNICATIONS
LAN
10/100 Mbps Auto-detecting, 10BaseT or 100BaseTX
NETWORK PHYSICAL LAYER STANDARDS
IEEE 802.3 auto detecting & auto MDI/MDX, 10BaseT and
Ethernet
100Base TX
PROTOCOLS
Protocols
TCP, IPv4, UDP, ARP, HTTP 1.0, ICMP/PING, DHCP/BOOTP
IP Mode
Static, DHCP
TCP/UDP
User definable
OTHER
Connection Mode
Server, Client, VCOM, Paired
Client Connection
At power up or upon data arrival
Search
Serial direct COM and Ethernet Auto Search or specific IP
Diagnostics
Display PC IP, ping, test VCOM
Firmware Upgrade
Vlinx Manager
ETHERNET PASS-THROUGH PORT (VESR424)
Standards
IEEE 802.3, 802.3u, 802.3x
Store and Forward with 802.3x full duplex, non blocking
Processing Type
flow control
Flow Control
IEEE 802.3x flow control, back pressure flow control
CONFIGURATION SOFTWARE
Windows 2000, XP (32/64 bit), 2003 Server (32/64 bit),
OS Compatibility
Vista (32/64 bit), 2008 Server (32/64 bit), Windows 7
(32/64 bit)
REGULATORY / CERTIFICATIONS / SAFETY
Compliance
FCC, Part 15 Class A, CE,
UL Class 1/Division 2
Shock IEC 600068-2-27
Vibration IEC 600068-2-6
NEMA TS2 (Model# VESR424D)

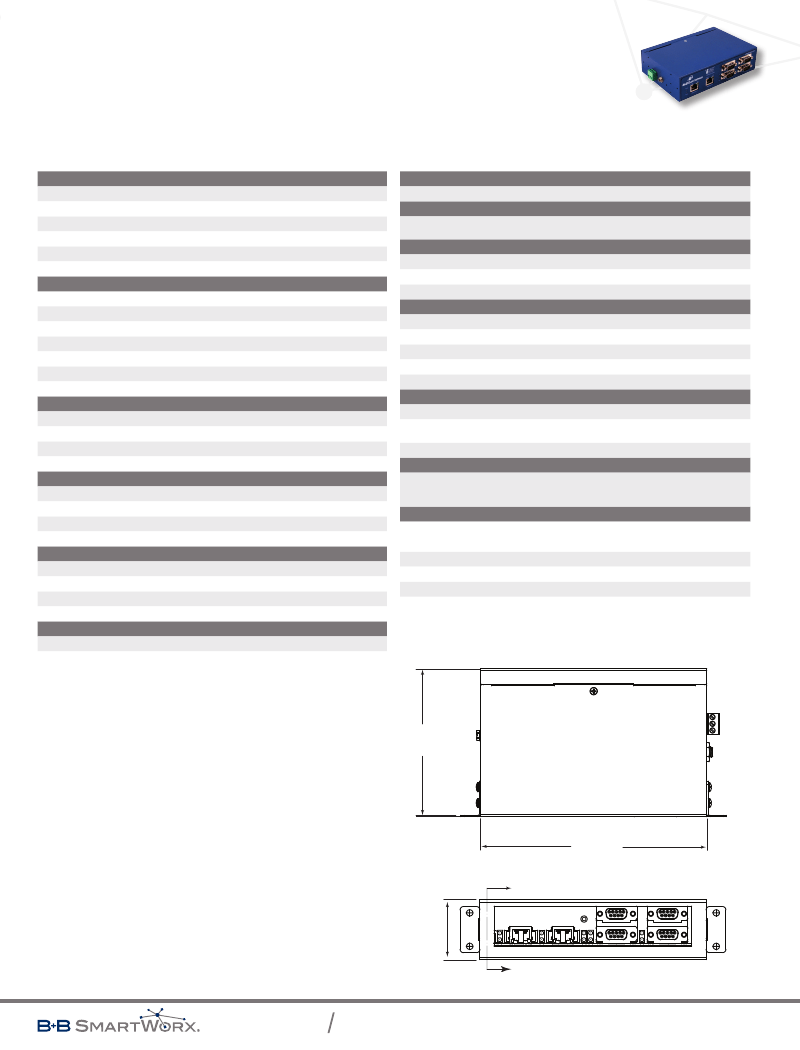

MECHANICAL DIAGRAM
11.237 cm
4.424 in
11.237 cm
4.424 in
17.145 cm
6.750 in
17.145 cm
6.750 in
A
4.572 cm
1.800 in
4.572 cm
1.800 in
A
A
