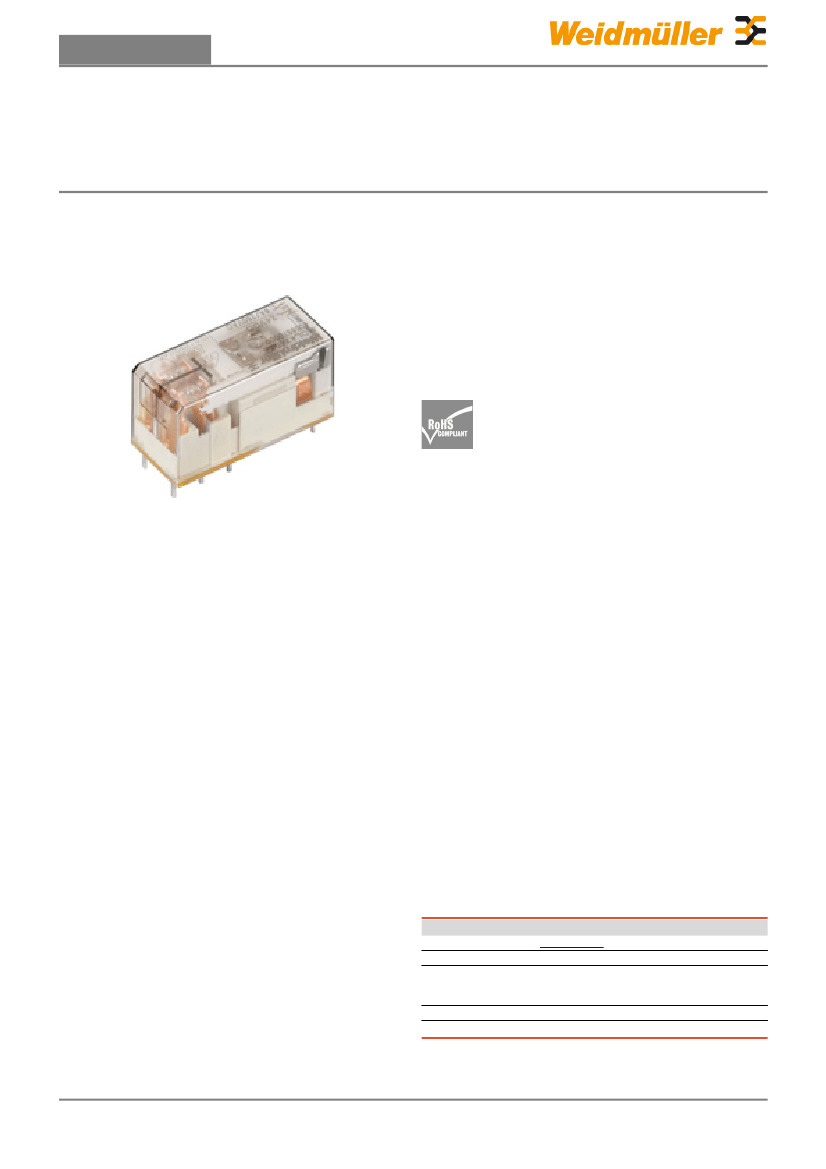

Standard relays in the RIDERSERIES RCL
• 2 CO contacts
• Low height of 15.7 mm
General ordering data
Order No.
Type
Version
GTIN (EAN)
Qty.
8693790000
RCL424005
RIDERSERIES, Relais, No. of contacts: 2, CO
contact, AgNi 90/10, Rated control voltage: 5 V
DC, Continuous current: 8 A, Plug-in connection
4032248365258
20 pc(s).
Creation date April 1, 2013 11:03:09 PM CEST
Catalogue status 20.12.2012 / We reserve the right to make technical changes.
1
Data sheet...
RIDERSERIES
RCL424005
Weidmüller Interface GmbH & Co. KG
Klingenbergstraße 16
D-32758 Detmold
Germany
Fon: +49 5231 14-0
Fax: +49 5231 14-292083
www.weidmueller.com
Technical data
Humidity
Ratings
Conductor connection system
Weight
Plug-in connection
13 g
UL 94 flammability rating
40 °C / 93 % rel. humidity,
no condensation
V-0
Dimensions and weights
Width
Depth
Net weight
12.7 mm
15.7 mm
14.65 g
Height
Weight
29 mm
13 g
Temperatures
Operating temperature
-40 °C...+70 °C
Storage temperature
-40 °C...+85 °C
Input
Rated control voltage
5 V DC
Coil resistance
90 Ω ±10 %
Pull-in (sparkover) / drop-out voltage DC
coil
4.2 V / 0.6 V
Rated current DC
Power rating
66.7 mA
400 mW
Output
Rated switching voltage
making current
Switch-on delay
Min. switching power
250 V AC
15 A / 4 s
≤ 8 ms
100 mA / 5 V, 10 V / 10
mA, 24 V / 1 mA
Continuous current
8A
Max. switching power
2000 VA
Switch-off delay
≤ 6 ms
Max. switching frequency at rated load
0.1 Hz
Contact specifications
No. of contacts
Contact material
2
AgNi 90/10
Contact design
Mechanical service life
CO contact
AC coil 5 x 10
6
Switching
cycles, DC coil 30 x 10
6
Switching cycles
Insulation coordination
Rated voltage
250 V
Dielectric strength for control side - load
5 kV
eff
/ 1min
side
Insulating material group
IIIa
Clearance and creepage distances for
control side - load side
Protection degree
≥ 10 mm
IP 20
Other technical data
Version
Relay
Free-wheel diode
No
Further details of approvals / standards
Standards
IEC 61810-1, UL508
Creation date April 1, 2013 11:03:09 PM CEST
Catalogue status 20.12.2012 / We reserve the right to make technical changes.
2
Data sheet...
RIDERSERIES
RCL424005
Weidmüller Interface GmbH & Co. KG
Klingenbergstraße 16
D-32758 Detmold
Germany
Fon: +49 5231 14-0
Fax: +49 5231 14-292083
www.weidmueller.com
Technical data
EC001437
30-21-19-17
27-37-16-01
27-37-16-01
ETIM 3.0
eClass 4.1
eClass 6.0
Classifications
ETIM 2.0
UNSPSC
eClass 5.1
eClass 7.0
EC001437
40-02-06-14
27-37-16-01
Approvals
Approvals
Creation date April 1, 2013 11:03:09 PM CEST
Catalogue status 20.12.2012 / We reserve the right to make technical changes.
3
Data sheet...
RIDERSERIES
RCL424005
Weidmüller Interface GmbH & Co. KG
Klingenbergstraße 16
D-32758 Detmold
Germany
Fon: +49 5231 14-0
Fax: +49 5231 14-292083
www.weidmueller.com
Drawings

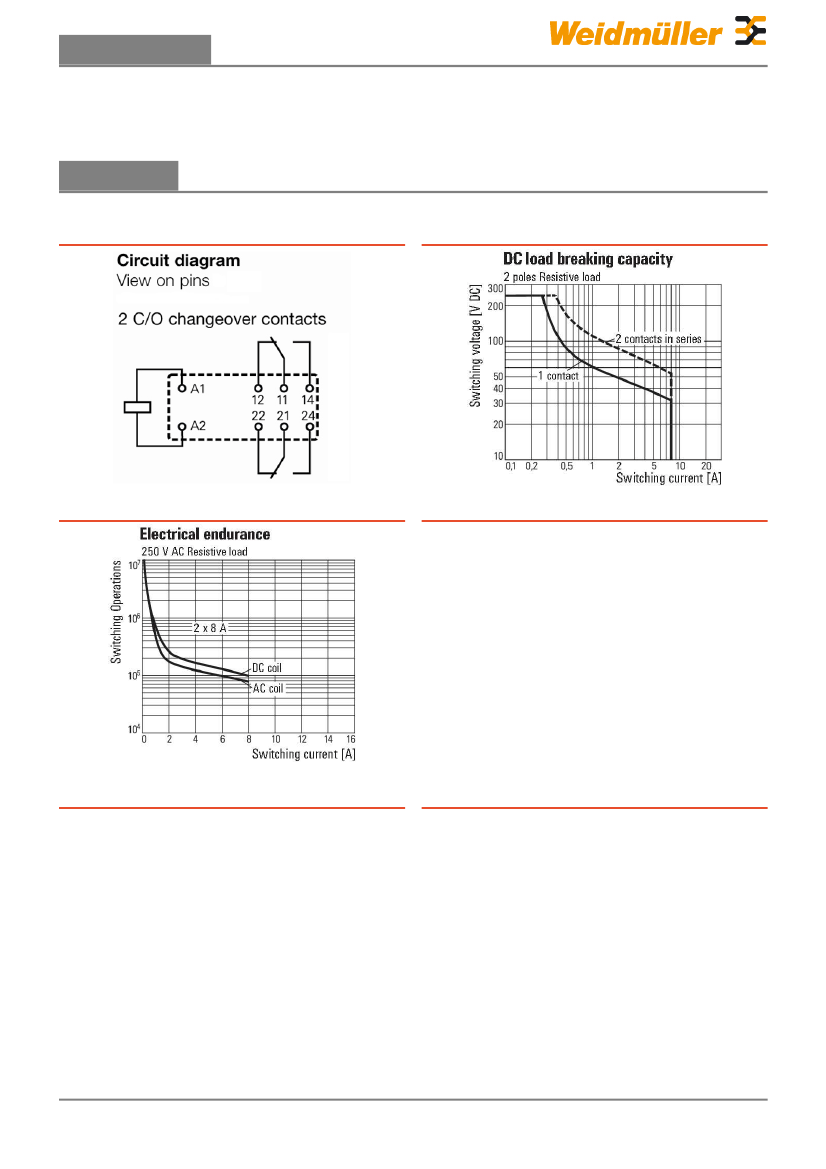

Pinning
