164A10589X: DescriptionCONN D-SUB RCPT 25POS R/A SOLDER; CategoryThe connector The connector; File Size179KB，1 Pages; ManufacturerCONEC; Websitehttp://www.conec.com

Download Datasheet Parametric Compare View All

164A10589X Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	164A10589X	-	-	View	Buy Now

164A10589X Overview

CONN D-SUB RCPT 25POS R/A SOLDER

164A10589X Parametric

Parameter Name	Attribute value
Maker	CONEC
Reach Compliance Code	compliant
body width	0.509 inch
body length	2.103 inch
Body/casing type	PLUG
Contact to complete cooperation	AU ON NI
Contact point gender	FEMALE
Contact material	COPPER ALLOY
contact mode	STAGGERED
Contact resistance	10 mΩ
Contact style	RND PIN-SKT
Dielectric withstand voltage	1000VAC V
maximum insertion force	3.336 N
Insulation resistance	5000000000 Ω
insulator material	GLASS FILLED POLYESTER
Manufacturer's serial number	164
Plug contact pitch	0.109 inch
Installation option 1	M3
Installation option 2	THREADED
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
PCB contact pattern	STAGGERED
PCB contact row spacing	2.8448 mm
Rated current (signal)	5 A
Guideline	UL
reliability	COMMERCIAL
Shell surface	TIN OVER NICKEL
Shell material	STEEL
Terminal pitch	2.7686 mm
Termination type	SOLDER
Total number of contacts	25
Evacuation force-minimum value	3.336 N

Preview

Download Datasheet

View All

Home |

Contact |

Catalogue |

Requests

|

Custom Solution |

News |

Information |

On-line Help

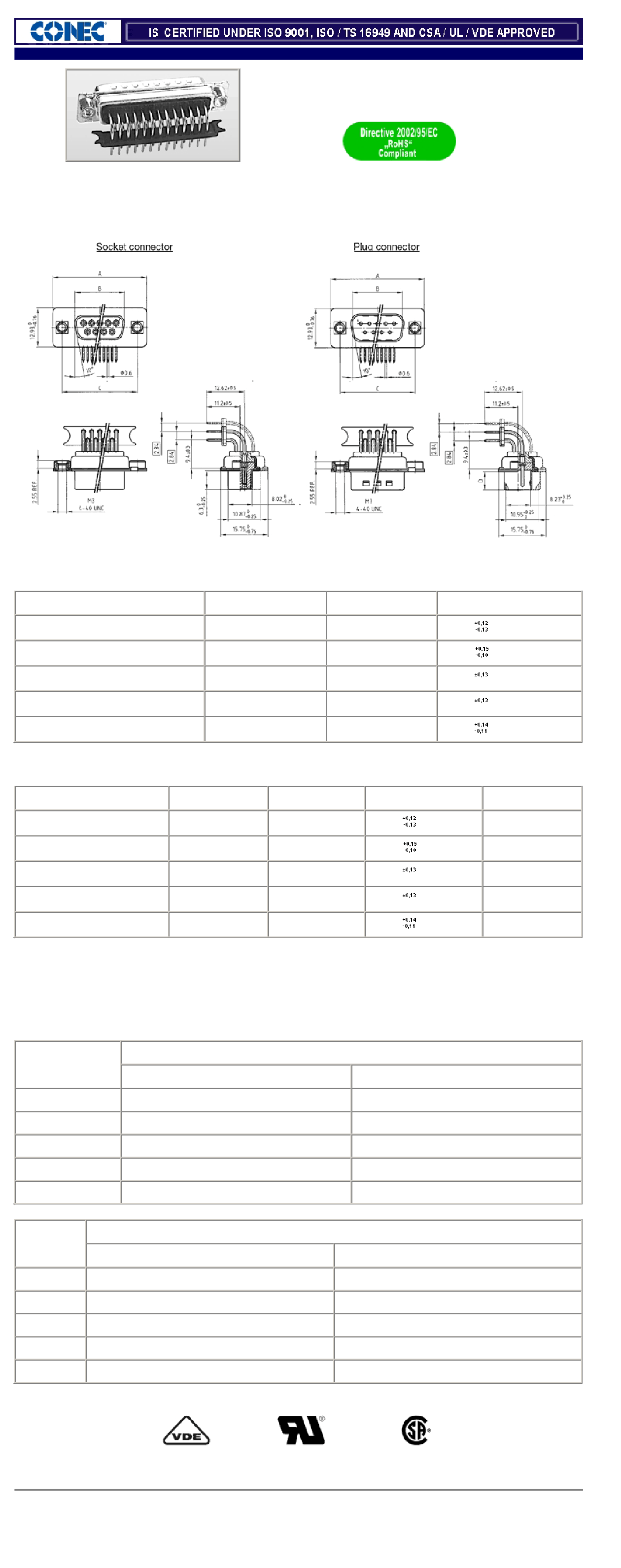

D-Sub Connector

Solder pin angled .370"

with threaded insert

( click on the schematic(s) for a more detailed view )

Socket connector:

No. of pos.

9

15

25

37

50

31,19

39,52

53,42

69,70

67,31

A

- 0,76

16,46

24,79

38,50

54,96

52,55

Plug connector:

No. of pos.

9

15

25

37

50

A

- 0,76

31,19

39,52

53,42

69,70

67,31

B

+0,25

16,79

25,12

38,84

55,30

52,68

25,00

33,30

47,04

63,50

61,10

C

6,12

5,99

D

- 0,30

B

- 0,25

25,00

33,30

47,04

63,50

61,10

C

Part Numbers

No.of

Pos.

9

15

25

37

50

Socket connector tin - plated

UNC 4 - 40

164 A 10519 X

164 A 10529 X

164 A 10539 X

164 A 10549 X

164 A 10559 X

164 A 10569 X

164 A 10579 X

164 A 10589 X

164 A 10599 X

164 A 10609 X

M3

No.of

Pos.

9

15

25

37

50

163 A 11569 X

163 A 11579 X

163 A 11589 X

163 A 11599 X

163 A 11609 X

Plug connector tin - plated with ground indent

UNC 4 - 40

163 A 11619 X

163 A 11629 X

163 A 11639 X

163 A 11649 X

163 A 11659 X

M3

REG.-Nr. 40000440

File #: E202784

File #: LR115000

164A10589X Related Products

	164A10589X	164A10529X	163A11579X	163A11589X	164A10519X	163A11599X	164A10539X	164A10549X	163A11609X
Description	CONN D-SUB RCPT 25POS R/A SOLDER	CONN D-SUB RCPT 15POS R/A SOLDER	CONN D-SUB PLUG 15POS R/A	CONN D-SUB PLUG 25POS R/A	CONN D-SUB RCPT 9POS R/A SOLDER	CONN D-SUB PLUG 37POS R/A	CONN D-SUB RCPT 25POS R/A SOLDER	CONN D-SUB RCPT 37POS R/A SOLDER	CONN D-SUB PLUG 50POS R/A
Contact material	COPPER ALLOY	COPPER ALLOY	-	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	-	-	-
Installation type	BOARD	BOARD	Through hole, right angle	BOARD	BOARD	BOARD	Through hole, right angle	Through hole, right angle	Through hole, right angle
Shell material	STEEL	STEEL	-	STEEL	STEEL	STEEL	-	-	-
Reach Compliance Code	compliant	compliant	-	compliant	compliant	compliant	-	-	-
body width	0.509 inch	0.509 inch	-	0.509 inch	0.509 inch	0.509 inch	-	-	-
body length	2.103 inch	1.556 inch	-	2.103 inch	1.228 inch	2.744 inch	-	-	-
Body/casing type	PLUG	PLUG	-	RECEPTACLE	PLUG	RECEPTACLE	-	-	-
Contact to complete cooperation	AU ON NI	AU ON NI	-	AU ON NI	AU ON NI	AU ON NI	-	-	-
Contact point gender	FEMALE	FEMALE	-	MALE	FEMALE	MALE	-	-	-
contact mode	STAGGERED	STAGGERED	-	STAGGERED	STAGGERED	STAGGERED	-	-	-
Contact resistance	10 mΩ	10 mΩ	-	10 mΩ	10 mΩ	10 mΩ	-	-	-
Contact style	RND PIN-SKT	RND PIN-SKT	-	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	-	-	-
Dielectric withstand voltage	1000VAC V	1000VAC V	-	1000VAC V	1000VAC V	1000VAC V	-	-	-
maximum insertion force	3.336 N	3.336 N	-	3.336 N	3.336 N	3.336 N	-	-	-
Insulation resistance	5000000000 Ω	5000000000 Ω	-	5000000000 Ω	5000000000 Ω	5000000000 Ω	-	-	-
insulator material	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	-	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	-	-	-
Manufacturer's serial number	164	164	-	163	164	163	-	-	-
Plug contact pitch	0.109 inch	0.109 inch	-	0.109 inch	0.109 inch	0.109 inch	-	-	-
Installation option 1	M3	#4-40	-	#4-40	#4-40	#4-40	-	-	-
Installation option 2	THREADED	THREADED	-	THREADED	THREADED	THREADED	-	-	-
Installation method	RIGHT ANGLE	RIGHT ANGLE	-	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	-	-	-
PCB row number	2	2	-	2	2	2	-	-	-
Number of rows loaded	2	2	-	2	2	2	-	-	-
Maximum operating temperature	125 °C	125 °C	-	125 °C	125 °C	125 °C	-	-	-
Minimum operating temperature	-55 °C	-55 °C	-	-55 °C	-55 °C	-55 °C	-	-	-
PCB contact pattern	STAGGERED	STAGGERED	-	STAGGERED	STAGGERED	STAGGERED	-	-	-
PCB contact row spacing	2.8448 mm	2.8448 mm	-	2.8448 mm	2.8448 mm	2.8448 mm	-	-	-
Rated current (signal)	5 A	5 A	-	5 A	5 A	5 A	-	-	-
Guideline	UL	UL	-	UL	UL	UL	-	-	-
reliability	COMMERCIAL	COMMERCIAL	-	COMMERCIAL	COMMERCIAL	COMMERCIAL	-	-	-
Shell surface	TIN OVER NICKEL	TIN OVER NICKEL	-	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL	-	-	-
Terminal pitch	2.7686 mm	2.7686 mm	-	2.7686 mm	2.7686 mm	2.7686 mm	-	-	-
Termination type	SOLDER	SOLDER	-	SOLDER	SOLDER	SOLDER	-	-	-
Total number of contacts	25	15	-	25	9	37	-	-	-
Evacuation force-minimum value	3.336 N	3.336 N	-	3.336 N	3.336 N	3.336 N	-	-	-
