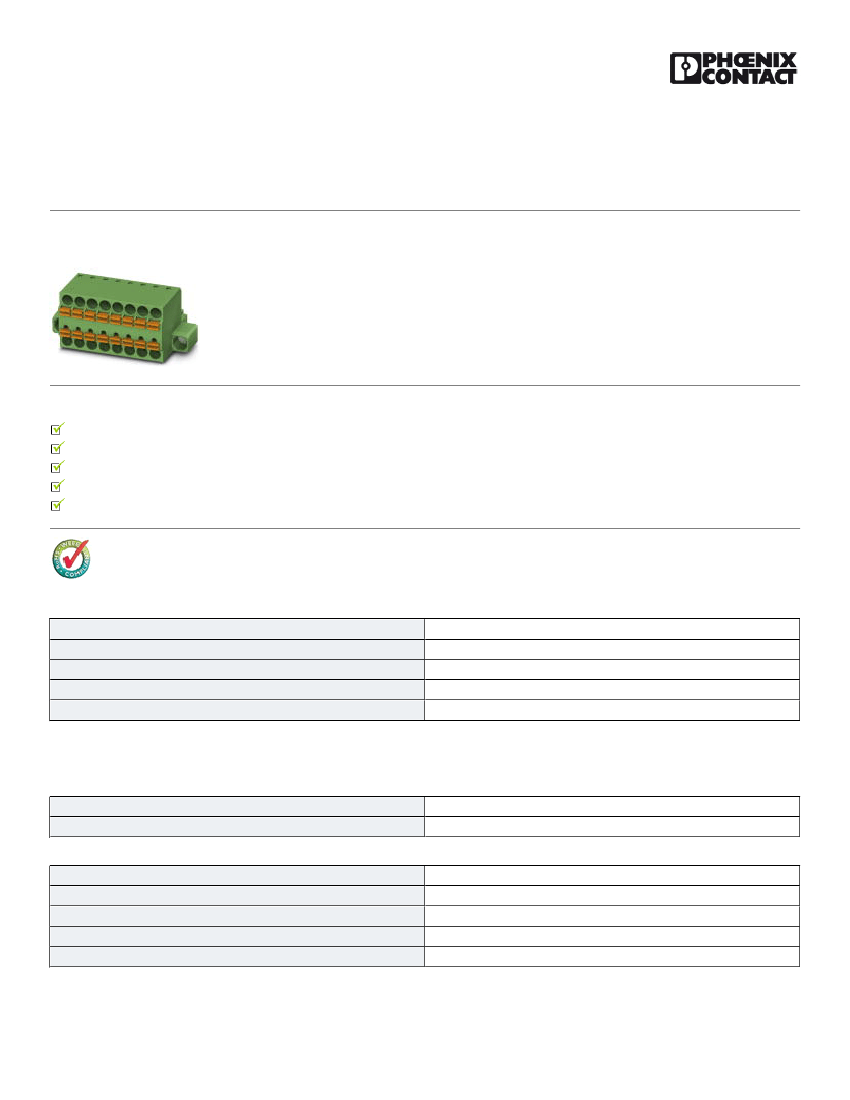

Printed-circuit board connector - TFMC 1,5/ 6-STF-3,5 - 1772744
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Plug component, Nominal current: 8 A, Rated voltage (III/2): 160 V, Number of positions: 6, Pitch: 3.5 mm,
Connection method: Spring-cage connection, Color: green, Contact surface: Tin
Product Features
Fast conductor connection thanks to Push-in spring-cage connection
Very compact, front TWIN connection for 1.5 mm²
Touch connection for voltage testing using a 1 mm Ø test pin
Two connections per position
Signal distribution of up to 8 A directly on the device
Key commercial data
Packing unit
Minimum order quantity
Weight per Piece (excluding packing)
Custom tariff number
Country of origin
1 pc
50 pc
5.0 GRM
85366990
Poland
Technical data
Dimensions
Pitch
Dimension a
3.5 mm
17.5 mm
General
Range of articles
Insulating material group
Rated surge voltage (III/3)
Rated surge voltage (III/2)
Rated surge voltage (II/2)
TFMC 1,5/..-STF
I
2.5 kV
2.5 kV
2.5 kV
08/22/2014 Page 1 / 4
https://www.phoenixcontact.com/us/products/1772744
Printed-circuit board connector - TFMC 1,5/ 6-STF-3,5 - 1772744
Technical data
General
Rated voltage (III/3)
Rated voltage (III/2)
Rated voltage (II/2)
Connection in acc. with standard
Nominal current I
N
Nominal cross section
Maximum load current
Insulating material
Inflammability class according to UL 94
Internal cylindrical gage
Stripping length
Number of positions
160 V
160 V
320 V
EN-VDE
8A
1.5 mm²
8A
PA
V0
A1
10 mm
6
Connection data
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section stranded min.
Conductor cross section stranded max.
Conductor cross section stranded, with ferrule without plastic sleeve min.
Conductor cross section stranded, with ferrule without plastic sleeve max.
Conductor cross section stranded, with ferrule with plastic sleeve min.
Conductor cross section stranded, with ferrule with plastic sleeve max.
Conductor cross section AWG/kcmil min.
Conductor cross section AWG/kcmil max
Minimum AWG according to UL/CUL
Maximum AWG according to UL/CUL
0.2 mm²
1.5 mm²
0.2 mm²
1.5 mm²
0.25 mm²
1.5 mm²
0.25 mm²
0.75 mm²
24
16
24
16
Classifications
eCl@ss
eCl@ss 4.0
eCl@ss 4.1
eCl@ss 5.0
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
eCl@ss 8.0
272607xx
27260701
27260701
27260701
27260704
27440402
27440309
08/22/2014 Page 2 / 4
https://www.phoenixcontact.com/us/products/1772744
Printed-circuit board connector - TFMC 1,5/ 6-STF-3,5 - 1772744
Classifications
ETIM
ETIM 3.0
ETIM 4.0
ETIM 5.0
EC001121
EC002638
EC002638
UNSPSC
UNSPSC 6.01
UNSPSC 7.0901
UNSPSC 11
UNSPSC 12.01
UNSPSC 13.2
30211810
39121409
39121409
39121409
39121409
Approvals
Approvals
Approvals
UL Recognized / cUL Recognized / GOST / cULus Recognized
Ex Approvals
Approvals submitted
Approval details
UL Recognized
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
24-16
8A
300 V
B
24-16
8A
50 V
C
08/22/2014 Page 3 / 4
https://www.phoenixcontact.com/us/products/1772744
Printed-circuit board connector - TFMC 1,5/ 6-STF-3,5 - 1772744
Approvals
cUL Recognized
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
24-16
8A
300 V
B
24-16
8A
50 V
C
GOST
cULus Recognized

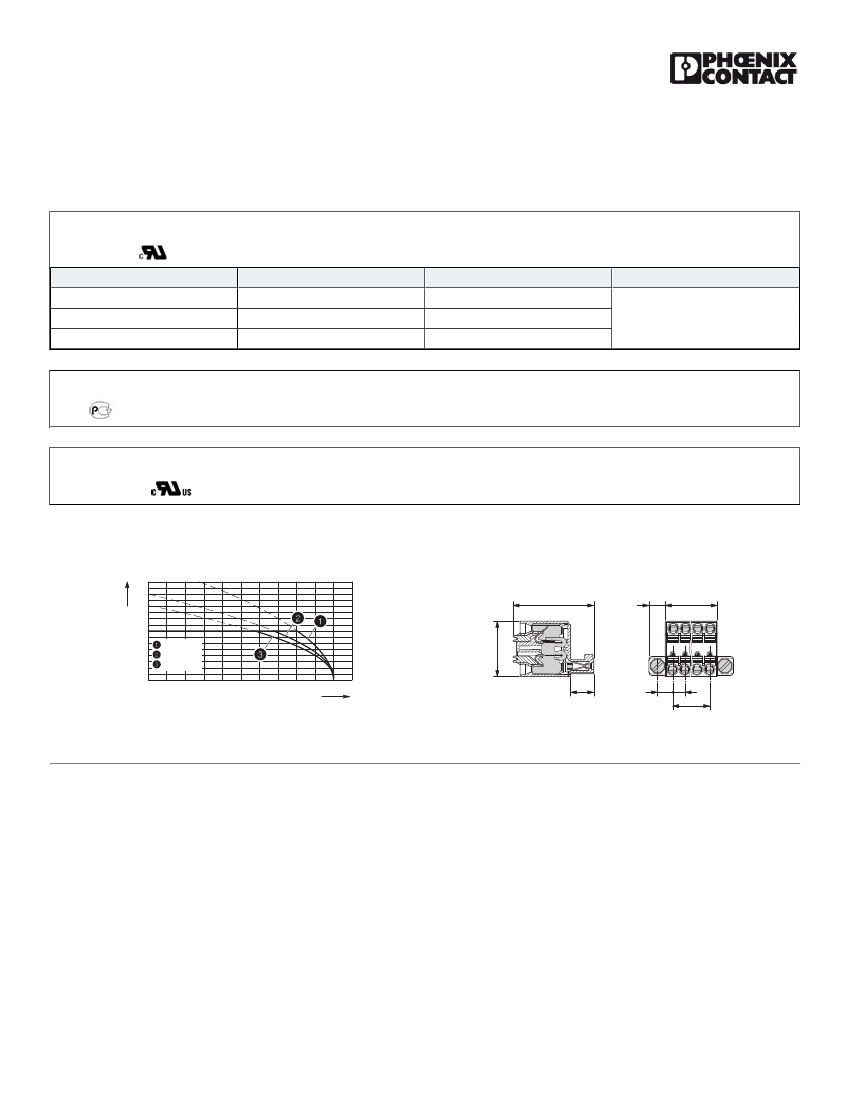

Drawings
Diagram
16
14
12
10
8
6
4
2
0
0
Current strength [A]
Dimensioned drawing
22,9
4,7
a+4,3
= 2-pos.
= 5-pos.
= 10-pos.
20
40
60
80
100
15,7
6,6
4,3
3,5
a
Ambient temperature [°C]
Type: TFMC 1,5/...-STF-3,5 with MC 1,5/...-GF-3,5
Phoenix Contact 2014 © - all rights reserved
http://www.phoenixcontact.com
08/22/2014 Page 4 / 4
