133-3901-406 datasheet, PDF - EEWORLD Datasheet

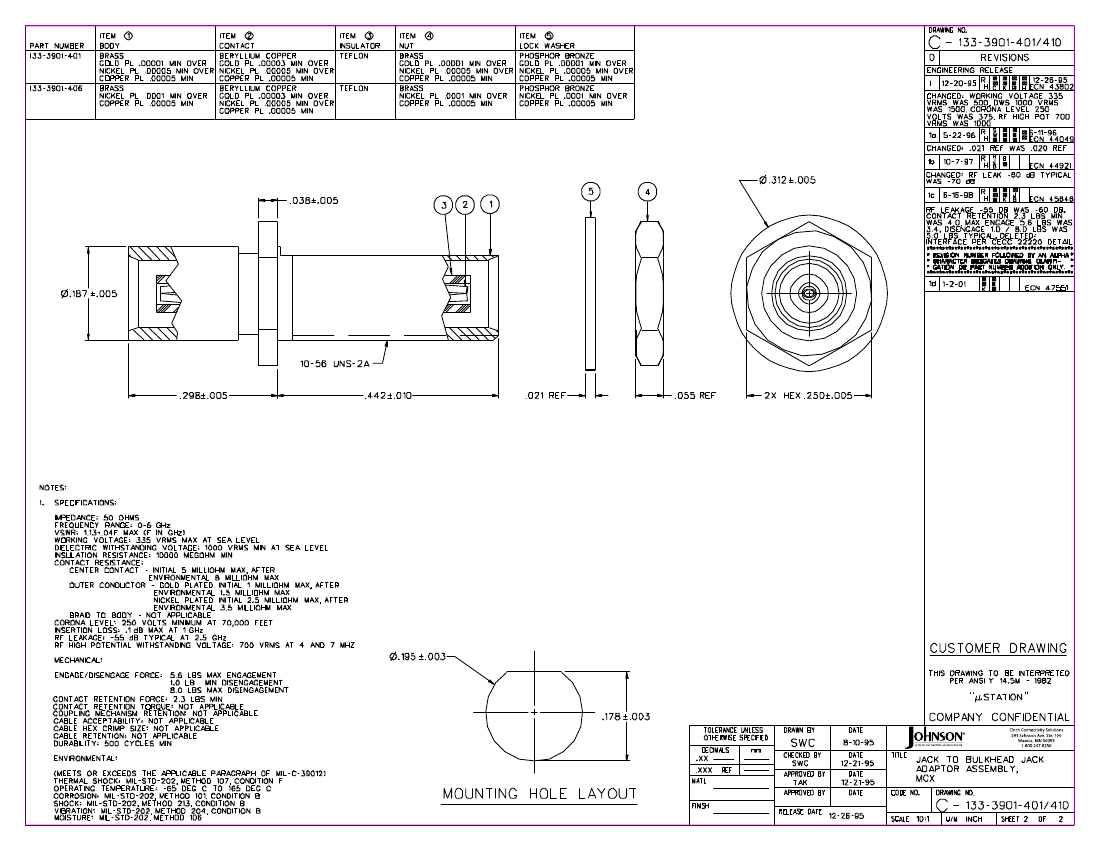

133-3901-406: DescriptionCONN ADAPT JACK-JACK MCX 50OHM; CategoryThe connector; File Size431KB，1 Pages; ManufacturerCINCH; Environmental Compliance

Download Datasheet Parametric Compare View All

133-3901-406 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	133-3901-406	-	-	View	Buy Now

CONN ADAPT JACK-JACK MCX 50OHM

Parameter Name	Attribute value
Adapter type	jack to jack
conversion type	Same series
Adapter series	MCX to MCX
neutral	mother form to mother form
Convert from (adapter side)	MCX jack, female jack
Convert to (adapter side)	MCX jack, female jack
impedance	50 ohms
style	Straight
Installation type	Panel mounting
Installation features	Through-panel type
Fastening type	snap-in, snap-in
Frequency - maximum	6GHz
Intrusion protection	-
Center contact plating	gold
characteristic	-
include	3 pieces - 1 connector, 1 lock washer, 1 nut
Matrix material	brass
substrate surface	nickel
center contact material	copper beryllium
dielectric materials	Polytetrafluoroethylene (PTFE)
Number of patches	500
Insertion loss	0.1dB
Operating temperature	-65°C ~ 165°C

U

N

C

O

N

TR

O

LL

ED

C

O

PY

	133-3901-406	133-3901-401
Description	CONN ADAPT JACK-JACK MCX 50OHM	CONN ADAPT JACK-JACK MCX 50OHM
Adapter type	jack to jack	jack to jack
conversion type	Same series	Same series
Adapter series	MCX to MCX	MCX to MCX
neutral	mother form to mother form	mother form to mother form
Convert from (adapter side)	MCX jack, female jack	MCX jack, female jack
Convert to (adapter side)	MCX jack, female jack	MCX jack, female jack
impedance	50 ohms	50 ohms
style	Straight	Straight
Installation type	Panel mounting	Panel mounting
Installation features	Through-panel type	Through-panel type
Fastening type	snap-in, snap-in	snap-in, snap-in
Frequency - maximum	6GHz	6GHz
Center contact plating	gold	gold
include	3 pieces - 1 connector, 1 lock washer, 1 nut	3 pieces - 1 connector, 1 lock washer, 1 nut
Matrix material	brass	brass
substrate surface	nickel	gold
center contact material	copper beryllium	copper beryllium
dielectric materials	Polytetrafluoroethylene (PTFE)	Polytetrafluoroethylene (PTFE)
Number of patches	500	500
Insertion loss	0.1dB	0.1dB
Operating temperature	-65°C ~ 165°C	-65°C ~ 165°C
