DATASHEET

ISL8002B

Compact Synchronous Buck Regulator

The

ISL8002B

is a highly efficient, monolithic, synchronous

step-down DC/DC converter that can deliver up to 2A of

continuous output current from a 2.7V to 5.5V input supply. It

uses peak current mode control architecture to allow very low

duty cycle operation. ISL8002B operates at a 2MHz switching

frequency, thereby providing superior transient response and

allowing for the use of a small inductor. ISL8002B also has

excellent stability.

The ISL8002B integrates very low r

DS(ON)

MOSFETs in order to

maximize efficiency. In addition, since the high-side MOSFET is a

PMOS, the need for a boot capacitor is eliminated, thereby

reducing external component count.

The device can be configured for either PFM (discontinuous

conduction) or PWM (continuous conduction) operation at light

load. PFM provides high efficiency by reducing switching

losses at light loads and PWM for fast transient response,

which helps reduce the output noise and RF interference.

The device is offered in a space saving 8 Ld 2mmx2mm TDFN

Pb-free package with exposed pad for improved thermal

performance. The complete converter occupies less than

64mm

area.

FN8690

Rev 3.00

October 28, 2016

Features

• V

range 2.7V to 5.5V

• I

OUT

maximum is 2A

• External soft-start programmable

• Output tracking and sequencing

• Switching frequency is 2MHz

• Selectable PFM or PWM operation option

• Overcurrent and short-circuit protection

• Over-temperature/thermal protection

• V

undervoltage lockout and V

OUT

overvoltage protection

• Up to 95% peak efficiency

Applications

• General purpose POL

• Industrial, instrumentation and medical equipment

• FPGAs

• Telecom and networking equipment

• Game console

Related Literature

• For a full list of related documents, visit our website

ISL8002B

product page

ISL8002B

VIN

GND

+2.7 V … +5.5 V 1

VIN

22µF

PHASE 8

PG ND 7

3x10µF

+1.8V/2A

VOUT

4.7pF

200k 1%

100k 1%

200k 1%

100k 1%

T RACK

GND

100

2.5V

OUT

EFFICIENCY (%)

1.8V

OUT

1.5V

OUT

1.2V

OUT

0.9V

OUT

0.8V

OUT

M ODE

FB 6

0.6V

PAD

SS/T R 5

= R



----------- –





VFB



(EQ. 1)

0.0

0.2

0.4

0.6

0.8 1.0 1.2 1.4

OUTPUT LOAD (A)

1.6

1.8

2.0

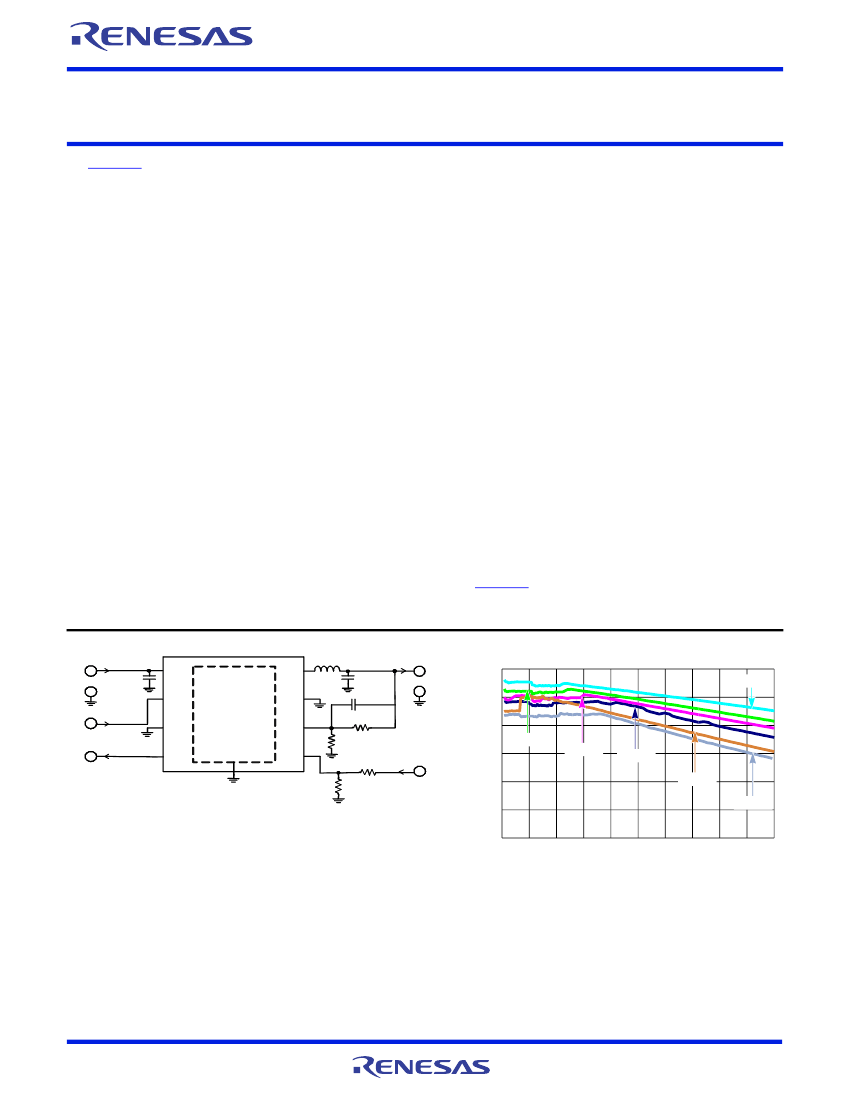

FIGURE 1. TYPICAL APPLICATION CIRCUIT CONFIGURATION (INTERNAL

COMPENSATION OPTION)

FIGURE 2. EFFICIENCY vs LOAD (f

= 2MHz, V

= 3.3V),

MODE = PFM, T

= +25°C

FN8690 Rev 3.00

October 28, 2016

Page 1 of 22
