10038075-B1PLF: DescriptionCONN JACK 4COND 3.5MM SMD R/A; CategoryThe connector The connector; File Size519KB，4 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

10038075-B1PLF Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	10038075-B1PLF	-	-	View	Buy Now

10038075-B1PLF Overview

CONN JACK 4COND 3.5MM SMD R/A

10038075-B1PLF Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Amphenol
package instruction	LEAD FREE
Reach Compliance Code	compliant
Factory Lead Time	10 weeks
Body/casing type	JACK
Configuration	1X1 HORIZONTAL
Connector type	3.5mm AUDIO
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	NOT APPLICABLE
Contact material	NOT SPECIFIED
DIN compliance	NO
IEC compliance	NO
MIL compliance	NO
Installation type	BOARD
Number of poles	4
Number of ports	1
Options	GENERAL PURPOSE
Termination type	SURFACE MOUNT

Preview

Download Datasheet

View All

This document is the property of and embodies CONFIDENTIAL and

PROPRIETARY information of AFCI. No part of the information

shown on this document may be used in any way or disclosed to

others without the written consent of AFCI. C 2016 AFCI

AFCI CONFIDENTIAL

PROD NO

SEE NOTES

4 BREAK TERMINAL

3 TIP SPRING

2 CONTACT

1 HOUSING

ITEM

PART NAME

1,3,5

TER'NO

QTY

t=0.30

C2680

t=0.20

C5210

t=0.20

C5210

PA9T, UL94V-0

MATERIAL

AUDIO JACK

T07-1128

T08-1015

T09-1012

ELX-I-010517

A.C.

S.LIN

SAL

8/08/07

1/27/08

2/16/09

2012-03-06

2012-09-10

2016-01-21

2018-03-21

.X ± 0.38

.XX ± 0.25

0° ±2°

.XXX ± 0.10

JASMINE CHAING

JASON HSU

S. ALOSIUS

BIJU K PAUL

1:1

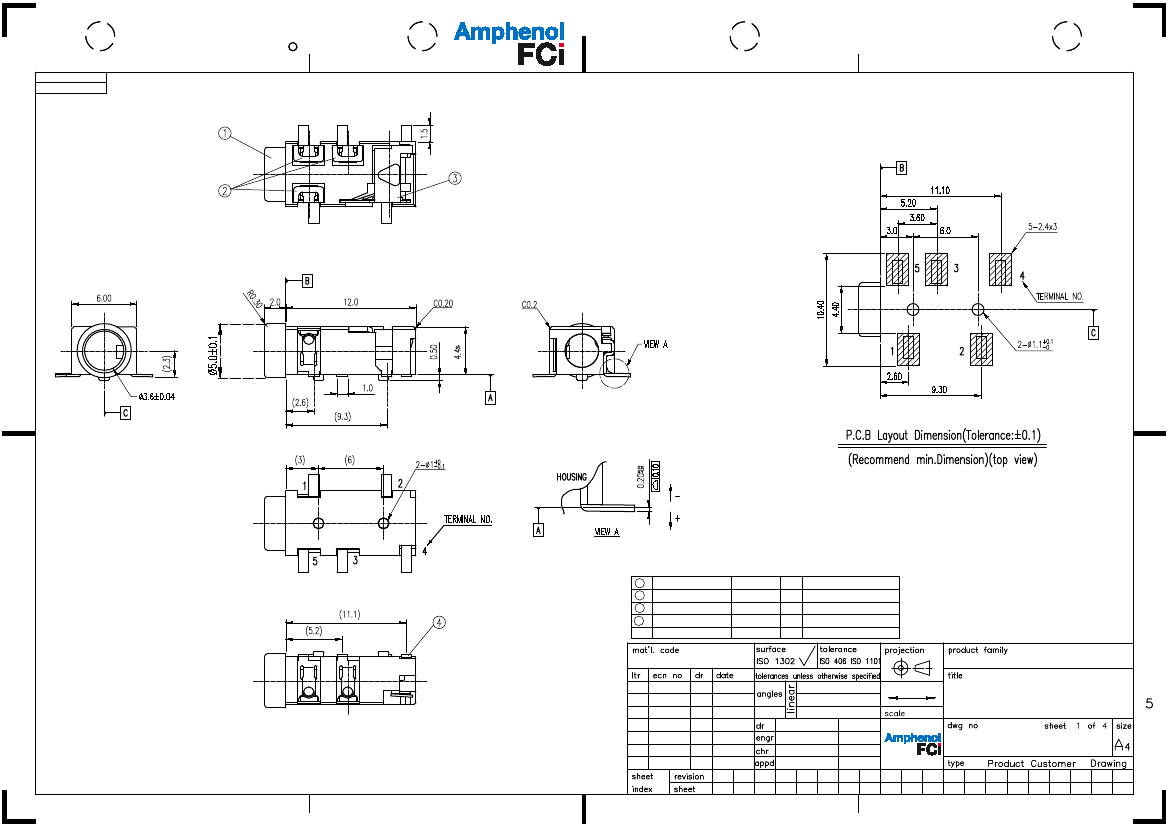

∅3.5 MINIATURE JACK

2004-09-02

2018-03-21

ELX-I-012760 SAL

ELX-I-23089 SAL

ELX-I-29626 AN

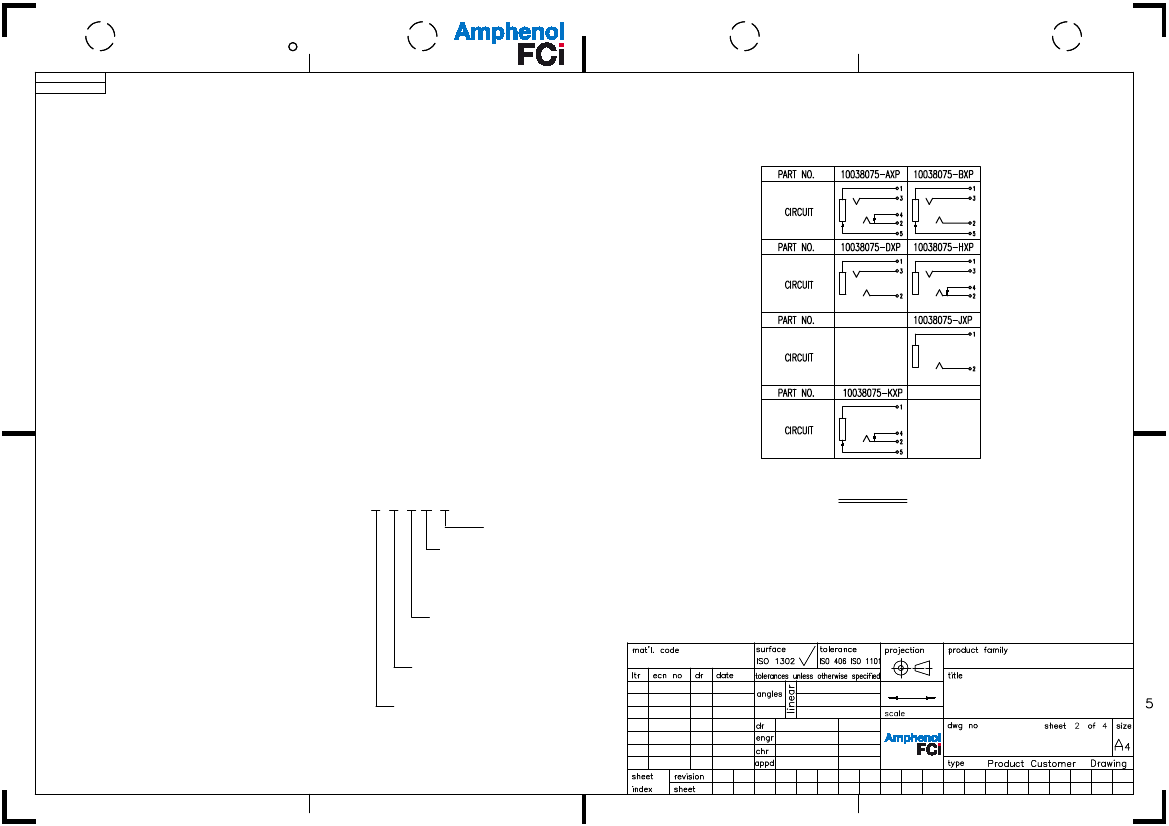

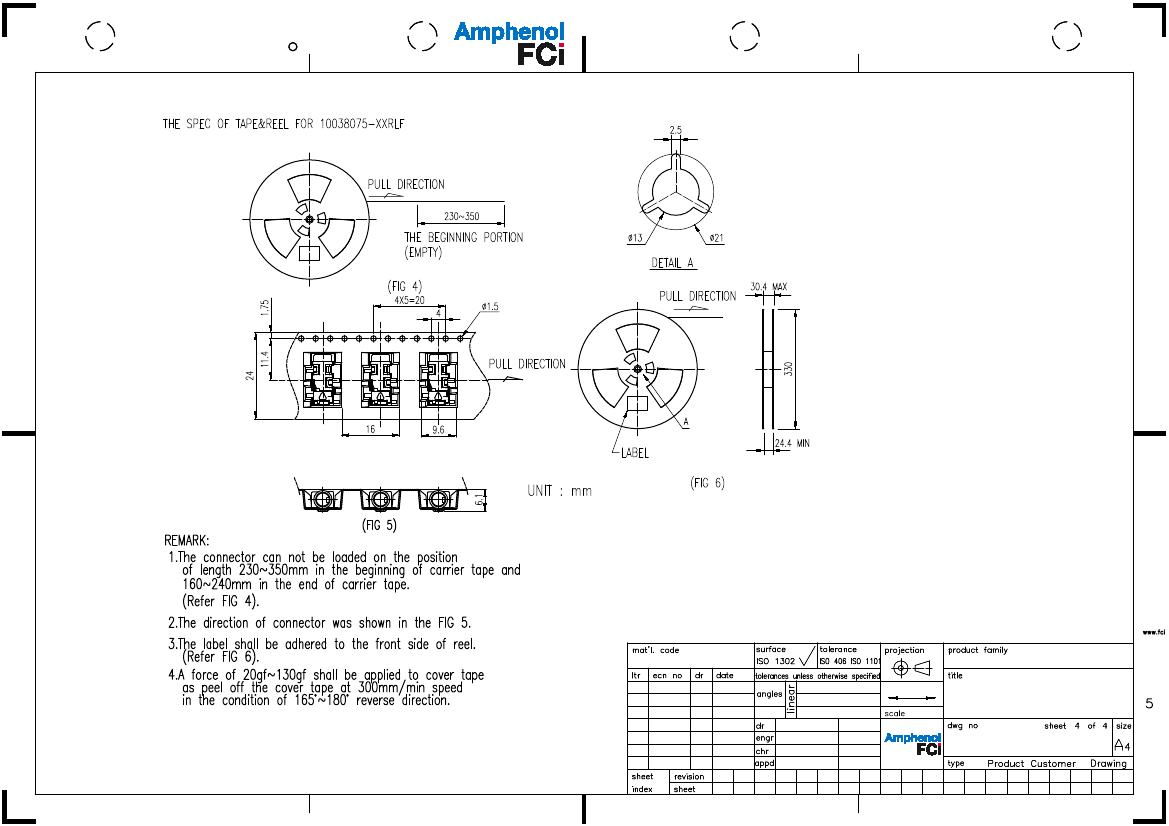

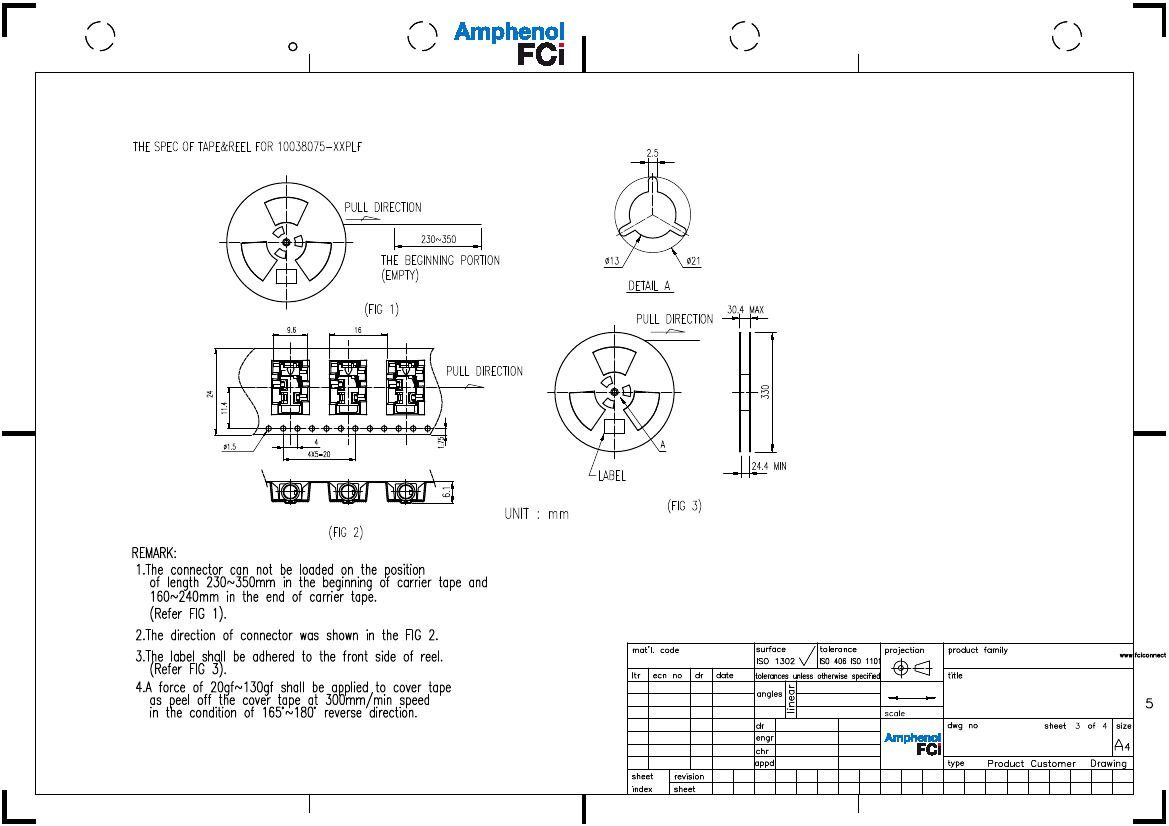

10038075

STATUS:Released

Printed: Mar 22, 2018

form: A4mmXLi-2016-02-24

PDS: Rev :J

10038075-B1PLF Related Products

	10038075-B1PLF	10038075-B0RLF	10038075-A0PLF
Description	CONN JACK 4COND 3.5MM SMD R/A	CONN JACK 4COND 3.5MM SMD R/A	CONN JACK 4COND 3.5MM SMD R/A
Is it Rohs certified?	conform to	conform to	conform to
Maker	Amphenol	Amphenol	Amphenol
package instruction	LEAD FREE	LEAD FREE	LEAD FREE
Reach Compliance Code	compliant	compliant	compliant
Factory Lead Time	10 weeks	11 weeks	11 weeks
Body/casing type	JACK	JACK	JACK
Configuration	1X1 HORIZONTAL	1X1 HORIZONTAL	1X1 HORIZONTAL
Connector type	3.5mm AUDIO	3.5mm AUDIO	3.5mm AUDIO
Contact to complete cooperation	NOT SPECIFIED	SILVER OVER COPPER (80)	NOT SPECIFIED
Contact material	NOT SPECIFIED	TITANIUM ALLOY	NOT SPECIFIED
DIN compliance	NO	NO	NO
IEC compliance	NO	NO	NO
MIL compliance	NO	NO	NO
Installation type	BOARD	BOARD	BOARD
Number of poles	4	4	4
Number of ports	1	1	1
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Termination type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Contact completed and terminated	NOT APPLICABLE	Silver (Ag)	-
