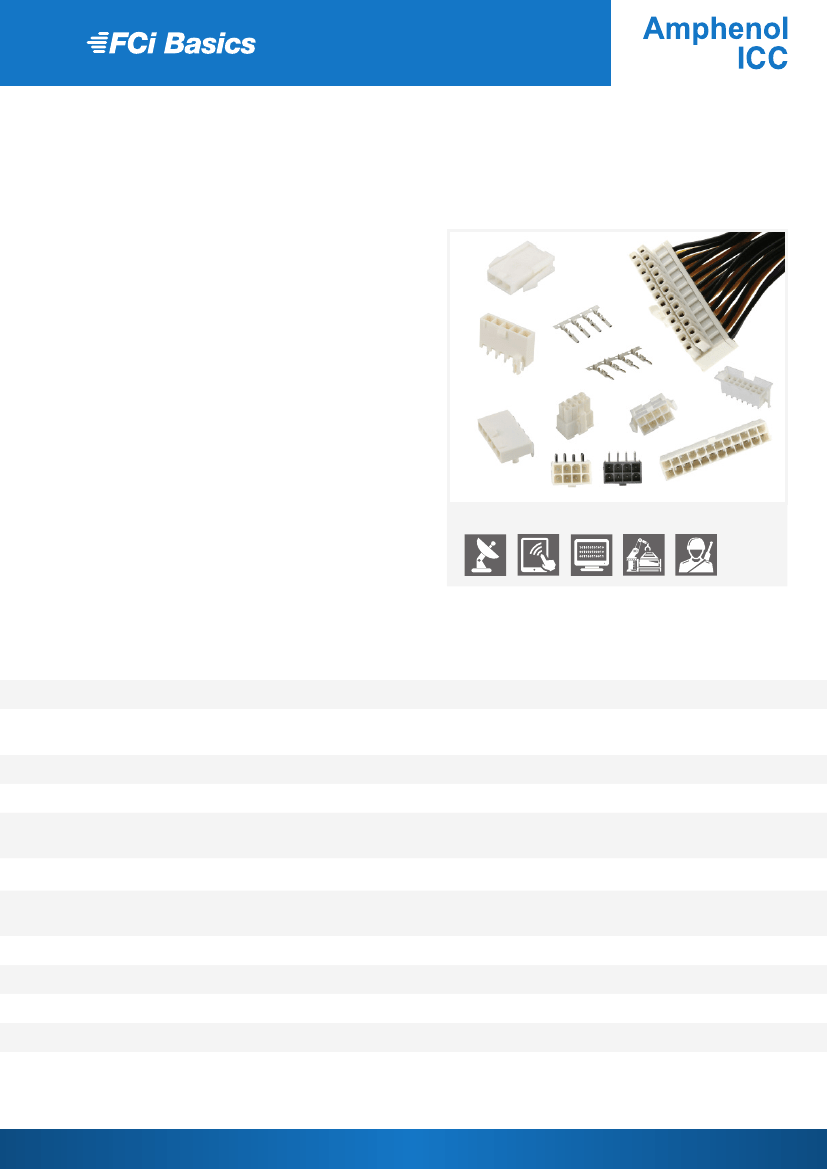

Minitek
®
Pwr 4.2 Connector System
Dual Row & Single Row
COMPACT, ROBUST AND
VERSATILE
Minitek
®
Pwr 4.2mm is a flexible and comprehensive
solution designed for power application with current
rating up to 9A per circuit. It is available in 2 to 24 circuits
for dual row and 3 to 5 circuits for single row.
§
Solutions for Wire-to-Board, Wire-to-Wire and Wire-to-
Panel applications
§
Scoop proof housing prevents terminals from damage
§
Polarized mating geometry to prevent mismatching
§
Fully isolated terminal stop prevent terminals from
damage
§
Blind mating interface (BMI) option in vertical, through
hole type for dual row. 14 positions available
TARGET MARKETS
FEATURES
§
Low insertion force for installation of crimped terminal
§
Fully isolated terminals
§
Positive locking on housing with low thumb latch operation
§
Fully polarized housings
§
Scoop-proof housings
§
High retention force in housing
§
Glow wire compliant option
§
BMI option
§
UL94V-0 flammability rated nylon material
§
Patented right angle type receptacle
§
RoHS compliant and lead-free
BENEFITS
§
Easy to use
§
Prevents terminals from potential damage during
operation
§
Ensures secured mating retention
§
Prevents accidental mismating
§
Ensures terminals and header pins are not damaged for
angled mating
§
Well secured terminals in housing
§
Complies with International Standard IEC 60335-1 for
household appliances
§
Allows ± 2.54mm gatherability for blind mating
§
High flammability rating
§
Ideal for cable routing within 1U or 2U equipment systems
§
Meets environmental, health and safety requirements
www.amphenol-icc.com
Amphenol Information Communications and Commercial Products
Minitek
®
Pwr 4.2 Connector System
TECHNICAL INFORMATION
MATERIAL
§§
Board Connector: Brass with optional Tin and
SPECIFICATION
§§
Amphenol Product Specification: GS-12-1181 and GS-12-1377
§§
Amphenol Application Specification: GS-20-0401
§§
Amphenol Packaging Specification: GS-14-2362
Gold Flash plating
§§
Housing: Nylon 66 & LCP, Natural & Black,
UL94V-0
§§
Crimping Terminal: Brass/Phosphorus Bronze
with optional Tin and Gold Flash plating
ENVIRONMENTAL
§§
Operating Temperature: -40ºC to +105ºC
*Includes 30ºC terminal temperature rise at rated current
MECHANICAL PERFORMANCE
§§
Terminal Insertion Force: 14.7N max
§§
Terminal Withdrawal Force: 1N min.
§§
Durability: 30 mating cycles
§§
Wire Pullout Force: Refer to product
TOOLING INFORMATION
§§
Ratchet Hand Crimping Tool: 10129483-001LF
§§
Terminal Extraction Tool: 10129274-042LF
specifications
TARGET MARKETS/APPLICATIONS
1U Rack Box
Customer Premises Equipment
Generic Telecom Box
Interface Converter
WiMax Box
Air Conditioner
Microwave Oven
Refrigerator
Set Top Box
Blade Server
Desktop PC and Motherboard
HDD Application
Rack-Mount Server
Server-Orthogonal Configuration
Defibrillator
Hospital Bed
Patient Monitor
Ultrasound Equipment
Chemical Detection System
Radar Equipment
ELECTRICAL PERFORMANCE
§§
Low Level Contact Resistance: 10mΩ max.
§§
Insulation Resistance: 1000MΩ min.
§§
Voltage Rating: 600Vrms
§§
Current Rating: Up to 9A/contact
§§
Dielectric Withstand Voltage: 1500VAC
§§
Temperature Rise: 30°C max
PACKAGING
§§
PCB Header: Tray
§§
Crimping Housing: Bag
§§
Terminal: Reel
APPROVALS & CERTIFICATION
§§
Dual Row: UL E66906 & E467317
§§
Single Row: UL pending
§§
Glow Wire Ignition Temperature (GWIT)
per IEC 60695-2-13
§§
Glow Wire Flammability Index (GWFI)
per IEC 60695-2-12
www.amphenol-icc.com
Disclaimer
Please note that the above information is subject to change without notice.
Minitek
®
Pwr 4.2 Connector System
PART NUMBERS
Type
Description
Right angle PCB header, through hole
Vertical PCB header, through hole
Right angle receptacle housing with cover
Dual Row
Receptacle housing
Header housing
Panel mount header housing
Vertical PCB header, through hole (BMI)
Right angle PCB header, through hole
Single Row
Vertical PCB header, through hole
Receptacle housing
Panel mount header housing
Receptacle terminal (post-plated solution)
Applicable for both types
Receptacle terminal (pre-plated solution)
Header terminal
Part Numbers
10127819
10127820
10122956
10127815
10144559
10127816
10138978
