PIC16F1503-E/MV datasheet, PDF

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> PIC16F1503-E/MV

PIC16F1503-E/MV: DescriptionIC MCU 8BIT 3.5KB FLASH 16UQFN; CategoryThe embedded processor and controller Microcontrollers and processors; File Size2MB，26 Pages; ManufacturerMicrochip; Websitehttps://www.microchip.com; Environmental Compliance

Download Datasheet Parametric View All

PIC16F1503-E/MV Overview

IC MCU 8BIT 3.5KB FLASH 16UQFN

PIC16F1503-E/MV Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Microchip
package instruction	UQFN-16
Reach Compliance Code	compliant
Factory Lead Time	24 weeks
Has ADC	YES
Address bus width
bit size	8
CPU series	PIC
maximum clock frequency	20 MHz
DAC channel	YES
DMA channel	NO
External data bus width
Integrated cache	NO
JESD-30 code	S-PQCC-N16
JESD-609 code	e3
length	3 mm
low power mode	YES
Number of I/O lines	12
Number of terminals	16
Number of timers	2
On-chip data RAM width	8
On-chip program ROM width	14
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
PWM channel	YES
Package body material	PLASTIC/EPOXY
encapsulated code	VQCCN
Encapsulate equivalent code	LCC16,.12SQ,20
Package shape	SQUARE
Package form	CHIP CARRIER, VERY THIN PROFILE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
RAM (bytes)	128
RAM (number of words)	128
rom(word)	2048
ROM programmability	FLASH
Maximum seat height	0.55 mm
speed	20 MHz
Maximum slew rate	2 mA
Maximum supply voltage	5.5 V
Minimum supply voltage	2.3 V
Nominal supply voltage	2.5 V
surface mount	YES
technology	CMOS
Temperature level	AUTOMOTIVE
Terminal surface	Matte Tin (Sn) - annealed
Terminal form	NO LEAD
Terminal pitch	0.5 mm
Terminal location	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED
width	3 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER, RISC

Preview

Download Datasheet

View All

Configurable Logic Cell Tips ’n Tricks

Configurable Logic Cell (CLC)

TIPS ‘N TRICKS INTRODUCTION

Microchip continues to provide innovative products that

are smaller, faster, easier to use and more reliable.

Flash-based PIC

microcontrollers (MCUs) are used in

a wide range of everyday products from smoke

detectors to industrial, automotive and medical

products.

The PIC16(L)F150X and PIC10(L)F32X families of

devices with on-chip configurable logic cells merge all

the advantages of the PIC

MCU architecture and the

flexibility of Flash program memory with the functional-

ity of a configurable digital logic cell. Together, they

form a low-cost building block with resource savings

and external component reduction.

The flexibility of Flash and an excellent development

tool suite, including a low-cost In-Circuit Debugger, In-

Circuit Serial Programming

(ICSP

) and CLC

Configuration Tool GUI, make these devices ideal for

just about any embedded control application.

The following series of Tips ‘n Tricks can be applied to

a variety of applications to help make the most of digital

logic functions using a PIC MCU with on-chip

configurable logic.

CLC OVERVIEW

Input Selection

For all CLC modules, there are eight signals available

as inputs to the configurable logic cell, and these eight

input signals may vary from device to device. Neverthe-

less, only four can be selected at any one time. This is

done via four 8-input multiplexers, used to pass the

input signals on to the data gating stage of the CLC.

Input signals are selected with the CLCxSEL0 and

CLCxSEL1 registers, as shown in

Figure 1.

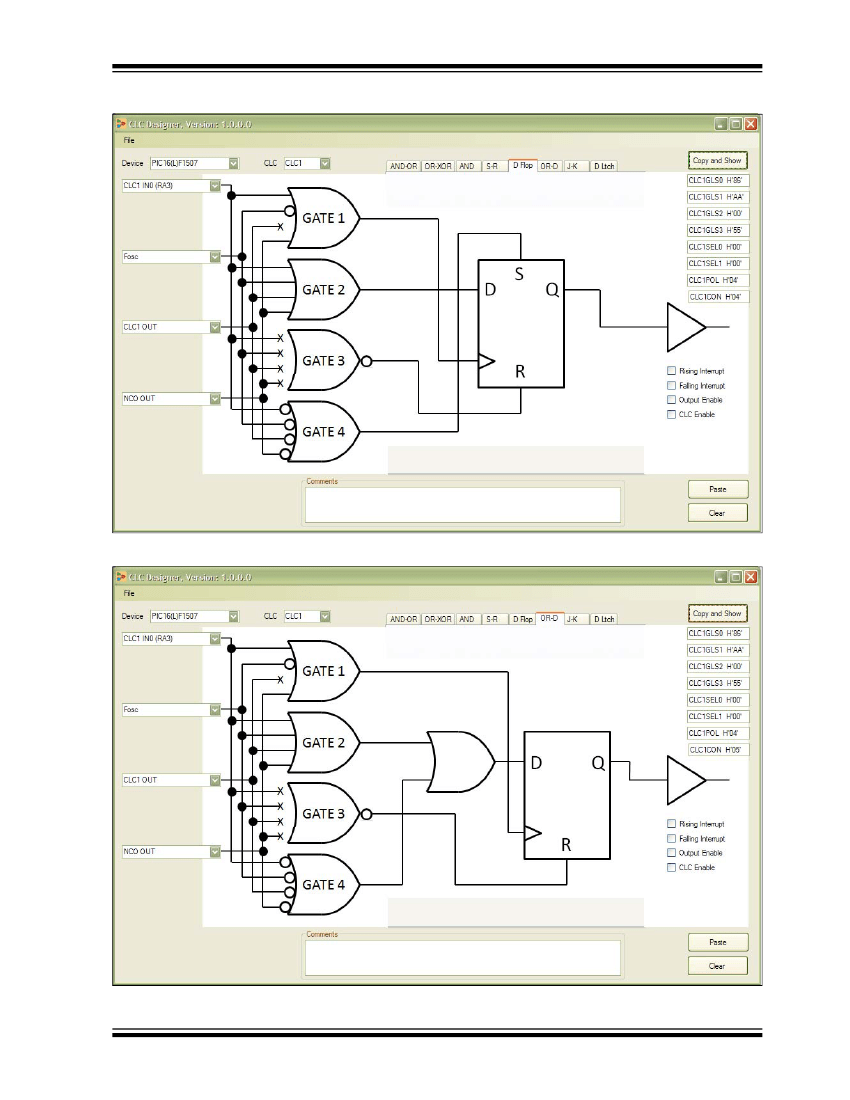

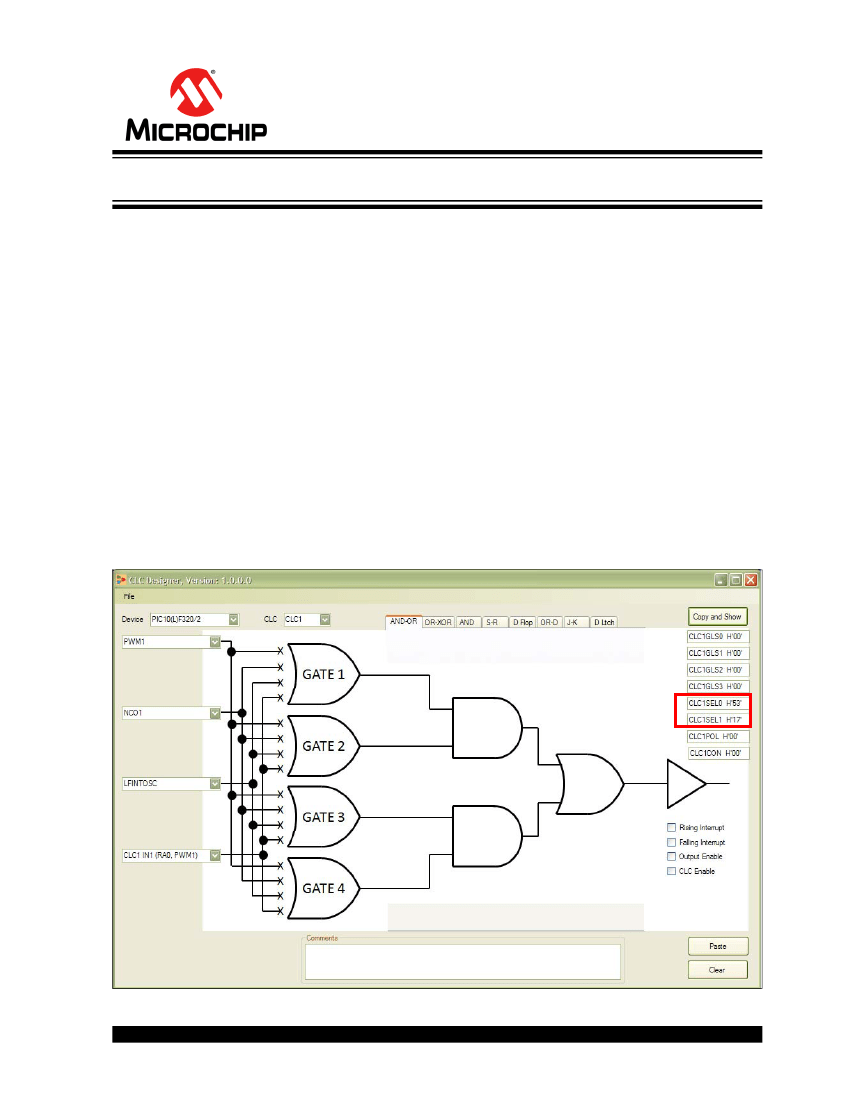

FIGURE 1:

CLC CONFIGURATION



2012 Microchip Technology Inc.

DS41631B-page 1

Recommended Resources
