51797-001: DescriptionVER RECE POWER BLADE; CategoryThe connector The connector; File Size260KB，3 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

51797-001 Overview

VER RECE POWER BLADE

51797-001 Parametric

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	TERMINAL PITCH FOR POWER CONTACTS: 6.35 MM
body width	0.47 inch
subject depth	0.5 inch
body length	3.15 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact arrangement	S24P7
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	TIN/LEAD OVER NICKEL
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
Contact resistance	20 mΩ
Contact style	HYBRID
DIN compliance	NO
Dielectric withstand voltage	1000VDC V
Durability	200 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	.973 N
Insulation resistance	500000000 Ω
insulator material	GLASS FILLED THERMOPLASTIC
MIL compliance	NO
Manufacturer's serial number	51797
Mixed contacts	YES
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
Number of rows loaded	4
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.135 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	31
UL Flammability Code	94V-0
Evacuation force-minimum value	.17792 N
Base Number Matches	1

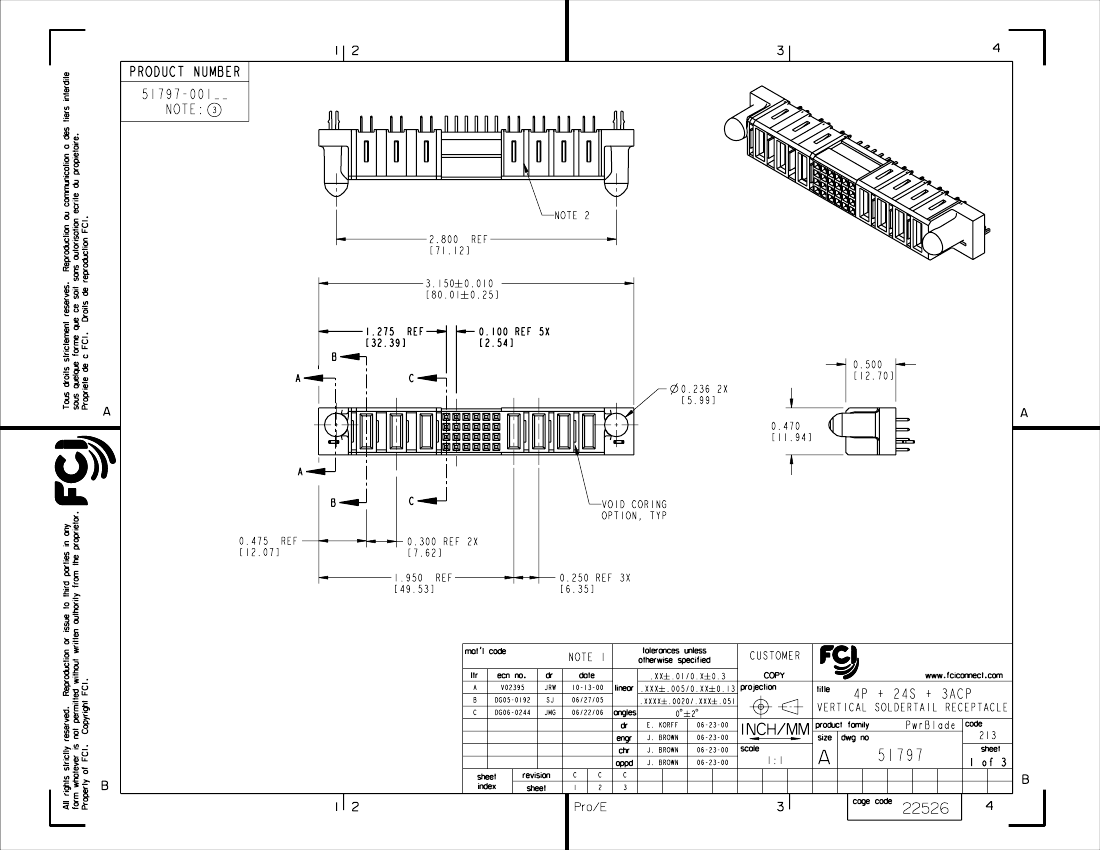

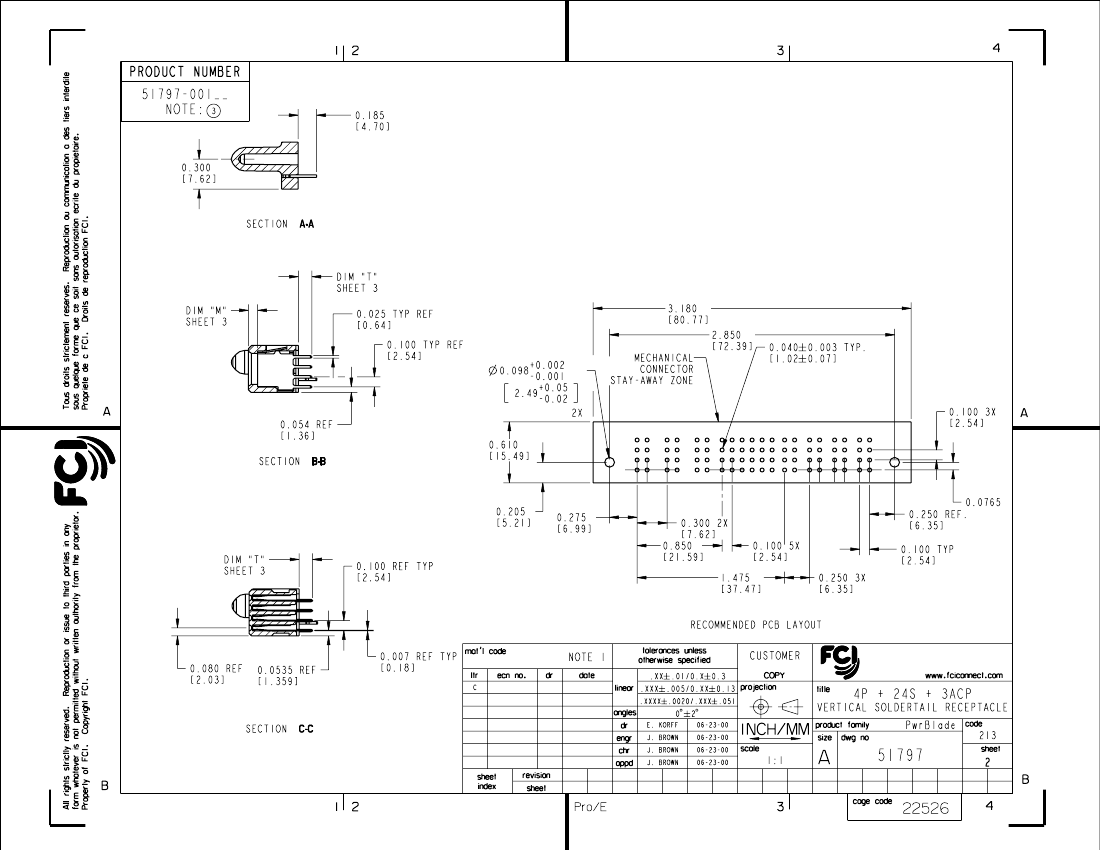

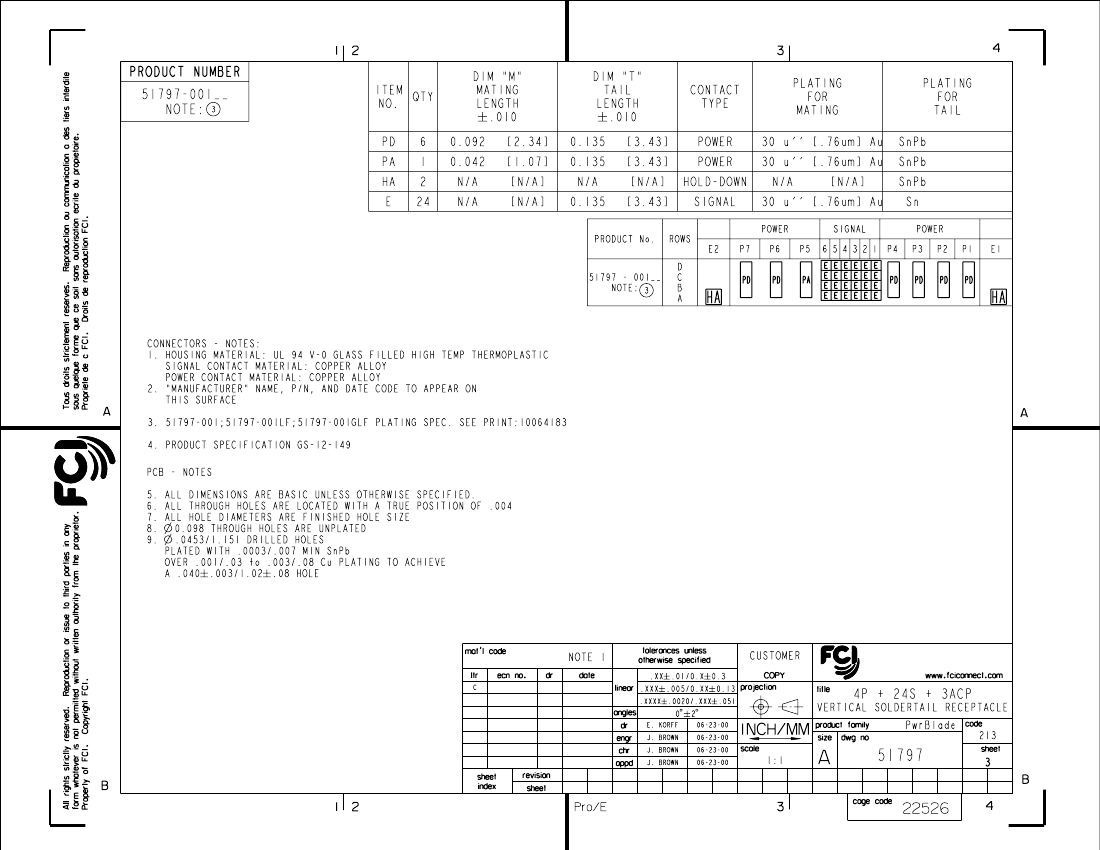

Preview

Download Datasheet

View All

PDM: Rev:C

STATUS:

Released

Printed: Dec 20, 2010

.

51797-001 Related Products

	51797-001	51797-001LF	51797-001GLF
Description	VER RECE POWER BLADE	VT STB REC PWRBLADE F/G	Board Connector, 31 Contact(s), 4 Row(s), Female, Straight, Solder Terminal, Locking, Receptacle, LEAD FREE
Maker	Amphenol	Amphenol	Amphenol
Reach Compliance Code	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99
Other features	TERMINAL PITCH FOR POWER CONTACTS: 6.35 MM	TERMINAL PITCH FOR POWER CONTACTS: 6.35 MM	TERMINAL PITCH FOR POWER CONTACTS: 6.35 MM
body width	0.47 inch	0.47 inch	0.47 inch
subject depth	0.5 inch	0.5 inch	0.5 inch
body length	3.15 inch	3.15 inch	3.15 inch
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact arrangement	S24P7	S24P7	S24P7
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Contact completed and terminated	TIN/LEAD OVER NICKEL	Tin (Sn) - with Nickel (Ni) barrier	GOLD OVER NICKEL
Contact point gender	FEMALE	FEMALE	FEMALE
Contact material	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Contact resistance	20 mΩ	20 mΩ	20 mΩ
Contact style	HYBRID	HYBRID	HYBRID
DIN compliance	NO	NO	NO
Dielectric withstand voltage	1000VDC V	1000VDC V	1000VDC V
Durability	200 Cycles	200 Cycles	200 Cycles
Filter function	NO	NO	NO
IEC compliance	NO	NO	NO
maximum insertion force	.973 N	.973 N	.973 N
Insulation resistance	500000000 Ω	500000000 Ω	500000000 Ω
insulator material	GLASS FILLED THERMOPLASTIC	GLASS FILLED THERMOPLASTIC	GLASS FILLED THERMOPLASTIC
MIL compliance	NO	NO	NO
Mixed contacts	YES	YES	YES
Installation option 1	LOCKING	LOCKING	LOCKING
Installation method	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE
Number of rows loaded	4	4	4
Maximum operating temperature	105 °C	105 °C	105 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Rated current (signal)	1 A	1 A	1 A
Guideline	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal length	0.135 inch	0.135 inch	0.135 inch
Terminal pitch	2.54 mm	2.54 mm	2.54 mm
Termination type	SOLDER	SOLDER	SOLDER
Total number of contacts	31	31	31
UL Flammability Code	94V-0	94V-0	94V-0
Evacuation force-minimum value	.17792 N	.17792 N	.17792 N
Base Number Matches	1	1	1
Manufacturer's serial number	51797	-	51797
Is it Rohs certified?	-	conform to	conform to
package instruction	-	LEAD FREE	LEAD FREE
