Part Number

Search

84854-101

Description
METRAL 1000 RECP 5ROW 4 MOD PF
CategoryThe connector    The connector
File Size341KB,4 Pages
ManufacturerAmphenol
Websitehttp://www.amphenol.com/
Download Datasheet Parametric Compare View All

84854-101 Overview

METRAL 1000 RECP 5ROW 4 MOD PF

84854-101 Parametric

Parameter NameAttribute value
MakerAmphenol
Reach Compliance Codecompliant
ECCN codeEAR99
Other features9 GROUND SHIELD CONTACTS IN 2 ROWS AVAILABLE
Board mount optionsPEG
body width0.583 inch
subject depth0.933 inch
body length0.472 inch
Body/casing typeRECEPTACLE
Connector typeBOARD CONNECTOR
Contact to complete cooperationNOT SPECIFIED
Contact completed and terminatedTIN LEAD
Contact point genderFEMALE
Contact materialBERYLLIUM COPPER
contact modeRECTANGULAR
Contact resistance20 mΩ
Contact styleSQ PIN-SKT
DIN complianceNO
Durability200 Cycles
Filter functionNO
IEC complianceNO
maximum insertion force.556 N
Insulation resistance1000000000 Ω
Insulator colorNATURAL
insulator materialGLASS FILLED LIQUID CRYSTAL POLYMER
JESD-609 codee0
MIL complianceNO
Manufacturer's serial number84854
Plug contact pitch0.079 inch
Match contact row spacing0.079 inch
Mixed contactsNO
Installation methodRIGHT ANGLE
Installation typeBOARD
Number of connectorsONE
PCB row number7
Number of rows loaded6
Maximum operating temperature105 °C
Minimum operating temperature-55 °C
OptionsGENERAL PURPOSE
PCB contact patternMIXED
PCB contact row spacing2.0066 mm
Plating thickness31u inch
polarization keyPOLARIZED HOUSING
Rated current (signal)1 A
GuidelineUL, CSA
reliabilityCOMMERCIAL
Terminal pitch2 mm
Termination typePRESS FIT
Total number of contacts36
UL Flammability Code94V-0
Evacuation force-minimum value.1946 N

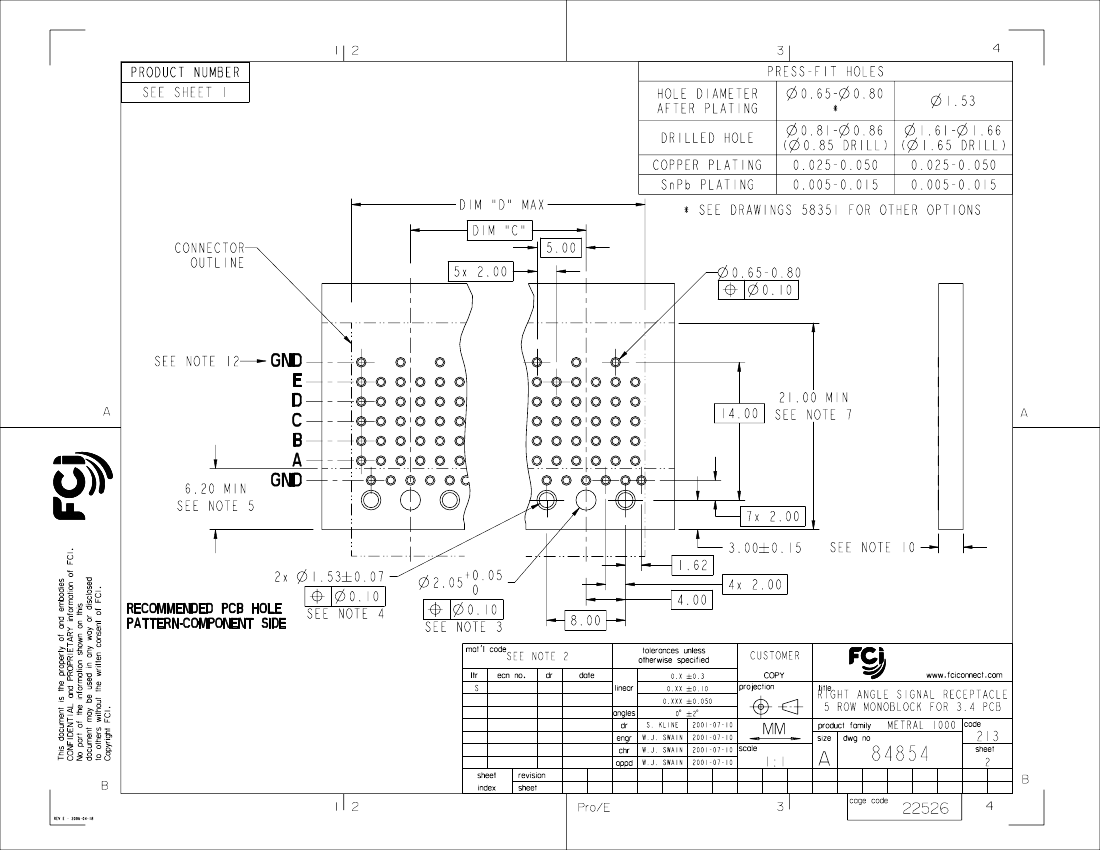

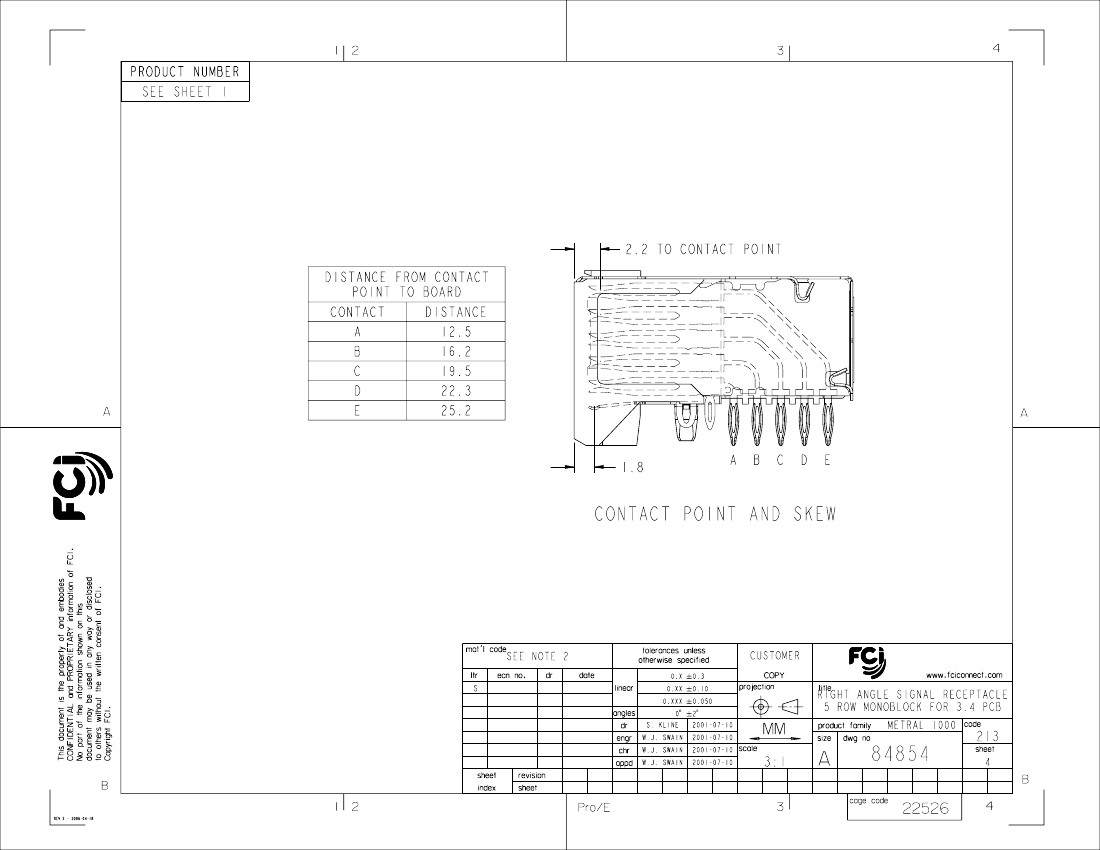

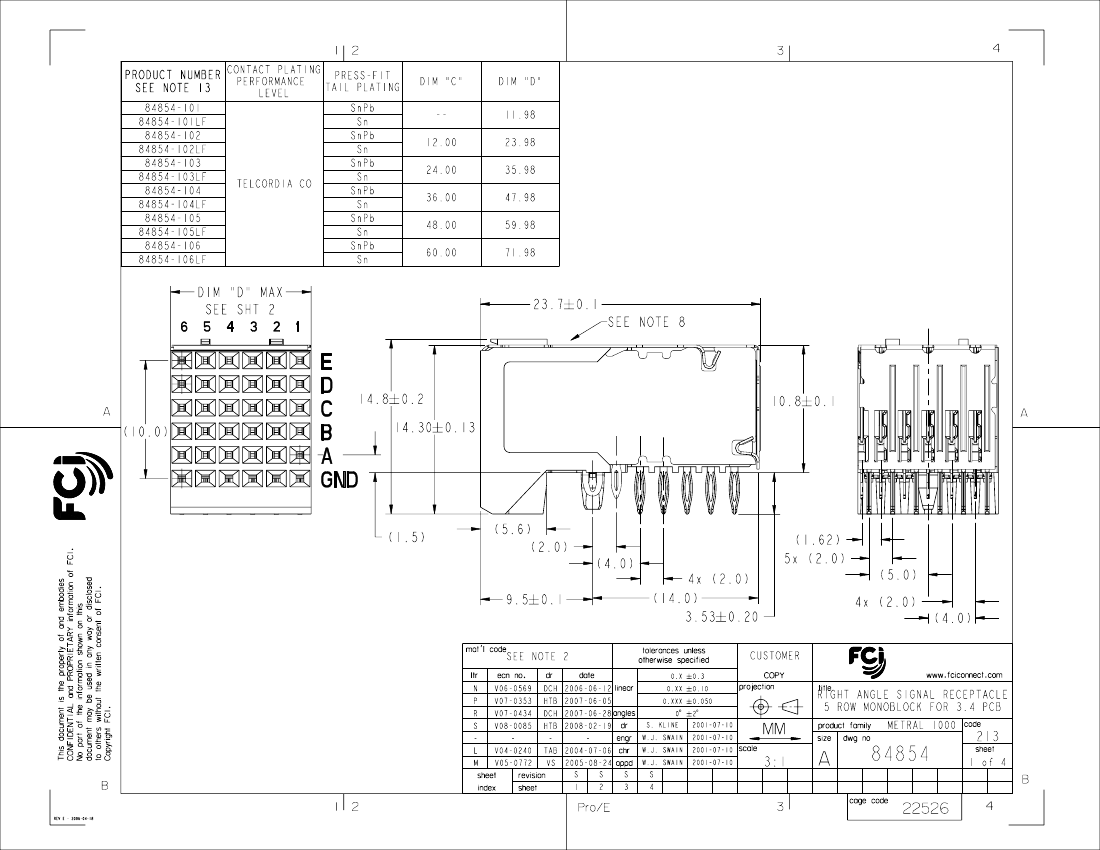

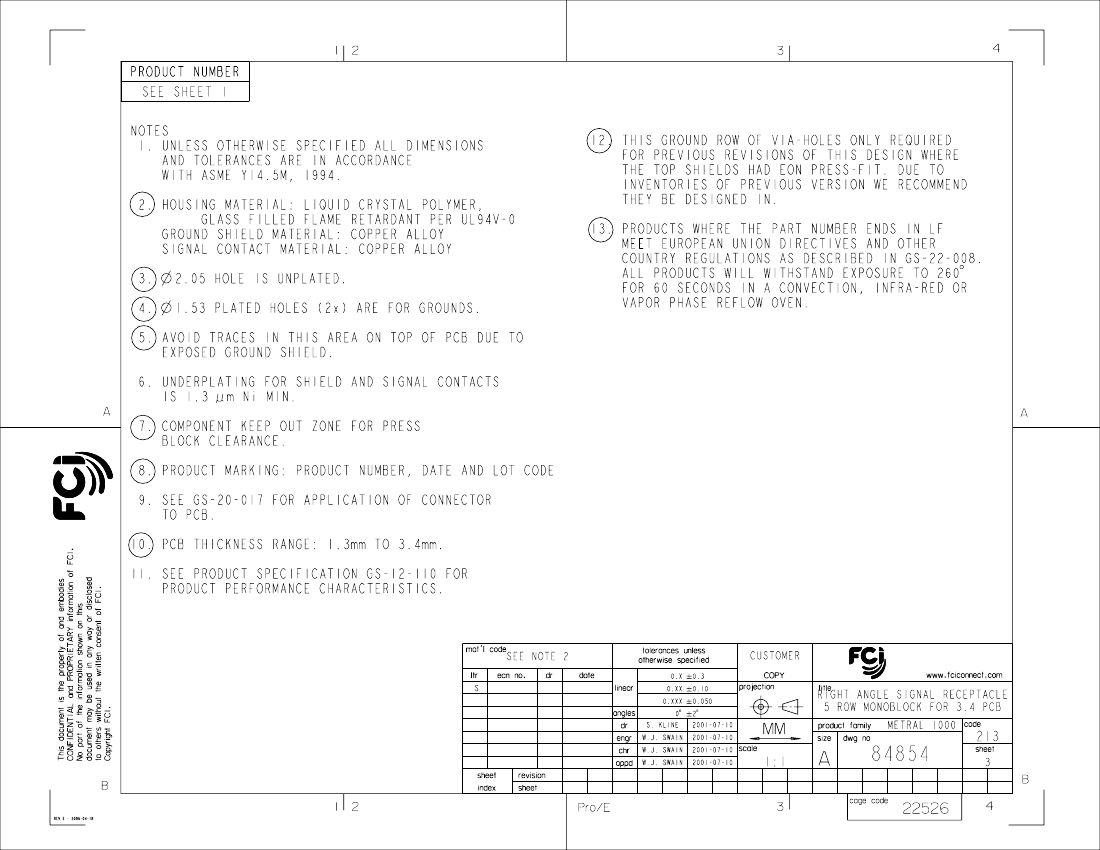

PDM: Rev:S
STATUS:
Released
Printed: Nov 16, 2011
.

84854-101 Related Products

84854-101 84854-301LF 84854-101LF 84854-301 84854-102 84854-102LF
Description METRAL 1000 RECP 5ROW 4 MOD PF METRAL 1000 RECPT METRAL 1000 RCPT 5ROW PRESS FIT METRAL 1000 RECP 5ROW 4 MOD PF METRAL 1000 RECP 5ROW 4 MOD PF METRAL 1000 RCPT 5ROW PRESS FIT
Maker Amphenol Amphenol Amphenol Amphenol Amphenol Amphenol
Reach Compliance Code compliant compliant compliant compliant compliant compliant
Other features 9 GROUND SHIELD CONTACTS IN 2 ROWS AVAILABLE 9 GROUND SHIELD CONTACTS IN 2 ROWS AVAILABLE 9 GROUND SHIELD CONTACTS IN 2 ROWS AVAILABLE 9 GROUND SHIELD CONTACTS IN 2 ROWS AVAILABLE 9 GROUND SHIELD CONTACTS IN 2 ROWS AVAILABLE 9 GROUND SHIELD CONTACTS IN 2 ROWS AVAILABLE
Body/casing type RECEPTACLE RECEPTACLE RECEPTACLE RECEPTACLE RECEPTACLE RECEPTACLE
Connector type BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR
Contact to complete cooperation NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED GOLD (51) OVER NICKEL NOT SPECIFIED NOT SPECIFIED
Contact point gender FEMALE FEMALE FEMALE FEMALE FEMALE FEMALE
Contact material BERYLLIUM COPPER NOT SPECIFIED NOT SPECIFIED BERYLLIUM COPPER BERYLLIUM COPPER NOT SPECIFIED
DIN compliance NO NO NO NO NO NO
Filter function NO NO NO NO NO NO
IEC compliance NO NO NO NO NO NO
MIL compliance NO NO NO NO NO NO
Mixed contacts NO NO NO NO NO NO
Installation method RIGHT ANGLE RIGHT ANGLE RIGHT ANGLE RIGHT ANGLE RIGHT ANGLE RIGHT ANGLE
Installation type BOARD BOARD BOARD BOARD BOARD BOARD
Number of rows loaded 6 6 6 6 6 6
Options GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE
Terminal pitch 2 mm 2 mm 2 mm 2 mm 2 mm 2 mm
Termination type PRESS FIT PRESS FIT PRESS FIT PRESS FIT PRESS FIT PRESS FIT
Total number of contacts 36 36 36 36 36 36
UL Flammability Code 94V-0 94V-0 94V-0 94V-0 94V-0 94V-0
ECCN code EAR99 - EAR99 EAR99 EAR99 -
