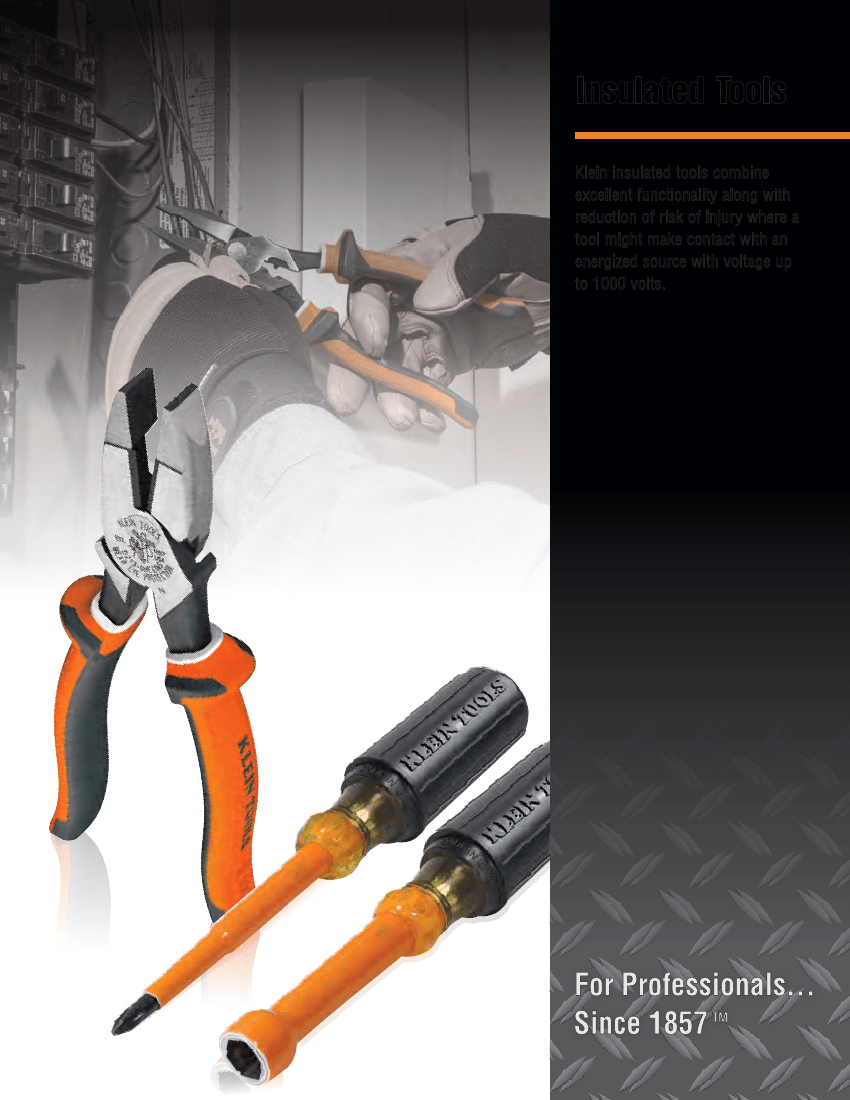

Insulated Tools
Klein insulated tools combine
excellent functionality along with
reduction of risk of injury where a
tool might make contact with an
energized source with voltage up
to 1000 volts.
~

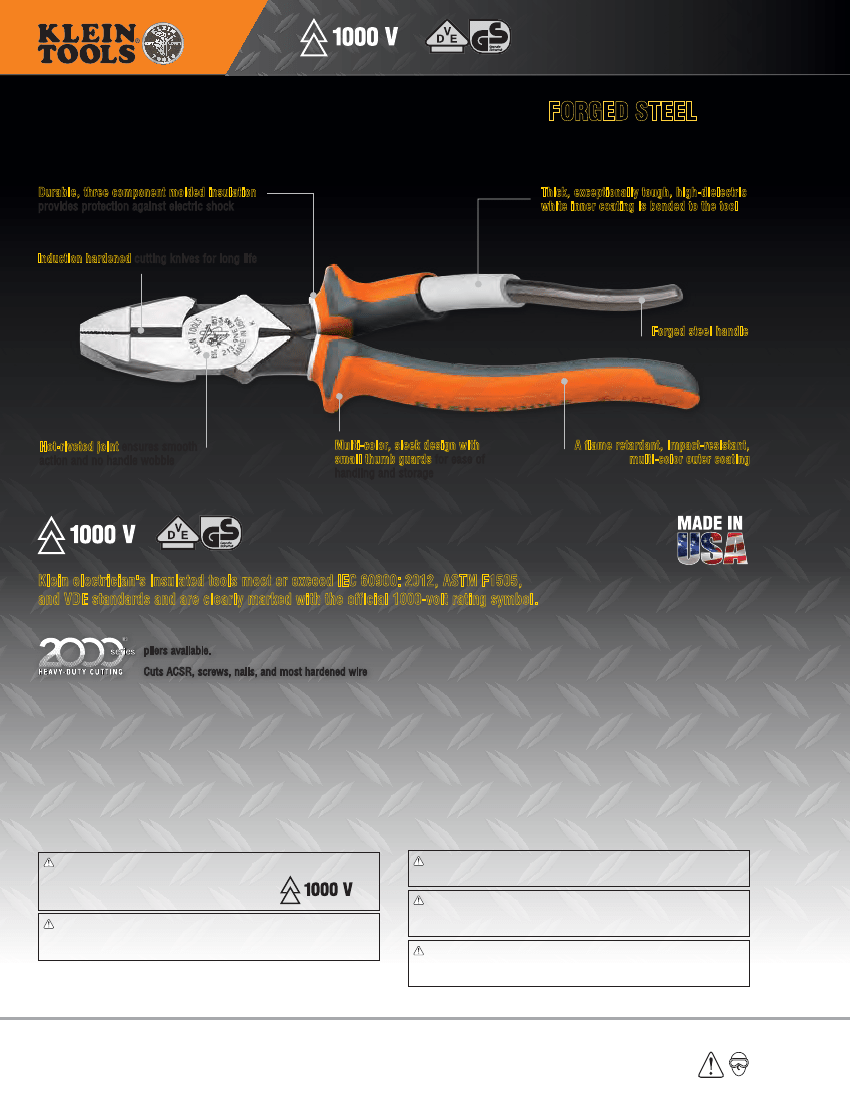

Insulated Tools
FORGED STEEL
Electrician's Insulated Tools
Durable, three component molded insulation
provides protection against electric shock
from Klein's US-made, proprietary blend
Thick, exceptionally tough, high-dielectric
white inner coating is bonded to the tool
Induction hardened
cutting knives for long life
Forged steel handle
Hot-riveted joint
ensures smooth
action and no handle wobble
Multi-color, sleek design with
small thumb guards
for ease of
handling and storage
A flame retardant, impact-resistant,
multi-color outer coating
~
Klein electrician's insulated tools meet or exceed IEC 60900: 2012, ASTM F1505,
and VDE standards and are clearly marked with the official 1000-volt rating symbol.
pliers available.
Cuts ACSR, screws, nails, and most hardened wire
The Electrician's line of insulated tools provides a multi-color, sleeker design than the Classic Lineman's insulated tools. 1000V rated and
individually tested to conform to ASTM F1505, IEC 60900. EINS tools have passed VDE third party testing certification to the IEC 60900
standard. This line of tools provides the everyday protection the electrician needs in a compact, lightweight design.
Catalog numbers for Klein electrician's insulated tools have the suffix "EINS" and are marked with the official international 1000-volt rating
symbol. Not all tools with plastic coatings or plastic handles provide protection against electrical shock.
Only use those tools that are marked
with the official international 1000-volt rating symbol, as shown, if there is any chance that the tool will make contact with an energized
source. Product numbers with the EINS suffix contain these warnings below and must be understood.
WARNING:
Only use tools that are marked with the official international 1000-volt
rating symbol shown below, if there is any chance
that the tools will make contact with an energized source.
WARNING:
Wear approved eye protection. Always inspect your tools before use.
Do not use if orange coating cracks, breaks or becomes damaged. Destroy tool if white
layer shows through orange layer.
WARNING:
Do NOT touch uninsulated portion of the tool or any
conductive object when either might contact an energized source.
WARNING:
Whenever possible, always de-energize lines and equipment prior to
working on or around them. Klein insulated tools are designed only to reduce the chance
of injury where the tool may make contact with an energized source.
WARNING:
Because moisture, films, or other surface contaminants are conductive,
Klein insulated tools must be kept clean, dry, and free of any surface contaminants.
46
See page 310 for additional information on warnings.
www.kleintools.com
1
D2
A
E
W
~

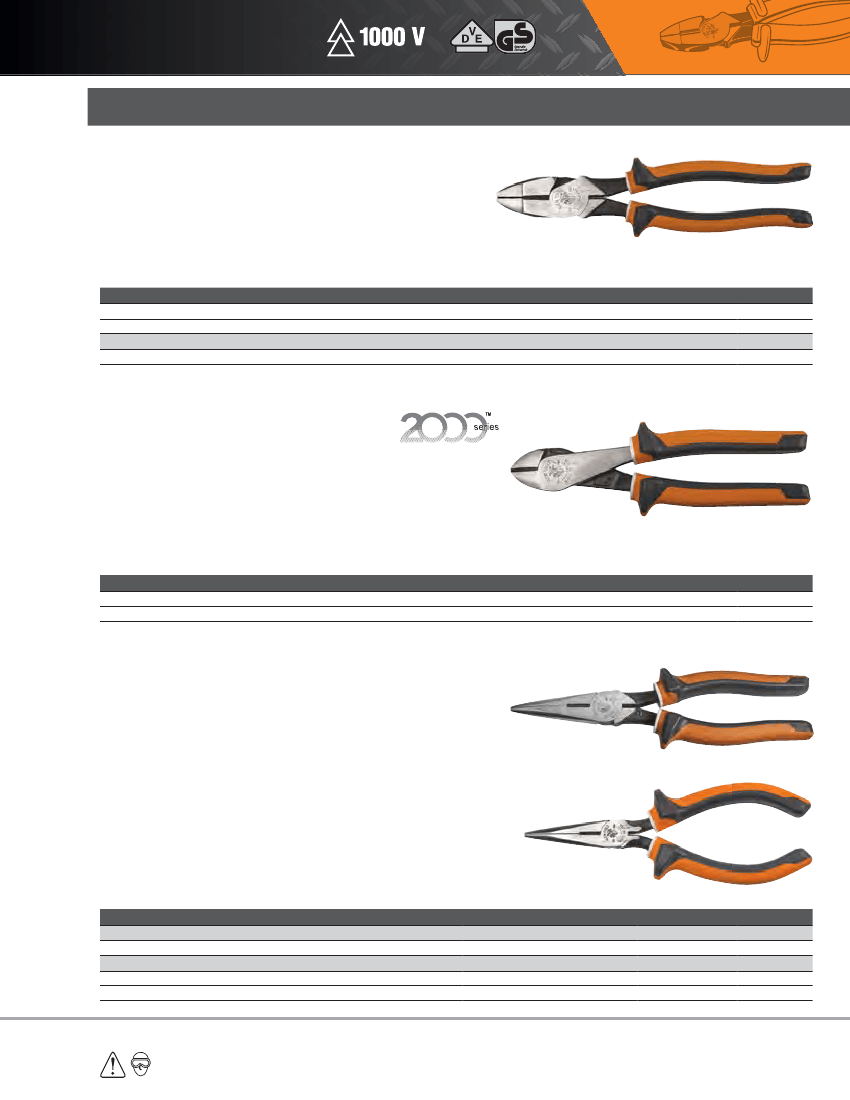

Electrician's Insulated Pliers
Electrician's Insulated High-Leverage
Side-Cutting Pliers
Additional Features:
High-leverage design provides 46% greater cutting and gripping
power than other plier designs
Streamlined design with sure-gripping, cross-hatched knurled jaws
2000 Series cuts ACSR, screws, nails and most hardened wires
•
•
•
3
R
Y
-
9NE
E
EY
PROT
Cat. No.
213-8NE-EINS
213-9NE-EINS
Nose Type
New England
New England
Overall Length
8-13/16" (223.8 mm)
9-5/8" (244.5 mm)
Jaw Length
1-7/16" (36.5 mm)
1-19/32" (40.5 mm)
Jaw Width
1-7/64" (28.2 mm)
1-5/16" (33.3 mm)
Jaw Thickness
5/8" (15.9 mm)
5/8" (15.9 mm)
5/8" (15.9 mm)
Knife Length
3/4" (19.1 mm)
25/32" (19.8 mm)
25/32" (19.8 mm)
2000 Series* – Heavy-duty cutting knives
2000-9NE-EINS
New England
9-5/8" (244.5 mm)
1-19/32" (40.5 mm)
1-5/16" (33.3 mm)
*Cuts ACSR, screws, nails, and most hardened wire. Features combination polished and black-oxide finish.
Electrician's Insulated High-Leverage
Diagonal Cutting Pliers
Additional Features:
High-leverage design. Rivet is closer to the cutting edge for 36% greater
cutting power than other pliers designs
Cuts ACSR, screws, nails, and most hardened wire. Features combination
polished and black-oxide finish
13° angled head for easier work in confined spaces (Cat. No. 2000-48-EINS)
•
•
•
Cat. No.
2000-28-EINS
2000-48-EINS
Nose Type
Tapered
Angled
Overall Length
8-1/4" (209.6 mm)
8-1/4" (209.6 mm)
Jaw Length
13/16" (20.6 mm)
13/16" (20.6 mm)
Jaw Width
1-3/16" (30.2 mm)
1-3/16" (30.2 mm)
Jaw Thickness
7/16" (11.1 mm)
7/16" (11.1 mm)
Cutting Knives
Standard
Standard
Electrician's Insulated Long-Nose Pliers - Side-Cutting
Additional Features:
Induction-hardened cutting knives for long life
Knurled jaws for sure wrapping and looping
Cat. No. 203-8-EINS features heavier design for easier, more comfortable cutting and extended
handle for added reach and leverage
Cat. Nos. 203-6-EINS and 203-7-EINS has curved handles to provide greater tool control
•
•
•
•
Cat. No.
Heavier Design
Overall Length
8-7/8" (225.4 mm)
6-7/8" (174.6 mm)
7-3/8" (187.3 mm)
Jaw Length
2-5/16" (58.7 mm)
1-15/16" (49.2 mm)
2-7/16" (61.9 mm)
Jaw Width
1" (25.4 mm)
11/16" (17.5 mm)
11/16" (17.5 mm)
Jaw Thickness
1/2" (12.7 mm)
3/8" (9.5 mm)
3/8" (9.5 mm)
Knife Length
5/8" (15.9 mm)
1/2" (12.7 mm)
1/2" (12.7 mm)
Point Thickness
1/8" (3.2 mm)
3/32" (2.4 mm)
3/32" (2.4 mm)
203-8-EINS
Standard Design
203-6-EINS
203-7-EINS
See page 310 for additional information on warnings.
www.kleintools.com
N
CT
N
S
IO
N
Insulated Tools
213-9NE-EINS
Weight
1.0 lbs. (0.45 kg)
1.3 lbs. (0.59 kg)
1.3 lbs. (0.59 kg)
2000-28-EINS
Weight
11.2 oz. (318 g)
11.2 oz. (318 g)
203-8-EINS
203-7-EINS
Weight
11.2 oz. (318 g)
4.8 oz. (136 g)
4.8 oz. (136 g)
47
~

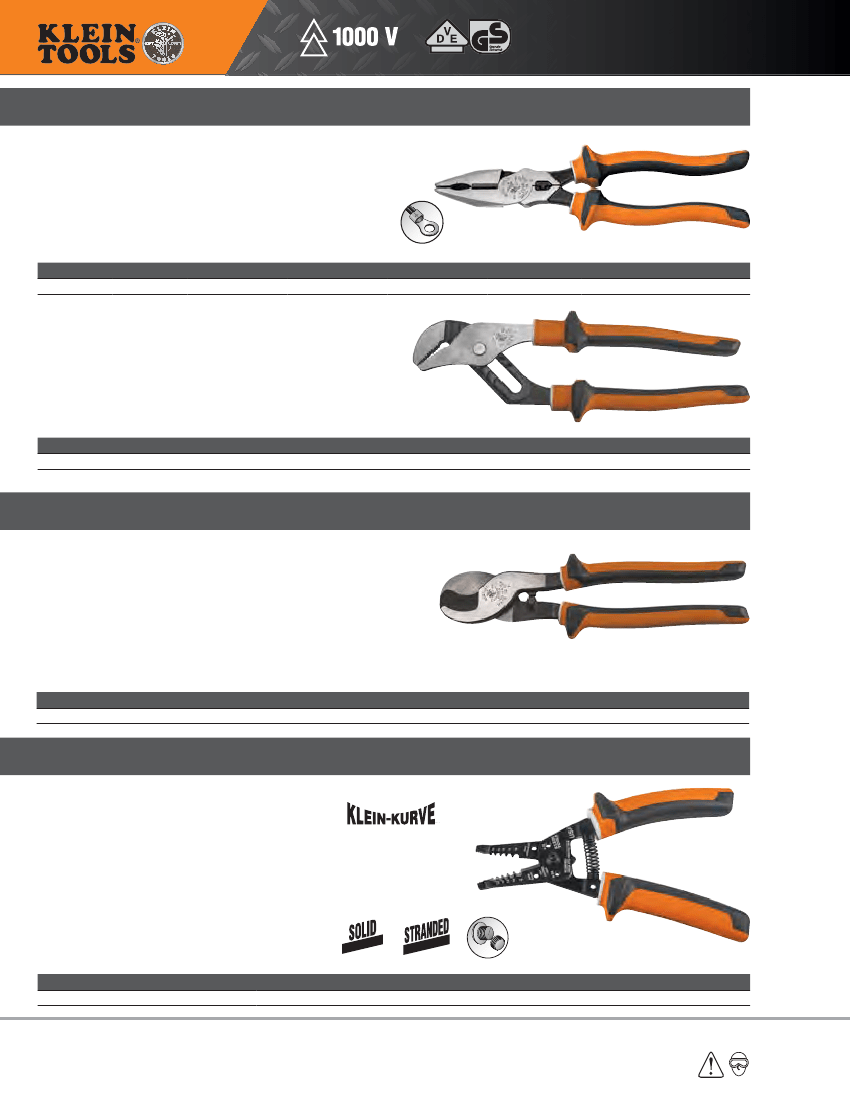

Insulated Tools
Electrician's Insulated Pliers
Electrician's Insulated Combination Pliers
Additional Features:
Crimping die behind hinge for superior leverage crimping non-insulated
connectors, lugs and terminals
Toothed pipe-grip for greater power
•
•
12098-EINS
Cat. No.
12098-EINS
Nose Type
Universal
Overall Length
8-7/8" (225.4 mm)
Jaw Length
1-25/32" (45.2 mm)
Jaw Width
1-1/32" (26.2 mm)
Jaw Thickness
1/2" (12.7 mm)
Knife Length
3/4" (19.1 mm)
Weight
1.0 lbs. (0.45 kg)
Electrician’s Insulated Pump Pliers
Additional Features:
Secure tongue and groove design for non-slip grip - even with heavy pressure
•
502-10-EINS
Cat. No.
502-10-EINS
Overall Length
10-1/4" (260.4 mm)
Max. Jaw Capacity
1-3/4" (44.5 mm)
Weight
1.0 lbs. (0.45 kg)
Electrician's Insulated Cable Cutter
Electrician's Insulated High-Leverage Cable Cutter
Additional Features:
High-leverage design for exceptional cutting capability
Cable-gripping shear-type jaws
Precision, one-hand shearing action
Perfect for working in confined spaces
Do NOT use to cut steel or ACSR
•
•
•
•
•
63050-EINS
Cat. No.
63050-EINS
Overall Length
9-5/8" (244.5 mm)
Maximum Cable Cutting Capacity
4/0 Aluminum, 2/0 Soft Copper, 100-Pair 24 AWG Communications Cable
Weight
1.0 lbs. (0.45 kg)
Electrician's Insulated Stripper/Cutter
Electrician's Insulated Solid &
Stranded Stripper/Cutter
Additional Features:
Cuts, strips, loops and gauges both solid and stranded wire
Spring-loaded for self-opening
Serrated nose for easy bending, shaping and pulling of wire
Cleanly shears 6-32 and 8-32 screws
Do not use for cutting steel wire
®
•
•
•
•
•
AWG
8 −16
10 −1
8 AWG
11054-EINS
Cat. No.
11054-EINS
Overall Length
8" (203.2 mm)
Strips and Cuts
8 - 16 AWG Solid (8.4 mm² - 1.3 mm²), 10 - 18 AWG Stranded (5.3 mm² - 0.82 mm²)
Weight
8.0 oz. (227 g)
See page 310 for additional information on warnings.
48
www.kleintools.com
Insulated Tools
1
D2
A
E

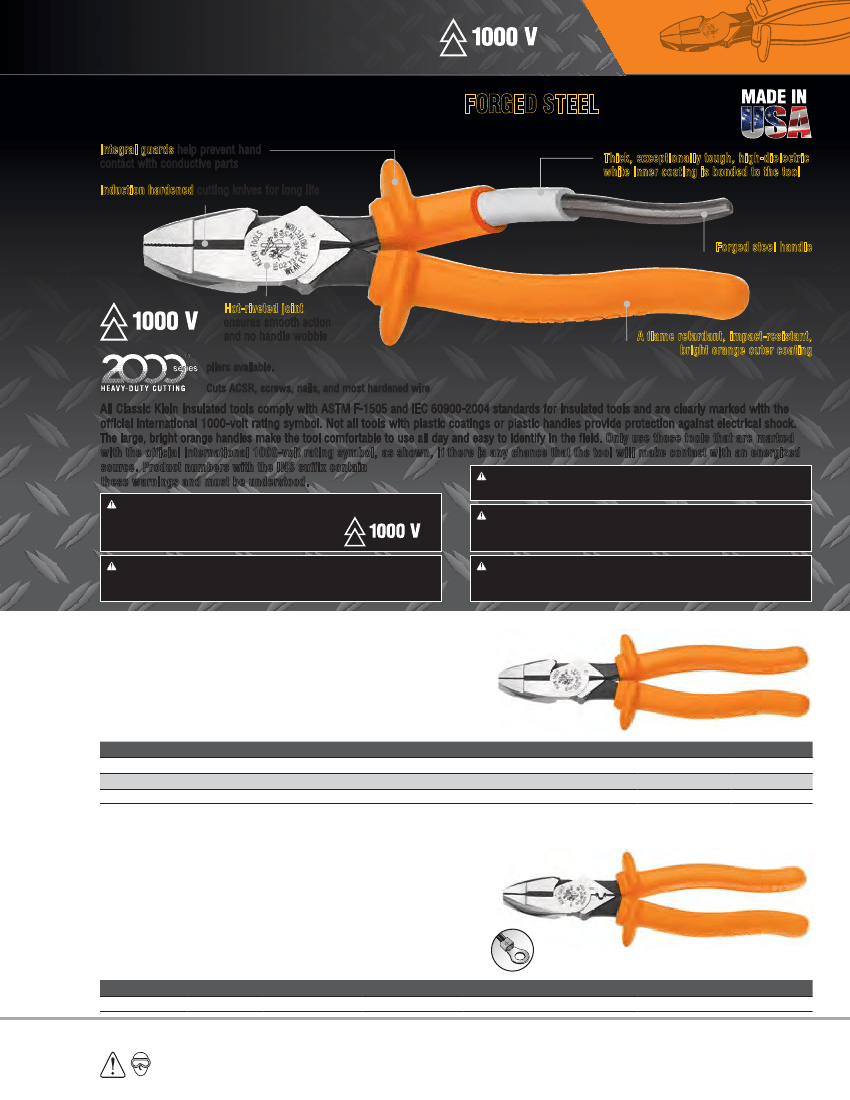

Classic Insulated Tools
Integral guards
help prevent hand
contact with conductive parts
Induction hardened
cutting knives for long life
FORGED STEEL
from Klein's US-made, proprietary blend
Thick, exceptionally tough, high-dielectric
white inner coating is bonded to the tool
Forged steel handle
Hot-riveted joint
ensures smooth action
and no handle wobble
pliers available.
Cuts ACSR, screws, nails, and most hardened wire
A flame retardant, impact-resistant,
bright orange outer coating
All Classic Klein insulated tools comply with ASTM F-1505 and IEC 60900-2004 standards for insulated tools and are clearly marked with the
official international 1000-volt rating symbol. Not all tools with plastic coatings or plastic handles provide protection against electrical shock.
The large, bright orange handles make the tool comfortable to use all day and easy to identify in the field.
Only use those tools that are marked
with the official international 1000-volt rating symbol, as shown, if there is any chance that the tool will make contact with an energized
source. Product numbers with the INS suffix contain
WARNING:
Do NOT touch uninsulated portion of the tool or any
these warnings and must be understood.
conductive object when either might contact an energized source.
WARNING:
Only use tools that are marked with the official international 1000-volt
rating symbol shown below, if there is any chance
that the tools will make contact with an energized source.
WARNING:
Wear approved eye protection. Always inspect your tools before use.
Do not use if orange coating cracks, breaks or becomes damaged. Destroy tool if white
layer shows through orange layer.
WARNING:
Whenever possible, always de-energize lines and equipment prior to
working on or around them. Klein insulated tools are designed only to reduce the chance
of injury where the tool may make contact with an energized source.
WARNING:
Because moisture, films, or other surface contaminants are conductive,
Klein insulated tools must be kept clean, dry, and free of any surface contaminants.
Insulated High-Leverage Side-Cutting Pliers
Additional Features:
High-leverage design provides 46% greater cutting and gripping power than
other plier designs
Streamlined design with sure-gripping, cross-hatched knurled jaws
•
•
3
R
Y
-
9NE
E
EY
PROT
Cat. No.
D213-9NE-INS
Nose Type
New England
Overall Length
9-5/8" (244.5 mm)
Jaw Length
1-19/32" (40.5 mm)
Jaw Width
1-5/16" (33.3 mm)
Jaw Thickness
5/8" (15.9 mm)
5/8" (15.9 mm)
Knife Length
25/32" (19.8 mm)
25/32" (19.8 mm)
2000 Series* – Heavy-duty cutting knives
D2000-9NE-INS
New England
9-5/8" (244.5 mm)
1-19/32" (40.5 mm)
1-5/16" (33.3 mm)
*Cuts ACSR, screws, nails, and most hardened wire. Features combination polished and black-oxide finish.
Insulated High-Leverage Side-Cutting Pliers -
Connector Crimping
Additional Features:
Crimping die behind hinge for superior leverage crimping non-insulated
connectors, lugs and terminals
High-leverage design provides 46% greater cutting and gripping power than
other plier designs
Streamlined design with sure-gripping, cross-hatched knurled jaws
•
•
•
Cat. No.
D213-9NE-CR-INS
Nose Type
New England
Overall Length
9-5/8" (244.5 mm)
Jaw Length
1-19/32" (40.5 mm)
Jaw Width
1-5/16" (33.3 mm)
Jaw Thickness
5/8" (15.9 mm)
Knife Length
25/32" (19.8 mm)
See page 310 for additional information on warnings.
www.kleintools.com
N
CT
N
S
IO
N
W
D213-9NE-INS
Weight
1.3 lbs. (0.59 kg)
25/32" (19.8 mm)
D213-9NECR-INS
Weight
1.3 lbs. (0.59 kg)
49
