8
7
6
5
4
3
2
1
REVISIONS
REV.
E
F
ECO. NO
3171
DESCRIPTION
UPDATE DWG FORMAT, ADD 'Z' MOUNTING OPTION
ADD "T" MATERIAL, MTL COLOR OPTION & MOLDED
KEY IN-POSITION OPTION, OBSOLETE DWG 11259
(S328), 12299 (S1221), 12269 (S1732), 12458 (S1821),
12917 (S2067), 12516 (S1769), 12577 (S1442), 10834
(S346), 11994 (S1561)
ADD OPTIONS FOR STD KEY BETWEEN POSITIONS
AND .030" WIDE KEY BETWEEN POSITIONS,
OBSOLETE DWG 10718 (S1172)
DATE
3/4/2015
BY
MG
F
F
3783
12/13/2017
JH
H
3816
3/2/2018
JH
E
E
D
B
A
.075 1.91
CARD SLOT
SEE NOTE 13
E
2X
.125 3.18
THRU
+.005
+0.13
.370
9.40
- .015
- 0.38
.030 0.76
.297 7.54
INSERTION DEPTH
D
C
D
.180 4.57
A
.250 6.35
.610 15.49

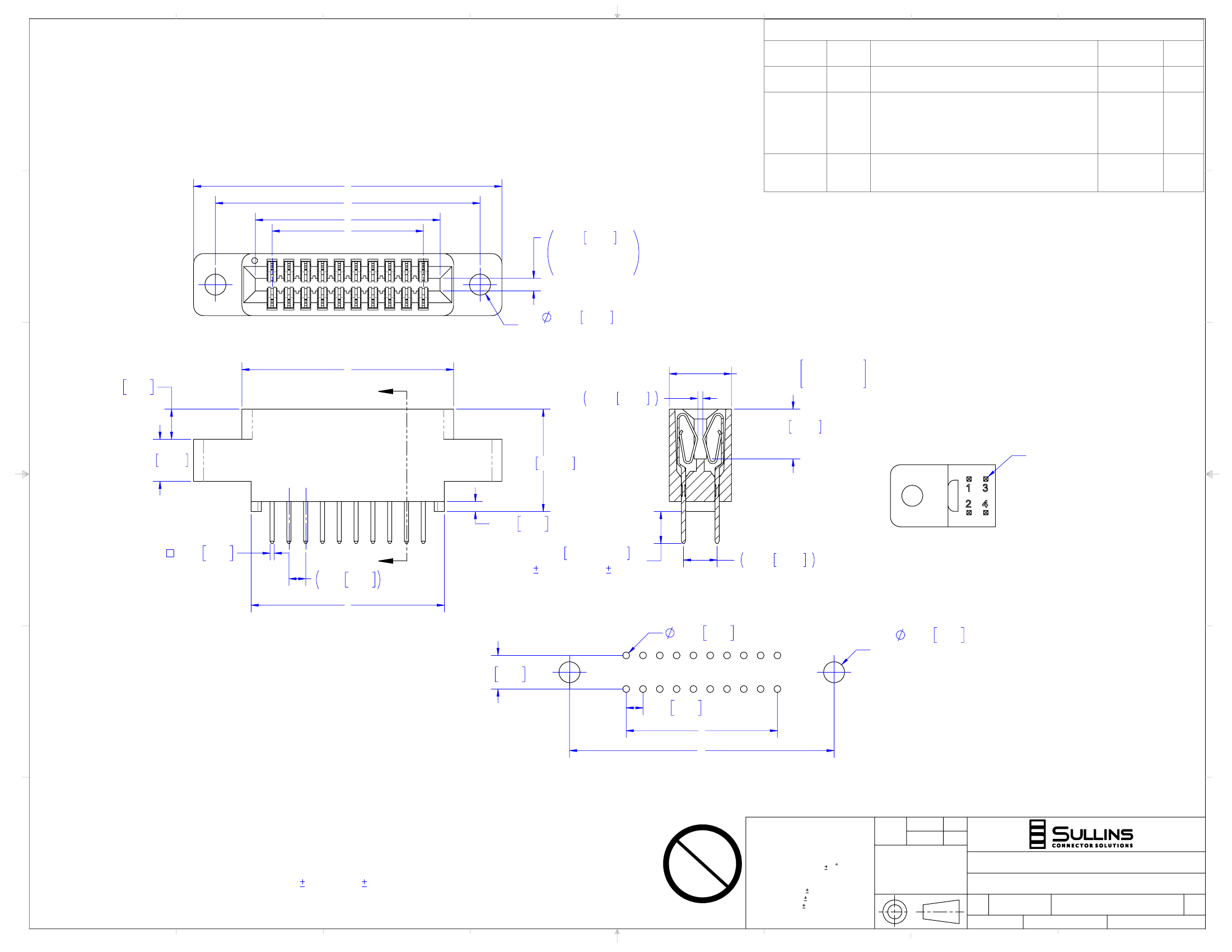

CONTACT MARKINGS:
1 3 5 ... 37 39 ... 97 99
2 4 6 ... 38 40 ... 98 100
.060 1.52
C
.025 0.64
A
.100 2.54
F
_ _ C _ _DRSH
_ _ C _ _DRMH
RS = .190±.025 4.83±0.64
RM = .560 .025 [14.22 0.64]
.200 5.08
SECTION A-A
.040 1.02 MIN THRU
CONTACT ID
SCALE 4:1
C
.200 5.08
B
2X .125 3.18
FOR H, D, W, T, I,
OR X MOUNTING
B
A
NOTES:
A
1. INSULATOR MATERIAL: SEE PART NUMBER CODING
2. CONTACT MATERIAL: SEE PART NUMBER CODING
D
3. PLATING: SEE PART NUMBER CODING
4. OPERATING TEMPERATURE: SEE PART NUMBER CODING
RECOMMENDED PCB LAYOUT
5. PROCESSING TEMP: SEE PART NUMBER CODING
6. UL FLAMMABILITY RATING: 94V-0
7. OPERATING VOLTAGE: 700 VAC
8. CURRENT RATING: 3 AMP
UNLESS OTHERWISE SPECIFIED: DRAWN DATE NAME
9. CONTACT RESISTANCE: 30 MILLI OHMS MAX
DIMENSIONS ARE IN INCHES [MM]
10/10/2011 JH
10. INSULATION RESISTANCE: 5000 MEGA OHMS
TOLERANCES:
TITLE
11. DURABILITY: 500 CYCLES MIN
EDGECARD, .100 CC, HP
ANGULAR: 1
12. CONNECTOR IDENTIFICATION: THE PART SHALL BE MARKED WITH A PART NUMBER AND LOT CODE
PART NUMBER
DECIMALS
13. BOARD THICKNESS ACCOMMODATED: .062 .008[1.57 0.20]
_ _C_ _D(RS,RM)_-(S38, S81, S328)
.XX= .02 [.5]
14. INSERTION FORCE: 8 OZ MAX PER CONTACT PAIR WHEN USING A .062[1.57] TEST BLADE
.XXX= .005 [.13]
CAGE CODE DWG. NO.
SIZE
REV
.XXXX= .0005 [.013]
15. WITHDRAWAL FORCE: 1 OZ MIN PER CONTACT PAIR USING .062[1.57] TEST BLADE
C
54453
H
C10922
RoHS
COMPLIANT
16. MODIFICATION: SEE PART NUMBER CODING
SHEET 1 OF 6
SCALE: 3:1
.100 2.54 TYP
CUSTOMER COPY
THE INFORMATION HEREIN CONTAINS
PROPRIETARY INFORMATION OF
SULLINS ELECTRONICS AND IS NOT
TO BE REPRODUCED, USED OR
DISCLOSED TO OTHERS FOR ANY
PURPOSE EXCEPT AS SPECIFICALLY
AUTHORIZED IN WRITING BY AN
OFFICER OF SULLINS ELECTRONICS.
Pb
4
A
8
7
6
5
3
FILE NAME: C10922, _ _C_ _D(RS, RM)_-OMIT, S38, S81, S328, S_ _ _ _, STD KEY IN POSITION, (STD, .030) KEY BETWEEN POSITIONS
2
1
8
7
6
5
4
3
2
1
2X #4-40
THREADED
INSERT
F
D
F
C
2X
.125 3.18
D
.245 6.22
E
E
_ _ C _ _DRSN
_ _ C _ _DRMN
D
2X #4-40
THREADED
INSERT
_ _ C _ _DRSS
_ _ C _ _DRMS
D
_ _ C _ _DRSI
_ _ C _ _DRMI
D
2X
.125 3.18
THRU
D
2X .125 3.18
THRU
D
.250 6.35
.250 6.35
.125 3.18
_ _ C _ _DRSD
_ _ C _ _DRMD
D
2X #4-40
THREADED
INSERT
2X .125 3.18
THRU
C
_ _ C _ _DRST
_ _ C _ _DRMT
D
_ _ C _ _DRSZ
_ _ C _ _DRMZ
C
B
B
.430 10.92
.430 10.92
A
_ _ C _ _DRSW
_ _ C _ _DRMW
_ _ C _ _DRSX
_ _ C _ _DRMX
CUSTOMER COPY
Pb
4
UNLESS OTHERWISE SPECIFIED: DRAWN DATE NAME
DIMENSIONS ARE IN INCHES [MM]
10/10/2011 JH
TOLERANCES:
ANGULAR:
1
THE INFORMATION HEREIN CONTAINS
PROPRIETARY INFORMATION OF
SULLINS ELECTRONICS AND IS NOT
TO BE REPRODUCED, USED OR
DISCLOSED TO OTHERS FOR ANY
PURPOSE EXCEPT AS SPECIFICALLY
AUTHORIZED IN WRITING BY AN
OFFICER OF SULLINS ELECTRONICS.
TITLE
RoHS
COMPLIANT
8
7
6
5
DECIMALS
.XX= .02 [.5]
.XXX= .005 [.13]
.XXXX= .0005 [.013]
PART NUMBER
SIZE
EDGECARD, .100 CC, HP
DWG. NO.
A
_ _C_ _D(RS,RM)_-(S38, S81, S328)
CAGE CODE
SCALE: 2:1
3
2
C
54453
C10922
1
REV
SHEET 2 OF 6
H
FILE NAME: C10922, _ _C_ _D(RS, RM)_-OMIT, S38, S81, S328, S_ _ _ _, STD KEY IN POSITION, (STD, .030) KEY BETWEEN POSITIONS

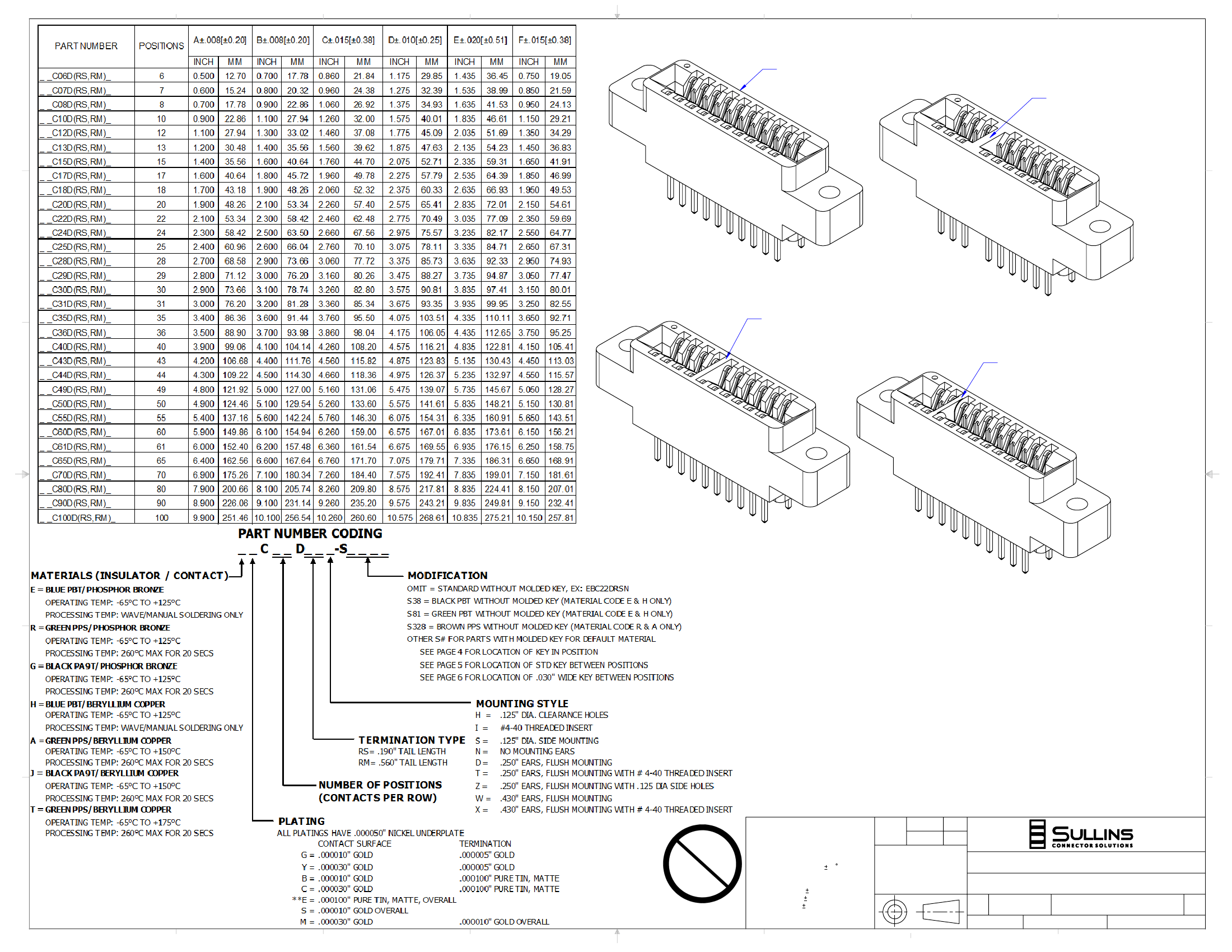

8
7
6
5
4
3
2
1

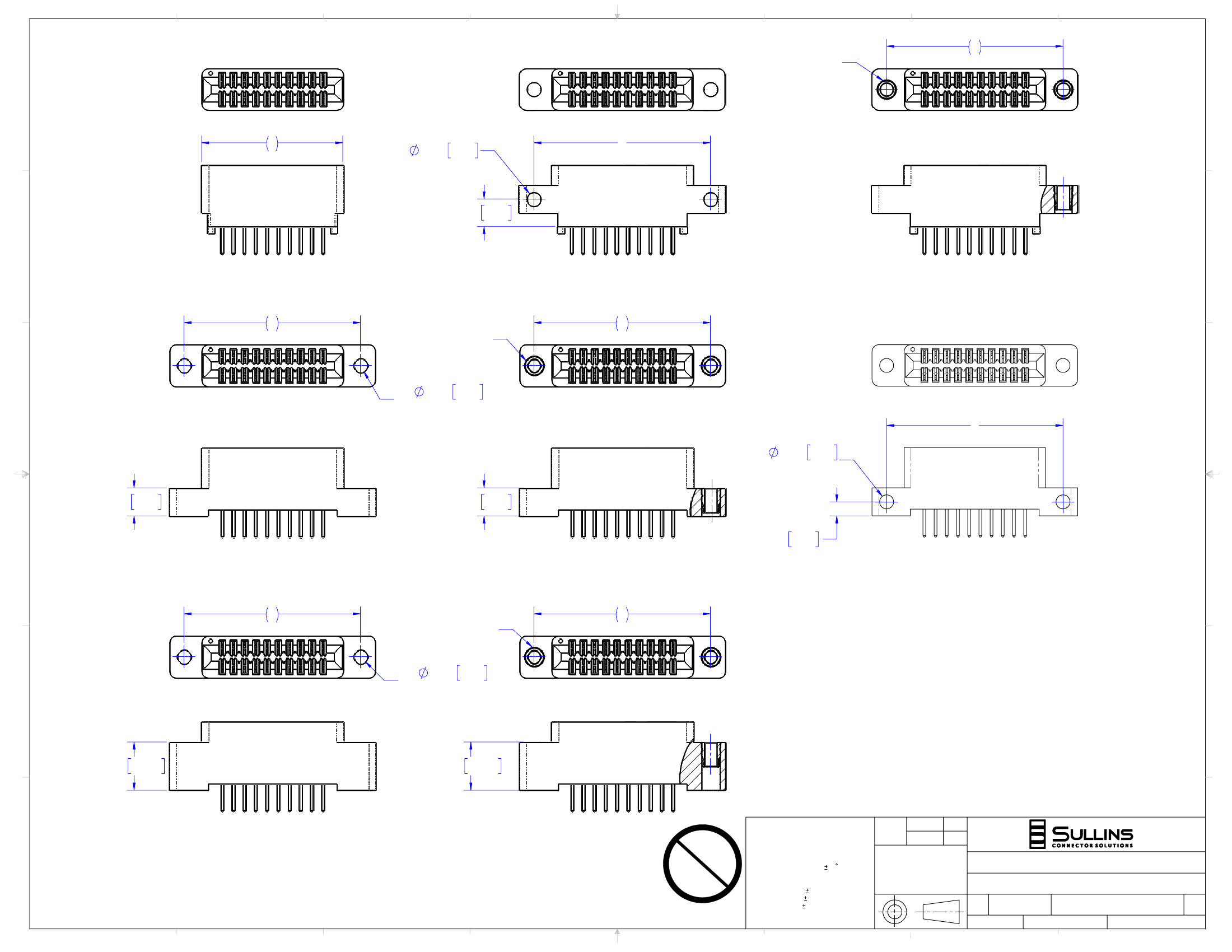

WITHOUT MOLDED KEY
F
WITH MOLDED KEY
IN POSITION
(SEE PAGE 4)
F
E
E
WITH STD MOLDED KEY
BETWEEN POSITIONS
(SEE PAGE 5)
D
WITH .030" WIDE MOLDED KEY
BETWEEN POSITIONS
(SEE PAGE 6)
D
C
C
B
B
CUSTOMER COPY
A
Pb
RoHS
COMPLIANT
8
7
6
5
4
UNLESS OTHERWISE SPECIFIED: DRAWN DATE NAME
DIMENSIONS ARE IN INCHES [MM]
10/10/2011 JH
TOLERANCES:
ANGULAR:
1
THE INFORMATION HEREIN CONTAINS
PROPRIETARY INFORMATION OF
SULLINS ELECTRONICS AND IS NOT
TO BE REPRODUCED, USED OR
DISCLOSED TO OTHERS FOR ANY
PURPOSE EXCEPT AS SPECIFICALLY
AUTHORIZED IN WRITING BY AN
OFFICER OF SULLINS ELECTRONICS.
TITLE
DECIMALS
.XX= .02 [.5]
.XXX= .005 [.13]
.XXXX= .0005 [.013]
PART NUMBER
SIZE
EDGECARD, .100 CC, HP
DWG. NO.
A
_ _C_ _D(RS,RM)_-(S38, S81, S328)
CAGE CODE
SCALE: 3:1
3
2
C
54453
C10922
1
REV
SHEET 3 OF 6
H
FILE NAME: C10922, _ _C_ _D(RS, RM)_-OMIT, S38, S81, S328, S_ _ _ _, STD KEY IN POSITION, (STD, .030) KEY BETWEEN POSITIONS
8
7
6
5
4
3
2
1

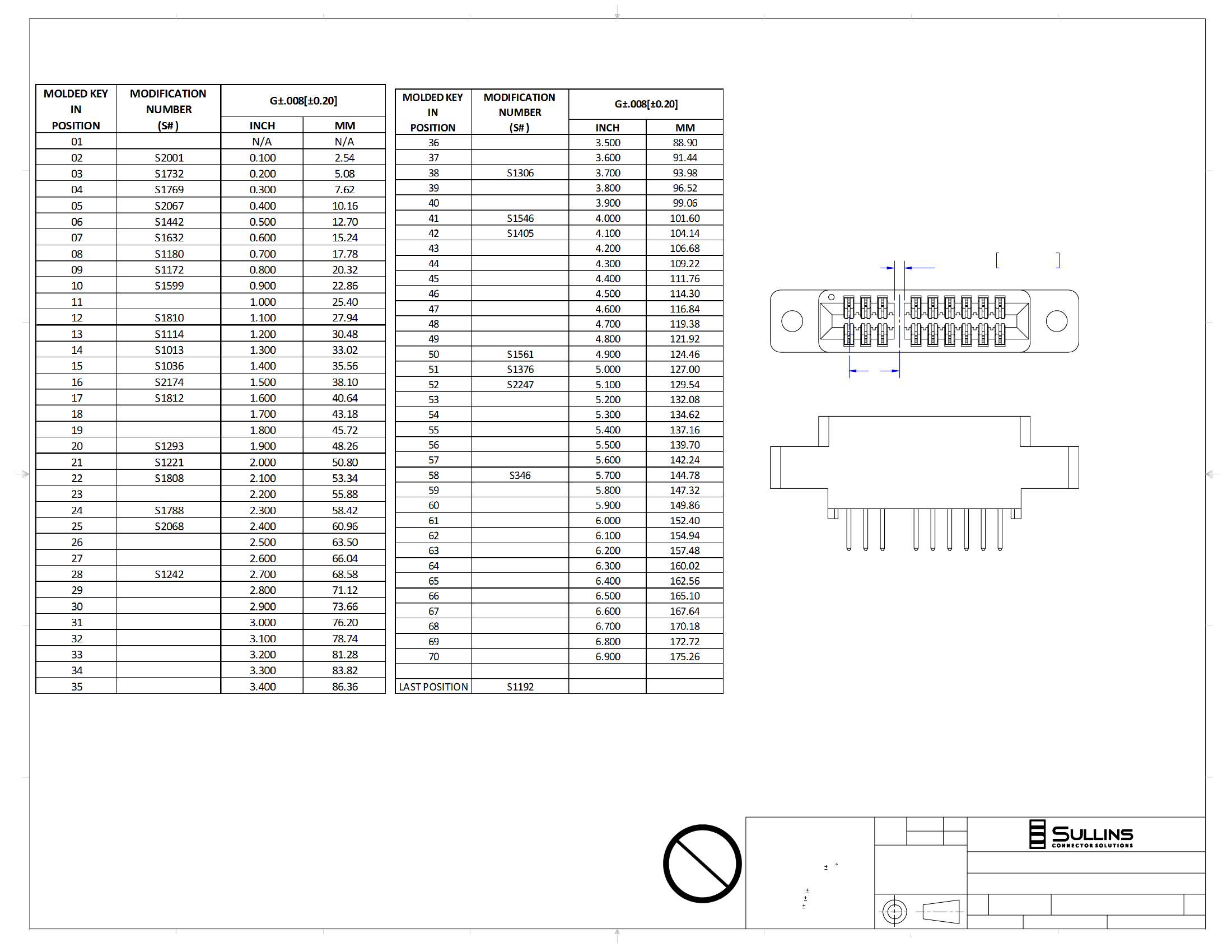

STANDARD LOCATION TABLE FOR KEY IN POSITION***
F
F
E
E
.060±.002 1.52±0.06
MOLDED KEY IN POSITION
G
D
D
C
C
('H' MOUNTING AS SHOWN FOR EXAMPLE)
B
B
***CONNECTOR TOTAL POSITIONS MUST BE AT LEAST ONE POSITION LONGER THAN KEY LOCATION,
USE S1192 FOR CONNECTORS WITH KEY IN LAST POSITION (EX: _ _C05DRSH-S1192 IS FOR 5-POSITION CONNECTOR WITH MOLDED KEY IN POSITION 5)
CUSTOMER COPY
A
Pb
RoHS
COMPLIANT
8
7
6
5
4
UNLESS OTHERWISE SPECIFIED: DRAWN DATE NAME
DIMENSIONS ARE IN INCHES [MM]
10/10/2011 JH
TOLERANCES:
ANGULAR:
1
THE INFORMATION HEREIN CONTAINS
PROPRIETARY INFORMATION OF
SULLINS ELECTRONICS AND IS NOT
TO BE REPRODUCED, USED OR
DISCLOSED TO OTHERS FOR ANY
PURPOSE EXCEPT AS SPECIFICALLY
AUTHORIZED IN WRITING BY AN
OFFICER OF SULLINS ELECTRONICS.
TITLE
EDGECARD, .100 CC, HP, KEY IN POSITION
SIZE
A
DECIMALS
.XX= .02 [.5]
.XXX= .005 [.13]
.XXXX= .0005 [.013]
PART NUMBER
SCALE: 3:1
3
2
C
CAGE CODE
_ _C_ _(DRS, DRM)_-S_ _ _ _
DWG. NO.
54453
C10922
1
REV
SHEET 4 OF 6
H
FILE NAME: C10922, _ _C_ _D(RS, RM)_-OMIT, S38, S81, S328, S_ _ _ _, STD KEY IN POSITION, (STD, .030) KEY BETWEEN POSITIONS
8
7
6
5
4
3
2
1

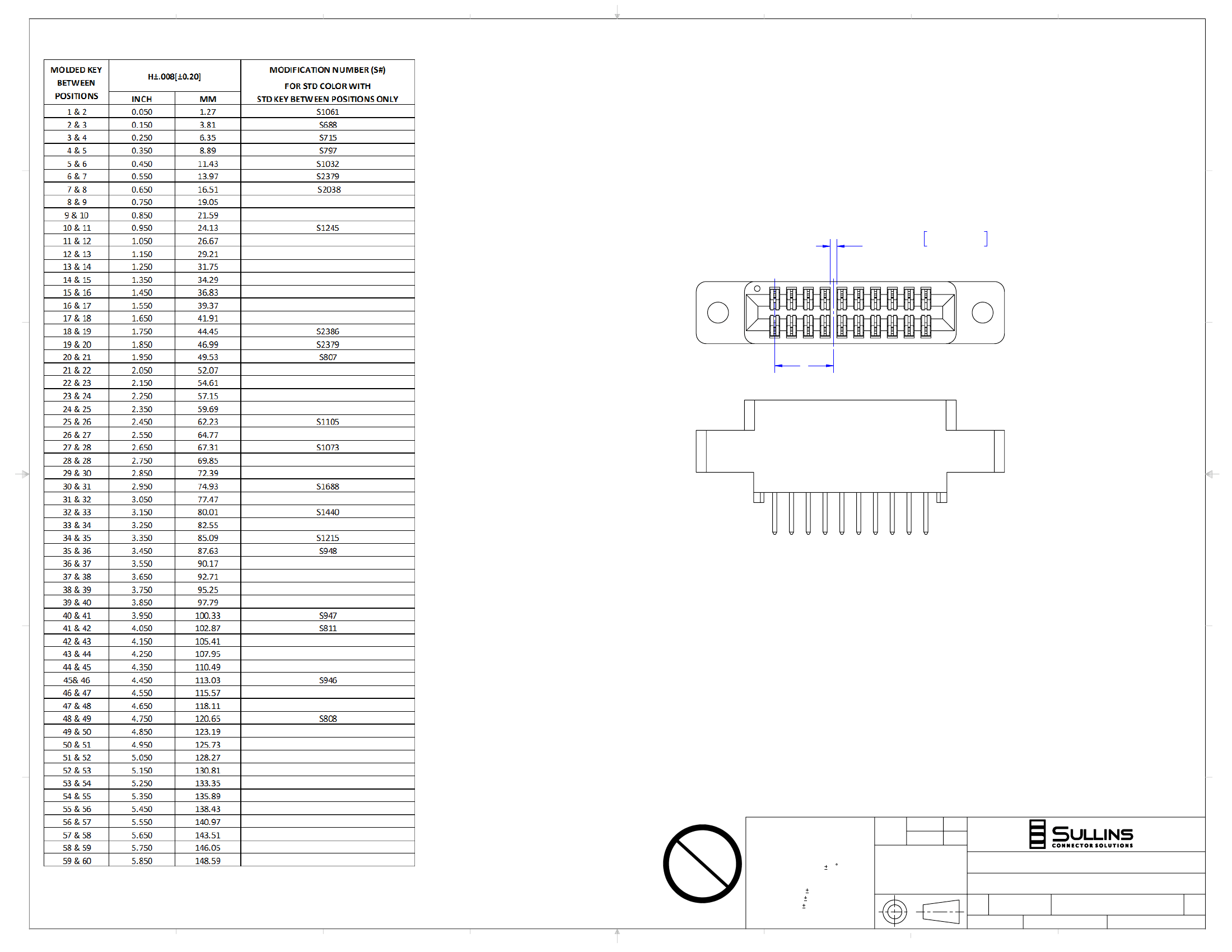

STANDARD LOCATION TABLE FOR KEY BETWEEN POSITIONS***
F
F
E
.040±.002 1.02±0.05
STD MOLDED KEY BETWEEN POSITIONS
E
H
D
D
C
C
('H' MOUNTING AS SHOWN FOR EXAMPLE)
B
B
CUSTOMER COPY
A
Pb
***CONNECTOR TOTAL POSITIONS MUST BE AT LEAST ONE POSITION LONGER THAN KEY LOCATION
RoHS
COMPLIANT
8
7
6
5
4
UNLESS OTHERWISE SPECIFIED: DRAWN DATE NAME
DIMENSIONS ARE IN INCHES [MM]
10/10/2011 JH
TOLERANCES:
ANGULAR:
1
THE INFORMATION HEREIN CONTAINS
PROPRIETARY INFORMATION OF
SULLINS ELECTRONICS AND IS NOT
TO BE REPRODUCED, USED OR
DISCLOSED TO OTHERS FOR ANY
PURPOSE EXCEPT AS SPECIFICALLY
AUTHORIZED IN WRITING BY AN
OFFICER OF SULLINS ELECTRONICS.
TITLE
PART NUMBER
SIZE
EDGECARD, .100 CC, HP, STD
KEY BETWEEN POSITIONS
DWG. NO.
REV
A
DECIMALS
.XX= .02 [.5]
.XXX= .005 [.13]
.XXXX= .0005 [.013]
SCALE: 3:1
3
2
C
CAGE CODE
_ _C_ _D(RS,RM)_-S_ _ _ _
C10922
1
54453
SHEET 5 OF 6
H
FILE NAME: C10922, _ _C_ _D(RS, RM)_-OMIT, S38, S81, S328, S_ _ _ _, STD KEY IN POSITION, (STD, .030) KEY BETWEEN POSITIONS
