HMC984LP4E
DIGITAL PHASE-FREQUENCY DETECTOR
Typical Applications
The HMC984LP4E is suitable for:
Features
Ultra-Low Noise:
-231 dBc/Hz FOM Integer Mode
-227 dBc/Hz FOM Fractional Mode
Ultra Low Spurious Emissions:
- Less Than 60 dBc Fractional Spurious
Differential Phase Detector Input
14-bit Reference Frequency Divider
Lock Indicator Output
Phase Measurement Capability
GPIO (General Purpose Input/Output) Test Pin
Cycle Slip Prevention Support with HMC984LP4E
24 pin, 4 x 4 mm, LP4E Package
FREQUENCY DIVIDERS & DETECTORS - SMT
•
Test Equipment
•
Portable Instruments
•
High Performance Fractional-N Frequency
Synthesizers with Ultra Low Spurious Emissions
•
Military

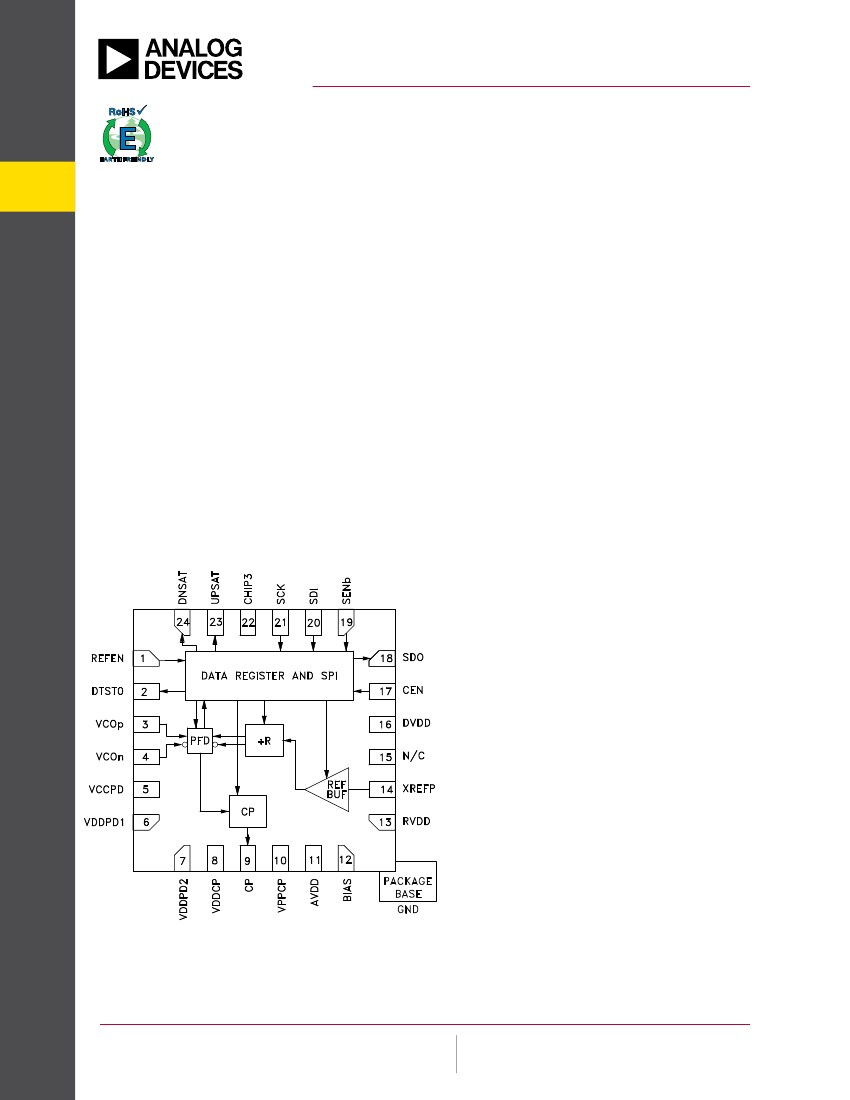

Functional Diagram
General Description
HMC984LP4E is a high-performance, ultra-low phase
noise, SiGe BiCMOS Phase-Frequency Detector
and Charge Pump targeted to be used together with
the HMC983LP5E (Fractional Frequency Divider) to
together form a high performance, low noise, ultra low
spurious emission fractional-N frequency synthesizer.
Although best performance and maximum features are
achieved when used together with the HMC983LP5E,
the HMC984LP4E can also be used as a stand-alone,
low phase noise phase frequency detector.
The HMC984LP4E can receive differential VCO input,
and a reference frequency as high as 150 MHz. It
features a 14-bit reference frequency R-Divider, and
automatic and/or configurable Lock Detect Indicator,
as well as integrated CSP (Cycle Slip Prevention)
capability, when used together with the HMC983LP5E,
that significantly improves frequency lock time.
Integrated Charge Pump phase swap option enables
seamless interfaced to VCOs and active loop filters
with inverted polarity.
Additional features include adjustable Charge Pump
gain and offset current that improve linearity and
performance, and a Soft Reset feature that resets all
register to default values without having to perform a
power-cycle.
The HMC984LP4E is housed in a compact 24 pin 4x4
mm LP4 package.
Product covered by US and Foreign Patents including US Pat. No. 8,531,217.
Information furnished by Analog Devices is believed to be accurate and reliable. However, no
For price, delivery, and
Drive,
orders: Analog Devices, Inc.,
For price, delivery and to
for its use, nor for any infringements of patents or
Corporation, 2 Elizabeth
to place
Chelmsford, MA 01824
responsibility is assumed by Analog Devices
place orders: Hittite Microwave
other
One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106
rights of third parties that may result from its use. Specifications subject to change without notice. No
978-250-3343 tel • 978-250-3373 fax • Order On-line at www.hittite.com
www.analog.com
Phone: 781-329-4700 • Order online at
license is granted by implication or otherwise under any patent or patent rights of Analog Devices.
Application Support: Phone: 1-800-ANALOG-D
Trademarks and registered trademarks are the property of their respective owners.
Support: apps@hittite.com
Application
1
HMC984LP4E
v02.0112
DIGITAL PHASE-FREQUENCY DETECTOR
Table 1. Electrical Specifications
TA = +25 °C, AVDD, RVDD, VDDPD1, VDDPD2, DVDD = 3 V; VCCPD, VPPCP, VDDCP = 5 V; GND = 0 V
FREQUENCY DIVIDERS & DETECTORS - SMT
Parameter
Ref. Input Characteristics
Frequency Range
Ref. Input Power Range
Ref. Input Impedance
Ref/-Divider Range (14-bit)
Phase Detector (PD)
PD Input Internal Pull-Up Resistance
PD Input Current
PD Input Voltage Swing
Fractional Mode
Phase Detector Frequency
Integer Mode
Phase Detector Frequency
Charge Pump (CP)
CP Output Current
CP HiK
Offset Current
Phase noise
[1]
Integer Mode
Conditions
Min.
Typ.
Max.
Units
DC
50 Ω Source
50
6
100||3
350
12
MHz
dBm
Ω||pF
1
16383
VCOp, VCOn, Each Side
VCOp, VCOn, 2.5 mA Steps
Single-Ended Peak-to-Peak
12.5
625
50
15
750
17.5
875
Ω
mA
mV
12 dBm Sine-Wave Input, Mode A & B
2 dBm Square-Wave Input, Mode A & B
DC
DC
50
50
125
90
MHz
MHz
12 dBm Sine-Wave Input
2 dBm Square-Wave Input
DC
DC
50
50
175
150
MHz
MHz
7-bit Programmable, 20 uA/Step, Charge
Pump Gain = CP Current/2π Amps/rad
See
“Charge Pump High Gain (HiK)
Mode”
section
7-bit Programmable,5 uA/Step
0.02
3.5
5
2.5
6
635
mA
mA
µA
-230
-227
-232
-230
-229
-269
-267
-268
-266
-266
dBc/Hz
dBc/Hz
dBc/Hz
dBc/Hz
dBc/Hz
dBc/Hz
dBc/Hz
dBc/Hz
dBc/Hz
dBc/Hz
Fractional Modes A & B
Floor Figure of Merit (FOM)
HiK Integer Mode
HiK Fractional Mode A
HiK Fractional Mode B
Integer Mode
Fractional Modes A & B
Flicker Figure of Merit (FOM)
HiK Integer Mode
HiK Fractional Mode A
HiK Fractional Mode B
Spurious
[1]
Integer Boundary Spurs @ 2.1 GHz
Integer Boundary Spurs @ 2.1 GHz
1/2 Integer Boundary Spurs
1/3 Integer Boundary Spurs
Frequency offsets less than loop band-
width F
PD
=50 MHz, Mode A
Frequency offsets less than loop band-
width F
PD
=50 MHz, Mode B
F
PD
=50 MHz
F
PD
=50 MHz
-60
-70
-75
-85
-55
-65
-70
-80
dBc
dBc
dBc
dBc
[1] Measured with HMC983LP5E/HMC984LP4E as fractional-N synthesizer chip set.
Information furnished by Analog Devices is believed to be accurate and reliable. However, no
For price, delivery, and
Drive,
orders: Analog Devices, Inc.,
For price, delivery and to
for its use, nor for any infringements of patents or
Corporation, 2 Elizabeth
to place
Chelmsford, MA 01824
responsibility is assumed by Analog Devices
place orders: Hittite Microwave
other
One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106
rights of third parties that may result from its use. Specifications subject to change without notice. No
978-250-3343 tel • 978-250-3373 fax • Order On-line at www.hittite.com
www.analog.com
Phone: 781-329-4700 • Order online at
license is granted by implication or otherwise under any patent or patent rights of Analog Devices.
Application Support: Phone: 1-800-ANALOG-D
Trademarks and registered trademarks are the property of their
Application Support: apps@hittite.com
respective owners.
2
HMC984LP4E
v02.0112
DIGITAL PHASE-FREQUENCY DETECTOR
Table 1. Electrical Specifications
Continued...
TA = +25 °C, AVDD, RVDD, VDDPD1, VDDPD2, DVDD = 3 V; VCCPD, VPPCP, VDDCP = 5 V; GND = 0 V
Parameter
1/5 Integer Boundary Spurs
Logic Inputs
VIH Input High Voltage
VIL Input Low Voltage
Logic Outputs
VOH Output High Voltage
VOL Output Low Voltage
DC Load
Serial Port
Serial Port Clock Frequency
Power Supplies
AVDD, RVDD
VCCPD
VPPCP
VDDCP
DVDD, VDDPD1, VDDPD2
Current Consumption
IDD- Total Current Consumption
I-AVDD (3 V)
I-RVDD (3 V)
I-VCCPD (5 V)
I-VDDPD1 (3 V)
I-VDDPD2 (3 V)
I-VPPCP (5 V)
I-VDDCP (5 V)
I-DVDD (3 V)
Bias Reference Voltage
[2]
AVDD Current
Reference Path Current
PD Current
PD Digital Supply Current
PD Digital Supply Current
CP Analog Supply Current
CP Digital Supply Current
Total DVDD Current
Measured with 10 GΩ Volt Meter
1.58
123.6
4.8
22
83.5
2.7
2.7
3
2.9
2
1.72
1.86
mA
mA
mA
mA
mA
mA
mA
mA
mA
V
Analog Supplies, AVDD should equal
DVDD
5 V Analog Supply for PD
CP Analog Supply
CP Digital Supply
Digital Supplies
2.8
4.5
4.5
4.5
2.8
3
5
5
5
3
3.3
5.5
5.5
5.5
3.3
V
V
V
V
V
30
MHz
0.4
1.5
DVDD- 0.4
V
V
mA
0.4
DVDD - 0.4
V
V
Fpd=50 MHz
Conditions
Min.
-85
Typ.
Max.
Units
dBc
[2] Bias voltage cannot drive external load. It must be measured with a 10 GΩ voltmeter such as Agilent 34410A. A typical 10 MΩ Digital Volt Meter
will read erroneously.
Information furnished by Analog Devices is believed to be accurate and reliable. However, no
For price, delivery, and
Drive,
orders: Analog Devices, Inc.,
For price, delivery and to
for its use, nor for any infringements of patents or
Corporation, 2 Elizabeth
to place
Chelmsford, MA 01824
responsibility is assumed by Analog Devices
place orders: Hittite Microwave
other
One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106
rights of third parties that may result from its use. Specifications subject to change without notice. No
978-250-3343 tel • 978-250-3373 fax • Order On-line at www.hittite.com
www.analog.com
Phone: 781-329-4700 • Order online at
license is granted by implication or otherwise under any patent or patent rights of Analog Devices.
Application Support: Phone: 1-800-ANALOG-D
Trademarks and registered trademarks are the property of their
Application Support: apps@hittite.com
respective owners.
6-3
FREQUENCY DIVIDERS & DETECTORS - SMT
HMC984LP4E
v02.0112
DIGITAL PHASE-FREQUENCY DETECTOR

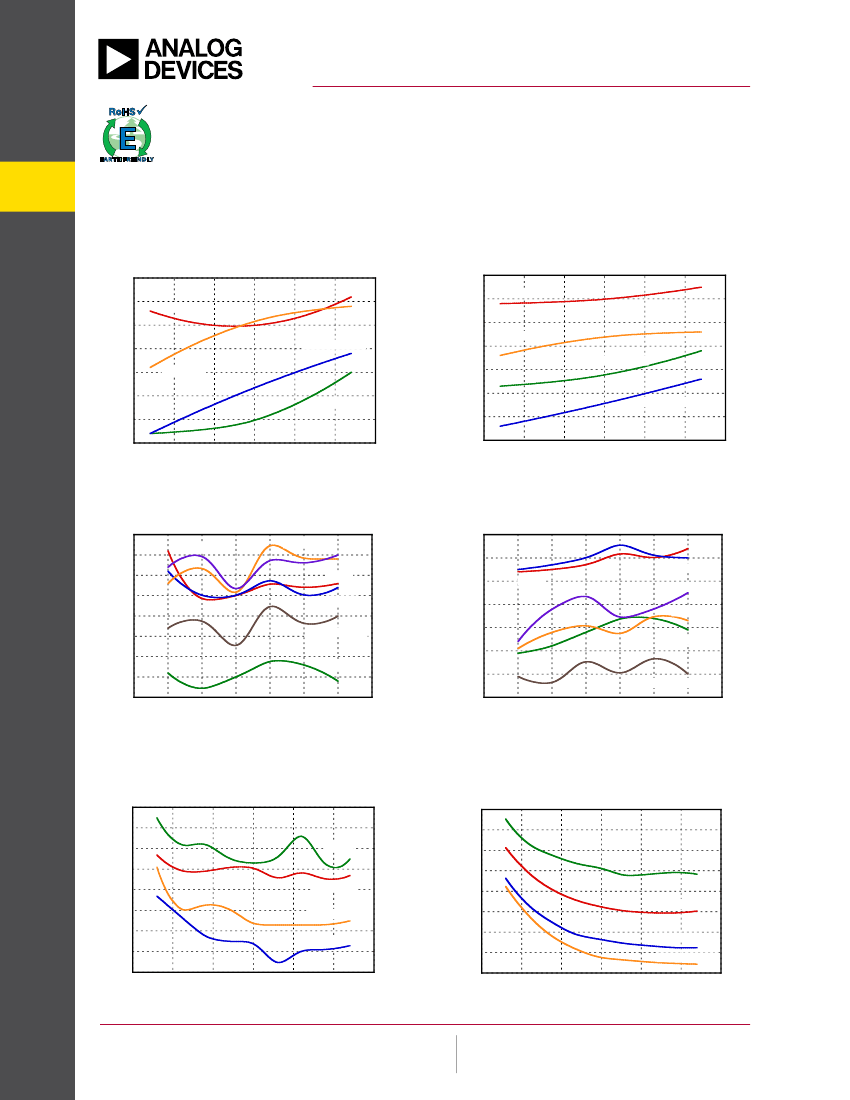

TYPICAL PERFORMANCE CHARACTERISTICS
FREQUENCY DIVIDERS & DETECTORS - SMT

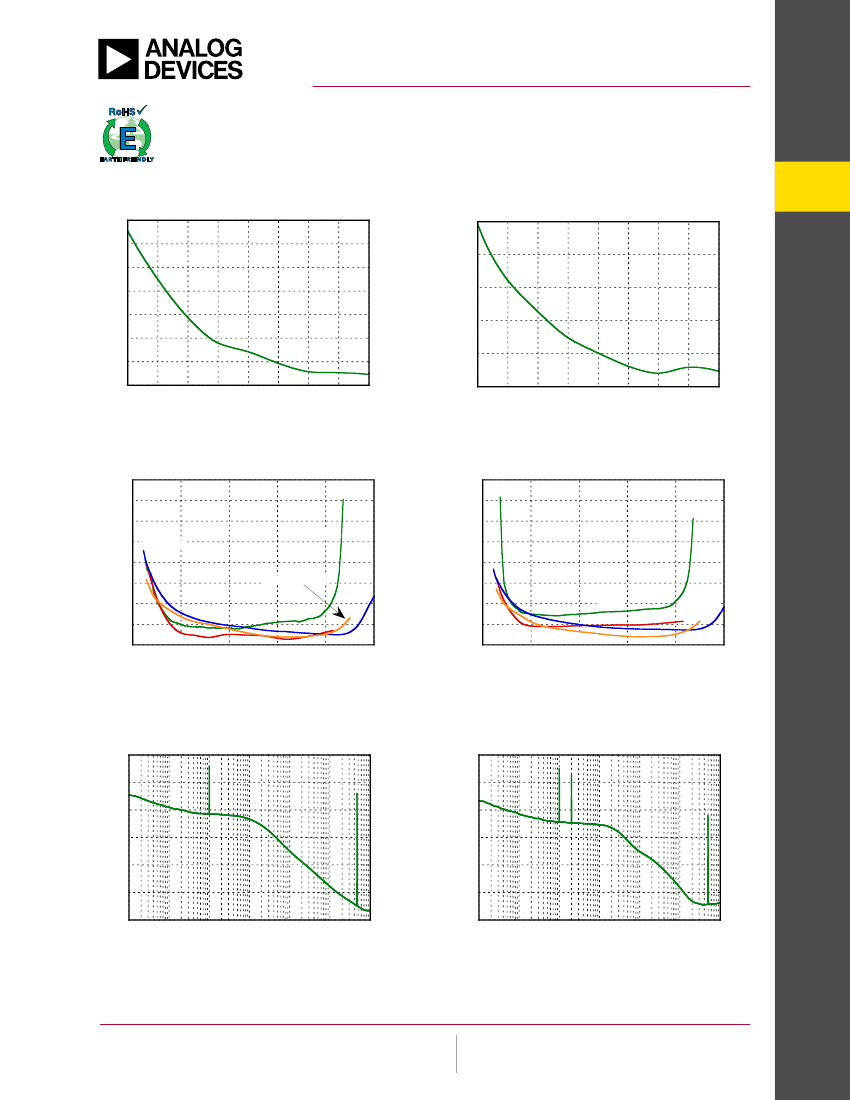

Figure 1. HMC984LP4E & HMC983LP5E
