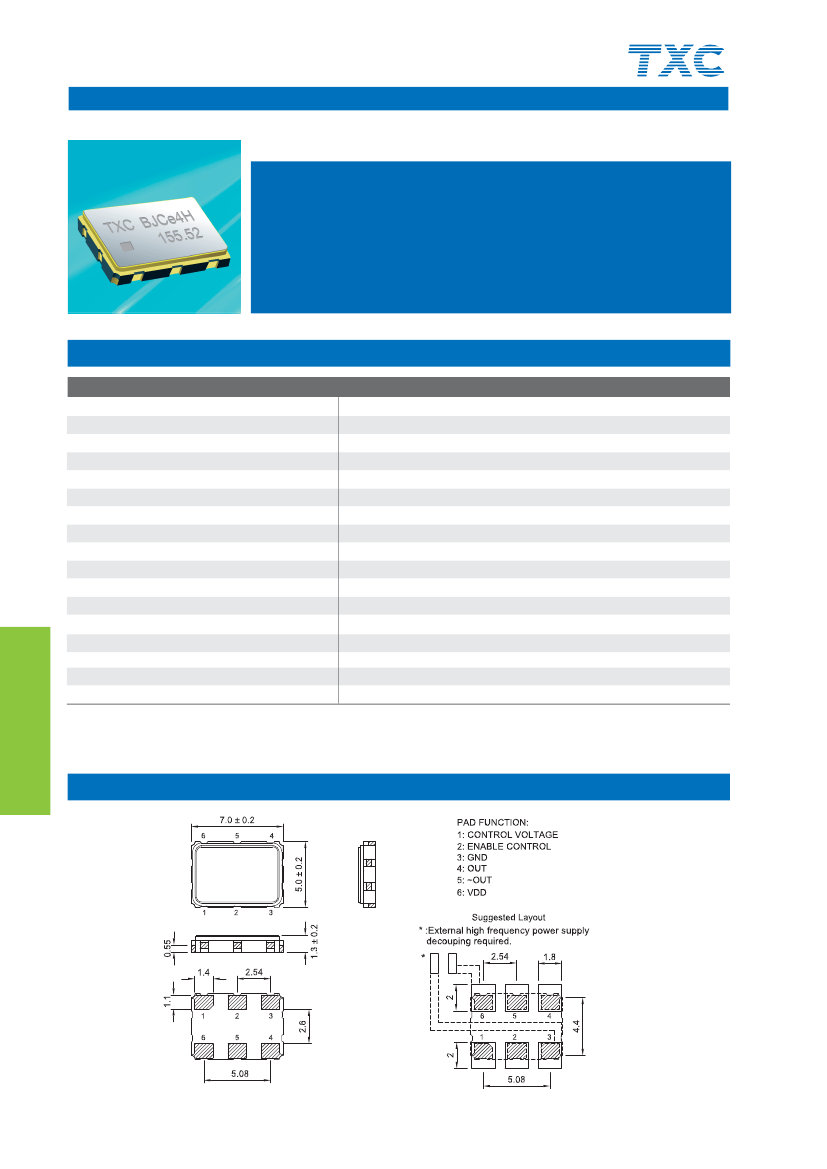

Oscillators
7 x 5 mm SMD LVPECL VCXO
BJ SERIES
Features
>
Voltage Controlled Crystal Oscillator (VCXO).
>
Fundamental solution.
e4H
TXC BJC 5.52
15
>
PECL output, output frequencies 60 MHz to 220 MHz.
>
Excellent low phase noise and jitter.
>
Tri-State function available.
>
Applications : SDH/ SONET.
>
RoHS Compliant / Pb Free.
Electrical Specifications
Item / Type
Output Type
Output Load
Oscillation Mode
Supply Voltage
Frequency Range
Frequency Stability / Operating Temperature
Storage Temperature Range
Voltage Vol ( Max. ) / Voh ( Min. )
Rise ( Tr ) / Fall ( Tf ) Time ( 20 % ~ 80 % )
Supply Current
Symmetry
Start-up Time
Absolute Pulling Range ( APR ) *
50
BJ
LVPECL
to VDD - 2 V
3.3 V
60 ~ 220 MHz
± 50 ppm / - 40 ~ + 85
- 55 ~ + 125 C
VDD - 1.62 V / VDD - 1.025 V
1 ns Max.
80 mA
45 ~ 55 %
10 ms Max.
± 100 ppm Min. or specify
1.65 V
0 ~ 3.3 V
± 10 % Max.
1 ps Max.
o
o
Fundamental
C
50
Oscillators
Nominal Control Voltage
Control Voltage Range
Linearity
Phase Jitter ( 12 KHz ~ 20 MHz )
* APR=(Pull Range) - (Degrations due to initial tolerance, operating temperature, supply voltage variation and aging)
Dimensions
Units:mm
Remark : Specification subject to change without prior notice. Please confirm with our sales.
