SWT100-5105%B datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> The resistor> SWT100-5105%B

SWT100-5105%B: DescriptionRESISTOR, WIRE WOUND, 100 W, 5 %, 510 ohm, CHASSIS MOUNT, ROHS COMPLIANT; CategoryPassive components The resistor; File Size177KB，2 Pages; ManufacturerSEI(Stackpole Electronics Inc.); Websitehttps://www.seielect.com/; Environmental Compliance; Related ProductsFound4parts with similar functions to SWT100-5105%B

Download Datasheet Parametric View All

SWT100-5105%B Overview

RESISTOR, WIRE WOUND, 100 W, 5 %, 510 ohm, CHASSIS MOUNT, ROHS COMPLIANT

SWT100-5105%B Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
package instruction	,
Reach Compliance Code	compli
JESD-609 code	e3
Manufacturer's serial number	SWT
Installation features	CHASSIS MOUNT
Package shape	TUBULAR PACKAGE
method of packing	BULK
Rated power dissipation(P)	100 W
Rated temperature	70 °C
resistance	510 Ω
Resistor type	FIXED RESISTOR
surface mount	NO
technology	WIRE WOUND
Terminal surface	MATTE TIN
Terminal shape	LUG
Tolerance	5%
Base Number Matches	1

Preview

Download Datasheet

View All

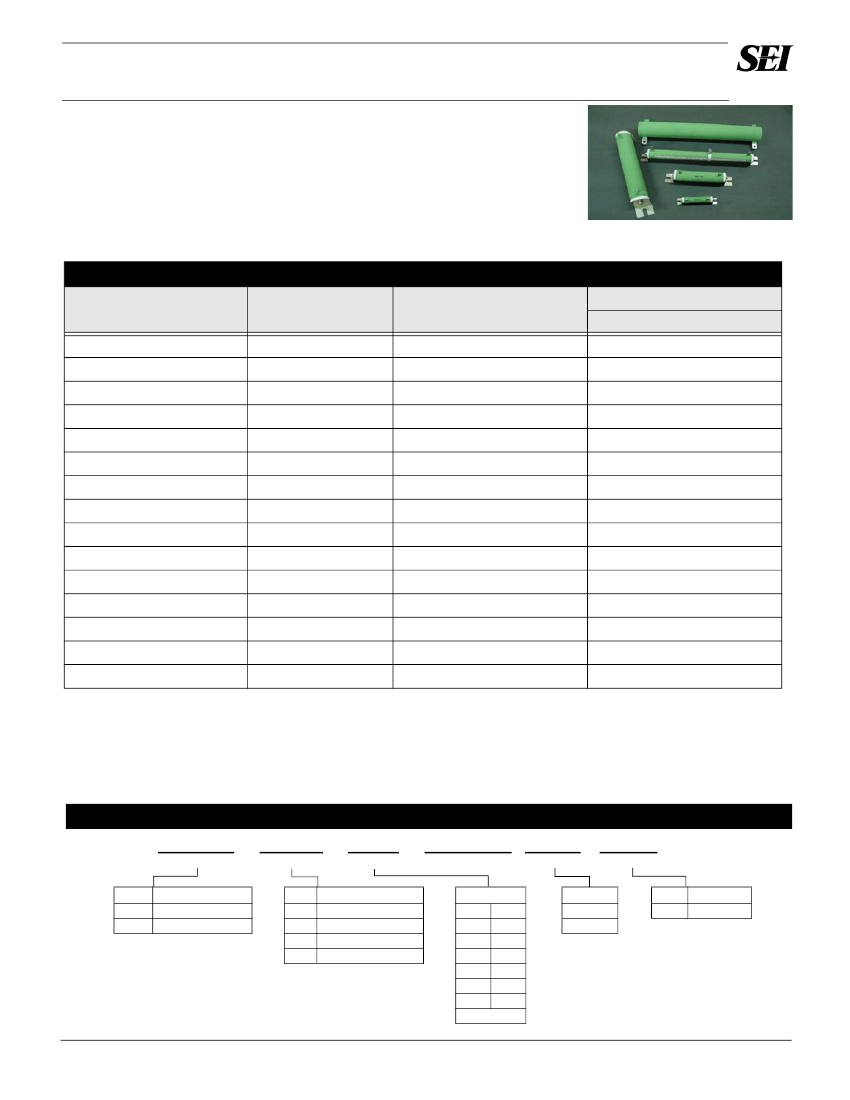

SWT/EWT Series —

Non-Flammable Edgewound Tubular Wire

Wound

Features

• High current capability

• RoHS compliant / Lead-free

• Suitable for soldering or thru bolt connections

• Wirewound Ribbon on ceramic substrate

• Refer to appropriate mounting spec sheet for non standard tab connections

• SWT -Silicone coating provides Power Derating to 350°C

• EWT -Vitreous Enamel coating provides Power Derating to 500°C

Electrical Specifications

Type / Code*

Power Rating

(Watts)

@ 70°C

12W

25W

50W

100W

150W

175W

200W

225W

250W

300W

400W

500W

700W

1000W

1300W

Dielectric Strength

VAC

1,000

2,500

Ohmic Range and Tolerance

5%, 10%

0.1Ω

−

51KΩ

1Ω

−

30KΩ

0.1Ω

−

50KΩ

0.1Ω

−

100KΩ

0.1Ω

−

150KΩ

0.15Ω

−

100KΩ

0.1Ω

−

200KΩ

0.2Ω

−

130KΩ

0.5Ω

−

250KΩ

0.5Ω

−

300KΩ

0.5Ω

−

400KΩ

0.5Ω

−

500KΩ

1Ω

−

600KΩ

1Ω

−

1MΩ

1Ω

−

1.3MΩ

SWT 12

SWT 25

SWT 50

SWT 100

SWT 150

SWT 175

SWT 200

SWT 225

SWT 250

SWT 300

SWT 400

SWT 500

SWT 700

SWT 1000

SWT 1300

*EWT will have the same Electrical performance as SWT series

How to Order

EWT

SEI Type

Type

SWT

EWT

Description

Silicone Coating (Std)

Vitreous Enamel

Termination

Code

Description

Std Tab Connection

Mounting

Hardware

Clips

Spring

200

Nominal Resistance

Power Rating

100

150

175

200

225

250

300

400

500

700

1000

Tolerance

Packaging

Code

Description

Bulk

Tolerance

10%

Welded Straight Leads

Order

1300

appropriate mounting Part Numner

Toll Free: (888) SEI-SEIS

(888) 734-7347

www.seielect.com

email: marketing@seielect.com

Rev 06/08
