ER23/3.6/13-3C92-A400-S datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> ER23/3.6/13-3C92-A400-S

Preview

ER23/3.6/13-3C92-A400-S: DescriptionPLANAR ER CORES; CategoryPassive components; File Size69KB，2 Pages; ManufacturerFerroxcube; Websitehttp://www.ferroxcube.com/; Environmental Compliance

Download Datasheet Parametric View All

ER23/3.6/13-3C92-A400-S Overview

PLANAR ER CORES

ER23/3.6/13-3C92-A400-S Parametric

Parameter Name	Attribute value
Kernel type	ER
Tolerance	±5%
gap	There is a gap
Effective magnetic permeability (µe)	150
Material	3C92
Magnetic core factor (ΣI/A) mm-1	.53
Effective length (e) mm	26.6
Effective area (Ae) mm²	50.2
Minimum core cross section (Amin) mm²	50
Effective magnet volume (Ve) mm³	1340
surface	Uncoated
Supplier device packaging	ER 23 x 3.6 x 13
high	3.60mm
length	23.20mm
width	12.50mm
diameter	-

Preview

Download Datasheet

View All

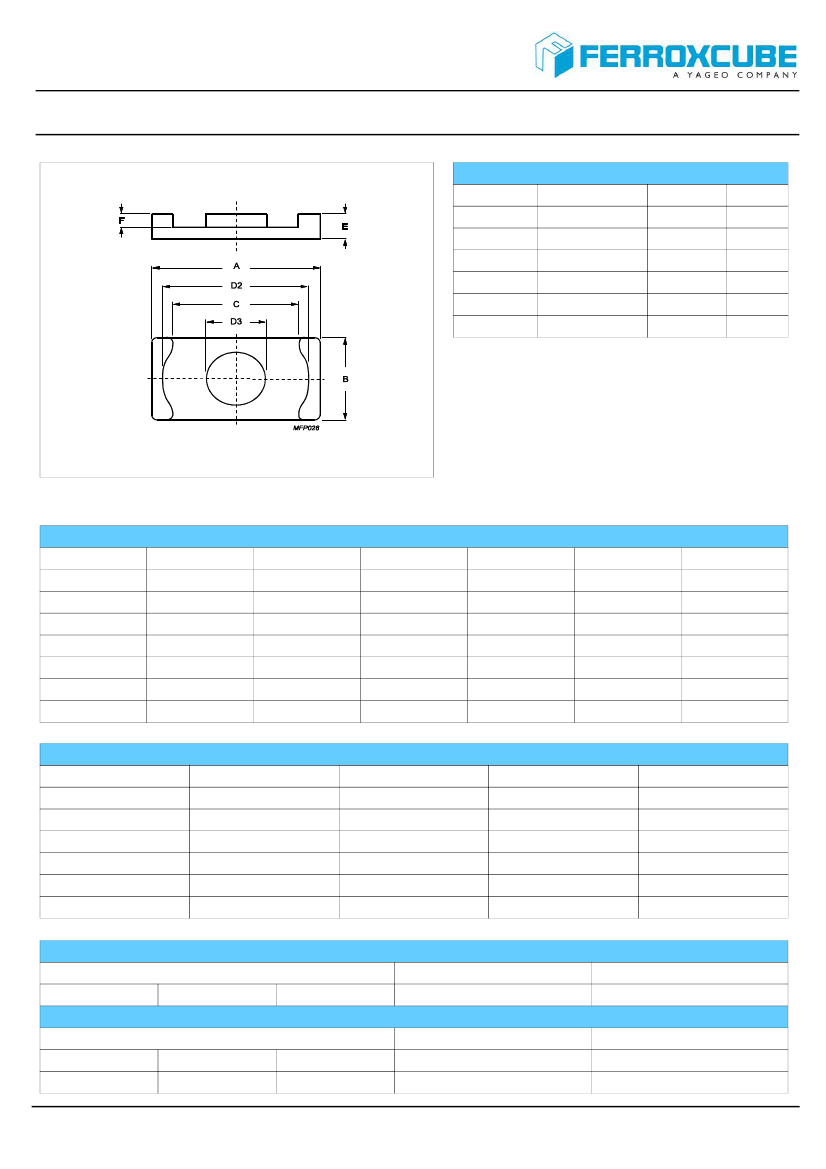

Product specifications

Core

ER23/3.6/13

Effective parameters

Symbol

∑(I/A)

Ve

Le

Ae

Amin

m

Parameter

core factor (C1)

effective volume

effective length

effective area

minimum area

ER23/3.6/13

Value

0.53

1340

26.6

50.2

50

≈ 3.2

Unit

mm⁻¹

mm³

mm

mm²

g/pcs

Dimensions for product: ER23/3.6/13

Symbol

A

B

C

D2

D3

E

F

20.20

8.00

3.60

1.60

0.40

0.20

0.10

0.40

0.20

0.10

20.60

8.20

3.70

1.70

Nom

23.20

12.50

Tol +

0.45

0.25

Tol -

0.45

0.25

Max

23.65

12.75

Min

22.75

12.25

17.50

19.80

7.80

3.50

1.50

Unit

mm

Inductance factor

Material

3C92

3C95

3C96

3C97

3F36

3F46

Value

2800

4460

3400

4460

2500

1600

Tol +

25%

Tol -

25%

Unit

nH/turns²

Power loss: 3C92

Measuring conditions

100 kHz

200 mT

100 ºC

Power loss: 3C95

Measuring conditions

100 kHz

200 mT

100 ºC

25 ºC

Max

0.640

0.700

Unit

W/set

Max

0.670

Unit

W/set

2016
