Superior Jitter Performance (less than 0.25 ps RMS,
12 kHz - 20 MHz)
APR from ±50 to ±300ppm over industrial temperature range
SAW replacement performance
Frequencies from 150 MHz to 1.4 GHz
QiK Chip™
Product Description
The M310x series of VCXO’s is designed with a hermetically sealed high precision AT cut quartz crystal,
combined with our QiK Chip
TM
technology. This combination provides an industry setting 0.35 ps RMS jitter
performance and excellent Phase Noise for your demanding circuit. The M310x is available in LVPECL, LVDS,
or CML output and can be built to a variety of power requirements, 3.3, 2.5, and 1.8V. Tight thermal stability
performance, broad frequency range, in a small 5x7 mm package, and the ability to build and provide product
in approximately 2 weeks, gives the designer a quick, solid foundation to build a solution with.
Product Applications
Telecommunications such as SONET / SDH /
DWDM / FEC / SERDES / OC-3 thru OC-192
Wireless base stations / WLAN / Gigabit Ethernet
xDSL, Network Communications
Avionic Flight Controls
Military Communications
Clock and Data Recovery
Low Jitter Clock Generation

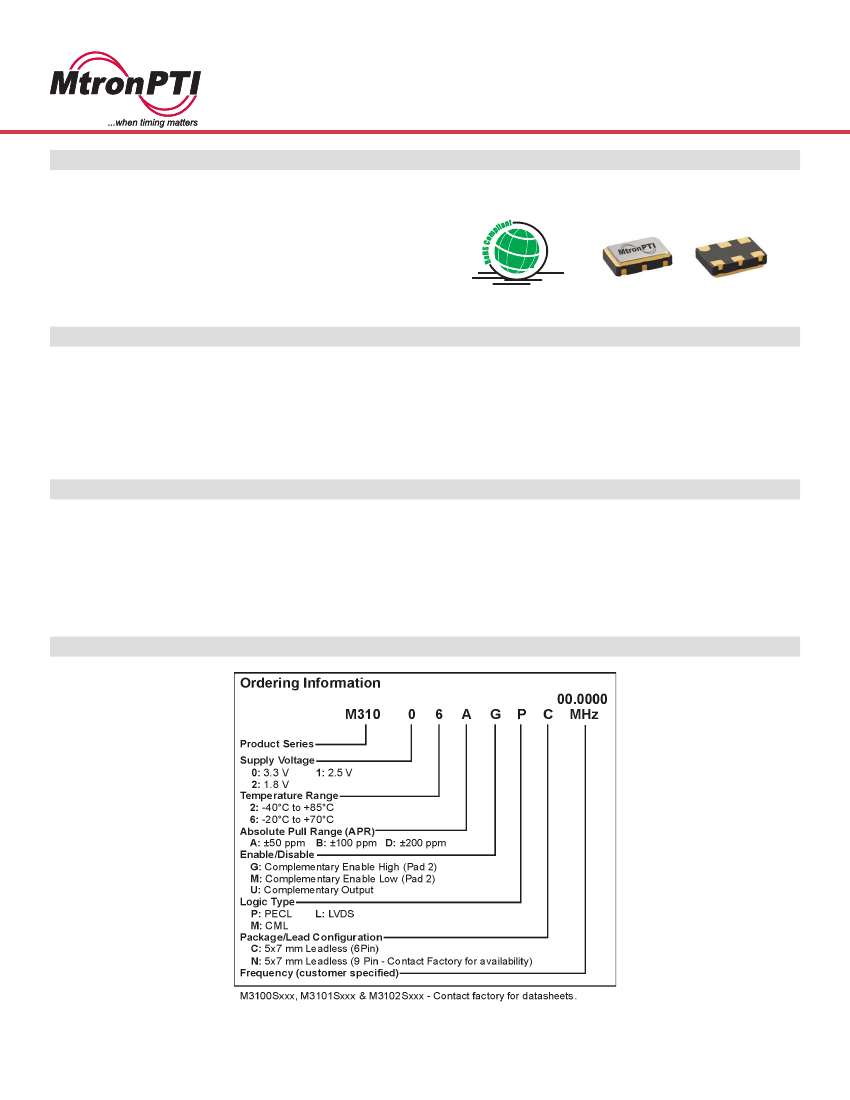

Product Ordering Information
MtronPTI reserves the right to make changes to the product(s) and service(s) described herein without notice. No liability is assumed as a result of their use or application.
Please see www.mtronpti.com for our complete offering and detailed datasheets. Contact MtronPTI for your application specific requirements at 800.762.8800 toll free or 605.665.9321.
Revision: 8-22-08
M310x Series
5x7 mm, 3.3/2.5/1.8 Volt,
LVPECL/LVDS/CML, VCXO

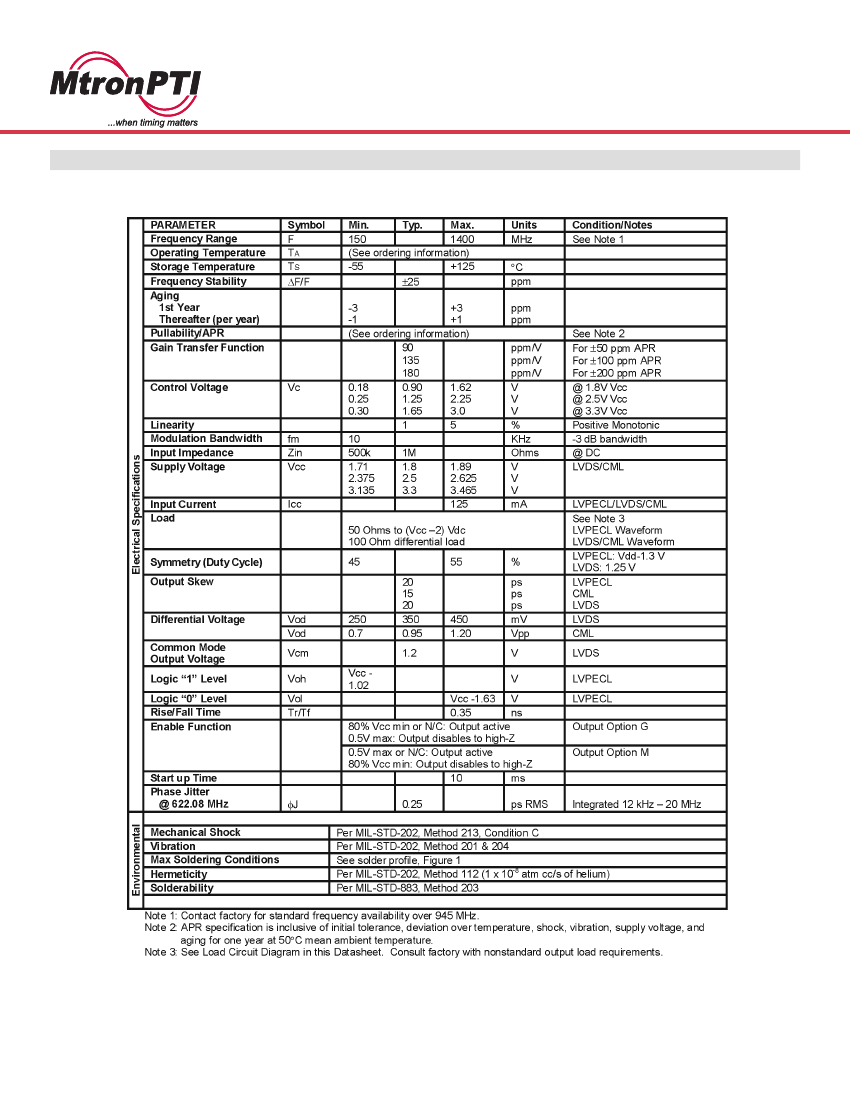

Performance Characteristics
MtronPTI reserves the right to make changes to the product(s) and service(s) described herein without notice. No liability is assumed as a result of their use or application.
Please see www.mtronpti.com for our complete offering and detailed datasheets. Contact MtronPTI for your application specific requirements at 800.762.8800 toll free or 605.665.9321.
2
M310x Series

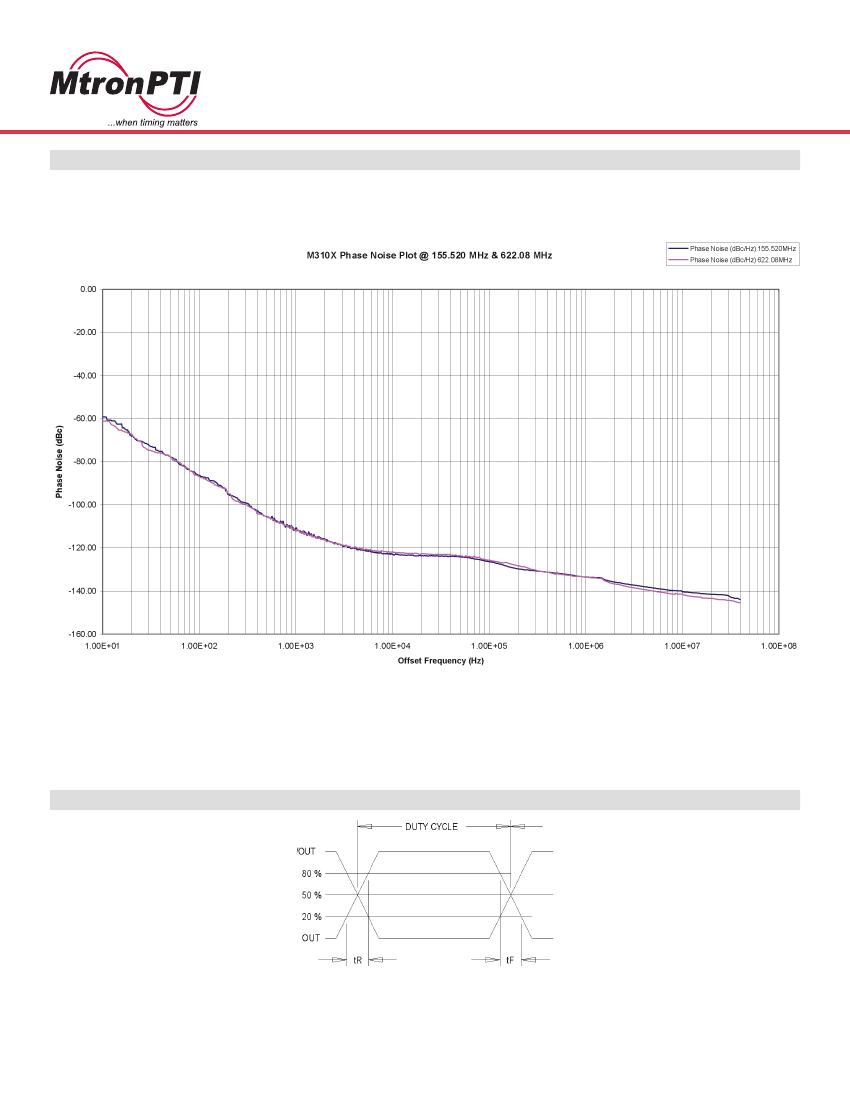

Phase Noise Plot
5x7 mm, 3.3/2.5/1.8 Volt,
LVPECL/LVDS/CML, VCXO
Output Waveform
Output Waveform: LVDS/CML/PECL
MtronPTI reserves the right to make changes to the product(s) and service(s) described herein without notice. No liability is assumed as a result of their use or application.
Please see www.mtronpti.com for our complete offering and detailed datasheets. Contact MtronPTI for your application specific requirements at 800.762.8800 toll free or 605.665.9321.
3
M310x Series
5x7 mm, 3.3/2.5/1.8 Volt,
LVPECL/LVDS/CML, VCXO

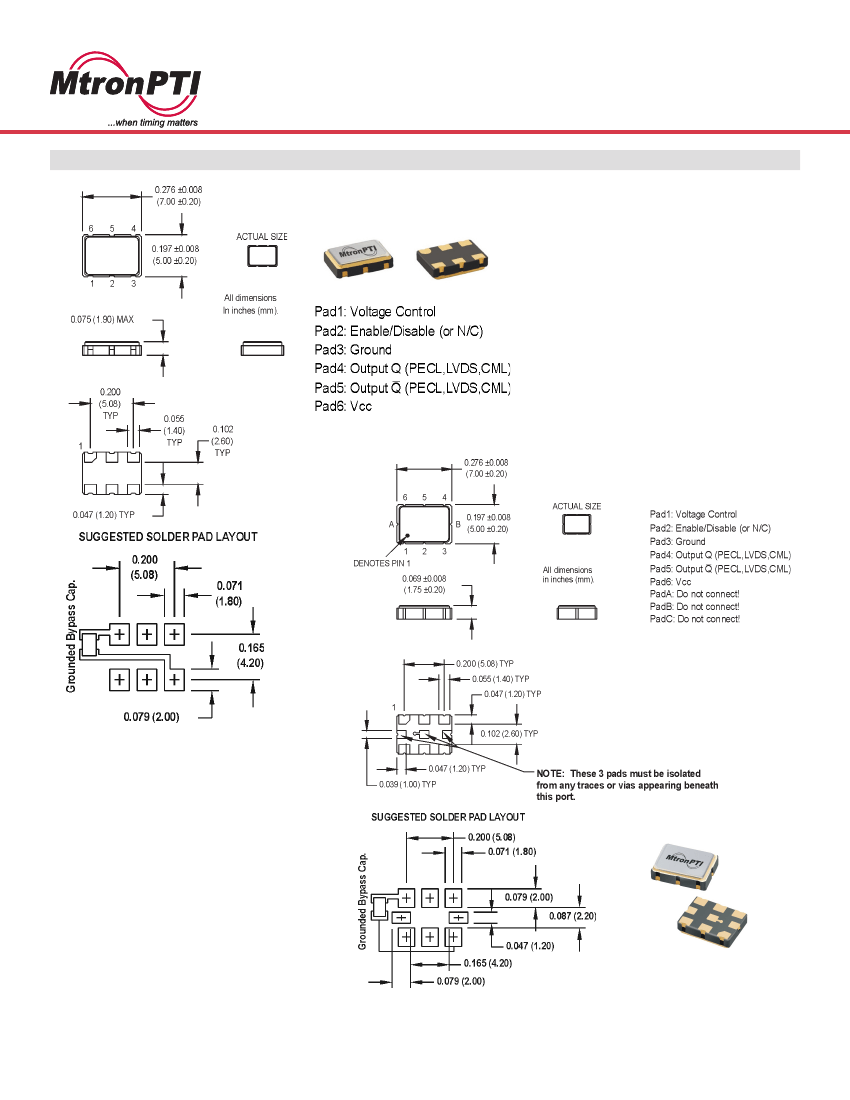

Product Dimension & Pinout Information
6 Pad Standard Option
9 Pad Option
MtronPTI reserves the right to make changes to the product(s) and service(s) described herein without notice. No liability is assumed as a result of their use or application.
Please see www.mtronpti.com for our complete offering and detailed datasheets. Contact MtronPTI for your application specific requirements at 800.762.8800 toll free or 605.665.9321.
4
M310x Series
5x7 mm, 3.3/2.5/1.8 Volt,
LVPECL/LVDS/CML, VCXO
Handling Information
Although protection circuitry has been designed into the M310x oscillator, proper precautions should be taken to
avoid exposure to electrostatic discharge (ESD) during handling and mounting. MtronPTI utilizes a human-body
model (HBM) and a charged-device model (CDM) for ESD-susceptibility testing and protection design evaluation.
ESD voltage thresholds are dependent on the circuit parameters used to define the mode. Although no industry-
wide standard has been adopted for the CDM, a standard HBM (resistance = 1500
Ω,
capacitance = 100 pF) is
widely used and therefore can be used for comparison purposes. The HBM ESD threshold presented here was
obtained using these circuit parameters.

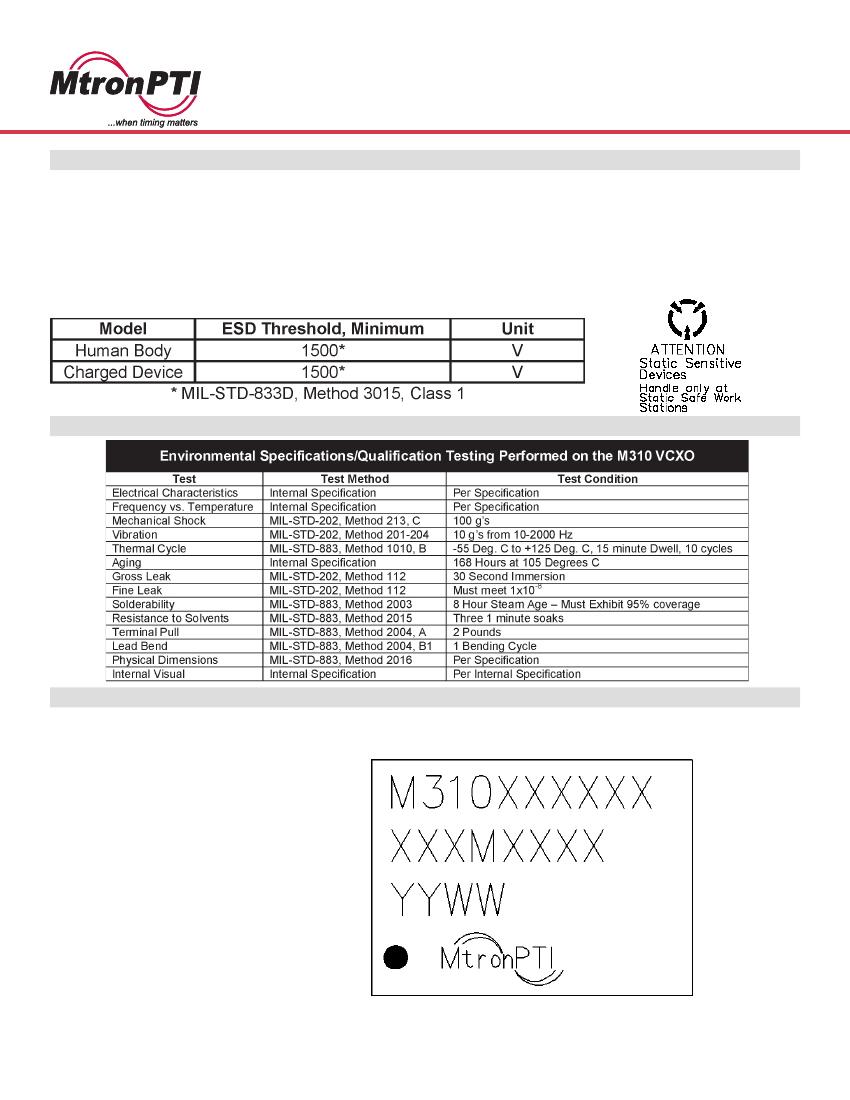

Quality Parameters
Part Marking Guide
Line 1: Model Number
Line 2: Frequency
Line 3: Date Code
Line 4: Pin 1 Indicator / MtronPTI
MtronPTI reserves the right to make changes to the product(s) and service(s) described herein without notice. No liability is assumed as a result of their use or application.
Please see www.mtronpti.com for our complete offering and detailed datasheets. Contact MtronPTI for your application specific requirements at 800.762.8800 toll free or 605.665.9321.
