DIM400LSS12-A000

Description
Insulated Gate Bipolar Transistor, 400A I(C), 1200V V(BR)CES, N-Channel, L, 5 PIN
CategoryThe transistor
File Size536KB,10 Pages
ManufacturerDynex
Websitehttp://www.dynexsemi.com/
Environmental Compliance
Download Datasheet Parametric View All

DIM400LSS12-A000 Overview

Insulated Gate Bipolar Transistor, 400A I(C), 1200V V(BR)CES, N-Channel, L, 5 PIN

DIM400LSS12-A000 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerDynex
package instructionFLANGE MOUNT, R-XUFM-X5
Contacts5
Reach Compliance Codeunknown
Is SamacsysN
Shell connectionISOLATED
Maximum collector current (IC)400 A
Collector-emitter maximum voltage1200 V
ConfigurationSINGLE WITH BUILT-IN DIODE
JESD-30 codeR-XUFM-X5
Number of components1
Number of terminals5
Package body materialUNSPECIFIED
Package shapeRECTANGULAR
Package formFLANGE MOUNT
Peak Reflow Temperature (Celsius)NOT SPECIFIED
Polarity/channel typeN-CHANNEL
Certification statusNot Qualified
surface mountNO
Terminal formUNSPECIFIED
Terminal locationUPPER
Maximum time at peak reflow temperatureNOT SPECIFIED
transistor applicationsMOTOR CONTROL
Transistor component materialsSILICON
Nominal off time (toff)990 ns
Nominal on time (ton)565 ns
Base Number Matches1
DIM400LSS12-A000
DIM400LSS12-A000
Single Switch IGBT Module
Replaces March 2003, version DS5534-3.0
FDS5534-4.0
July 2003
FEATURES
I
I
I
10µs Short Circuit Withstand
Non Punch Through Silicon
Isolated Copper Baseplate
KEY PARAMETERS
V
CES
(typ)
V
CE(sat)
*
(max)
I
C
(max)
I
C(PK)
1200V
2.2V
400A
800A
*(measured at the power busbars and not the auxiliary terminals)
APPLICATIONS
I
I
Inverters
Motor Controllers
The Powerline range of high power modules includes half
bridge, chopper, dual, single and bi-directional switch
configurations covering voltages from 600V to 3300V and
currents up to 3600A.
The DIM400LSS12-A000 is a single switch 1200V, n channel
enhancement mode, insulated gate bipolar transistor (IGBT)
module. The IGBT has a wide reverse bias safe operating area
(RBSOA) plus full 10µs short circuit withstand.
The module incorporates an electrically isolated base plate
and low inductance construction enabling circuit designers to
optimise circuit layouts and utilise grounded heat sinks for safety.
2(E)
5(E
1
)
3(G
1
)
1(C)
4(C
1
)

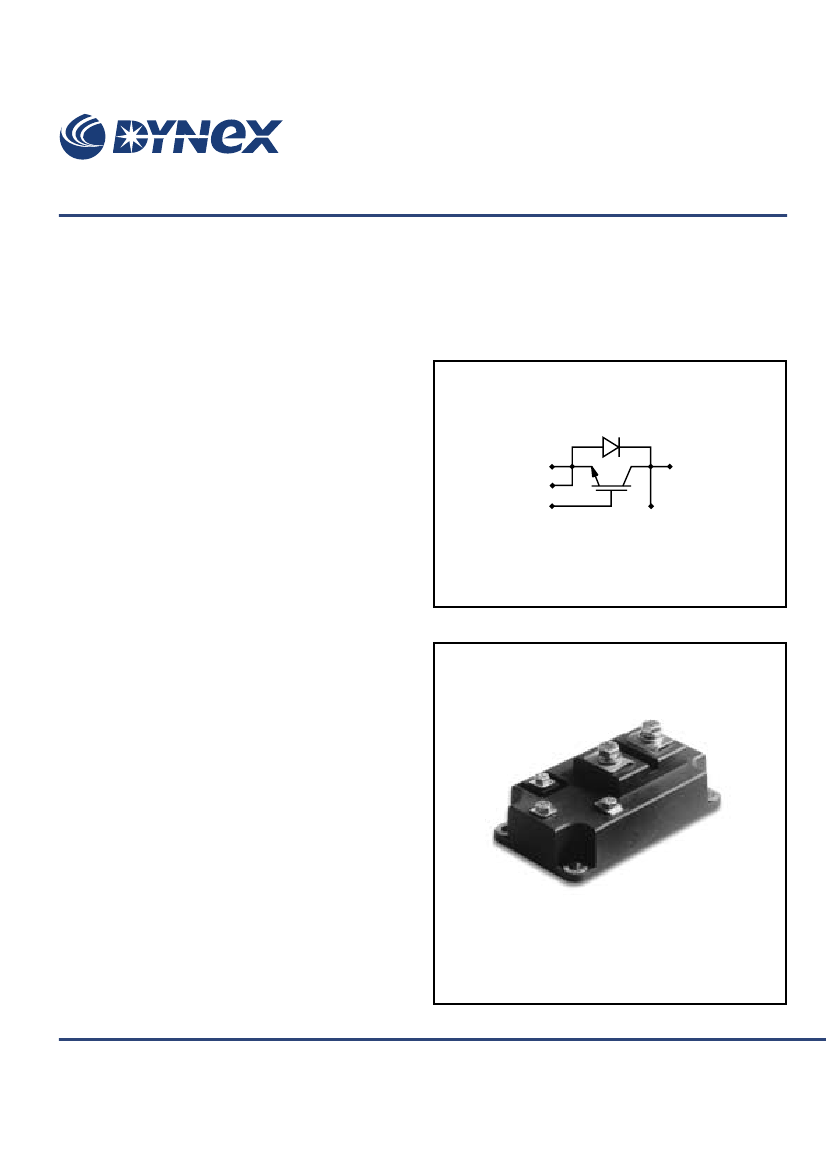

Fig. 1 Single switch circuit diagram
ORDERING INFORMATION
Order As:
DIM400LSS12-A000
Note: When ordering, please use the whole part number.
Outline type code:
L
(See package details for further information)
Fig. 2 Module outline
Caution: This device is sensitive to electrostatic discharge. Users should follow ESD handling procedures.
1/10
www.dynexsemi.com
