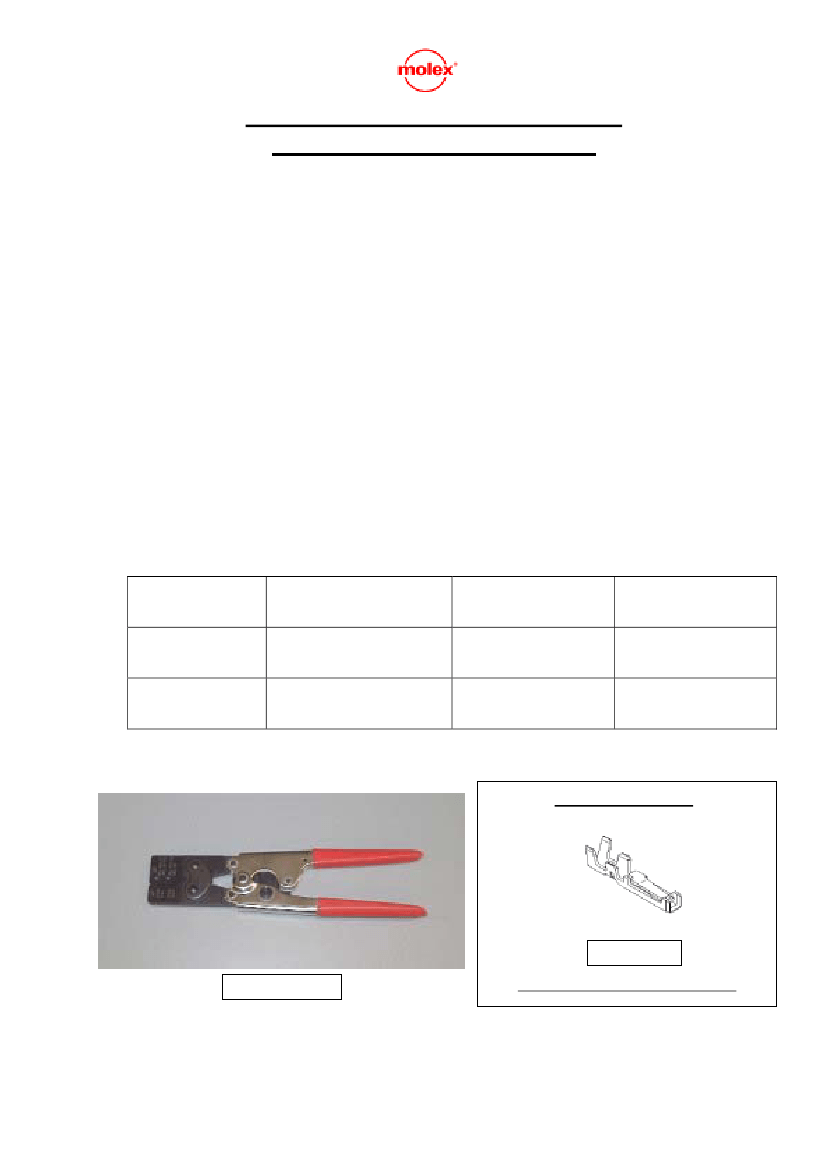

57352-5000 HAND CRIMP TOOL
PRODUCT SPECIFICATION
ATP-57352-5000E
2005/03/15, Rev.- A
Molex Japan Co., Ltd.
1. Description
This tool is a hand crimp tool, which is designed for crimp-connecting a wire to crimp a terminal
of Molex.
Please take the time to read attached the operating manual (IS-0001) of Hand Crimp Tool,
making sure you understand the crimping procedures and management method described it
before attempting to operate this hand tool.
2. Specifications
1) Tool name:
2) Tool number:
3) Outer dimensions and weight:
4) Management method:
5) Applicable terminal and wire:
Applicable wire size
(AWG)
#28-30
Applicable insulation
outer diameter (mm)
0.5-0.9
Wire insulation strip
length (mm)
1.3-1.7
57352-5000 Hand Crimp Tool
57352-5000
230 (width) x 70 (depth) x 15 (thickness) mm, Approx. 400gf
Crimp strength (Details are described to the corresponding
crimp specification)
Terminal number
50641
50641
#26
0.5-0.9
1.3-1.7
3. Tool Appearance
Applicable Terminal
50641
57352-5000
1.25mm Pitch Wire-to-Board Connector
