Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> Z86E2304VSC

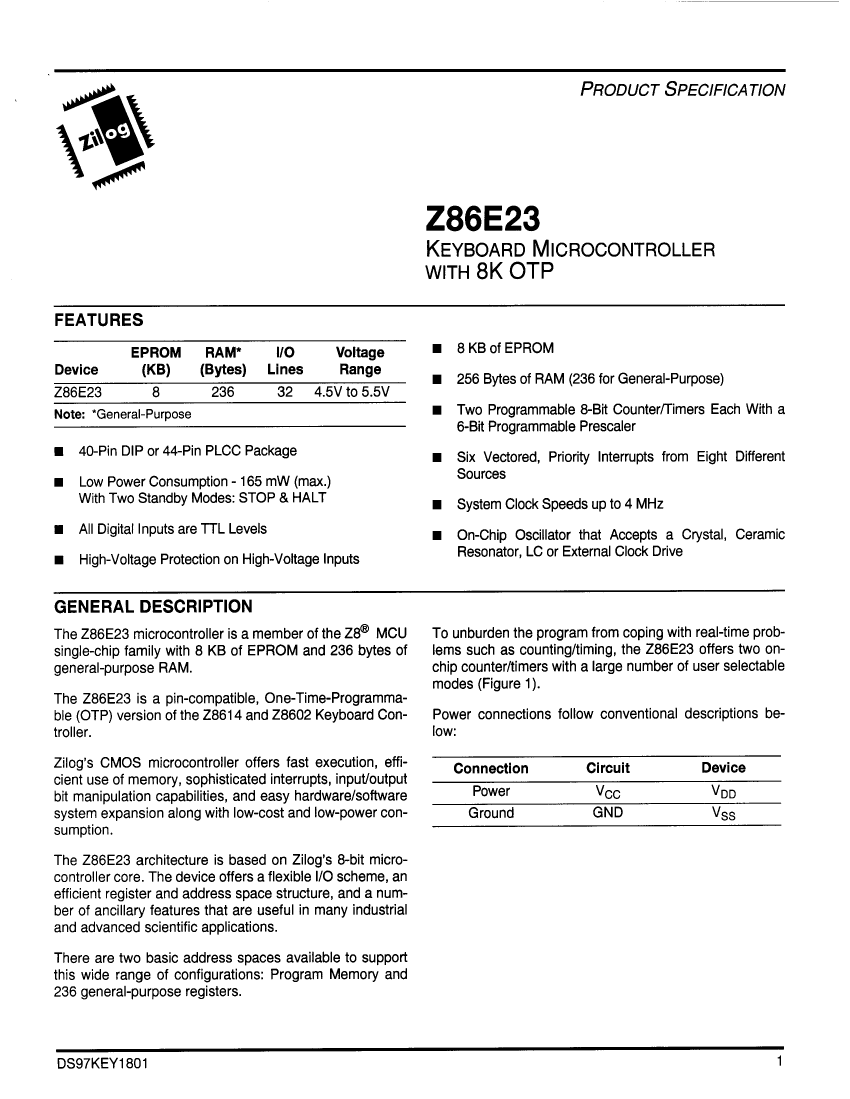

Preview

Z86E2304VSC: DescriptionIC MCU 8BIT 8KB OTP 44PLCC; CategoryThe embedded processor and controller Microcontrollers and processors; File Size900KB，32 Pages; ManufacturerZilog, Inc.; Websitehttps://www.zilog.com/

Download Datasheet Parametric Compare View All

Z86E2304VSC Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	Z86E2304VSC	-	-	View	Buy Now

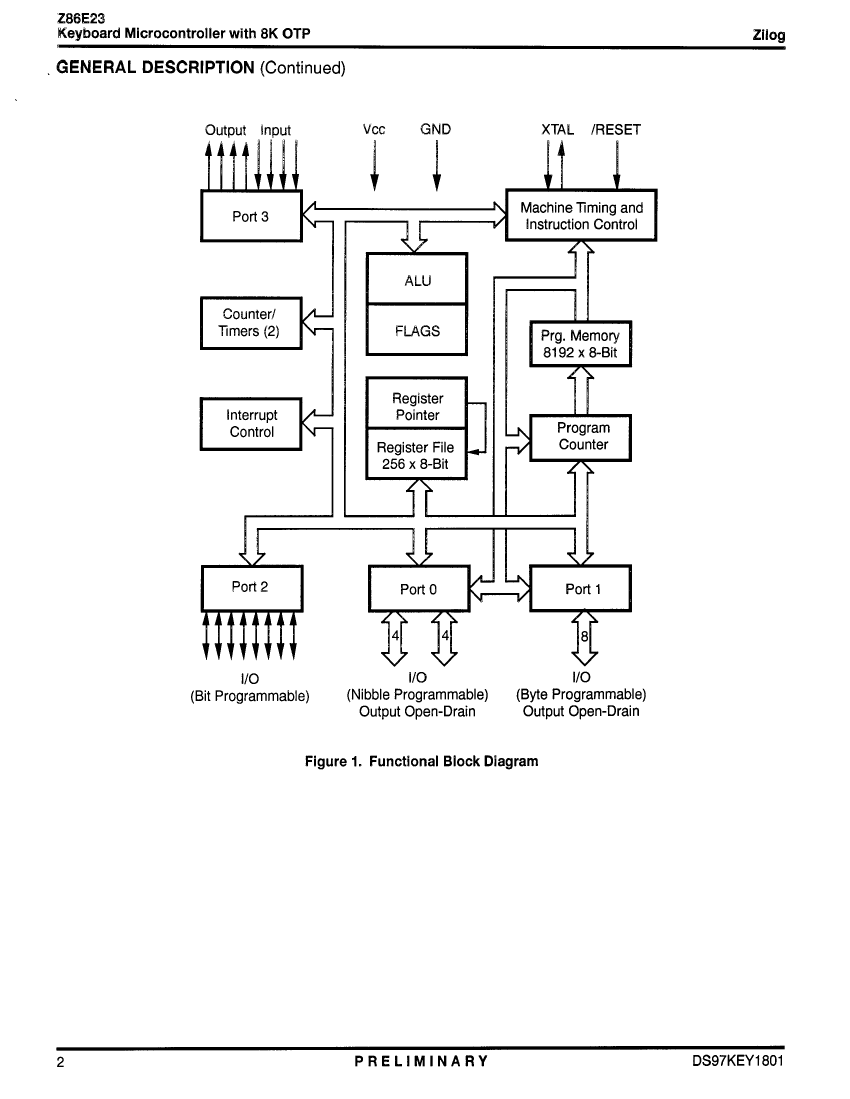

Z86E2304VSC Overview

IC MCU 8BIT 8KB OTP 44PLCC

Z86E2304VSC Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Parts packaging code	LCC

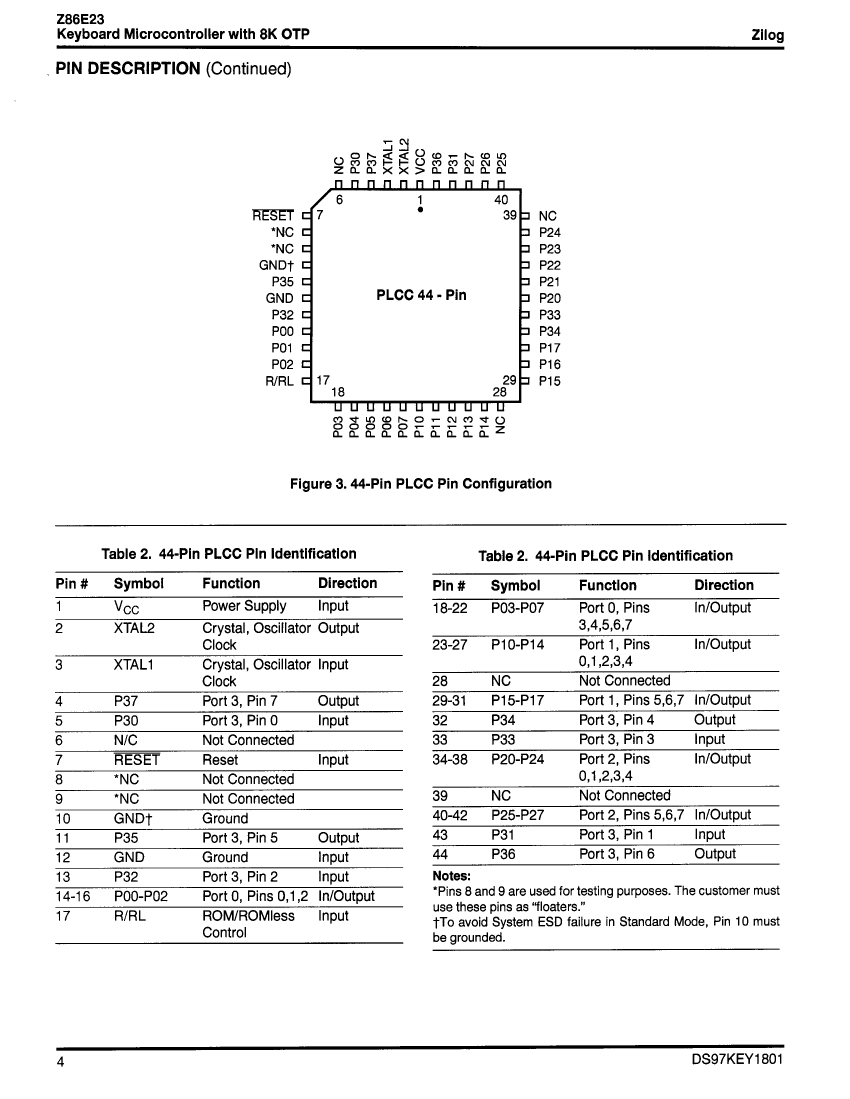

package instruction	QCCJ, LDCC44,.7SQ
Contacts	44
Reach Compliance Code	unknown
Has ADC	NO
Other features	RAM/ROM PROTECT
Address bus width
bit size	8
boundary scan	NO
maximum clock frequency	4 MHz
DAC channel	NO
DMA channel	NO
External data bus width
Format	FIXED POINT
Integrated cache	NO
JESD-30 code	S-PQCC-J44
JESD-609 code	e0
length	16.5862 mm
low power mode	YES
Number of DMA channels
Number of external interrupt devices	4
Number of I/O lines	32
Number of serial I/Os
Number of terminals	44
Number of timers	2
On-chip data RAM width	8
On-chip program ROM width	8
Maximum operating temperature	70 °C
Minimum operating temperature
PWM channel	NO
Package body material	PLASTIC/EPOXY
encapsulated code	QCCJ
Encapsulate equivalent code	LDCC44,.7SQ
Package shape	SQUARE
Package form	CHIP CARRIER
Peak Reflow Temperature (Celsius)	225
power supply	5 V
Certification status	Not Qualified
RAM (number of words)	256
rom(word)	8000
ROM programmability	OTPROM
Maximum seat height	4.57 mm
speed	4 MHz
Maximum slew rate	30 mA
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	TIN LEAD
Terminal form	J BEND
Terminal pitch	1.27 mm
Terminal location	QUAD
Maximum time at peak reflow temperature	30
width	16.5862 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER
Base Number Matches	1

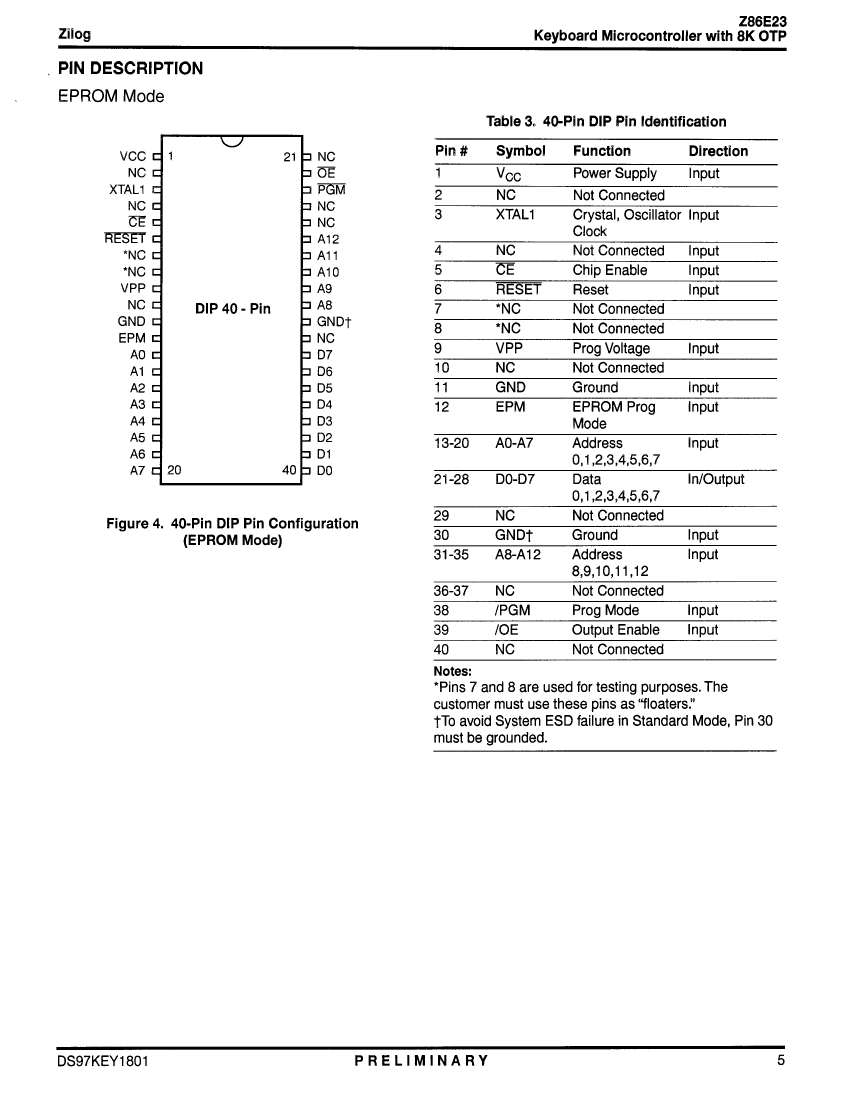

Preview

Download Datasheet

View All

Z86E2304VSC Related Products

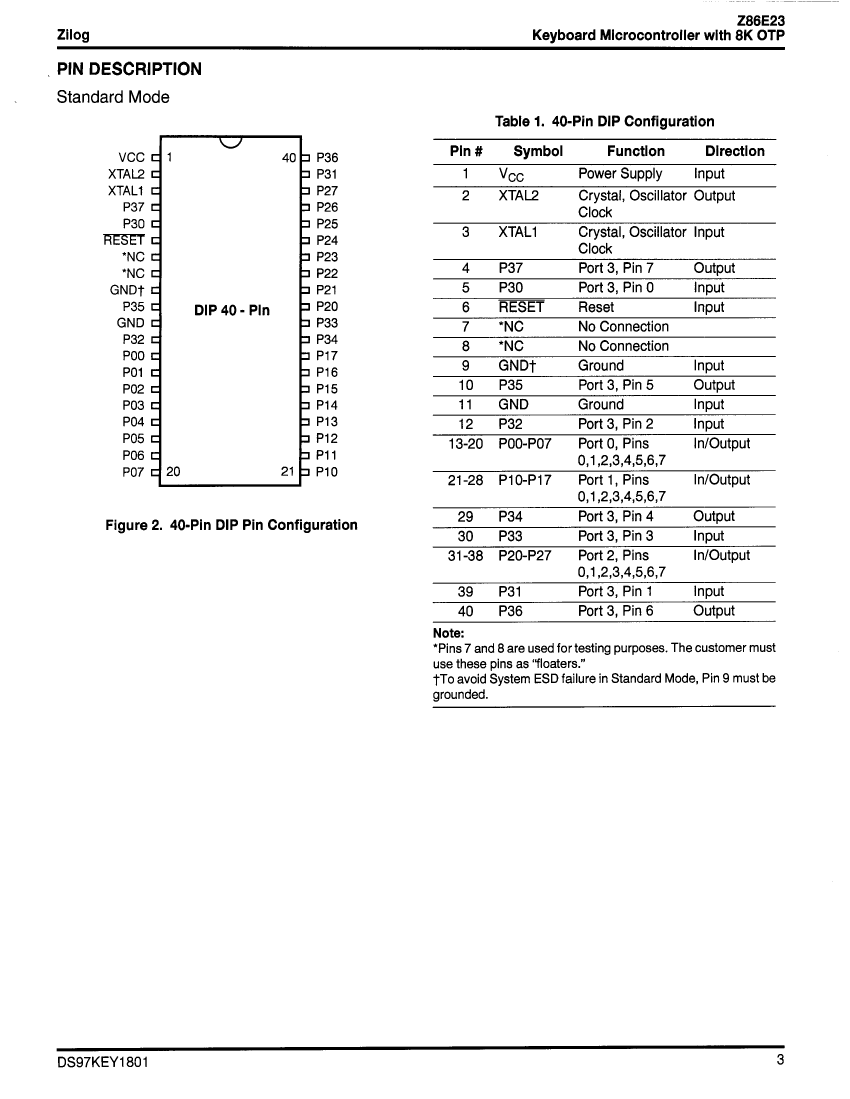

	Z86E2304VSC	Z86E2304VSC00TR	Z86E2304PSC
Description	IC MCU 8BIT 8KB OTP 44PLCC	IC MCU 8BIT 8KB OTP 44PLCC	IC MCU 8BIT 8KB OTP 40DIP
speed	4 MHz	4MHz	4 MHz
Is it lead-free?	Contains lead	-	Contains lead
Is it Rohs certified?	incompatible	-	incompatible
Parts packaging code	LCC	-	DIP
package instruction	QCCJ, LDCC44,.7SQ	-	DIP, DIP40,.6
Contacts	44	-	40
Reach Compliance Code	unknown	-	unknown
Has ADC	NO	-	NO
Other features	RAM/ROM PROTECT	-	RAM/ROM PROTECT
bit size	8	-	8
boundary scan	NO	-	NO
maximum clock frequency	4 MHz	-	4 MHz
DAC channel	NO	-	NO
DMA channel	NO	-	NO
Format	FIXED POINT	-	FIXED POINT
Integrated cache	NO	-	NO
JESD-30 code	S-PQCC-J44	-	R-PDIP-T40
JESD-609 code	e0	-	e0
length	16.5862 mm	-	52.325 mm
low power mode	YES	-	YES
Number of external interrupt devices	4	-	4
Number of I/O lines	32	-	32
Number of terminals	44	-	40
Number of timers	2	-	2
On-chip data RAM width	8	-	8
On-chip program ROM width	8	-	8
Maximum operating temperature	70 °C	-	70 °C
PWM channel	NO	-	NO
Package body material	PLASTIC/EPOXY	-	PLASTIC/EPOXY
encapsulated code	QCCJ	-	DIP
Encapsulate equivalent code	LDCC44,.7SQ	-	DIP40,.6
Package shape	SQUARE	-	RECTANGULAR
Package form	CHIP CARRIER	-	IN-LINE
Peak Reflow Temperature (Celsius)	225	-	NOT SPECIFIED
power supply	5 V	-	5 V
Certification status	Not Qualified	-	Not Qualified
RAM (number of words)	256	-	256
rom(word)	8000	-	8192
ROM programmability	OTPROM	-	OTPROM
Maximum seat height	4.57 mm	-	4.24 mm
Maximum slew rate	30 mA	-	30 mA
Maximum supply voltage	5.5 V	-	5.5 V
Minimum supply voltage	4.5 V	-	4.5 V
Nominal supply voltage	5 V	-	5 V
surface mount	YES	-	NO
technology	CMOS	-	CMOS
Temperature level	COMMERCIAL	-	COMMERCIAL
Terminal surface	TIN LEAD	-	TIN LEAD
Terminal form	J BEND	-	THROUGH-HOLE
Terminal pitch	1.27 mm	-	2.54 mm
Terminal location	QUAD	-	DUAL
Maximum time at peak reflow temperature	30	-	NOT SPECIFIED
width	16.5862 mm	-	15.24 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER	-	MICROCONTROLLER
