RHE1300 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Circuit protection> RHE1300

RHE1300: DescriptionPTC RESET FUSE 16V 13A RADIAL; CategoryCircuit protection; File Size79KB，1 Pages; ManufacturerLittelfuse; Websitehttp://www.littelfuse.com

Download Datasheet Parametric View All

RHE1300 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	RHE1300	-	-	View	Buy Now

RHE1300 Overview

PTC RESET FUSE 16V 13A RADIAL

RHE1300 Parametric

Parameter Name	Attribute value
type	polymer
Voltage - maximum	16V
Current - maximum	100A
Current - Hold (Ih) (maximum)	13A
Current - Trip (It)	24A
Trip time	13s
Resistance - Initial (Ri) (minimum value)	4.1 mOhms
Operating temperature	-
grade	-
Installation type	Through hole
Package/casing	Radial, disc type
size/dimensions	0.925" long x 0.142" wide (23.50mm x 3.60mm)
Height - Installation (maximum)	1.130"（28.70mm）
Thickness (maximum)	-
lead spacing	0.400"（10.15mm）
Approval	CSA，TUV，UR

Preview

Download Datasheet

View All

Tyco/Electronics

Raychem Circuit Protection

PRODUCT: RHE1300

308 Constitution Drive

Menlo Park, CA 94025-1164

800-227-4856

FAX 800-227-4866

PolySwitch®

PTC Devices

Overcurrent Protection Device

DOCUMENT: SCD 24263

PCN: 194113

REV LETTER: F

REV DATE: OCTOBER 8, 2001

PAGE NO.: 1 OF 1

Specification Status:

RELEASED

Electrical Rating

Voltage: 16V

MAX

Current: 100A MAX

INSULATING MATERIAL:

Cured, Flame Retarded Epoxy Polymer

meets UL94 V-0 Requirements

LEAD MATERIAL:

18 AWG Tin/Lead Plated Copper

PART MARKING:

Raychem Logo

and Voltage

H13

Part Identification

Lot Identification

(can be on back)

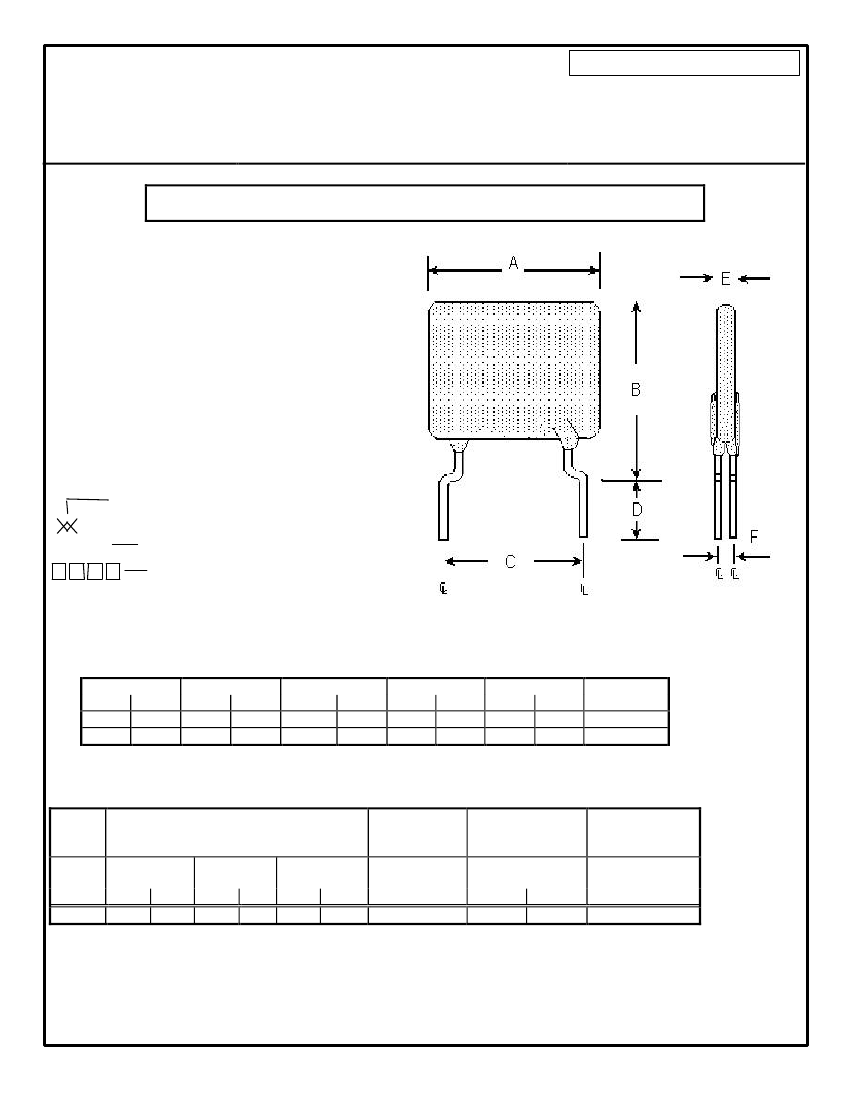

TABLE I. DIMENSIONS:

mm:

in*:

MIN

9.4

(0.37)

MAX

10.9

(0.43)

MIN

7.6

(0.30)

MAX

MIN

MAX

3.6

(0.14)

MIN

MAX

MIN

MAX

23.5

28.7

(0.925)

(1.13)

*Rounded off approximation

TYP

1.4

(0.06)

TABLE II. PERFORMANCE RATINGS:

I HOLD

CURRENT RATINGS

TIME TO

TRIP

SECONDS AT

25°C,65A

MAX

13.0

RESISTANCE

TRIPPED-STATE

POWER

DISSIPATION

WATTS AT

25°C, 16V

TYP

6.9

AMPS

25°C

HOLD

13.0

AMPS

AT 0°C

AT 25°C

AT 60°C

HOLD TRIP HOLD TRIP HOLD TRIP

13.0

24.0

OHMS

AT 25°C

MIN

MAX

0.0041

0.0100

Recognitions:

Reference Documents:

Precedence:

Effectivity:

CAUTION:

UL, TUV, CSA recognized.

PS300

This specification takes precedence over documents referenced herein.

Reference documents shall be the issue in effect on the date of invitation for bid.

Operation beyond the rated voltage or current may result in rupture, electrical arcing or flame.
