MINISMDC014-2

Description
PTC RESET FUSE 60V 140MA 1812
CategoryCircuit protection
File Size46KB,1 Pages
ManufacturerLittelfuse
Websitehttp://www.littelfuse.com
Download Datasheet Parametric View All

MINISMDC014-2 Online Shopping

Suppliers Part Number Price MOQ In stock
MINISMDC014-2 - - View Buy Now

MINISMDC014-2 Overview

PTC RESET FUSE 60V 140MA 1812

MINISMDC014-2 Parametric

Parameter NameAttribute value
typepolymer
Voltage - maximum60V
Current - maximum10A
Current - Hold (Ih) (maximum)140mA
Trip time8ms
Resistance - Initial (Ri) (minimum value)1.5 Ohms
Resistor - after trip (R1) (maximum value)6 Ohms
Operating temperature-40°C ~ 85°C
grade-
Installation typesurface mount
Package/casing1812 (4532 metric), depressed
size/dimensions0.179" long x 0.128" wide (4.55mm x 3.24mm)
Height - Installation (maximum)-
Thickness (maximum)0.035"(0.89mm)
lead spacing-
ApprovalCSA,TUV,UL
Tyco / Electronics
Raychem Circuit Protection
308 Constitution Drive
Menlo Park, CA 94025-1164
Phone: 800-227-4856
Fax: 800-227-4866
PolySwitch
®
PTC Devices
Overcurrent Protection Device
PRODUCT: miniSMDC014
DOCUMENT: SCD 24025
PCN: 941493
REV LETTER: L
REV DATE: SEPTEMBER 12, 2001
PAGE NO.: 1 OF 1
Specification Status:
RELEASED
Maximum Electrical Rating
Voltage: 60V
DC
Current: 10A
Notes:
1. All terminations are tin/lead plated.
2. Devices can be wave soldered.
3. Drawing not to scale
Marking:
Manufacturer's Mark
14
Part Identification

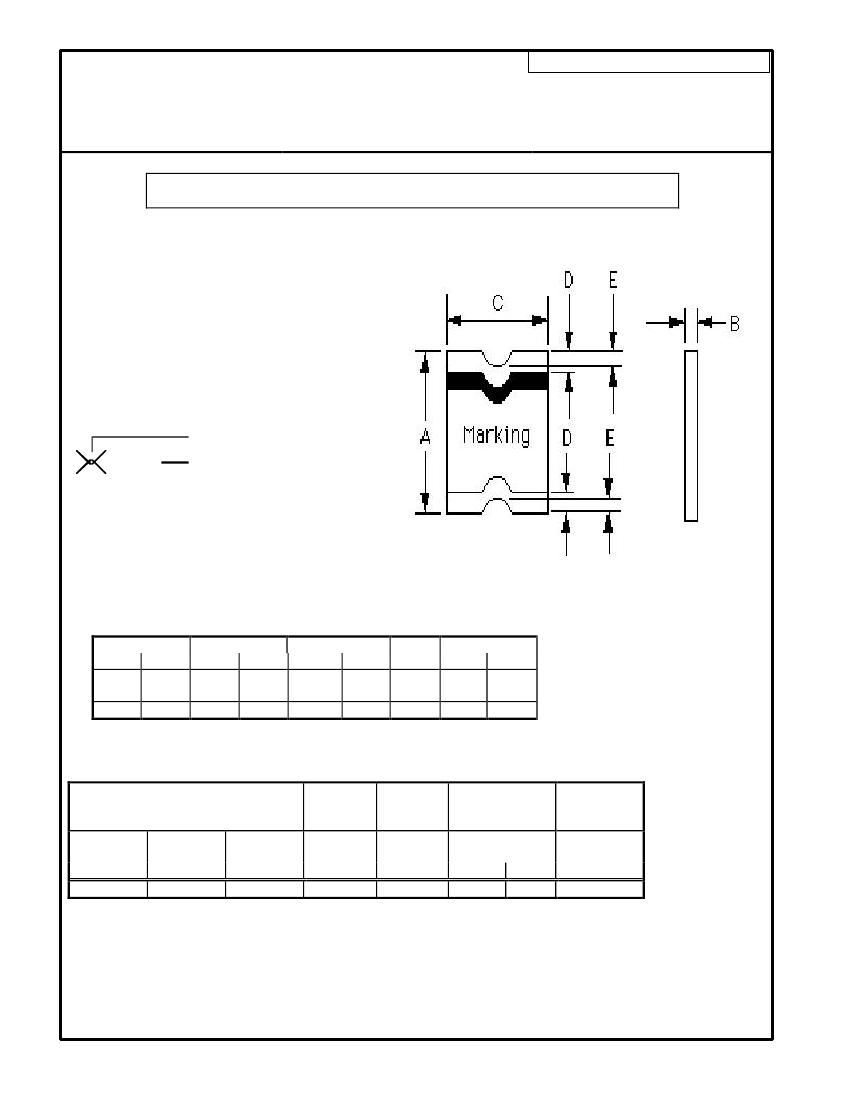

TABLE I. DIMENSIONS:
A
MIN
4.37
MAX
4.73
MIN
0.635
B
MAX
0.890
MIN
3.07
C
MAX
3.41
D
MIN
0.30
E
MIN
0.25
MAX
0.50
mm
:
in: (0.172) (0.186) (0.025) (0.035) (0.121) (0.134) (0.012) (0.010) (0.020)
TABLE II. PERFORMANCE RATINGS:
CURRENT RATINGS**
TIME TO
TIME TO
TRIP **
TRIP **
@ 1.5A
@ 8.0A
SECONDS SECONDS
AT 20°C
AT 20°C
0.150
0.008
RESISTANCE
VALUES
OHMS
AT 20°C
MIN
MAX*
1.50
6.00
POWER
DISSIPATION
WATTS AT
20°C
MAX
0.75
AMPERES
AT - 40°C
HOLD
0.23
AMPERES
AT 20°C
HOLD
0.140
AMPERES
AT 60°C
HOLD
0.090
* Maximum resistance is measured 1 hour after reflow.
**Values Specified were determined using PCB’s with 0.030”X1.5 ounce copper traces.
Reference Documents:
Precedence:
Effectivity:
CAUTION:
PS300, E. N. SMD1.0x
This specification takes precedence over documents referenced herein.
Reference documents shall be the issue in effect on the date of invitation for bid.
Operation beyond the rated voltage or current may result in rupture, electrical arcing or flame.
