10-89-1186 datasheet, PDF - EEWORLD Datasheet

10-89-1186: DescriptionCONN HEADER 18POS .100 R/A GOLD; CategoryThe connector; File Size403KB，2 Pages; ManufacturerMolex Premise Network

Download Datasheet Parametric Compare View All

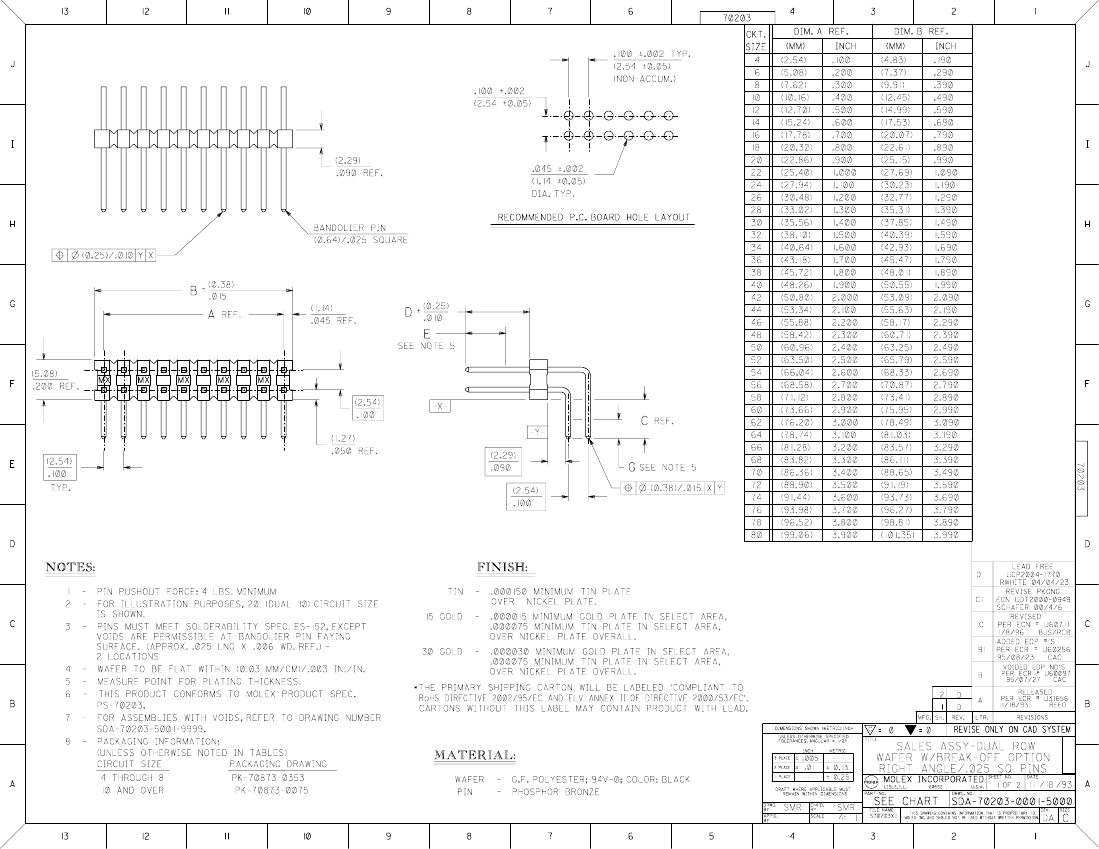

10-89-1186 Overview

CONN HEADER 18POS .100 R/A GOLD

Parameter Name	Attribute value
Connector type	Needle hub, separate
Contact type	Male pin
Spacing - Mating	0.100"（2.54mm）
Number of pins	18
Number of rows	2
Line spacing - patching	0.100"（2.54mm）
Number of pins loaded	all
style	Board to Board or Cable
shield	Uncovered
Installation type	Through hole, right angle
Termination	welding
Fastening type	push-pull
Contact Length - Mating	0.240"（6.10mm）
Contact length - terminal	0.110"（2.79mm）
Overall contact length	-
Insulation height	0.200"（5.08mm）
Contact shape	Square
Contact surface treatment - mating	gold
Contact Surface Treatment Thickness - Mating	15.0µin（0.38µm）
Contact Surface Preparation - Column	tin
Contact material	Phosphor bronze
Insulation Materials	Polyester, fiberglass reinforced
characteristic	-
Operating temperature	-
Intrusion protection	-
Material flammability rating	UL94 V-0
Insulation color	black
Rated current	-
Rated voltage	-
Joint stack height	-
Contact Surface Treatment Thickness - Column	74.8µin（1.90µm）
application	Automotive, general, medical, lighting, telecommunications

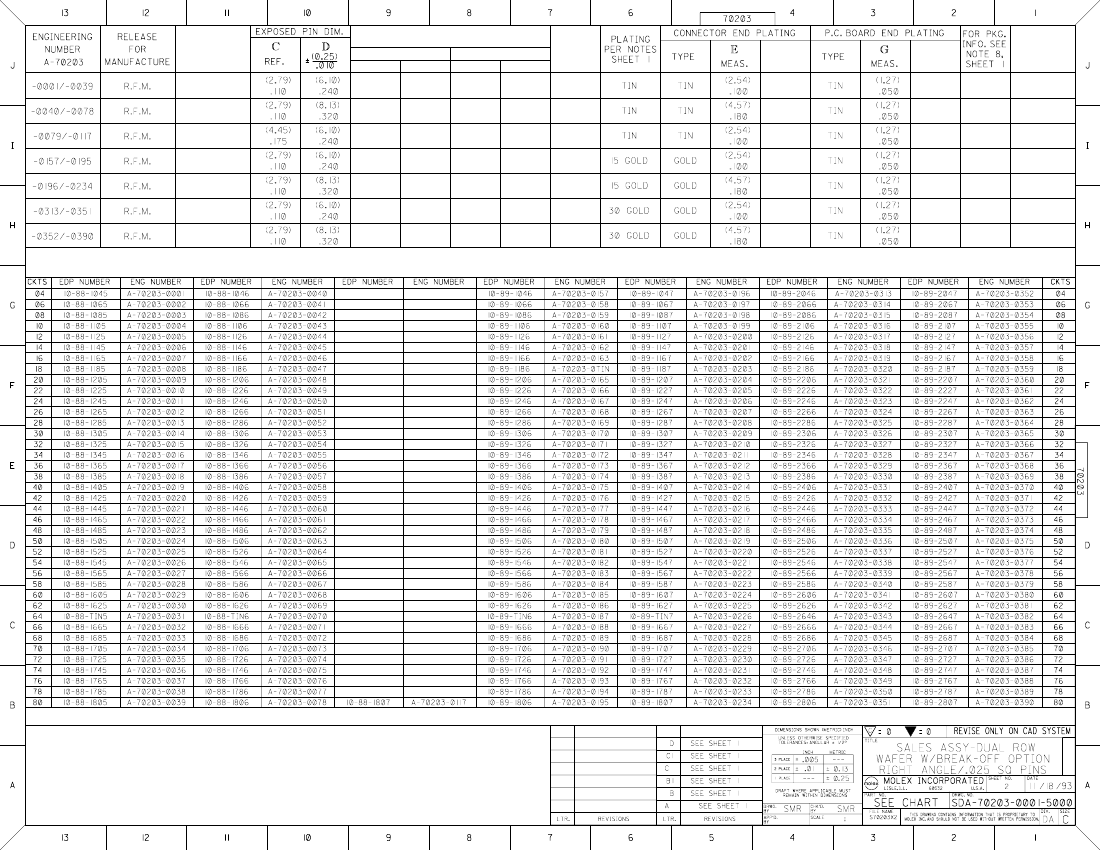

	10-89-1186
Description	CONN HEADER 18POS .100 R/A GOLD
Connector type	Needle hub, separate
Contact type	Male pin
Spacing - Mating	0.100"（2.54mm）
Number of pins	18
Number of rows	2
Line spacing - patching	0.100"（2.54mm）
Number of pins loaded	all
style	Board to Board or Cable
shield	Uncovered
Installation type	Through hole, right angle
Termination	welding
Fastening type	push-pull
Contact Length - Mating	0.240"（6.10mm）
Contact length - terminal	0.110"（2.79mm）
Insulation height	0.200"（5.08mm）
Contact shape	Square
Contact surface treatment - mating	gold
Contact Surface Treatment Thickness - Mating	15.0µin（0.38µm）
Contact Surface Preparation - Column	tin
Contact material	Phosphor bronze
Insulation Materials	Polyester, fiberglass reinforced
Material flammability rating	UL94 V-0
Insulation color	black
Contact Surface Treatment Thickness - Column	74.8µin（1.90µm）
application	Automotive, general, medical, lighting, telecommunications
