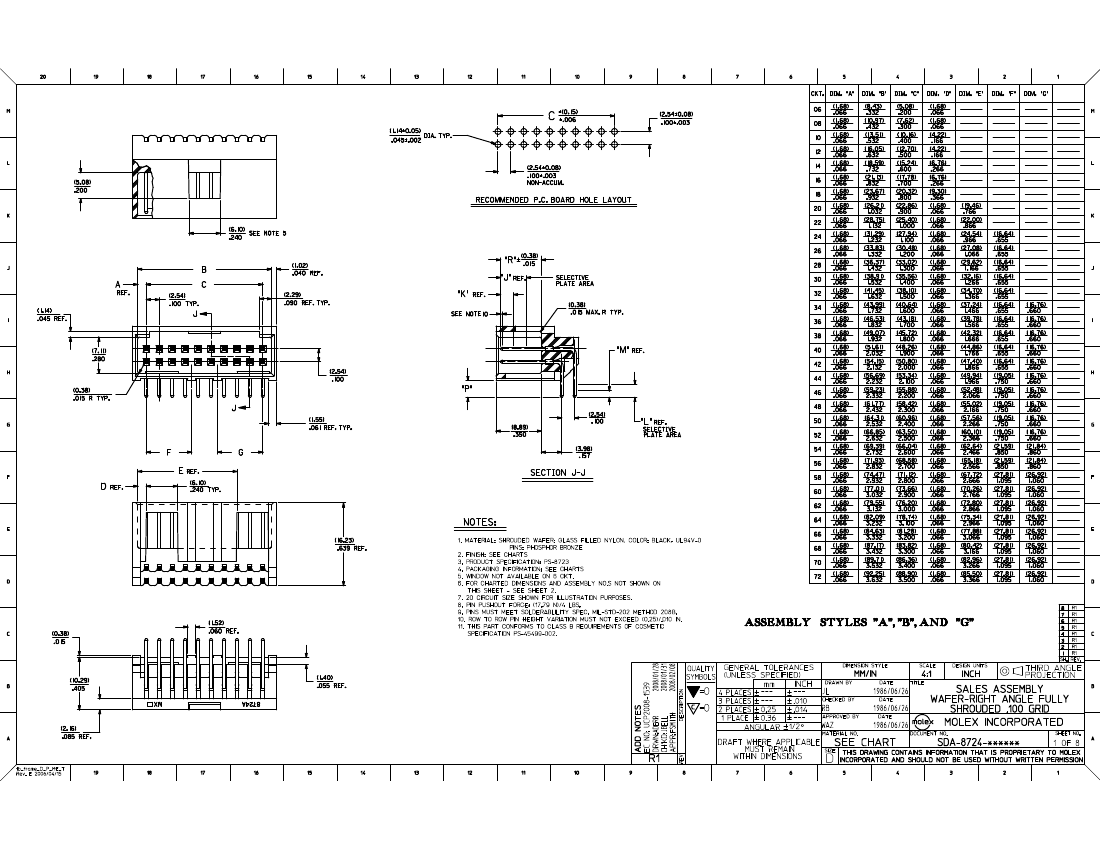

CONN HEADER 14POS .100 R/A GOLD

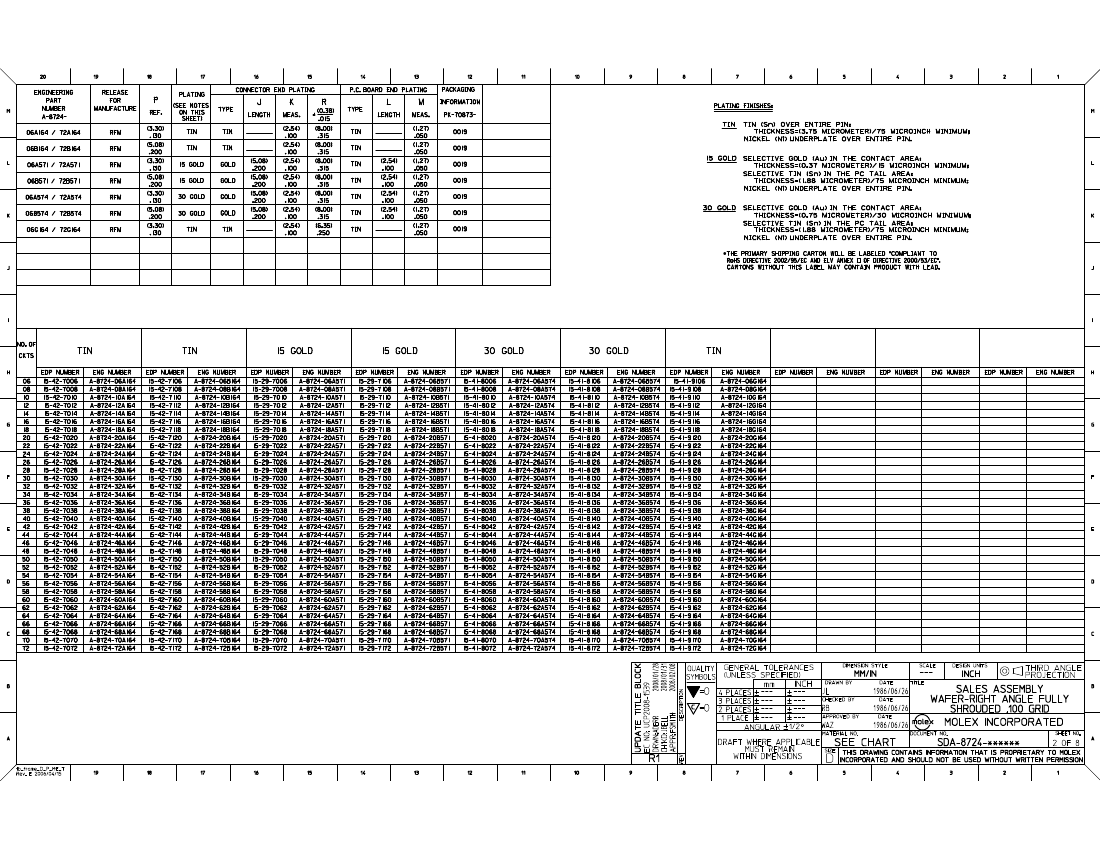

| Parameter Name | Attribute value |
| Connector type | Connector |
| Contact type | Male pin |
| Spacing - Mating | 0.100"（2.54mm） |
| Number of pins | 14 |
| Number of rows | 2 |
| Line spacing - patching | 0.100"（2.54mm） |
| Number of pins loaded | all |
| style | Board to Board or Cable |
| shield | Covered - 4 walls |
| Installation type | Through hole, right angle |
| Termination | welding |
| Fastening type | pin lock |
| Contact Length - Mating | 0.315"（8.00mm） |
| Contact length - terminal | 0.130"（3.30mm） |
| Overall contact length | - |
| Insulation height | 0.420"（10.67mm） |
| Contact shape | Square |
| Contact surface treatment - mating | gold |
| Contact Surface Treatment Thickness - Mating | 30.0µin（0.76µm） |
| Contact Surface Preparation - Column | tin |
| Contact material | Phosphor bronze |
| Insulation Materials | Polyamide (PA), nylon, glass fiber reinforced |
| characteristic | - |
| Operating temperature | - |
| Intrusion protection | - |
| Material flammability rating | UL94 V-0 |
| Insulation color | black |
| Rated current | - |
| Rated voltage | - |
| Joint stack height | - |
| Contact Surface Treatment Thickness - Column | 74.8µin（1.90µm） |
| application | Automotive, general, medical, lighting, telecommunications |
