SPOC - BTS5682E
Table of Contents
Table of Contents
1
2
2.1
3
3.1
3.2
4
4.1
4.2
5
5.1
5.2
5.3
5.4
5.5
6
6.1
6.2
6.3
6.4
6.5
7
7.1
7.2
7.3
7.4
7.5
7.6
7.7
7.8
8
8.1
8.2
8.3
8.4
8.5
9
9.1
9.2
9.3
9.4
9.5
9.6
10
11
12
Overview
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Block Diagram
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Terms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Pin Configuration
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Pin Assignment SPOC - BTS5682E . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Pin Definitions and Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Electrical Characteristics
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Absolute Maximum Ratings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Thermal Resistance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Power Supply
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Power Supply Modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Cranking Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Reset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Electrical Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Command Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Power Stages
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Output ON-State Resistance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Input Circuit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Power Stage Output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Electrical Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Command Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Protection Functions
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Over Load Protection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Over Temperature Protection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Reverse Polarity Protection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Over Voltage Protection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Loss of Ground . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Loss of
V
BB
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Electrical Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Command Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Diagnosis
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Diagnosis Word at SPI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Load Current Sense Diagnosis . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Switch Bypass Diagnosis . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Electrical Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Command Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Serial Peripheral Interface (SPI)
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SPI Signal Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Daisy Chain Capability . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Timing Diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Electrical Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SPI Protocol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Register Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
11
11
12
12
13
14
15
15
15
16
18
21
22
22
23
24
25
25
25
26
27
28
29
30
32
33
35
37
37
38
39
39
41
42
Application Description
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Package Outlines SPOC - BTS5682E
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Revision History
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
2

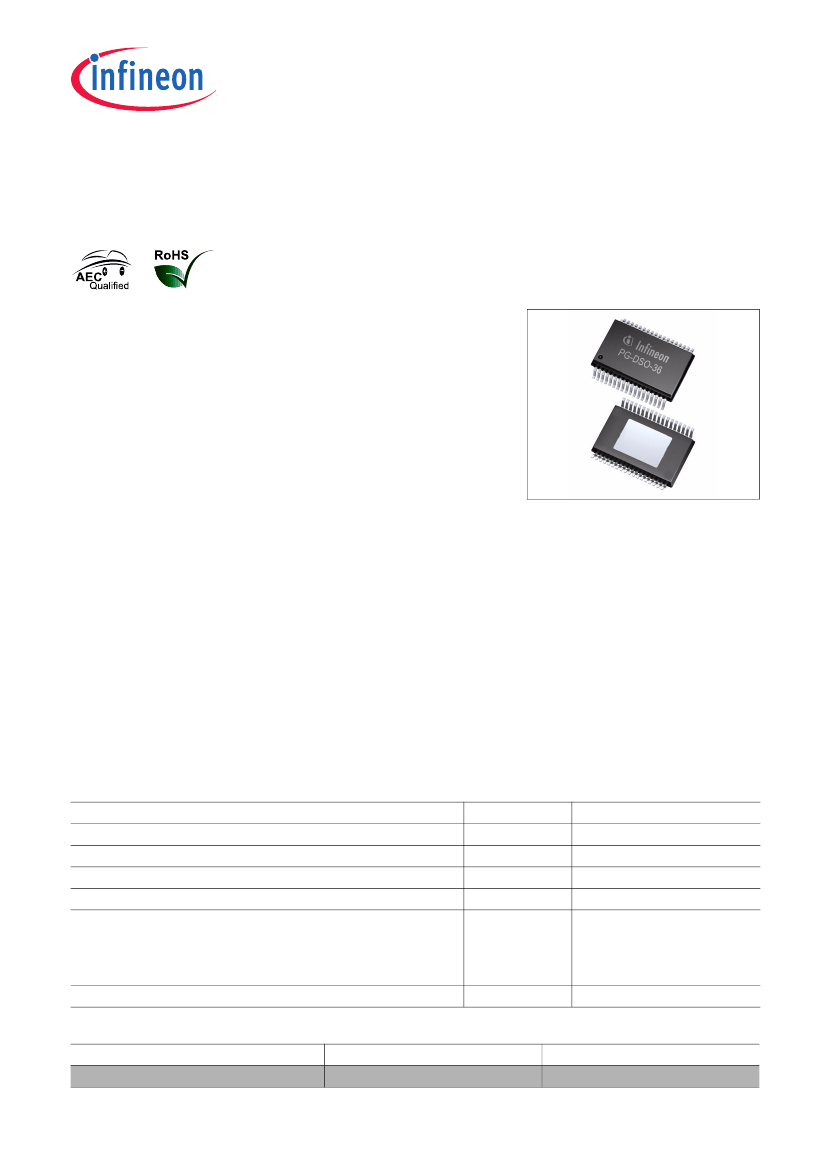

Rev. 1.0, 2008-01-22
Data Sheet
SPI Power Controller
for Advanced Light Control with Integrated LED Mode
and Cranking capable output
SPOC - BTS5682E
1
Features
•
•
•
•
•
•
•
•
•
•
Overview
8 bit serial peripheral interface (daisy chain capable SPI) for control
and diagnosis
CMOS compatible parallel input pins for each channel provide direct
PWM operation
Selectable AND- / OR-combination for parallel inputs (PWM control)
Very low stand-by current
Enhanced electromagnetic compatibility (EMC) for bulbs as well as
LEDs with adjustable slew rate
Stable behavior at under voltage
Enhanced relay control supported by cranking capable output
Device ground independent from load ground
Green Product (RoHS-Compliant)
AEC Qualified
PG-DSO-36-36
Description
The SPOC - BTS5682E is a six channel high-side smart power switch in PG-DSO-36-36 package providing
embedded protective functions. It is specially designed to control standard exterior lighting in automotive
applications. In order to use the same hardware, the device can be configured to bulb or LED mode. As a result,
both load types are optimized in terms of switching and diagnosis behavior.
It is designed to drive lamps up to 3*27W + 2*10W + 5W.
Product Summary
Operating Voltage Power Switch
Extended Operating Voltage channel 5
Logic Supply Voltage
Over Voltage Protection
Maximum Stand-By Current at 25
°C
Maximum On-state Resistance at
T
j
= 150
°C
channel 0, 1, 2
channel 3, 4
channel 5
SPI Access Frequency
V
BB
V
BB(EXT)
V
DD
V
BB(AZ,min)
I
BB(OFF)
R
DS(ON,max)
5.5 … 28 V
3.2 … 5.5 V
3.8 … 5.5 V
40 V
3
µA
100 mΩ
260 mΩ
460 mΩ
f
SCLK(max)
2 MHz
Type
SPOC - BTS5682E
Data Sheet
Package
PG-DSO-36-36
3
Marking
BTS5682E
Rev. 1.0, 2008-01-22
SPOC - BTS5682E
Overview
Configuration and status diagnosis are done via SPI. An 8 bit serial peripheral interface (SPI) is used. The SPI can
be used in daisy chain configuration.
The device provides a current sense signal per channel that is multiplexed to the diagnosis pin IS. It can be
enabled and disabled via SPI commands. An over load and over temperature flag is provided in the SPI diagnosis
word. A multiplexed switch bypass monitor provides short-circuit to
V
BB
diagnosis.
In order to use the same hardware, channels OUT0, OUT1 and OUT2 can be configured to bulb or LED mode.
Channel 5 is designed to fulfill cranking down to 3.2 V.
The SPOC - BTS5682E provides a fail-safe feature via a limp home input pin.
The power transistors are built by N-channel vertical power MOSFETs with charge pumps. The device is
monolithically integrated in SMART technology.
Protective Functions
•
•
•
•
•
•
•
•
Reverse battery protection with external components
Short circuit protection
Overload protection
Multi step current limitation
Thermal shutdown with latch and dynamic temperature sensor
Overvoltage protection
Loss of ground protection
Electrostatic discharge protection (ESD)
Diagnostic Functions
•
•
•
•
•
•
•
Multiplexed proportional load current sense signal (IS)
Enable function for current sense signal configurable via SPI
High accuracy of current sense signal at wide load current range
Current sense ratio (
k
ILIS
) configurable for LEDs or bulbs
Very fast diagnosis in LED mode (>2% duty cycle at 100 Hz)
Feedback on over temperature and over load via SPI
Multiplexed switch bypass monitor provides short circuit to
V
BB
detection
Application Specific Functions
•
•
•
Fail-safe activation via LHI pin and control via input pins
Load type configuration via SPI (bulbs or LEDs) for optimized load control
Enhanced relay control at channel 5 providing cranking capability down to 3.2 V
Applications
•
•
•
•
High-side power switch for 12 V grounded loads in automotive applications
Especially designed for standard exterior lighting like tail light, brake light, parking light, license plate light,
indicators and equivalent LEDs
Enhanced relay control supported by cranking capable output
Replaces electromechanical relays, fuses and discrete circuits
Data Sheet
4
Rev. 1.0, 2008-01-22
