SS32, SS33, SS34, SS35, SS36
www.vishay.com
Vishay General Semiconductor
Surface Mount Schottky Barrier Rectifier
FEATURES
• Low profile package
• Ideal for automated placement
• Guardring for overvoltage protection
• Low power losses, high efficiency
Available
• Low forward voltage drop
• High surge capability
• Meets MSL level 1, per J-STD-020, LF maximum peak of
260 °C
• AEC-Q101 qualified available
- Automotive ordering code: base P/NHE3 or P/NHM3
• Material categorization: for definitions of compliance
please see
www.vishay.com/doc?99912
SMC (DO-214AB)
TYPICAL APPLICATIONS
PRIMARY CHARACTERISTICS
I
F(AV)
V
RRM
I
FSM
EAS
V
F
T
J
max.
Package
Diode variations
3.0 A
20 V, 30 V, 40 V, 50 V, 60 V
100 A
20 mJ
0.5 V, 0.75 V
150 °C
SMC (DO-214AB)
Single
For use in low voltage high frequency inverters,
freewheeling, DC/DC converters, and polarity protection
applications.
MECHANICAL DATA
Case:
SMC (DO-214AB)
Molding compound meets UL 94 V-0 flammability rating
Base P/N-E3 - RoHS-compliant, commercial grade
Base P/N-M3 - halogen-free, RoHS-compliant, commercial
grade
Base P/NHE3_X - RoHS-compliant and AEC-Q101 qualified
Base P/NHM3_X - halogen-free, RoHS-compliant, and
AEC-Q101 qualified
(“_X” denotes revision code e.g. A, B, .....)
Terminals:
matte tin plated leads, solderable per
J-STD-002 and JESD 22-B102
E3, M3, HE3, and HM3 suffix meets JESD 201 class 2
whisker test
Polarity:
color band denotes the cathode end
MAXIMUM RATINGS
(T
A
= 25 °C unless otherwise noted)
PARAMETER
Device marking code
Maximum repetitive peak reverse voltage
Maximum RMS voltage
Maximum DC blocking voltage
Maximum average forward rectified current at T
L
(fig. 1)
Peak forward surge current 8.3 ms single half sine-wave
superimposed on rated load
Non-repetitive avalanche energy at T
A
= 25 °C,
I
AS
= 2.0 A, L = 10 mH
Voltage rate of change (rated V
R
)
Operating junction temperature range
Storage temperature range
V
RRM
V
RMS
V
DC
I
F(AV)
I
FSM
E
AS
dV/dt
T
J
T
STG
SYMBOL
SS32
S2
20
14
20
SS33
S3
30
21
30
SS34
S4
40
28
40
3.0
100
20
10 000
-55 to +150
-55 to +150
SS35
S5
50
35
50
SS36
S6
60
42
60
V
V
V
A
A
mJ
V/μs
°C
°C
UNIT
Revision: 21-Jul-17
Document Number: 88751
1
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
SS32, SS33, SS34, SS35, SS36
www.vishay.com
Vishay General Semiconductor
SYMBOL
V
F
T
A
= 25 °C
T
A
= 100 °C
I
R
SS32
SS33
0.5
0.5
20
10
SS34
SS35
0.75
SS36
UNIT
V
mA
ELECTRICAL CHARACTERISTICS
(T
A
= 25 °C unless otherwise noted)
PARAMETER
Maximum instantaneous
forward voltage
(1)
Maximum DC reverse current
at rated DC blocking voltage
(1)
TEST CONDITIONS
3.0 A
Note
(1)
Pulse test: 300 μs pulse width, 1 % duty cycle
THERMAL CHARACTERISTICS
(T
A
= 25 °C unless otherwise noted)
PARAMETER
Typical thermal resistance
(1)
SYMBOL
R
θJA
R
θJL
SS32
SS33
SS34
55
17
SS35
SS36
UNIT
°C/W
(1)
Note
PCB mounted with 0.55" x 0.55" (14 mm x 14 mm) copper pad areas
ORDERING INFORMATION
(Example)
PREFERRED P/N
SS36-E3/57T
SS36-E3/9AT
SS36HE3_A/H
SS36-M3/57T
SS36-M3/9AT
SS36HM3_A/H
(1)
SS36HM3_A/I
(1)
(1)
UNIT WEIGHT (g)
0.235
0.235
0.235
0.235
0.235
0.235
0.235
0.235
PREFERRED PACKAGE CODE
57T
9AT
H
I
57T
9AT
H
I
BASE QUANTITY
850
3500
850
3500
850
3500
850
3500
DELIVERY MODE
7" diameter plastic tape and reel
13" diameter plastic tape and reel
7" diameter plastic tape and reel
13" diameter plastic tape and reel
7" diameter plastic tape and reel
13" diameter plastic tape and reel
7" diameter plastic tape and reel
13" diameter plastic tape and reel
SS36HE3_A/I
(1)
Note
(1)
AEC-Q101 qualified
RATINGS AND CHARACTERISTICS CURVES
(T
A
= 25
°C
unless otherwise noted)
3.5
3.0
2.5
2.0
1.5
1.0
0.5
0
0
25
50
75
100
125
150
PCB Mounted on 0.55" x 0.55"
(14 mm x 14 mm) Copper Pad Area
SS32
thru
SS36
100
Average Forward Rectified Current (A)
Peak Forward Surge Current (A)
At Rated T
L
8.3 ms Single Half Sine-Wave
80
60
40
20
0
1
10
100
Lead Temperature (°C)
Number of Cycles at 60 Hz
Fig. 1 - Forward Current Derating Curve
Fig. 2 - Maximum Non-Repetitive Peak Forward Surge Current
Revision: 21-Jul-17
Document Number: 88751
2
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
SS32, SS33, SS34, SS35, SS36
www.vishay.com
Vishay General Semiconductor
1000
100
Instantaneous Forward Current (A)
10
T
J
= 150 °C
1
Pulse Width = 300
s
1% Duty Cycle
T
J
= 25 °C
SS32 thru SS34
SS35 and SS36
0
0.2
0.4
0.6
0.8
1.0
1.2
1.4
1.6
Junction Capacitance (pF)
100
0.1
0.01
SS32 thru SS34
SS35 and SS36
10
0.1
1
10
T
J
= 25 °C
f = 1.0 MHz
V
sig
= 50 mV
p-p
100
Instantaneous Forward Voltage (V)
Reverse Voltage (V)
Fig. 3 - Typical Instantaneous Forward Characteristics
Fig. 5 - Typical Junction Capacitance
Instantaneous Reverse Current (mA)
1000
100
10
1
0.1
0.01
T
J
= 25 °C
0.001
0
20
40
60
80
100
T
J
= 75 °C
SS35 and SS36
T
J
= 150 °C
100
Transient Thermal Impedance (°C/W)
SS32 thru SS34
T
J
= 125 °C
10
1
0.1
0.01
0.1
1
10
100
Percent of Rated Peak Reverse Voltage (%)
t - Pulse Duration (s)
Fig. 4 - Typical Reverse Current Characteristics
Fig. 6 - Typical Transient Thermal Impedance

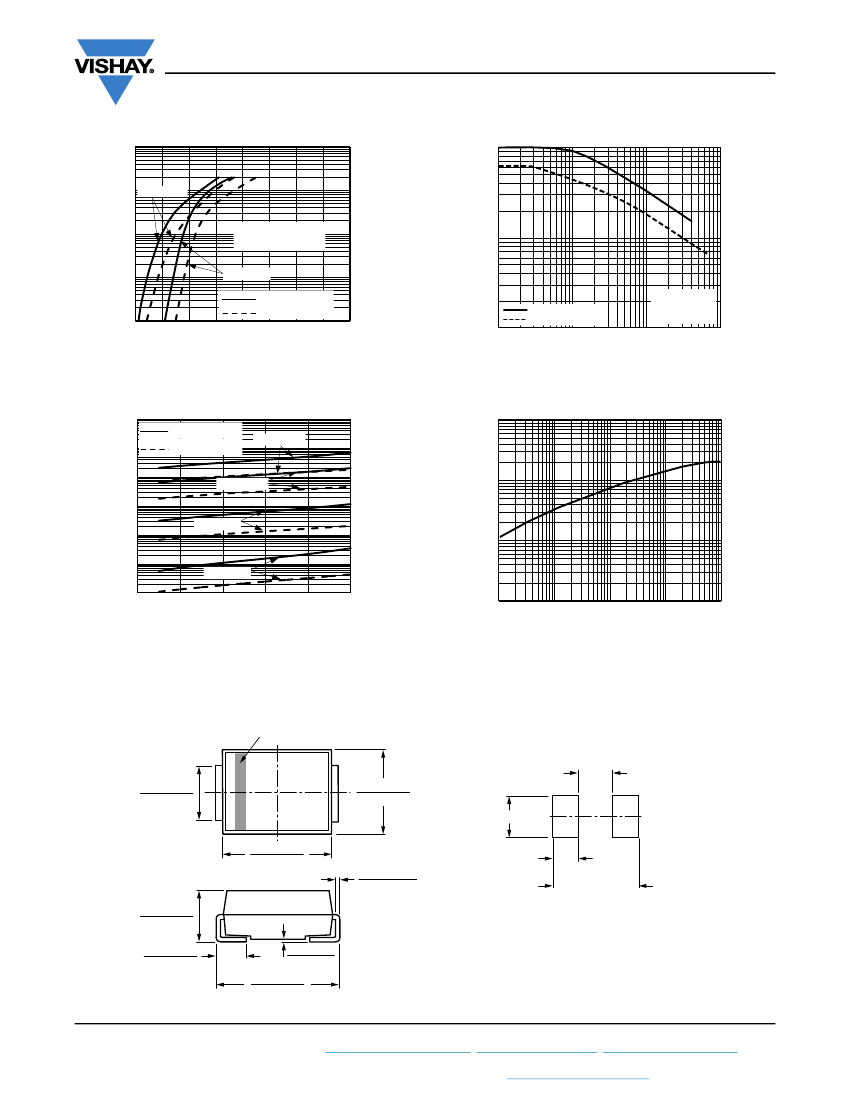

PACKAGE OUTLINE DIMENSIONS
in inches (millimeters)
SMC
(DO-214AB)
Cathode Band
Mounting Pad Layout
0.185 (4.69) MAX.
0.126 (3.20)
0.114 (2.90)
0.246 (6.22)
0.220 (5.59)
0.126 (3.20) MIN.
0.280 (7.11)
0.260 (6.60)
0.012 (0.305)
0.006 (0.152)
0.103 (2.62)
0.079 (2.06)
0.060 (1.52)
0.030 (0.76)
0.008 (0.2)
0 (0)
0.320 (8.13)
0.305 (7.75)
0.060 (1.52) MIN.
0.320 (8.13) REF.
Revision: 21-Jul-17
Document Number: 88751
3
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
