UHF Antennas
Phantom
®
PHANTOM
®
UHF ANTENNA OUTPERFORMS CONVENTIONAL MOBILE
ANTENNAS IN MANY APPLICATIONS

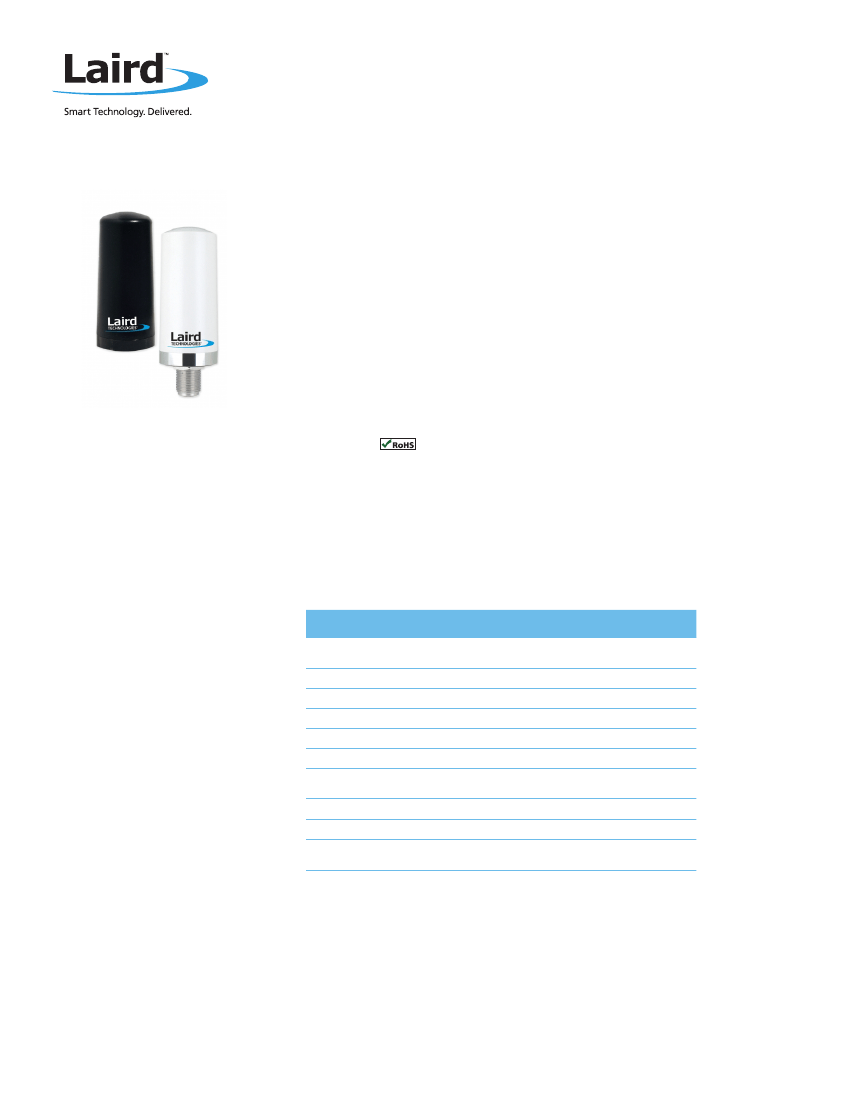

Laird's unique patented Phantom
®
is a tough antenna for outdoor or indoor applications.
Measuring only 3.4” tall, the Phantom UHF antenna’s revolutionary design features vertical
polarization components. The Phantom®provides low visibility, wide bandwidth and a low
angle radiation pattern that is superior to traditional gain antennas in most applications.
The industry standard NMO mounting socket mates with all Laird magnetic, trunk lid, and
hole mounts. A threaded permanent stud mount model is also available for vandal resistant
mounting on brackets, panels, ceilings or any other kind of housing.
The Phantom
®
patented technology is beneficial when high performance is desired and
extreme ruggedness and low profile is required.
FEATURES
• Phantom
®
outperforms a 3dB whip in
many applications
• U.S. Patent Nos. 5,977,931 – 6,292,156
and 7,209,096
MARKETS
• Public safety
• Transportation
• Utility
• Military mobile
• Fixed radio applications
SPECIFICATIONS
ELECTRICAL
VSWR (Measured on 2’ x 2’ GP)
Peak Gain
Maximum Power
Nominal Impedance
Polarization
Pattern
Half-Power Beamwidth
(Elevation° x Azimuth°)
Coaxial Cable Length & Type
Terminations
Noise Suppressor
< 1.5:1 @ 10 MHz
< 2.0:1 @ 20 MHz
3 dBi
100 W
50
Ω
Vertical
Omnidirectional
146° x 360°
None
NMO
BlackHawk NS1535 1-35 VOLT, 15 Amp
Noise Suppessor (Sold Separately)
Americas: +1.847 839.6907
IAS-AmericasEastSales@lairdtech.com
Europe: +44.1628.858941
IAS-EUSales@lairdtech.com
Asia: +86.21.5855.0827.127
IAS-AsiaSales@lairdtech.com
www.lairdtech.com
UHF Antennas
FORM FACTOR DRAWING
SPECIFICATIONS
MECHANICAL
Height (initially)
Diameter
Weight
Rated Wind Velocity
Rated Wind Velocity
(with 0.5” radial ice)
Lateral Thrust @ 125mph
Wind Velocity
Wind Resistance in Sq. Feet
Material
Mounting Information
* Add .835” for Permanent Mount option
Permanent Mounting Option:
Please order by antenna model and insert letter “P” to indicate permanent mounting
option (TRA4503P).
3½”
*
1.438”
0.21 lbs.
125mph (210 kph)
85mph (137 kph)
57 lbs. (26kg)
0.0356 Sq. ft.
ABS
NMO or Permanent Mountable
Phantom
®
MODEL AND ORDERING INFORMATION
MODEL
TRA3003
TRAB3003
TRA3803
TRAB3803
TRA4063
TRAB4063
TRA4103
TRAB4103
TRA4303
TRAB4303
TRA4503
TRAB4503
TRA4703
TRAB4703
TRA4903
TRAB4903
Sealtube3
DESCRIPTION
300-305 MHz 3 dBi Phantom
®
¾ NMO, White Radome
300-305 MHz 3 dBi Phantom
®
¾ NMO, Black Radome
380-400 MHz 3 dBi Phantom
®
¾ NMO, White Radome
380-400 MHz 3 dBi Phantom
®
¾ NMO, Black Radome
406-425 MHz 3 dBi Phantom
®
¾ NMO, White Radome
406-425 MHz 3 dBi Phantom
®
¾ NMO, Black Radome
410-430 MHz 3 dBi Phantom
®
¾ NMO, White Radome
410-430 MHz 3 dBi Phantom
®
¾ NMO, Black Radome
430-450 MHz 3 dBi Phantom
®
¾ NMO, White Radome
430-450 MHz 3 dBi Phantom
®
¾ NMO, Black Radome
450-470 MHz 3 dBi Phantom
®
¾ NMO, White Radome
450-470 MHz 3 dBi Phantom
®
¾ NMO, Black Radome
470-490 MHz 3 dBi Phantom
®
¾ NMO, White Radome
470-490 MHz 3 dBi Phantom
®
¾ NMO, Black Radome
490-512 MHz 3 dBi Phantom
®
¾ NMO, White Radome
490-512 MHz 3 dBi Phantom
®
¾ NMO, Black Radome
Heat shrink tubing 3”x1”DIA Elite install
(use for jaw protector on installation wrench)
ANT-DS-PHANTOM UHF 0615
