1N4002 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> 1N4002

1N4002: Description1 A, 100 V, SILICON, SIGNAL DIODE, DO-41; CategoryDiscrete semiconductor diode; File Size221KB，2 Pages; ManufacturerRectron Semiconductor; Websitehttp://www.rectron.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

1N4002 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	1N4002	-	-	View	Buy Now

1N4002 Overview

1 A, 100 V, SILICON, SIGNAL DIODE, DO-41

1N4002 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Rectron Semiconductor
Parts packaging code	DO-41
package instruction	O-PALF-W2
Contacts	2
Reach Compliance Code	not_compliant
ECCN code	EAR99
Other features	HIGH CURRENT CAPABILITY
Shell connection	ISOLATED
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	1.1 V
JEDEC-95 code	DO-41
JESD-30 code	O-PALF-W2
JESD-609 code	e3
Maximum non-repetitive peak forward current	30 A
Number of components	1
Number of terminals	2
Maximum operating temperature	150 °C
Minimum operating temperature	-55 °C
Maximum output current	1 A
Package body material	PLASTIC/EPOXY
Package shape	ROUND
Package form	LONG FORM
Peak Reflow Temperature (Celsius)	265
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	100 V
surface mount	NO
Terminal surface	Matte Tin (Sn)
Terminal form	WIRE
Terminal location	AXIAL
Maximum time at peak reflow temperature	NOT SPECIFIED

Preview

Download Datasheet

View All

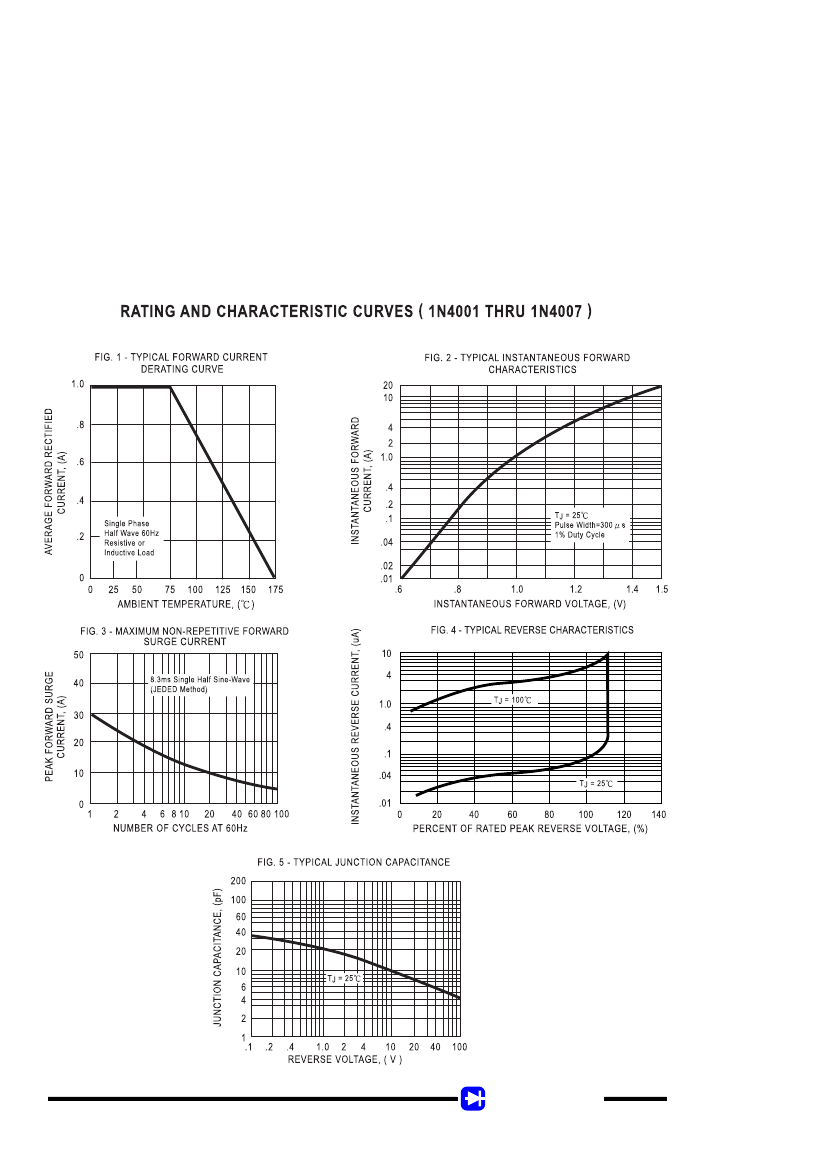

RECTRON

SEMICONDUCTOR

TECHNICAL SPECIFICATION

1N4001

THRU

1N4007

SILICON RECTIFIER

VOLTAGE RANGE 50 to 1000 Volts CURRENT 1.0 Ampere

FEATURES

Low cost

Low leakage

Low forward voltage drop

High current capability

DO-41

MECHANICAL DATA

Case: Molded plastic

Epoxy: UL 94V-O rate flame retardant

Lead: MIL-STD-202E method 208C guaranteed

Mounting position: Any

Weight: 0.33 gram

MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS

Ratings at 25 C ambient temperature unless otherwise specified.

Single phase, half wave, 60 Hz, resistive or inductive load.

For capacitive load, derate current by 20%.

Dimensions in inches and (millimeters)

MAXIMUM RATINGS

(At T

= 25

C unless otherwise noted)

RATINGS

Maximum Recurrent Peak Reverse Voltage

Maximum RMS Voltage

Maximum DC Blocking Voltage

Maximum Average Forward Rectified Current

at T

= 75

Peak Forward Surge Current 8.3 ms single half sine-wave

superimposed on rated load (JEDEC method)

Typical Junction Capacitance (Note)

Typical Thermal Resistance

Operating and Storage Temperature Range

ELECTRICAL CHARACTERISTICS

(At T

= 25

C unless otherwise noted)

CHARACTERISTICS

Maximum Instantaneous Forward Voltage at 1.0A DC

Maximum DC Reverse Current

= 25

at Rated DC Blocking Voltage

= 100

Maximum Full Load Reverse Current Average, Full Cycle

.375” (9.5mm) lead length at T

= 75

NOTES : Measured at 1 MH

and applied reverse voltage of 4.0 volts

SYMBOL

1N4001

1N4002

1N4003 1N4004

1.1

5.0

1N4005

1N4006

1N4007

UNITS

Volts

uAmps

1998-8

SYMBOL

RRM

RMS

FSM

, T

STG

1N4001

1N4002

100

1N4003

200

140

200

1N4004 1N4005

400

280

400

1.0

-65 to + 175

1N4006

800

560

800

1N4007

1000

700

1000

UNITS

Volts

Amps

C/ W

600

420

600

1N4002 Related Products
