Datasheet> All Categories > Discrete semiconductor> diode> 1N4002G

Preview

1N4002G: DescriptionSIGNAL DIODE; CategoryDiscrete semiconductor diode; File Size49KB，2 Pages; ManufacturerLRC; Websitehttp://www.lrc.cn; Environmental Compliance

Download Datasheet Parametric Compare View All

1N4002G Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	1N4002G	-	-	View	Buy Now

1N4002G Overview

SIGNAL DIODE

1N4002G Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	LRC
package instruction	ROHS COMPLIANT, PLASTIC PACKAGE-2
Reach Compliance Code	unknown
ECCN code	EAR99
Shell connection	ISOLATED
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	1.1 V
JEDEC-95 code	DO-41
JESD-30 code	O-PALF-W2
Maximum non-repetitive peak forward current	30 A
Number of components	1
Number of terminals	2
Maximum operating temperature	150 °C
Minimum operating temperature	-50 °C
Maximum output current	1 A
Package body material	PLASTIC/EPOXY
Package shape	ROUND
Package form	LONG FORM
Maximum repetitive peak reverse voltage	100 V
surface mount	NO
Terminal form	WIRE
Terminal location	AXIAL

Preview

Download Datasheet

View All

LESHAN RADIO COMPANY, LTD.

1N4001G – 1N4007G

1A

1A GENERAL PURPOSE GPP DIODES

TYPE

Maximum

Peak Reverse

Voltage

PRV

V

PK

Maximum Average

Rectified Current

@ Half-Wave

Resistive Load 60Hz

I

O

@ T

L

A

AV

ºC

Maximum

Forward Peak

Surge Current @

8.3ms Superimposed

I

FM

(Surge)

A

PK

Maximum

Reverse

Current @ PRV

@ T

A

=25ºC

I

R

Maximum

Forward

Voltage

@ T

A

=25ºC

I

FM

A

PK

V

FM

V

PK

Package

Dimensions

µAdc

1N4001G

1N4002G

1N4003G

1N4004G

1N4005G

1N4006G

1N4007G

50

100

200

400

600

800

1000

1.0

75

30

5.0

1.0

1.1

DO – 41

1.0(25.4)

MIN

.205(5.2)

.166(4.2)

1.0(25.4)

MIN

.034(0.9)

.028(0.7)

DIA

.107(2.7) DIA

.080(2.0)

DO – 41

31A–1/2

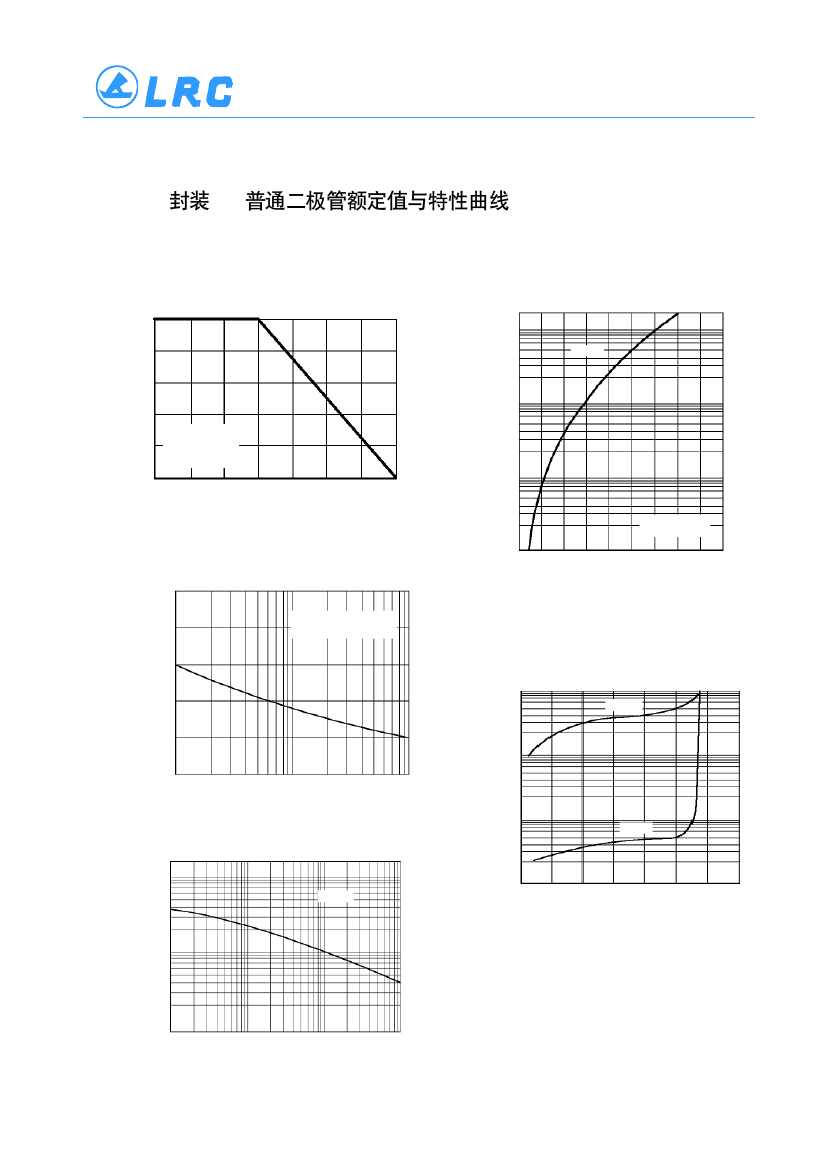

1N4002G Related Products

	1N4002G	1N4001G	1N4003G	1N4004G	1N4005G	1N4006G	1N4007G
Description	SIGNAL DIODE	1 A, 50 V, SILICON, SIGNAL DIODE, DO-204AL	SIGNAL DIODE	1 A, 400 V, SILICON, SIGNAL DIODE, DO-41	1 A, 600 V, SILICON, SIGNAL DIODE, DO-41	SILICON, SIGNAL DIODE	1 A, 1000 V, SILICON, SIGNAL DIODE, DO-41
Maker	LRC	LRC	LRC	LRC	LRC	LRC	LRC
package instruction	ROHS COMPLIANT, PLASTIC PACKAGE-2	O-PALF-W2	O-PALF-W2	O-PALF-W2	ROHS COMPLIANT, PLASTIC PACKAGE-2	O-PALF-W2	ROHS COMPLIANT, PLASTIC PACKAGE-2
Reach Compliance Code	unknown	unknow	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Shell connection	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	1.1 V	1.1 V	1.1 V	1.1 V	1.1 V	1.1 V	1.1 V
JEDEC-95 code	DO-41	DO-41	DO-41	DO-41	DO-41	DO-41	DO-41
JESD-30 code	O-PALF-W2	O-PALF-W2	O-PALF-W2	O-PALF-W2	O-PALF-W2	O-PALF-W2	O-PALF-W2
Maximum non-repetitive peak forward current	30 A	30 A	30 A	30 A	30 A	30 A	30 A
Number of components	1	1	1	1	1	1	1
Number of terminals	2	2	2	2	2	2	2
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C
Minimum operating temperature	-50 °C	-50 °C	-50 °C	-50 °C	-50 °C	-50 °C	-50 °C
Maximum output current	1 A	1 A	1 A	1 A	1 A	1 A	1 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND
Package form	LONG FORM	LONG FORM	LONG FORM	LONG FORM	LONG FORM	LONG FORM	LONG FORM
Maximum repetitive peak reverse voltage	100 V	50 V	200 V	400 V	600 V	800 V	1000 V
surface mount	NO	NO	NO	NO	NO	NO	NO
Terminal form	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE
Terminal location	AXIAL	AXIAL	AXIAL	AXIAL	AXIAL	AXIAL	AXIAL
