335SVH050MCR datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> 335SVH050MCR

335SVH050MCR: DescriptionCAP ALUM 3.3UF 20% 50V SMD; CategoryPassive components; File Size310KB，4 Pages; ManufacturerIllinois Capacitor; Websitehttp://www.illinoiscapacitor.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

335SVH050MCR Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	335SVH050MCR	-	-	View	Buy Now

335SVH050MCR Overview

CAP ALUM 3.3UF 20% 50V SMD

335SVH050MCR Parametric

Parameter Name	Attribute value
capacitance	3.3µF
Tolerance	±20%
Voltage - Rated	50V
ESR (equivalent series resistance)	70.33 milliohms @ 120Hz
Service life at different temperatures	2000 hours at 105°C
Operating temperature	-40°C ~ 105°C
polarization	polarization
grade	-
application	Universal
Ripple current @ low frequency	14mA @ 120Hz
Ripple current @ high frequency	21mA @ 100kHz
lead spacing	-

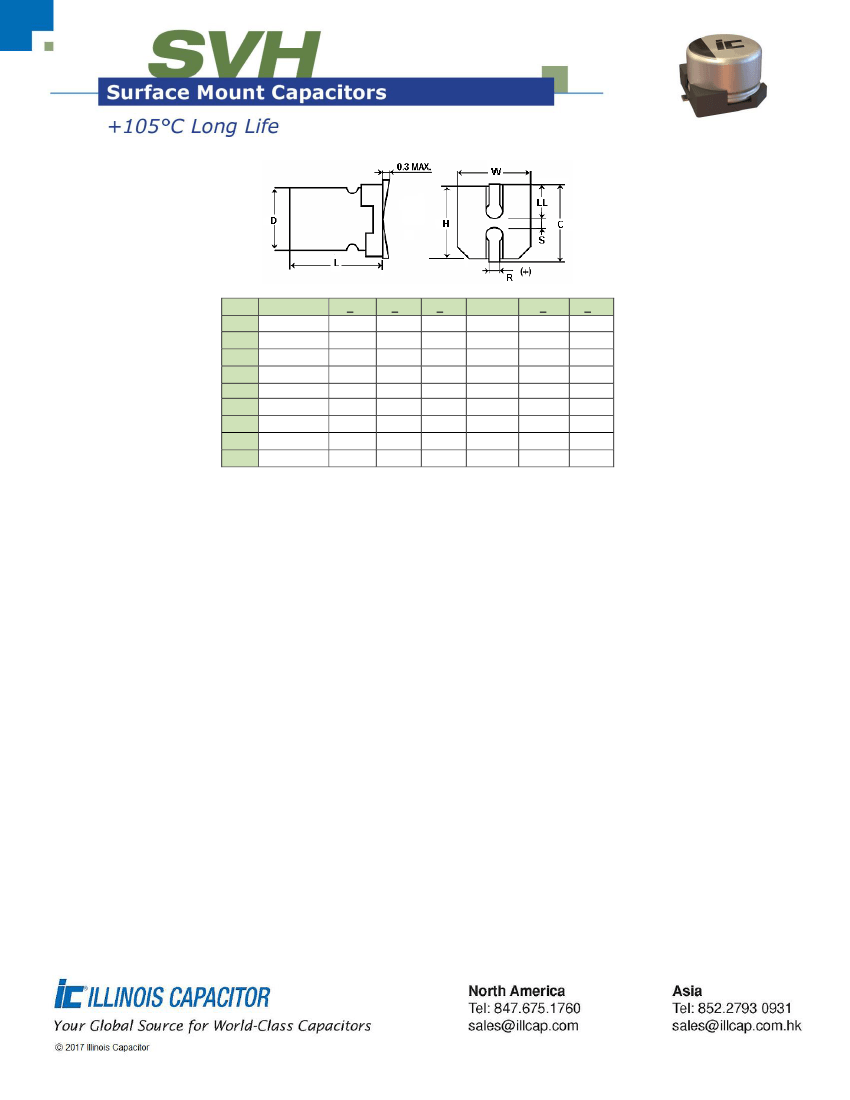

size/dimensions	0.157" diameter (4.00mm)
Height - Installation (maximum)	0.217"（5.50mm）
Surface mount pad dimensions	0.169" long x 0.169" wide (4.30mm x 4.30mm)
Installation type	surface mount
Package/casing	Radial, Can - SMD

Preview

Download Datasheet

View All

FEATURES

Small size

–

Extended Life

–

Low cost

APPLICATIONS

Operating Temperature

Range

Capacitance Tolerance

Surge voltage

Dissipation

Factor

Filtering

–

Bypass

–

Coupling

–

Blocking

-40°C to +105°C (6.3 to 100WVDC)

-25°C to +105°C (160 to 450WVDC)

+20% at 120 Hz, 20°C

6.3

7.9

6.3

.35

.24

.34

.16

.26

.14

.22

.14

.18

.14

100

125

100

.18

160

200

160

200

250

200

250

300

250

400

450

400

.25

450

500

450

.25

WVDC

SVDC

WVDC

tan δ

D>12.5

Leakage current

Low

temperature

stability

Impedance

ratio

(120 Hz)

2 Minutes

.01CV or 3μA,Whichever is greater

6.3

100

160-450

Rated

WVDC

-25°C/+20°C

-40°C/+20°C

Load Life

Shelf Life

Resistance to soldering

heat

Ripple Current

Multipliers

2000 hours at 105°C with rated WVDC

<30% of initial measured value

Capacitance change

<300% of maximum specified value

Dissipation factor

<100% of maximum specified value

Leakage current

1000 hours at 105°C with no voltage applied

<30% of initial measured value

Capacitance change

<300% of maximum specified value

Dissipation factor

<100% of maximum specified value

Leakage current

Capacitors placed on a 250°C hot plate for 30 seconds with their electrode terminations facing

downward will fulfill the following conditions after being cooled to room temperature

<10% of initial measured value

Capacitance change

<100% of maximum specified value

Dissipation factor

<100% of maximum specified value

Leakage current

0.7

Frequency (Hz)

120

400

10k

1.0

1.17 1.38 1.5

100k

1.5

Feb-17

335SVH050MCR Related Products

	335SVH050MCR	105SVH050MCR	106SVH025MCR	225SVH050MCR	226SVH6R3MCR	475SVH035MCR
Description	CAP ALUM 3.3UF 20% 50V SMD	CAP ALUM 1UF 20% 50V SMD	CAP ALUM 10UF 20% 25V SMD	CAP ALUM 2.2UF 20% 50V SMD	CAP ALUM 22UF 20% 6.3V SMD	CAP ALUM 4.7UF 20% 35V SMD
capacitance	3.3µF	1µF	10µF	2.2µF	22µF	4.7µF
Tolerance	±20%	±20%	±20%	±20%	±20%	±20%
Voltage - Rated	50V	50V	25V	50V	6.3V	35V
ESR (equivalent series resistance)	70.33 milliohms @ 120Hz	232.1 milliohms @ 120Hz	26.53 milliohms @ 120Hz	105.5 milliohms @ 120Hz	22.61 milliohms @ 120Hz	49.38 milliohms @ 120Hz
Service life at different temperatures	2000 hours at 105°C	2000 hours at 105°C	2000 hours at 105°C	2000 hours at 105°C	2000 hours at 105°C	2000 hours at 105°C
Operating temperature	-40°C ~ 105°C	-40°C ~ 105°C	-40°C ~ 105°C	-40°C ~ 105°C	-40°C ~ 105°C	-40°C ~ 105°C
polarization	polarization	polarization	polarization	polarization	polarization	polarization
application	Universal	Universal	Universal	Universal	Universal	Bypass, decoupling
Ripple current @ low frequency	14mA @ 120Hz	6.3mA @ 120Hz	13mA @ 120Hz	11mA @ 120Hz	22mA @ 120Hz	16mA @ 120Hz
Ripple current @ high frequency	21mA @ 100kHz	9.45mA @ 100kHz	19.5mA @ 100kHz	16.5mA @ 100kHz	33mA @ 100kHz	24mA @ 100kHz
size/dimensions	0.157" diameter (4.00mm)	0.157" diameter (4.00mm)	0.157" diameter (4.00mm)	0.157" diameter (4.00mm)	0.157" diameter (4.00mm)	0.157" diameter (4.00mm)
Height - Installation (maximum)	0.217"（5.50mm）	0.217"（5.50mm）	0.217"（5.50mm）	0.217"（5.50mm）	0.217"（5.50mm）	0.224"（5.70mm）
Surface mount pad dimensions	0.169" long x 0.169" wide (4.30mm x 4.30mm)	0.169" long x 0.169" wide (4.30mm x 4.30mm)	0.169" long x 0.169" wide (4.30mm x 4.30mm)	0.169" long x 0.169" wide (4.30mm x 4.30mm)	0.169" long x 0.169" wide (4.30mm x 4.30mm)	0.169" long x 0.169" wide (4.30mm x 4.30mm)
Installation type	surface mount	surface mount	surface mount	surface mount	surface mount	surface mount
Package/casing	Radial, Can - SMD	Radial, Can - SMD	Radial, Can - SMD	Radial, Can - SMD	Radial, Can - SMD	Radial, Can - SMD
