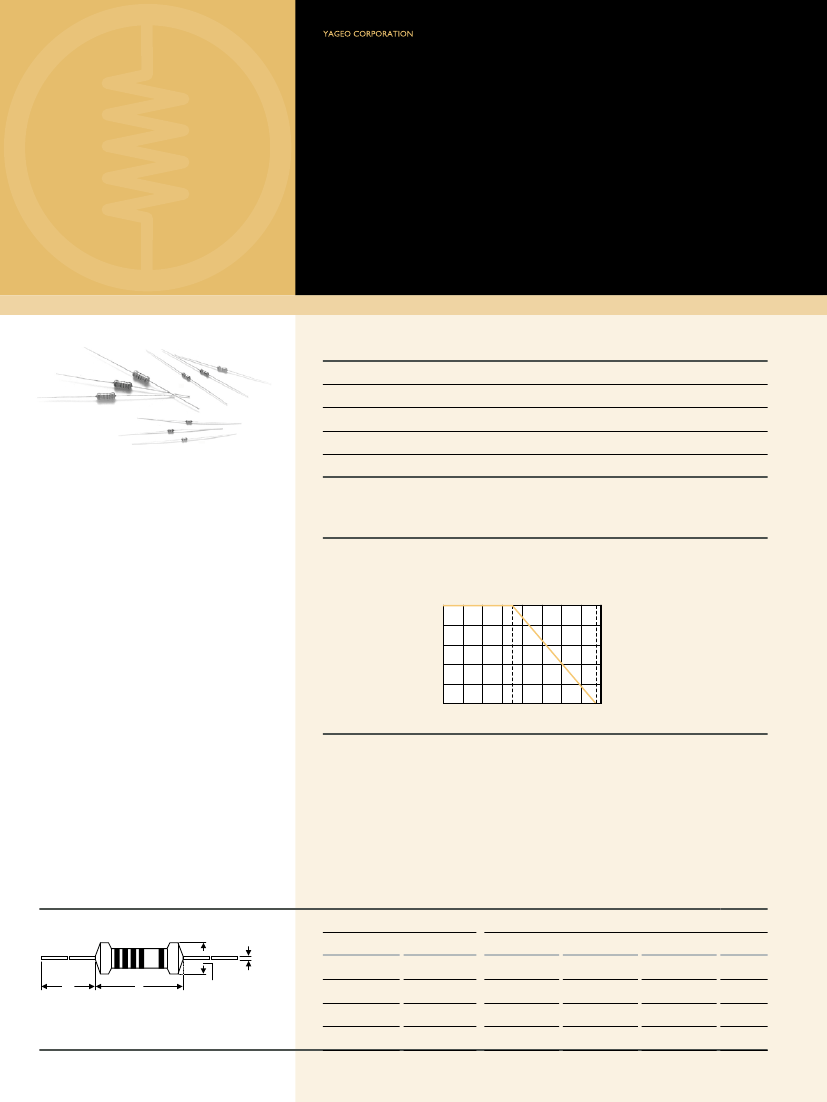

Through-hole resisTors
Metal Glazed Film Resistors
High Voltage &
High Ohmic Type
Normal & Miniature Style [ HHV Series ]
FeATures
Power Rating
Resistance Tolerance
T.C.R.
Flameproof Multi-layer Coating Meets
Flameproof Feature Meets Overload Test
1/4W, 1/2W, 1W, 2W, 3W
±1%, ±5%
±200ppm/°C
UL-94V-0
UL-1412
iNTroDuCTioN
The HHV Series High Voltage & High Ohmic
Resistors are made of metal glaze film, with
tinned connecting leads of electrolytic copper
welded to the end-caps. The resistors are
coated with layers of pink color lacquer.
DerATiNg CurVe
For resistors operated in ambient temperatures above 70°C, power rating must be derated
in accordance with the curve below.
Rated Load (%)
70
100
80
60
40
20
20
40
60
80
100 120 140 160
155 °C
Ambient Temperature (°C)
DiMeNsioNs
sTYle
Normal
ød
H
L
5th color code: yellow
øD
HHV-25
HHV-50
HHV1WS
HHV2WS
Miniature
HHV50S
HHV1SS
HHV2SS
HHV3SS
DiMeNsioN
l
6.3±0.5
9.0±0.5
11.5±1.0
15.5±1.0
øD
2.4±0.2
3.3±0.3
4.5±0.5
5.0±0.5
h
28±2.0
26±2.0
35±2.0
33±2.0
Unit: mm
ød
0.55±0.05
0.55±0.05
0.8±0.05
0.8±0.05
41
Note:
eleCTriCAl ChArACTerisTiCs
sTYle
Power Rating at 70°C
Maximum Working Voltage (DC)
Maximum Overload Voltage (DC)
Voltage Proof on Insulation
Resistance Range
Operating Temp. Range
Temperature Coefficient
hhV-25
1/4W
1,600V
3,000V
300V
hhV50s
1/2W
3,500V
7,000V
500V
hhV-50
hhV1ss
1W
5,000V
10,000V
700V
hhV1Ws
hhV2ss
2W
7,000V
14,000V
hhV2Ws
hhV3ss
3W
100KΩ - 68MΩ for E24 & E96 series value
-55°C to +155°C
±200pm/°C
Note: Special value is available on request
eNViroNMeNTAl ChArACTerisTiCs
PerForMANCe TesT
Short Time Overload
Voltage Proof on Insulation
Temperature Coefficient
Insulation Resistance
Solderability
Solvent Resistance of Marking
Robustness of Terminations
Periodic-pulse Overload
Damp Heat Steady State
Endurance at 70°C
Temperature Cycling
Resistance to Soldering Heat
Accidental Overload Test
TesT MeThoD
IEC 60115-1 4.13
IEC 60115-1 4.7
IEC 60115-1 4.8
IEC 60115-1 4.6
IEC 60115-1 4.17
IEC 60115-1 4.30
IEC 60115-1 4.16
IEC 60115-1 4.39
IEC 60115-1 4.24
IEC 60115-1 4.25
IEC 60115-1 4.19
IEC 60115-1 4.18
IEC 60115-1 4.26
2.5 times RCWV for 5 Sec.
in V-block for 60 Sec., test voltage by type
-55°C to +155°C
in V-block for 60 Sec.
235±5°C for 3±0.5 Sec.
IPA for 5±0.5 Min. with ultrasonic
Direct load for 10 Sec. in the direction of the terminal leads
4 times RCWV 10,000 cycles (1 Sec. on, 25 Sec. off)
40±2°C, 90-95% RH for 56 days, loaded with 0.1 times RCWV
70±2°C at RCWV for 1,000 Hr. (1.5 Hr. on, 0.5 Hr. off)
-55°C
Room Temp.
+155°C
Room Temp. (5 cycles)
260±3°C for 10±1 Sec., immersed to a point 3±0.5mm from the body
4 times RCWV for 1 Min.
APPrAise
±2.0%+0.05Ω
By type
By type
>10,000MΩ
95% Min. coverage
No deterioration of
coatings and markings
≥2.5kg (24.5N)
±1.0%+0.05Ω
±5.0%+0.05Ω
±5.0%+0.05Ω
±1.0%+0.05Ω
±1.0%+0.05Ω
No evidence of flaming
or arcing
Revision: 201304
Note: RCWV(Rated Continuous Working Voltage) = Power Rating x Resistance Value or Max. working voltage listed above, whichever less.
88
exPlANATioNs oF orDeriNg CoDe
MFr
Code 1 - 3
series Name
See Index
-12
Code 4 - 6
Power rating
-05 = ød0.5mm
-06 = ød0.6mm
-07 = ød0.7mm
-08 = ød0.8mm
-10 = ød1.0mm
-14 = ød1.4mm
-12 = 1/6W
-25 = 1/4W
25S = 1/4WS
-50 = 1/2W
50S = 1/2WS
100 = 1W
1WS = 1WS
200 = 2W
2WS = 2WS
204 = 0.4W
207 = 0.6W
300 = 3W
3WS = 3WS
3WM = 3WM
400 = 4W
500 = 5W
5WS = 5WS
5SS = 5WSS
700 = 7W
7WS = 7WS
10A = 10W
20A = 20W
30A = 30W
40A = 40W
50A = 50W
10S = 10WS
15A = 15W
25A = 25W
10B = 100W
25B = 250W
F
Code 7
Tolerance
P = ±0.02 %
A = ±0.05 %
B = ±0.1 %
C = ±0.25%
D = ±0.5 %
F = ±1 %
G = ±2 %
J = ±5 %
K = ±10 %
- = Base on Spec.
T
Code 8
Packing style
T = Tape/Box
R = Tape/Reel
B = Bulk
F
Code 9
Temperature Coef-
ficient of Resistance
- = Base on Spec.
A = ±5 ppm/°C
B = ±10 ppm/°C
C = ±15 ppm/°C
S = ± 20ppm/°C
D = ±25 ppm/°C
E = ±50 ppm/°C
F = ±100 ppm/°C
G = ±200 ppm/°C
H = ±250 ppm/°C
I = ±300 ppm/°C
J = ±350 ppm/°C
52-
Code 10 - 12
Forming Type
26- = 26mm
52- = 52.4mm
73- = 73mm
81- = 81mm
91- = 91mm
F = F Type
FK = FK Type
FKK = FKK Type
FFK = F-form Kink
M = M-Type Forming
MB = M-form W/flat
MT = MT Type Forming
MR = MR Type
AV = AVIsert
PN = PANAsert
100r
Code 13 - 17
resistance Value
0R1 = 0.1
100R = 100
10K = 10,000
10M = 10,000,000
exCePTioN:
• Cement series:
• JPW series:
<Code 8>: Special packing style code
B: Bulk with wirewound or metal oxide sub-assembly for resistance value
W: Bulk with ceramic based wirewound sub-assembly for resistance value
M: Bulk with metal oxide sub-assembly for resistance value
F: Bulk with Fiberglass based wirewound sub-assembly for resistance value
<Code 10-12>: Without forming code
Example:
<Code 13-17>: without resistance value code
Example:
JPW-06-T-52-
SQP500JB-10R
