RAVS Series
Convex Anti-Sulfur Chip Array
Features:
•
•
•
•
•
•
Stackpole Electronics, Inc.
Resistive Product Solutions
Thick film resistor element
Multiple circuit types available
High palladium inner terminations
Square corner construction standard
Zero ohm jumper available
RoHS compliant and halogen free
Electrical Specifications
Type / Code
Power Rating
(Watts) @ 70ºC
0.063W
0.063W
0.063W
0.063W
0.125W
Maximum
Working
Voltage
(1)
25V
50V
25V
50V
200V
Maximum
Overload
Voltage
50V
100V
50V
100V
400V
TCR (ppm/ºC)
± 300 ppm/ºC
± 200 ppm/ºC
± 200 ppm/ºC
± 200 ppm/ºC
± 200 ppm/ºC
± 200 ppm/ºC
22 - 1M
-
10 - 1M
10 - 1M
-
-
10 - 1M
1 - 10M
10 - 1M
22 - 1M
Ohmic Range (Ω) and Tolerance
1%
2%
1 - 10
5%
RAVS102D
RAVS162D
RAVS104D
RAVS164D
RAVS324D
(1) Lesser of√P*R or maximum working voltage

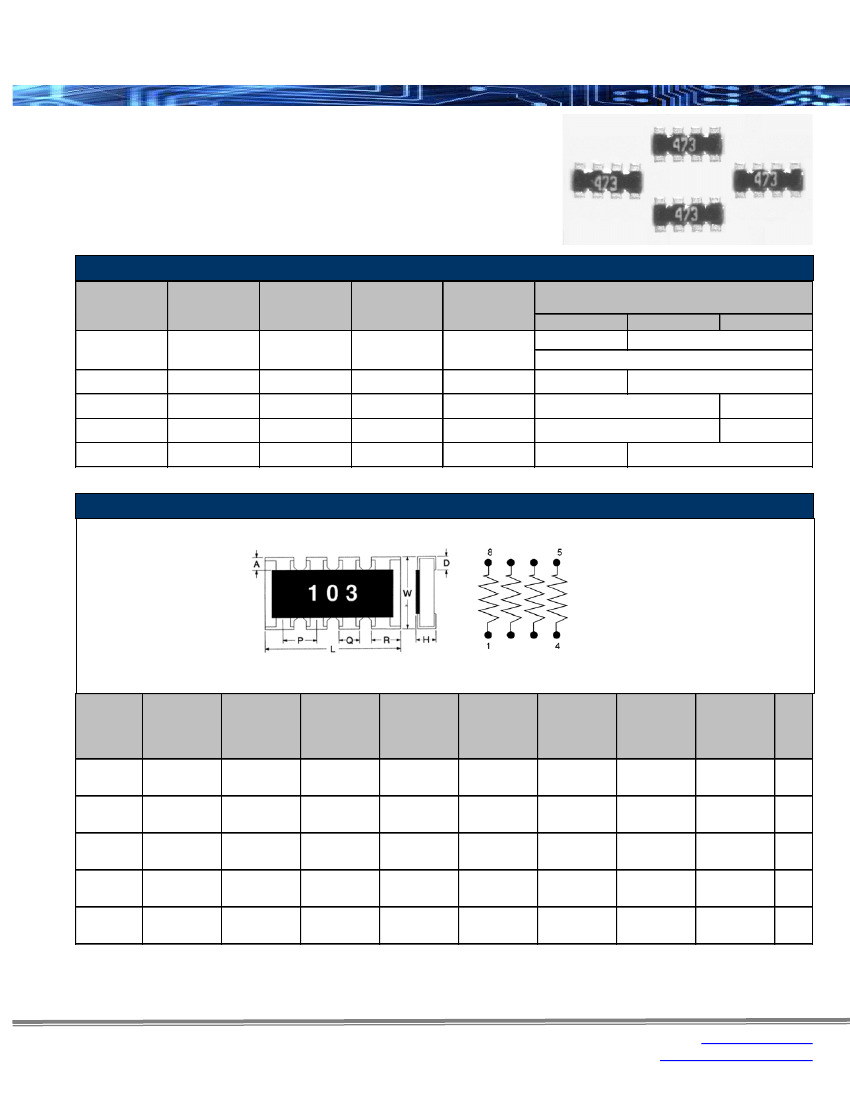

Mechanical Specifications
Schematic:
Type / Code
Body Length
L
Body Width
W
Body Height
H
Element
Spacing
P
Termination
Width
Q
-
-
End
Termination
Width
R
Top
Termination
A
Bottom
Termination
D
Unit
RAVS102D
RAVS162D
RAVS104D
RAVS164D
RAVS324D
0.039 ± 0.004 0.039 ± 0.004 0.014 ± 0.004 0.026 ± 0.002
1.00 ± 0.10
1.00 ± 0.10
0.35 ± 0.10
0.65 ± 0.05
0.063 ± 0.006 0.063 ± 0.006 0.020 ± 0.006 0.031 ± 0.002
1.60 ± 0.15
1.60 ± 0.15
0.50 ± 0.15
0.80 ± 0.05
0.013 ± 0.002 0.006 ± 0.004 0.010 ± 0.002 inches
0.33 ± 0.05
0.15 ± 0.10
0.25 ± 0.05
mm
0.024 ± 0.006 0.012 ± 0.006 0.012 ± 0.006 inches
0.60 ± 0.15
0.30 ± 0.15
0.30 ± 0.15
mm
0.079 ± 0.004 0.039 ± 0.004 0.014 ± 0.002 0.020 ± 0.004 0.012 ± 0.006 0.016 ± 0.006 0.006 ± 0.004 0.010 ± 0.004 inches
2.00 ± 0.10
1.00 ± 0.10
0.35 ± 0.05
0.50 ± 0.10
0.30 ± 0.15
0.40 ± 0.15
0.15 ± 0.10
0.25 ± 0.10
mm
0.126 ± 0.004 0.063 ± 0.004 0.020 ± 0.004 0.031 ± 0.004 0.016 ± 0.006 0.024 ± 0.006 0.012 ± 0.008 0.010 ± 0.006 inches
3.20 ± 0.10
1.60 ± 0.10
0.50 ± 0.10
0.80 ± 0.10
0.40 ± 0.15
0.60 ± 0.15
0.30 ± 0.20
0.25 ± 0.15
mm
0.200 ± 0.008 0.122 ± 0.008 0.022 ± 0.004 0.050 ± 0.004 0.031 ± 0.008
5.08 ± 0.20
3.10 ± 0.20
0.55 ± 0.10
1.27 ± 0.10
0.80 ± 0.20
-
-
0.020 ± 0.008 0.012 ± 0.008 inches
0.50 ± 0.20
0.30 ± 0.20
mm
Rev Date: 11/17/2017
This specification may be changed at any time without prior notice.
Please confirm technical specifications before you order and/or use.
1
www.seielect.com
marketing@seielect.com
RAVS Series
Convex Anti-Sulfur Chip Array
Stackpole Electronics, Inc.
Resistive Product Solutions
Performance Characteristics
Test
Load Life in Moisture
Temperature Cycle
Load Life
Resistance to Soldering Heat
Terminal Adhesion
Short Time Overload
Anti-sulfur (ASTM B 809-95) 60ºC, >90% R.H.
Operating Temperature Range: -55ºC to +155ºC (RAVS102D, RAVS162D)
-55ºC to +125ºC (RAVS104D, RAVS164D, RAVS324D)
Test Results (JIS C 5202)
±3%
±1%
±3%
±1%
±1%
±2%
±1%

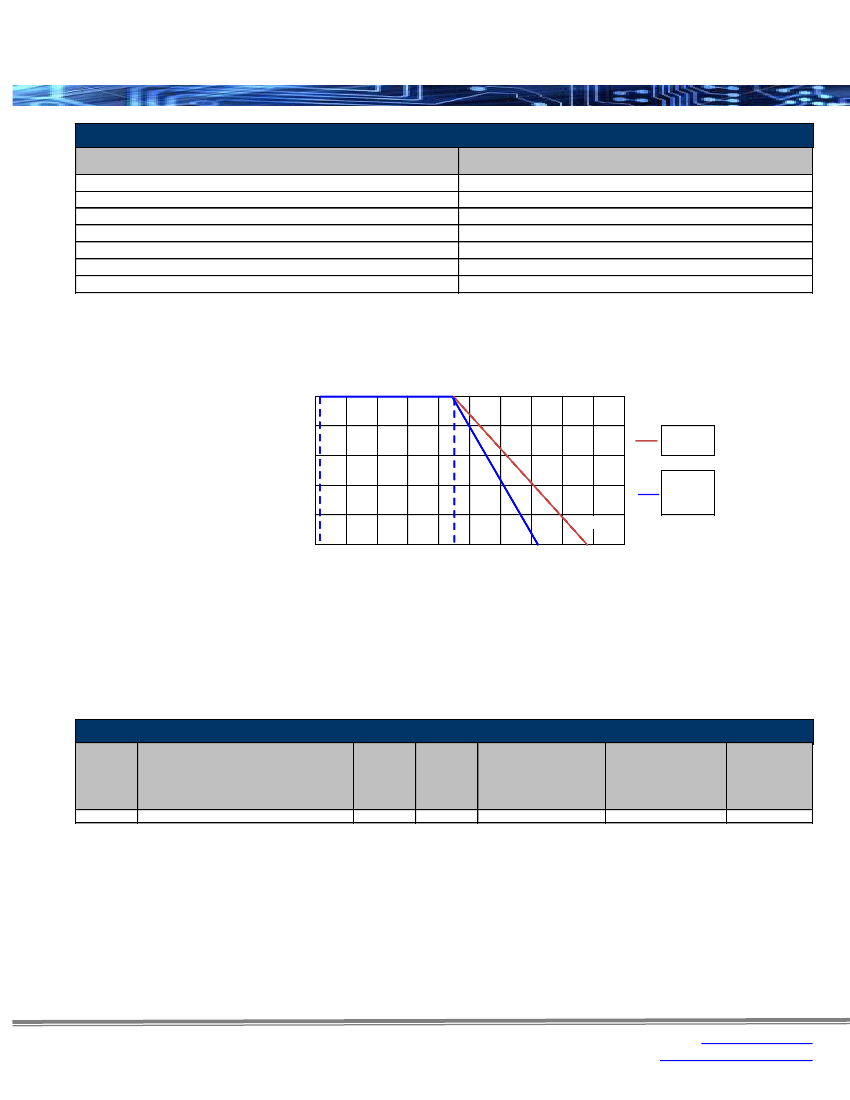

Power Derating Curve:
100
-55ºC
70ºC
Percent Rated Power (%)
80
60
40
20
125ºC
155ºC
RAVS102D
RAVS162D
RAVS104D
RAVS164D
RAVS324D
0
-60
0
20
40
60
80
100
120
140
160
180
Ambient Temperature (ºC)
RoHS Compliance
Stackpole Electronics has joined the worldwide effort to reduce the amount of lead in electronic components and to meet the various
regulatory requirements now prevalent, such as the European Union’s directive regarding “Restrictions on Hazardous Substances”
(RoHS 2). As part of this ongoing program, we periodically update this document with the status regarding the availability of our
compliant components. All our standard part numbers are compliant to EU Directive 2011/65/EU of the European Parliament.
RoHS Compliance Status
Standard
Product
Series
Description
Package /
Termination
Type
SMD
Standard
Series
RoHS
Compliant
YES(1)
Lead-Free Termination
Composition
100% Matte Sn over Ni
Lead-Free
Mfg. Effective Date
(Std Product Series)
Always
Lead-Free
Effective Date
Code
(YY/WW)
Always
RAVS
Convex Anti-Sulfur Chip Resistor Array
Note (1): RoHS Compliant by means of exemption 7c-I.
“Conflict Metals” Commitment
We at Stackpole Electronics, Inc. are joined with our industry in opposing the use of metals mined in the “conflict region” of the
Eastern Democratic Republic of the Congo (DRC) in our products. Recognizing that the supply chain for metals used in the
electronics industry is very complex, we work closely with our own suppliers to verify to the extent possible that the materials and
products we supply do not contain metals sourced from this conflict region. As such, we are in compliance with the requirements of
Dodd-Frank Act regarding Conflict Minerals.
Rev Date: 11/17/2017
This specification may be changed at any time without prior notice.
Please confirm technical specifications before you order and/or use.
2
www.seielect.com
marketing@seielect.com
RAVS Series
Convex Anti-Sulfur Chip Array
Compliance to “REACH”
Stackpole Electronics, Inc.
Resistive Product Solutions
We certify that all passive components supplied by Stackpole Electronics, Inc. are SVHC (Substances of Very High Concern) free
and compliant with the requirements of EU Directive 1907/2006/EC, “The Registration, Evaluation, Authorization and Restriction of
Chemicals”, otherwise referred to as REACH. Contact us for complete list of REACH Substance Candidate List.
Environmental Policy
It is the policy of Stackpole Electronics, Inc. (SEI) to protect the environment in all localities in which we operate. We continually
strive to improve our effect on the environment. We observe all applicable laws and regulations regarding the protection of our
environment and all requests related to the environment to which we have agreed. We are committed to the prevention of all forms
of pollution.
How to Order
1
2
3
4
5
6
7
8
9
10
11
12
13
14
R
A
V
S
3
2
4
D
J
T
1
0
K
0
Product Series
Convex
RAVS
Anti-Sulfur
Code
10
16
32
Power
0.063W
0.063W
0.125W
Elements
2
4
Circuit Type
Code Description
Isolated
D
Tolerance
Tol
Code
1%
F
G
2%
J
5%
Z
Jumper
Code
T
Packaging
Description
Size
10
Tape and Reel
16
32
Resistance Value
Quantity
10,000
5,000
4,000
Four characters with the
multiplier used as the
decimal holder.
22 ohm = 22R0
10.2 Kohm = 10K2
1 Mohm = 1M00
Zero ohm jumper = 0R00
Rev Date: 11/17/2017
This specification may be changed at any time without prior notice.
Please confirm technical specifications before you order and/or use.
3
www.seielect.com
marketing@seielect.com
