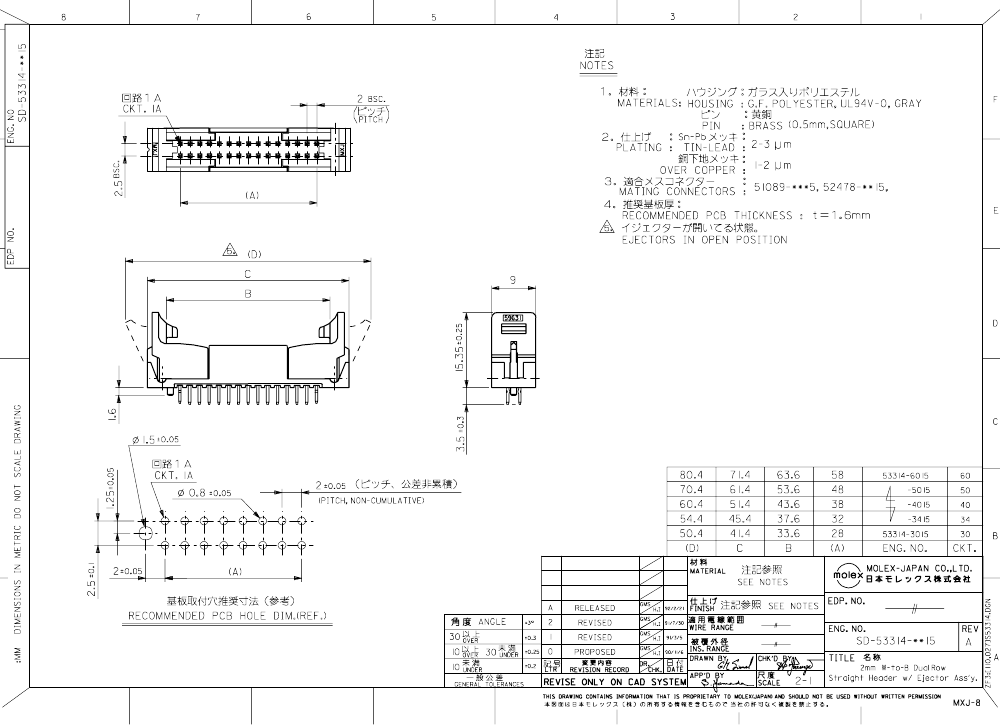

Preview

53314-3015: DescriptionCONN HEADER 30POS 2MM W/EJECT; CategoryThe connector; File Size62KB，1 Pages; ManufacturerMolex Premise Network

Download Datasheet Parametric Compare View All

53314-3015 Overview

CONN HEADER 30POS 2MM W/EJECT

53314-3015 Parametric

Parameter Name	Attribute value
Connector type	Connector
Contact type	Male pin
Spacing - Mating	0.079"（2.00mm）
Number of pins	30
Number of rows	2
Line spacing - patching	0.098"（2.50mm）
Number of pins loaded	all
style	Board to cable/wire
shield	Covered - 4 walls
Installation type	Through hole
Termination	welding
Fastening type	lock/eject hook
Contact Length - Mating	-
Contact length - terminal	0.138"（3.50mm）
Overall contact length	-
Insulation height	-
Contact shape	Square
Contact surface treatment - mating	Tin - Lead
Contact Surface Treatment Thickness - Mating	78.7µin（2.00µm）
Contact Surface Preparation - Column	-
Contact material	brass
Insulation Materials	Polyester, fiberglass reinforced
characteristic	board guide
Operating temperature	-
Intrusion protection	-
Material flammability rating	UL94 V-0
Insulation color	grey
Rated current	-
Rated voltage	-
Joint stack height	-
Contact Surface Treatment Thickness - Column	-
application	-

Preview

Download Datasheet

View All

53314-3015 Related Products

	53314-3015	53314-3415	53314-4015	53314-5015	53314-6015
Description	CONN HEADER 30POS 2MM W/EJECT	CONN HEADER 34POS 2MM W/EJECT	CONN HEADER 40POS 2MM W/EJECT	CONN HEADER 50POS 2MM W/EJECT	CONN HEADER 60POS 2MM W/EJECT
Connector type	Connector	Connector	Connector	Connector	Connector
Contact type	Male pin	Male pin	Male pin	Male pin	Male pin
Spacing - Mating	0.079"（2.00mm）	0.079"（2.00mm）	0.079"（2.00mm）	0.079"（2.00mm）	0.079"（2.00mm）
Number of pins	30	34	40	50	60
Number of rows	2	2	2	2	2
Line spacing - patching	0.098"（2.50mm）	0.098"（2.50mm）	0.098"（2.50mm）	0.098"（2.50mm）	0.098"（2.50mm）
Number of pins loaded	all	all	all	all	all
style	Board to cable/wire	Board to cable/wire	Board to cable/wire	Board to cable/wire	Board to cable/wire
shield	Covered - 4 walls	Covered - 4 walls	Covered - 4 walls	Covered - 4 walls	Covered - 4 walls
Installation type	Through hole	Through hole	Through hole	Through hole	Through hole
Termination	welding	welding	welding	welding	welding
Fastening type	lock/eject hook	lock/eject hook	lock/eject hook	lock/eject hook	lock/eject hook
Contact length - terminal	0.138"（3.50mm）	0.138"（3.50mm）	0.138"（3.50mm）	0.138"（3.50mm）	0.138"（3.50mm）
Contact shape	Square	Square	Square	Square	Square
Contact surface treatment - mating	Tin - Lead	Tin - Lead	Tin - Lead	Tin - Lead	Tin - Lead
Contact Surface Treatment Thickness - Mating	78.7µin（2.00µm）	78.7µin（2.00µm）	78.7µin（2.00µm）	78.7µin（2.00µm）	78.7µin（2.00µm）
Contact material	brass	brass	brass	brass	brass
Insulation Materials	Polyester, fiberglass reinforced	Polyester, fiberglass reinforced	Polyester, fiberglass reinforced	Polyester, fiberglass reinforced	Polyester, fiberglass reinforced
characteristic	board guide	board guide	board guide	board guide	board guide
Material flammability rating	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0
Insulation color	grey	grey	grey	grey	grey
