1791282 Overview

TERM BLOCK PCB

1791282 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
Reach Compliance Codecompliant
ECCN codeEAR99
Is SamacsysN
Fastening methodSPRING LOADED
Manufacturer's serial number1791282
Installation typeBOARD
Number of layers1
Rows1
Number of channels4
Rated current15 A
Rated voltage320 V
safety certificateCUL; UL
Terminal and terminal strip typesBARRIER STRIP TERMINAL BLOCK
Conductor cross section1.5 mm2
Wire gauge16 AWG
Base Number Matches1

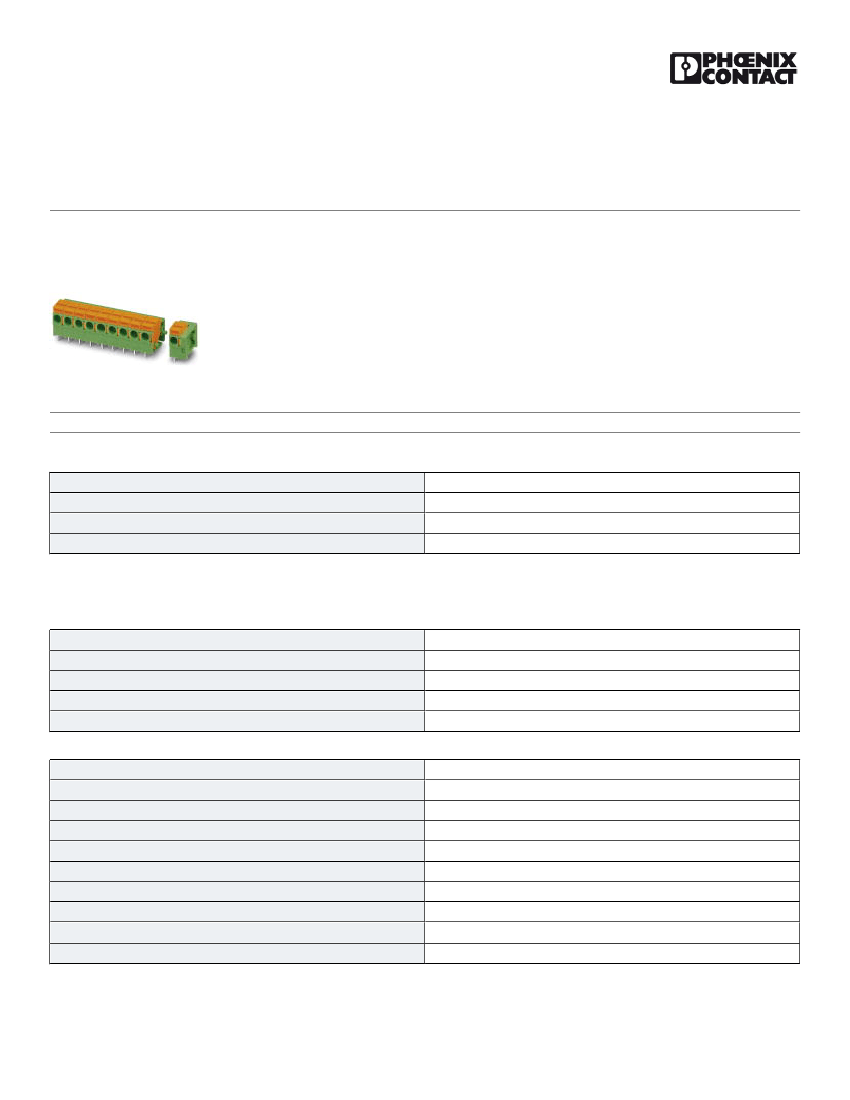

https://www.phoenixcontact.com/us/products/1791282
PCB terminal block - FFKDSA1/H1-5,08- 4 - 1791282
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
PCB terminal block, Nominal current: 15 A, Nom. voltage: 320 V, Pitch: 5.08 mm, Number of positions: 4,
Connection method: Spring-cage connection, Mounting: Soldering, Conductor/PCB connection direction: 0 °,
Color: green
The illustration shows the 10-position
version
Key commercial data
Packing unit
Weight per Piece (excluding packing)
Custom tariff number
Country of origin
1 pc
4.49 GRM
85369010
Germany
Technical data
Dimensions
Length
Pitch
Dimension a
Pin dimensions
Hole diameter
13.6 mm
5.08 mm
15.24 mm
0,5 x 1 mm
1.3 mm
General
Range of articles
Rated surge voltage (III/3)
Rated surge voltage (III/2)
Rated surge voltage (II/2)
Rated voltage (III/3)
Rated voltage (III/2)
Rated voltage (II/2)
Connection in acc. with standard
Nominal current I
N
Nominal cross section
FFKDS(A)/H1
4 kV
4 kV
4 kV
250 V
320 V
630 V
EN-VDE
15 A
1.5 mm²
10/28/2014   Page 1 / 3
