32-bit MCUs
SAM4N Microcontroller Family
Summary
Entry Point to Microchip's ARM
®
Cortex
®
-M4-Based Flash MCU Portfolio
Microchip's SAM4N series comprises the entry point to our portfolio of
ARM
®
Cortex
®
-M4-based Flash microcontrollers (MCUs). These MCUs fea-
ture a 100 MHz operating frequency and offer up to 1 MB of Flash, multiple
serial communication peripherals and analog capability. This combination of
features—plus low power consumption—makes the SAM4N series ideal for
a wide range of applications in industrial automation, consumer and appli-
ance and energy metering markets.
The SAM4N series offers pin-to-pin compatibility with SAM4S, SAM3S,
SAM3N and SAM7S devices, facilitating easy migration within the portfolio.
Key Features
•
High level of integration
— SAM4N devices offer fast serial communication with seven UARTs, four SPIs and three I
2
Cs.
Additional features include 12-bit ADC, 10-bit DAC, integrated voltage reference, multiple timers, PWM and more.
•
Low power consumption
— With its low-power architecture, the SAM4N MCU achieves power consumption levels down to
170 µA/MHz in Active mode; as low as 20 µA in Sleep mode with full RAM retention and wake-up time down to 10 µs; requir-
ing as little as 1 µA in backup mode with the RTC running.
•
Ease of use
— The ecosystem of software tools and support for the Atmel Studio Integrated Development Environment (IDE)
enables an efficient design process and reduces time to market.
Key Applications
•
Industrial automation and Machine-To-Machine (M2M)
•
Process transmitters
•
RF modules
•
Asset tracking
•
Consumer and appliance
•
Toys and mobile accessories
•
Energy metering
•
Smart meters
•
Low-end data concentrators
•
Building and home control
•
Sensors and actuators
•
Control panels
•
Room control units
•
Keypads
•
Low-cost gateways (WAN/HAN)
(wireless- and home-area-network)
Memory
512 KB/1 MB Flash
64/80 KB SRAM
BootROM
Backup Domain
SAM4N
Cortex
®
-M4
100 MHz
3-Layer
AHB Matrix
13 ch. DMA
Package options
48-pin LQFP
48-pin QFN
64-pin LQFP
64-pin QFN
100-pin LQFP
100-pin TFBGA
100-pin VFBGA
System
1.8V REG, POR, BOD
2 Xtal OSC,
2 RC OSC, 2 PLL
WDT, RTT, RTC
Connectivity
4 SPI
3IC
2
Control
16 ch. 12-bit ADC
10-bit DAC
4 x PWM
6 x 16-bit Timers
up to 79 IOs
7 UART
www.microchip.com/32bit
Design Tools and Ecosystem
Microchip offers a full suite of hardware tools for evaluation and prototyping with the SAM4N series. All SAM4N evaluation tools
are supported by the Atmel Studio IDE and integrated Microchip QTouch
®
library support for buttons, sliders and wheels.
They are backed by a worldwide support ecosystem of industry-leading suppliers of development tools, real-time operating
systems and middleware products to make your design process easier and reduce time-to-market.

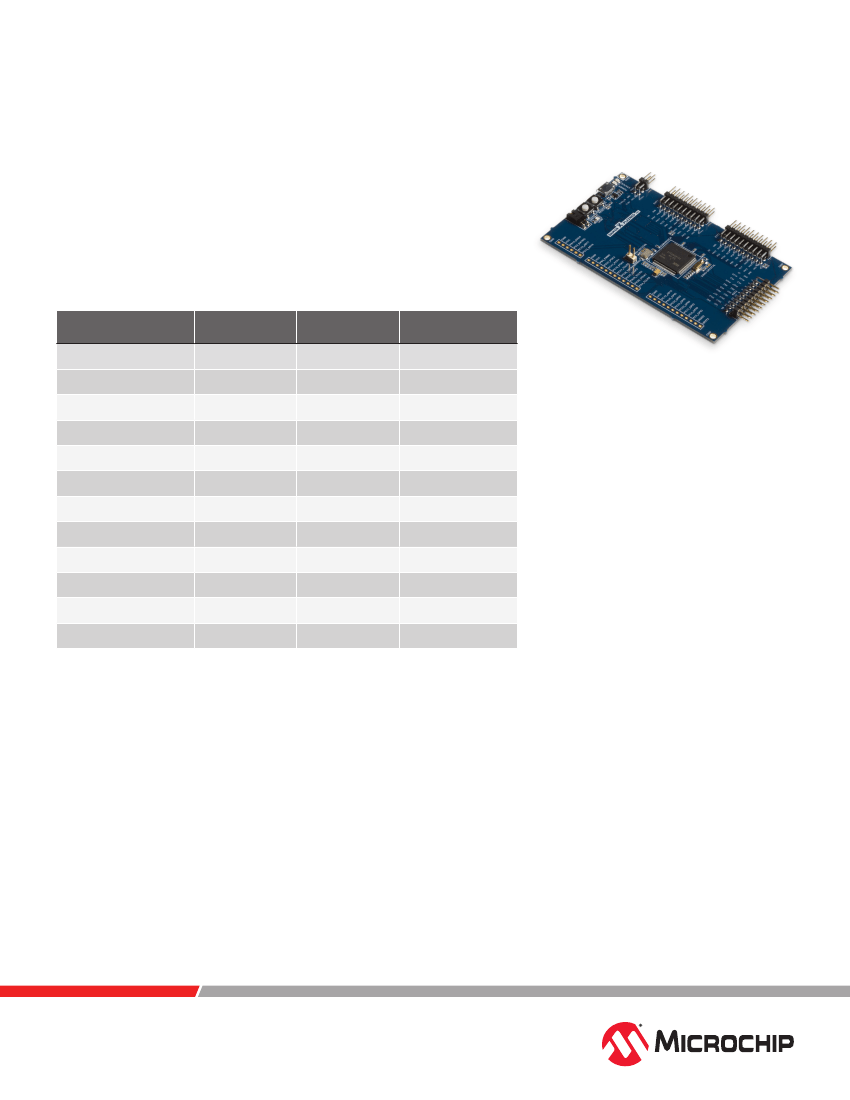

SAM4N Xplained Pro
The SAM4N Xplained Pro platform consists of a main board with multiple expan-
sion ports plus extension boards, including OLED LCD displays, buttons, sensors
and more. The board is available as a standalone kit. The extension boards can
also be purchased separately.
SAM4N Ordering Information
Device Name
ATSAM4N16CA-CFU
ATSAM4N16CA-CU
ATSAM4N16CA-AU
ATSAM4N16BA-AU
ATSAM4N16BA-MU
ATSAM4N8CA-CFU
ATSAM4N8CA-CU
ATSAM4N8CA-AU
ATSAM4N8BA-AU
ATSAM4N8BA-MU
ATSAM4N8AA-AU
ATSAM4N8AA-MU
Flash (KB)
1024
1024
1024
1024
1024
512
512
512
512
512
512
512
SRAM (KB)
80
80
80
80
80
64
64
64
64
64
64
64
Green Packages
100-pin VFBGA
100-pin TFBGA
100-pin LQFP
64-pin LQFP
64-pin QFN
100-pin VFBGA
100-pin TFBGA
100-pin LQFP
64-pin LQFP
64-pin QFN
64-pin LQFP
64-pin QFN
The Microchip name and logo, the Microchip logo and QTouch are registered trademarks of Microchip Technology Incorporated in the U.S.A. and other countries. ARM and Cortex are registered trademarks of ARM Limited (or
its subsidiaries) in the EU and other countries. All other trademarks mentioned herein are property of their respective companies. © 2017, Microchip Technology Incorporated. All Rights Reserved. 7/17
DS60001422B
www.microchip.com/32bit
