Cord Sets
www.schurter.com/pg07_2

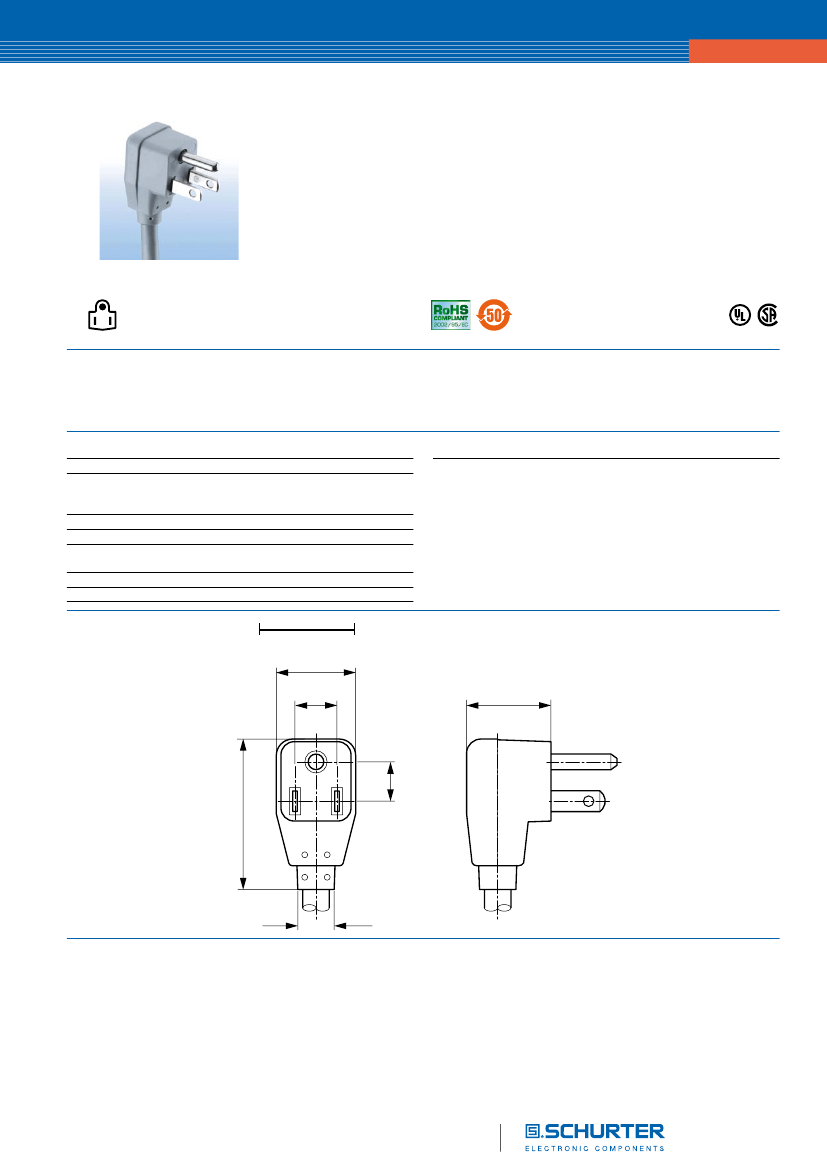

Power Supply Cord with NEMA 5-15 Power (Mains) Plug 3-pole, Angled
40
North America
NEMA 5-15
Description
Approvals
Power Supply Cord, Protection class I, Pin temperature 70 °C, Cable
- UL License Number: E45116
- CSA License Number: 32338
References
Weblinks
General Product Information
Approvals, RoHS, CHINA-RoHS, Mating Connectors, Distributor-Stock-
Check, Accessories
Technical Data
Ratings UL/CSA
Dielectric Strength
10 A / 125 VAC; 60 Hz
> 4 kVDC between L-N
> 2 kVAC between L/N-PE
(1 min/50 Hz)
-25 °C to 70 °C
from front side IP 20 acc. to IEC 60529
Suitable for appliances with protection
class 1 acc. to IEC 61140
moulded
PVC, black or grey
24 mm
Allowable Operation Temp.
Degree of Protection
Protection Class
Terminal
Material: Housing
Dimensions
24
12.7
25.5
45.5
ø 11
11.9
Connectors
40
www.schurter.com/pg07_2
Config. Code
1140
|
-
|
R
|
-
|
Type
|
-
|
D
|
-
|
Length
|
The characters are placeholders for the correspondingly keys of selections from the key tables.
Typ steht für die Dose bzw. 2. Seite, Länge ist die Leitungslänge in mm.
Cord Sets
Product Configurator
1140
|
-
|
R
|
-
|
Type
|
-
|
D
|
-
|
Length
|
= cord type
cord type
SVT 3x18AWG
SJT 3x18AWG
special cord
Cord definition is detailed in general product information
XXX
Configuration
key
N
P
Z
1140
|
-
|
R
|
-
|
Type
|
-
|
D
|
-
|
Length
|
= Color
Color
jet black; RAL9005
silver grey; RAL7001
standard color: black
Configuration
key
A
B
1140
|
-
|
R
|
-
|
Type
|
-
|
D
|
-
|
Length
|
= Cord end 2
Cord end 2
zzzz,
2512, 2530, 3011, 3012, 3013, 302U, 3020, 3027, 3030, 311L, 312L
1140
|
-
|
R
|
-
|
Type
|
-
|
D
|
-
|
Length
|
= Cord length
Cord length
zzzz, 000500, 001000, 001500, 002000, 002500, 003000, 005000
Cord length in mm
2
The specifications, descriptions and illustrations indicated in this document are based on
Connectors
current information. All content is subject to modifications and amendments.
