Datasheet> All Categories > Discrete semiconductor> diode> A397P

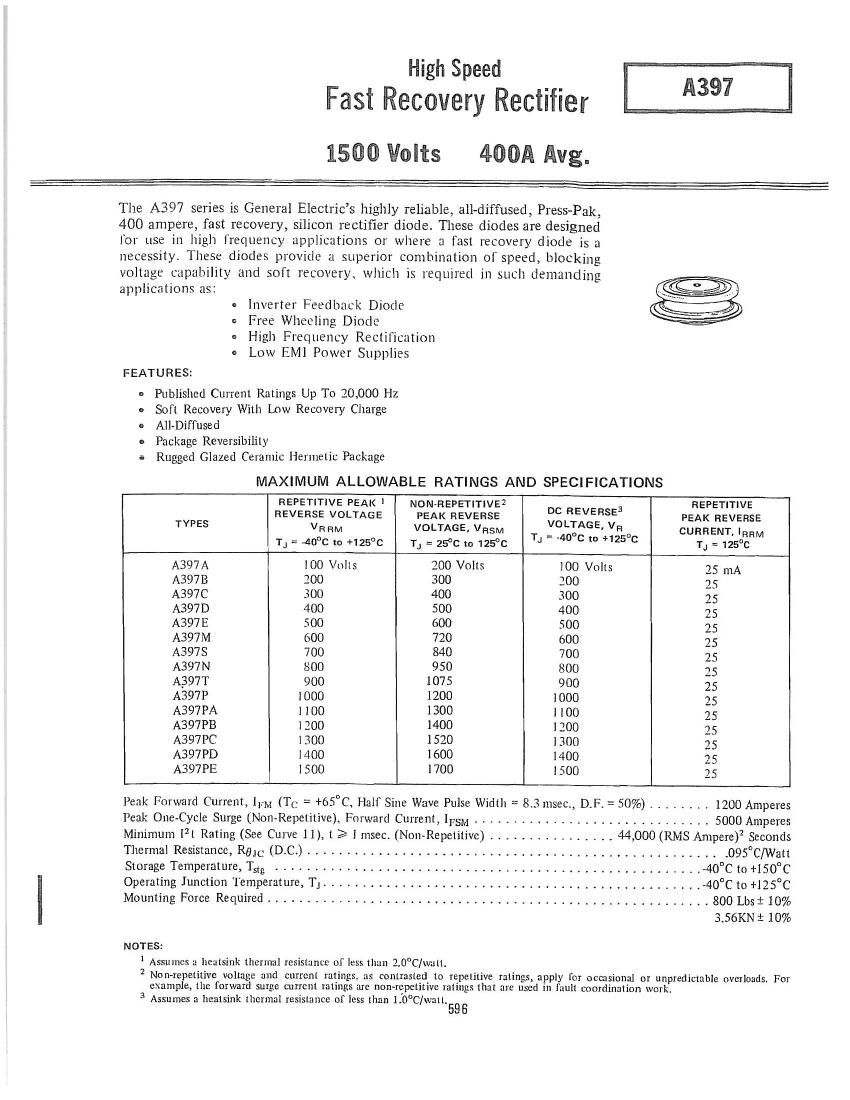

Preview

A397P: DescriptionDIODE GEN PURP 1KV 400A DO200; CategoryDiscrete semiconductor diode; File Size2MB，5 Pages; ManufacturerPOWEREX; Websitehttp://www.pwrx.com/Home.aspx

Download Datasheet Parametric Compare View All

A397P Overview

DIODE GEN PURP 1KV 400A DO200

A397P Parametric

Parameter Name	Attribute value
Maker	POWEREX
package instruction	O-XEDB-N2
Contacts	2
Reach Compliance Code	unknown
ECCN code	EAR99
application	FAST RECOVERY POWER
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	1.4 V
JESD-30 code	O-XEDB-N2
Maximum non-repetitive peak forward current	5000 A
Number of components	1
Phase	1
Number of terminals	2
Maximum operating temperature	175 °C
Maximum output current	400 A
Package body material	UNSPECIFIED
Package shape	ROUND
Package form	DISK BUTTON
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	1000 V
Maximum reverse recovery time	2 µs
surface mount	YES
Terminal form	NO LEAD
Terminal location	END
Base Number Matches	1

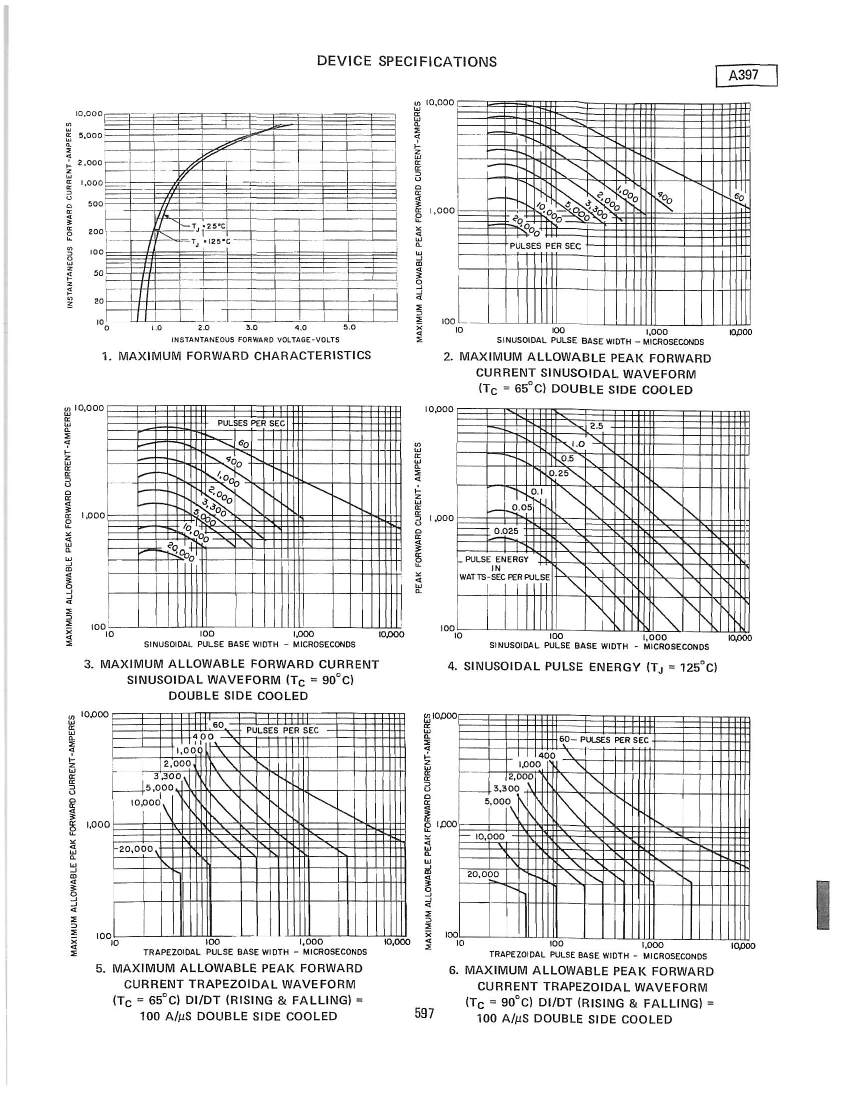

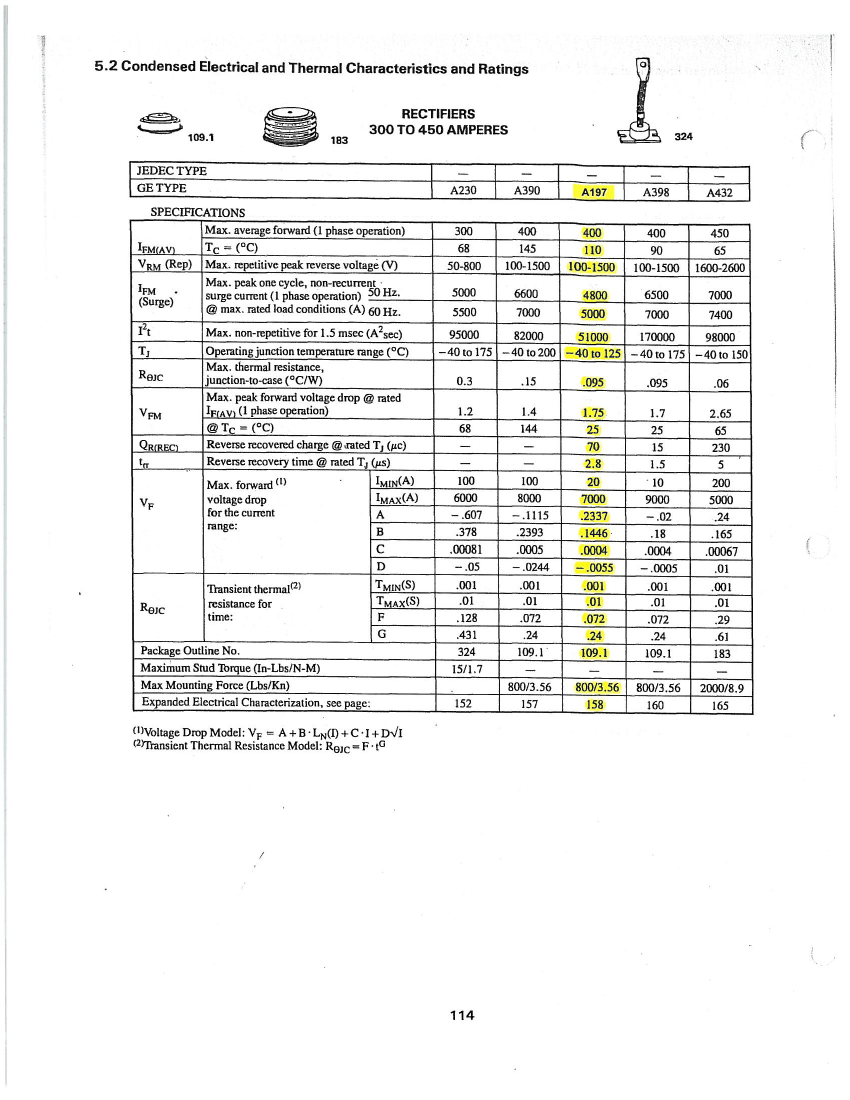

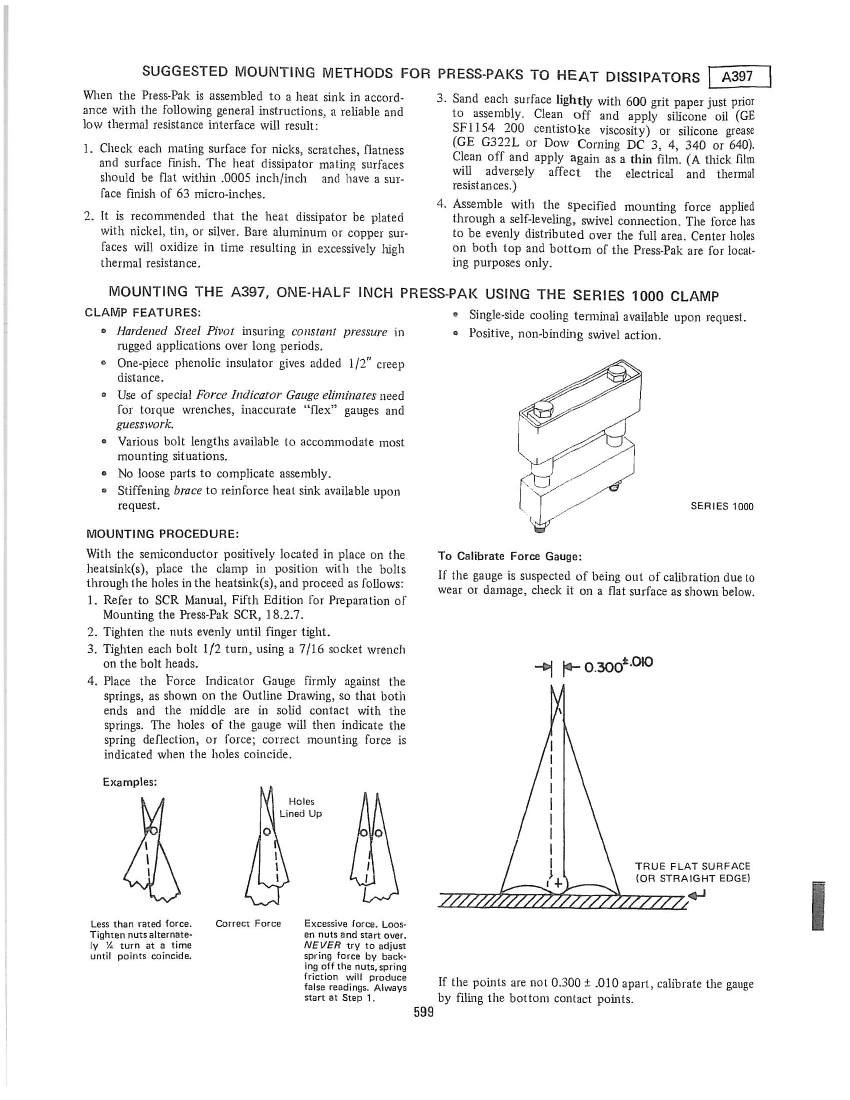

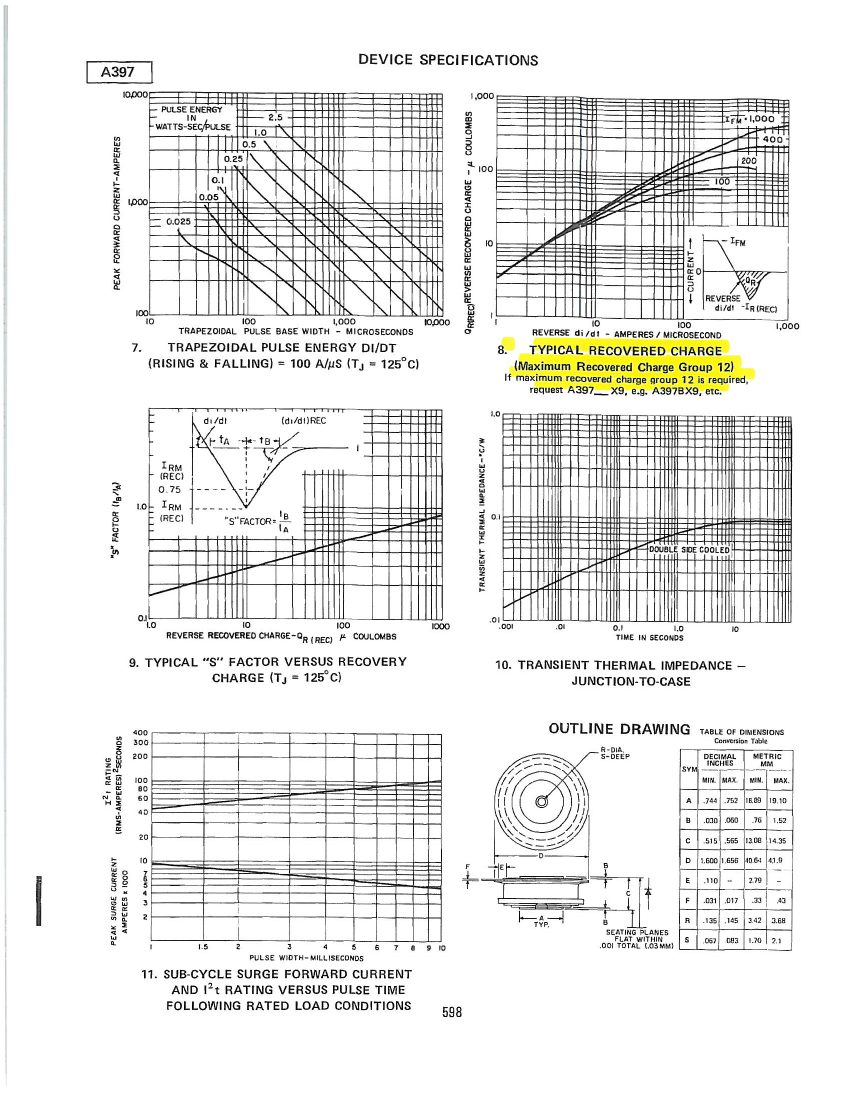

Preview

Download Datasheet

View All

A397P Related Products

	A397P	A397PB	A397PE	A397N	A397D	A397B	A397PD	A397M
Description	DIODE GEN PURP 1KV 400A DO200	DIODE GEN PURP 1.2KV 400A DO200	DIODE GEN PURP 1.5KV 400A DO200	DIODE GEN PURP 800V 400A DO200AA	DIODE GEN PURP 400V 400A DO200AA	DIODE GEN PURP 200V 400A DO200AA	DIODE GEN PURP 1.4KV 400A DO200	DIODE GEN PURP 600V 400A DO200AA
package instruction	O-XEDB-N2	O-XEDB-N2	O-XEDB-N2	O-XEDB-N2	O-XEDB-N2	O-XEDB-N2	O-XEDB-N2	O-XEDB-N2
Contacts	2	2	2	2	2	2	2	2
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
application	FAST RECOVERY POWER	FAST RECOVERY POWER	FAST RECOVERY POWER	FAST RECOVERY POWER	FAST RECOVERY POWER	FAST RECOVERY POWER	FAST RECOVERY POWER	FAST RECOVERY POWER
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	1.4 V	1.4 V	1.4 V	1.4 V	1.4 V	1.4 V	1.4 V	1.4 V
JESD-30 code	O-XEDB-N2	O-XEDB-N2	O-XEDB-N2	O-XEDB-N2	O-XEDB-N2	O-XEDB-N2	O-XEDB-N2	O-XEDB-N2
Maximum non-repetitive peak forward current	5000 A	5000 A	5000 A	5000 A	5000 A	5000 A	5000 A	5000 A
Number of components	1	1	1	1	1	1	1	1
Phase	1	1	1	1	1	1	1	1
Number of terminals	2	2	2	2	2	2	2	2
Maximum operating temperature	175 °C	175 °C	175 °C	175 °C	175 °C	175 °C	175 °C	175 °C
Maximum output current	400 A	400 A	400 A	400 A	400 A	400 A	400 A	400 A
Package body material	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
Package shape	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND
Package form	DISK BUTTON	DISK BUTTON	DISK BUTTON	DISK BUTTON	DISK BUTTON	DISK BUTTON	DISK BUTTON	DISK BUTTON
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	1000 V	1200 V	1500 V	800 V	400 V	200 V	1400 V	600 V
Maximum reverse recovery time	2 µs	2 µs	2 µs	2 µs	2 µs	2 µs	2 µs	2 µs
surface mount	YES	YES	YES	YES	YES	YES	YES	YES
Terminal form	NO LEAD	NO LEAD	NO LEAD	NO LEAD	NO LEAD	NO LEAD	NO LEAD	NO LEAD
Terminal location	END	END	END	END	END	END	END	END
Maker	POWEREX	POWEREX	-	POWEREX	-	POWEREX	-	POWEREX
Base Number Matches	1	1	1	1	1	1	1	-
