FN351-64-47 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Topical application> The power system> FN351-64-47

FN351-64-47: DescriptionLINE FILTER 64A CHASSIS MOUNT; CategoryTopical application The power system; File Size349KB，5 Pages; ManufacturerSchaffner; Environmental Compliance

Download Datasheet Parametric View All

FN351-64-47 Overview

LINE FILTER 64A CHASSIS MOUNT

FN351-64-47 Parametric

Parameter Name	Attribute value
filter type	Three-phase (corner connection)
Configuration	Single-stage
Voltage - Rated DC	-
Voltage - AC rated	-
Voltage - Rated AC (phase to ground/phase to neutral)	250V
Voltage - Rated AC (phase to phase)	440V
current	64A
Frequency - work	DC ~ 60Hz
application	Inverter, power drive system
Approval	CSA，ENEC，UR
Operating temperature	-25°C ~ 85°C
Installation type	Base installation
Terminal type	Termination block
inductance	-

Preview

Download Datasheet

View All

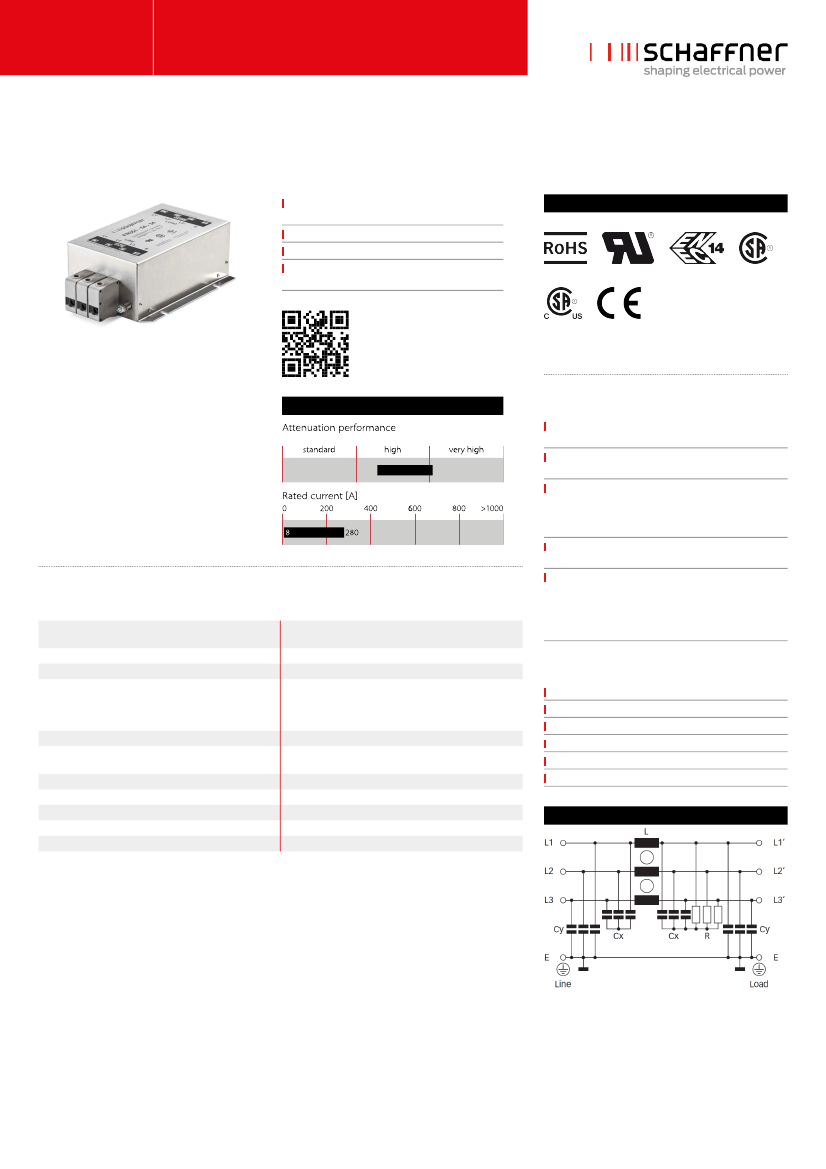

DATASHEET

3-Phase Filters FN 351

General Purpose EMC Filter

EMC solution for industrial inverters and motor

drives

Rated currents from 8 to 280 A

Selectable voltage level of 440 V and 520 V

High differential and common-mode

attenuation

Approvals

UR / CSA: FN 351 up to 110 A; cCSAus: FN 351 H up to

110 A

Performance indicators

Features and benefits

Broad range of power ratings for fast and

convenient filter selection

Available as 440 VAC (FN 351) and 520 VAC (FN 351

H) versions for network-specific applications

FN 351 filters provide a broadband common and

differential-mode attenuation performance, which

remains available also when high interference levels

are present

Solid, touch-safe filter terminals contribute to overall

equipment safety

Technical specifications

Maximum continuous operating voltage

Operating frequency

Rated currents

High potential test voltage

3x 440/250 VAC (FN 351)

3x 520/300 VAC (FN 351 H)

DC to 60 Hz

8 to 280 A @ 40°C

P –> E 2600 VDC for 2 sec (FN 351)

P –> P 1900 VDC for 2 sec (FN 351)

P –> E 2750 VDC for 2 sec (FN 351 H)

P –> P 2250 VDC for 2 sec (FN 351 H)

IP 20

4x rated current at switch on,

1.5x rated current for 1 minute, once per hour

-25°C to +85°C (25/085/21) (FN 351)

-25°C to +100°C (25/100/21) (FN 351 H)

UL 94 V-2 or better

UL 1283, CSA 22.2 No. 8 1986, IEC/EN 60939

135,000 hours

Introduced as one of the very first motor drive EMC

filters in the market, FN 351 has been widely

imitated and has success- fully proven its function

over more than 10 years

Typical applications

Three-phase motor drives

Inverters and converters

Industrial automation equipment

UPS

SMPS

General purpose three-phase filtering

Protection category

Overload capability

Temperature range (operation and storage)

Flammability corresponding to

Design corresponding to

MTBF @ 40°C/400 V (Mil-HB-217F)

Typical electrical schematic
