FAN7314MX

Description
IC LCD BKLT INVERTER DRV 20SOIC
Categorysemiconductor    Power management
File Size233KB,3 Pages
ManufacturerON Semiconductor
Websitehttp://www.onsemi.cn
Environmental Compliance
Download Datasheet Parametric Compare View All

FAN7314MX Online Shopping

Suppliers Part Number Price MOQ In stock
FAN7314MX - - View Buy Now

FAN7314MX Overview

IC LCD BKLT INVERTER DRV 20SOIC

FAN7314MX Parametric

Parameter NameAttribute value
applicationLCD TV/Monitor
Current - Power-
Voltage - Power5 V ~ 25.5 V
Operating temperature-25°C ~ 85°C
Installation typesurface mount
Package/casing20-SOIC (0.295", 7.50mm wide)
Supplier device packaging20-SOIC
FAN7314 — LCD Backlight Inverter Drive IC
October 2007
FAN7314
LCD Backlight Inverter Drive IC
Features
High-Efficiency Single-Stage Power Conversion
Wide Input Voltage Range: 5V to 25.5V
Back Light Lamp Ballast and Soft Dimming
Reduces Number of Required External Components
Precision Voltage Reference Trimmed to 2%
ZVS Half-Bridge Topology
Soft Start
PWM Control at Fixed Frequency
Analog and Burst Dimming Function
Programmable Striking Frequency
Open-Lamp Protection
Open-Lamp Regulation
20-Pin SOIC
Description
The FAN7314 provides all the control functions for a
series parallel resonant converter as well as a pulse
width modulation (PWM) controller to develop a supply
voltage. Typical operating frequency range is between
30kHz and 250kHz, depending on the CCFL and the
transformer's characteristics.
20-SOIC
Ordering Information
Part Number
FAN7314M
FAN7314MX
Package
20-SOIC
20-SOIC
Operating Temperature Range
-25°C ~ 85°C
Packing Method
Rail
Tape & Reel
All packages are lead free per JEDEC J-SDD-020B standard.
© 2006 Fairchild Semiconductor Corporation
FAN7314 Rev. 1.0.4
www.fairchildsemi.com

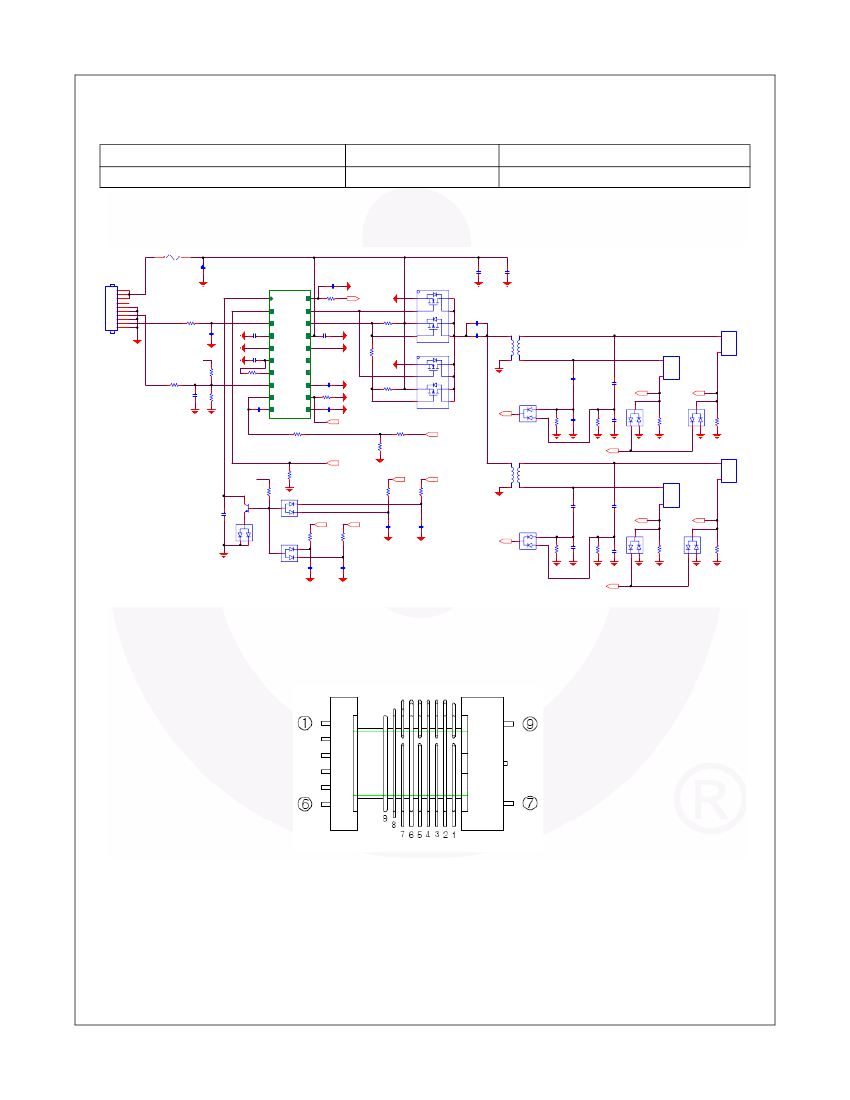

FAN7314MX Related Products

FAN7314MX FAN7314M
Description IC LCD BKLT INVERTER DRV 20SOIC IC INVERTER DRVR LCD BKLT 20SOIC
application LCD TV/Monitor LCD TV/Monitor
Voltage - Power 5 V ~ 25.5 V 5 V ~ 25.5 V
Operating temperature -25°C ~ 85°C -25°C ~ 85°C
Installation type surface mount surface mount
Package/casing 20-SOIC (0.295", 7.50mm wide) 20-SOIC (0.295", 7.50mm wide)
Supplier device packaging 20-SOIC 20-SOIC
