52437-2272 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 52437-2272

52437-2272: DescriptionCONN FFC BOTTOM 22POS 0.50MM R/A; CategoryThe connector; File Size448KB，5 Pages; ManufacturerMolex Premise Network; Environmental Compliance

Download Datasheet Parametric Compare View All

52437-2272 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	52437-2272	-	-	View	Buy Now

52437-2272 Overview

CONN FFC BOTTOM 22POS 0.50MM R/A

52437-2272 Parametric

Parameter Name	Attribute value
Flat flexible type	FFC，FPC
Installation type	Surface mount, right angle
Connector/contact type	contact, bottom
Number of pins	22
spacing	0.020"（0.50mm）
Termination	welding
FFC, FCB thickness	0.30mm
board height	0.079"（2.00mm）
Lock function	trigger lock
Cable end type	Straight
Contact material	Phosphor bronze
Contact plating	tin bismuth
Shell material	Polyamide (PA46), nylon 4/6, fiberglass reinforced
Actuator material	Polyphenylene sulfide (PPS), glass fiber reinforced
characteristic	Fixed solder tail, zero insertion force (ZIF)
Rated voltage	50V
Operating temperature	-40°C ~ 85°C
Material flammability rating	UL94 V-0
Rated current	0.5A
Contact plating thickness	-
Shell color	White
Actuator color	brown
Number of patches	20

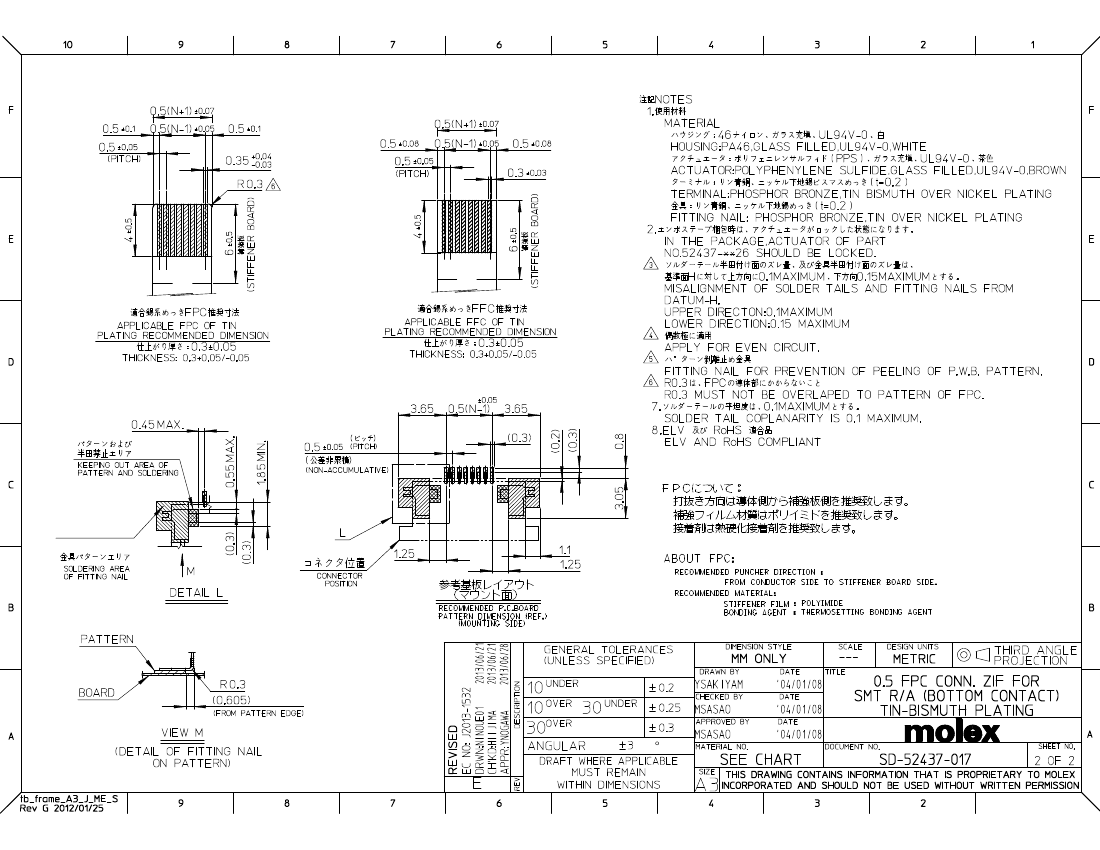

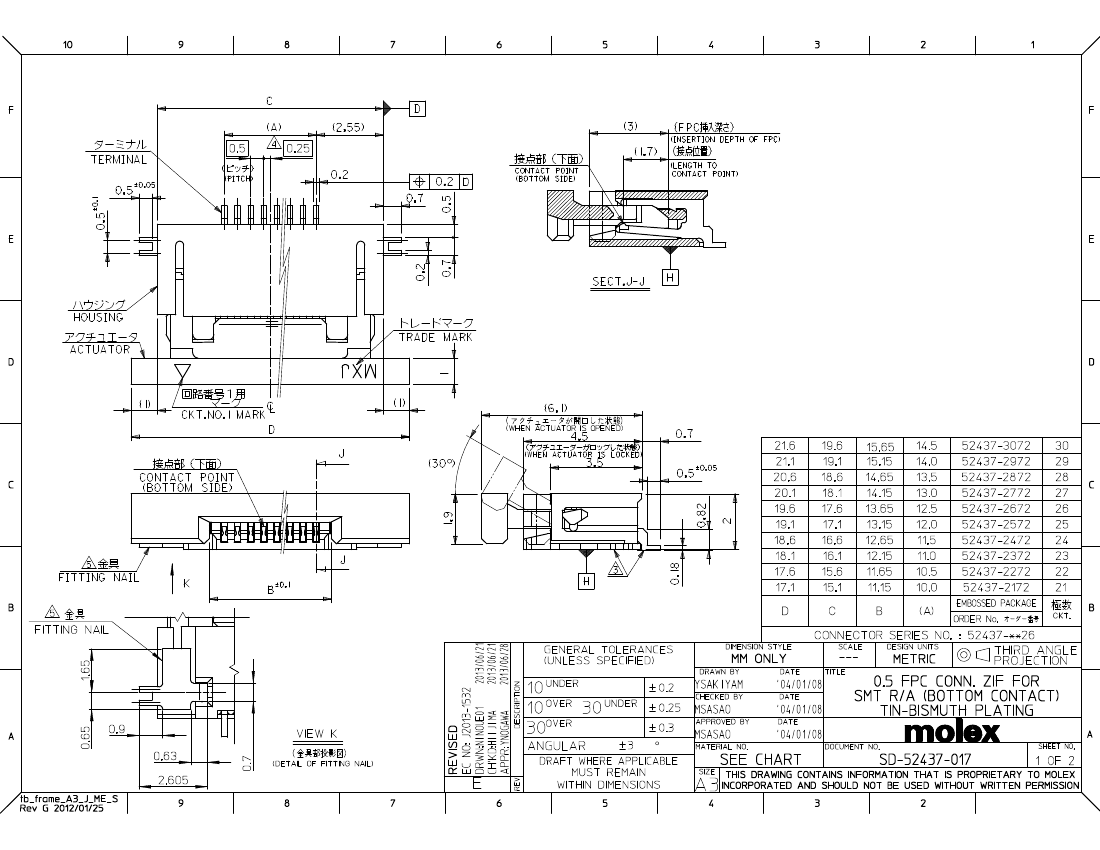

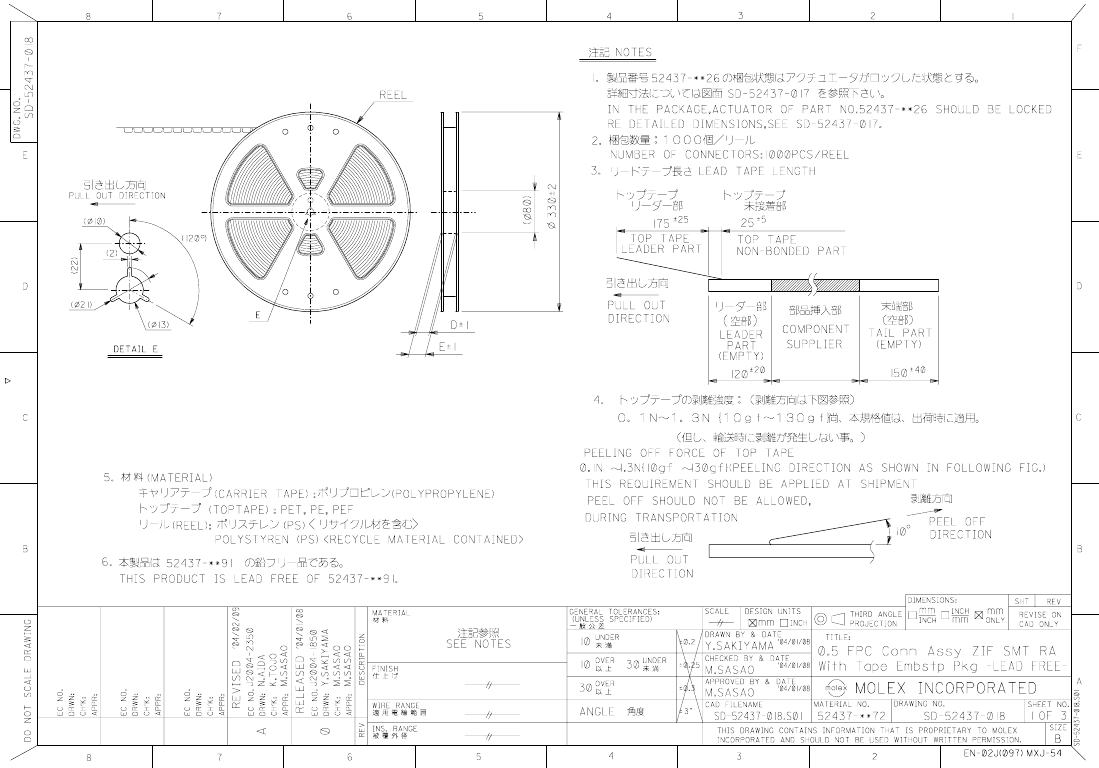

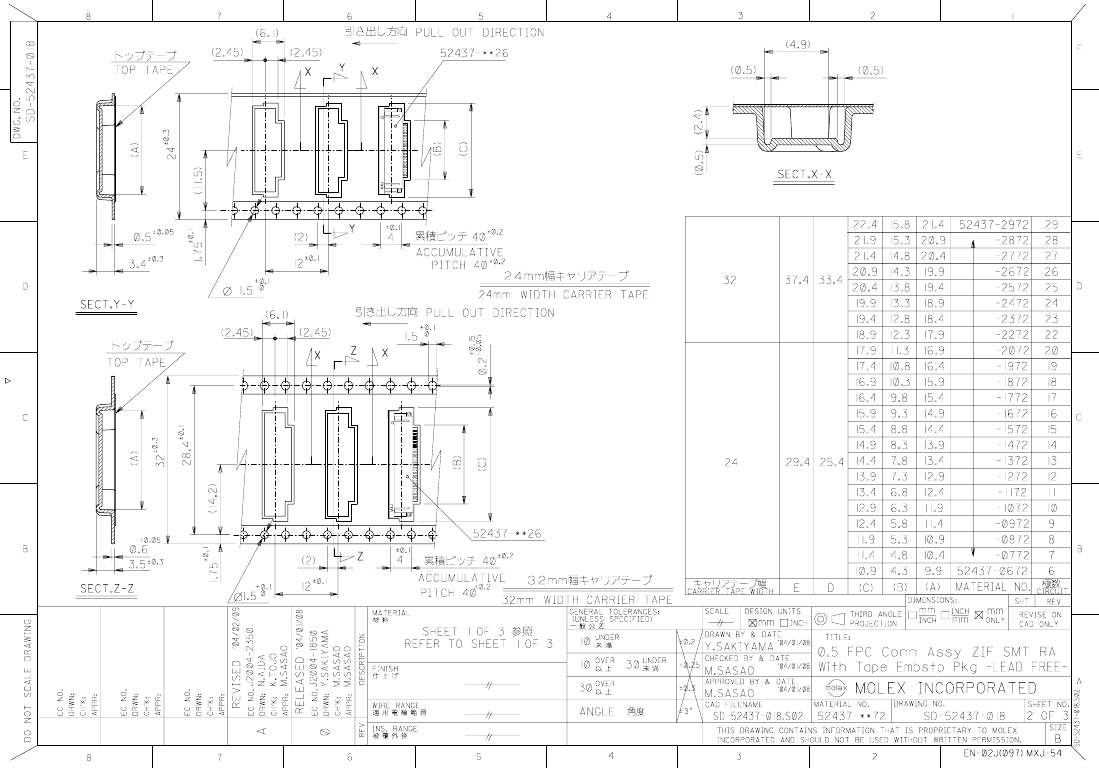

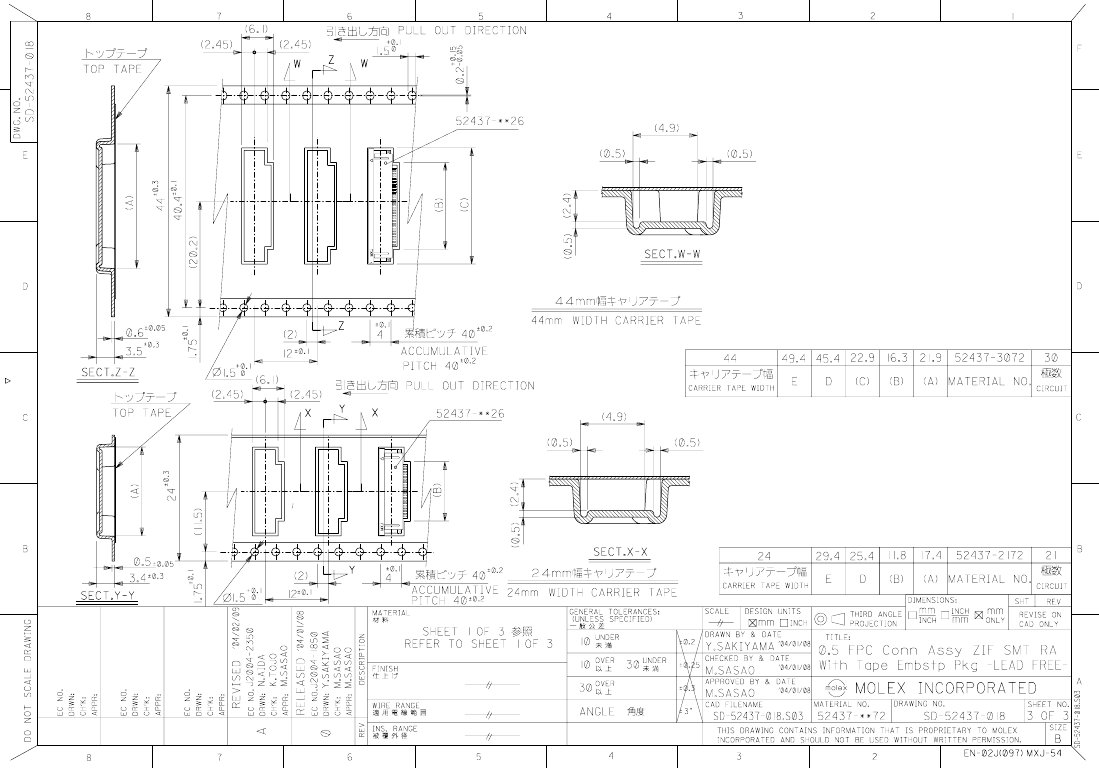

Preview

Download Datasheet

View All

52437-2272 Related Products

	52437-2272	52437-2172	52437-2372	52437-2572	52437-2672	52437-2872	52437-2472	52437-3072
Description	CONN FFC BOTTOM 22POS 0.50MM R/A	CONN FFC BOTTOM 21POS 0.50MM R/A	CONN FFC BOTTOM 23POS 0.50MM R/A	CONN FFC BOTTOM 25POS 0.50MM R/A	CONN FFC BOTTOM 26POS 0.50MM R/A	CONN FFC BOTTOM 28POS 0.50MM R/A	CONN FFC BOTTOM 24POS 0.50MM R/A	CONN FFC BOTTOM 30POS 0.50MM R/A
Flat flexible type	FFC，FPC	FFC，FPC	FFC，FPC	FFC，FPC	FFC，FPC	FFC，FPC	FFC，FPC	FFC，FPC
Installation type	Surface mount, right angle	Surface mount, right angle	Surface mount, right angle	Surface mount, right angle	Surface mount, right angle	Surface mount, right angle	Surface mount, right angle	Surface mount, right angle
Connector/contact type	contact, bottom	contact, bottom	contact, bottom	contact, bottom	contact, bottom	contact, bottom	contact, bottom	contact, bottom
Number of pins	22	21	23	25	26	28	24	30
spacing	0.020"（0.50mm）	0.020"（0.50mm）	0.020"（0.50mm）	0.020"（0.50mm）	0.020"（0.50mm）	0.020"（0.50mm）	0.020"（0.50mm）	0.020"（0.50mm）
Termination	welding	welding	welding	welding	welding	welding	welding	welding
FFC, FCB thickness	0.30mm	0.30mm	0.30mm	0.30mm	0.30mm	0.30mm	0.30mm	0.30mm
board height	0.079"（2.00mm）	0.079"（2.00mm）	0.079"（2.00mm）	0.079"（2.00mm）	0.079"（2.00mm）	0.079"（2.00mm）	0.079"（2.00mm）	0.079"（2.00mm）
Lock function	trigger lock	trigger lock	trigger lock	trigger lock	trigger lock	trigger lock	trigger lock	trigger lock
Cable end type	Straight	Straight	Straight	Straight	Straight	Straight	Straight	Straight
Contact material	Phosphor bronze	Phosphor bronze	Phosphor bronze	Phosphor bronze	Phosphor bronze	Phosphor bronze	Phosphor bronze	Phosphor bronze
Contact plating	tin bismuth	tin bismuth	tin bismuth	tin bismuth	tin bismuth	tin bismuth	tin bismuth	tin bismuth
Shell material	Polyamide (PA46), nylon 4/6, fiberglass reinforced	Polyamide (PA46), nylon 4/6, fiberglass reinforced	Polyamide (PA46), nylon 4/6, fiberglass reinforced	Polyamide (PA46), nylon 4/6, fiberglass reinforced	Polyamide (PA46), nylon 4/6, fiberglass reinforced	Polyamide (PA46), nylon 4/6, fiberglass reinforced	Polyamide (PA46), nylon 4/6, fiberglass reinforced	Polyamide (PA46), nylon 4/6, fiberglass reinforced
Actuator material	Polyphenylene sulfide (PPS), glass fiber reinforced	Polyphenylene sulfide (PPS), glass fiber reinforced	Polyphenylene sulfide (PPS), glass fiber reinforced	Polyphenylene sulfide (PPS), glass fiber reinforced	Polyphenylene sulfide (PPS), glass fiber reinforced	Polyphenylene sulfide (PPS), glass fiber reinforced	Polyphenylene sulfide (PPS), glass fiber reinforced	Polyphenylene sulfide (PPS), glass fiber reinforced
characteristic	Fixed solder tail, zero insertion force (ZIF)	Fixed solder tail, zero insertion force (ZIF)	Fixed solder tail, zero insertion force (ZIF)	Fixed solder tail, zero insertion force (ZIF)	Fixed solder tail, zero insertion force (ZIF)	Fixed solder tail, zero insertion force (ZIF)	Fixed solder tail, zero insertion force (ZIF)	Fixed solder tail, zero insertion force (ZIF)
Rated voltage	50V	50V	50V	50V	50V	50V	50V	50V
Operating temperature	-40°C ~ 85°C	-40°C ~ 85°C	-40°C ~ 85°C	-40°C ~ 85°C	-40°C ~ 85°C	-40°C ~ 85°C	-40°C ~ 85°C	-40°C ~ 85°C
Material flammability rating	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0
Rated current	0.5A	0.5A	0.5A	0.5A	0.5A	0.5A	0.5A	0.5A
Shell color	White	White	White	White	White	White	White	White
Actuator color	brown	brown	brown	brown	brown	brown	brown	brown
Number of patches	20	20	20	20	20	20	20	20
