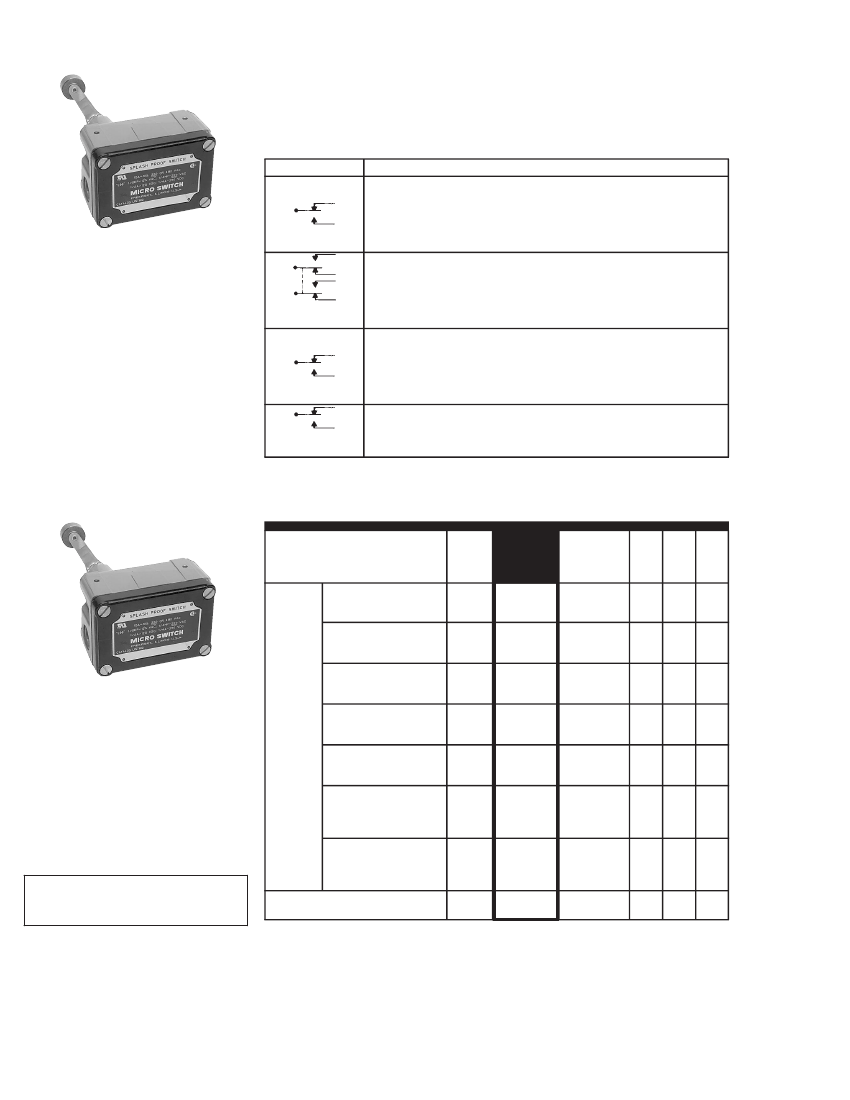

Limit and Enclosed Switches
Enclosed Switches
OP Series
UL Recognized, file #E12252
CSA Certified, file #LR57325
Grounding screw
NEMA 1, 3*, 4* and 13*
FEATURES
Cast aluminum housing
Mounts from 4 sides
Cover seal, captive cover screws
Momentary contact
(* Except Q-plunger and high temperature types)
ELECTRICAL RATING
Circuitry
A
Electrical Rating
UL/CSA Rating:
15 amps, 125, 250 or 480 VAC;
1
⁄
8
Hp, 125 VAC;
1
⁄
4
Hp, 250 VAC;
1
⁄
2
amp, 125 VDC;
1
⁄
4
amp, 250 VDC.
OP enclosed switches are precision snap-
action switches sealed in rugged cast alumi-
num housings. Cover and shaft seals keep
out moisture and other contaminants on ro-
tary operated switches. The plungers in the
Q-plunger version are not sealed.
Refer to page A123 for explosion-proof Type
EX switches, which are dimensionally inter-
changeable with OP switches.
Single-pole
Double-throw
B
UL/CSA Rating:
10 amps, 125, 250 VAC;
0.3 amp, 125 VDC; 0.15 amp, 250 VDC.
Double-pole
Double-throw
D
UL/CSA Rating:
20 amps, 125, 250 or 480 VAC;
1 Hp, 125 VAC; 2 Hp, 250 VAC;
1
⁄
2
amp, 125 VDC;
1
⁄
4
amp, 250 VDC.
Lamp Load — 10 amps, 125 VAC.
5 amps, 125, 250 or 480 VAC;
amp - 125VDC;
1
⁄
4
amp - 250 VDC
Single-pole
Double-throw
E
Single-pole
Double-throw
1
⁄
2

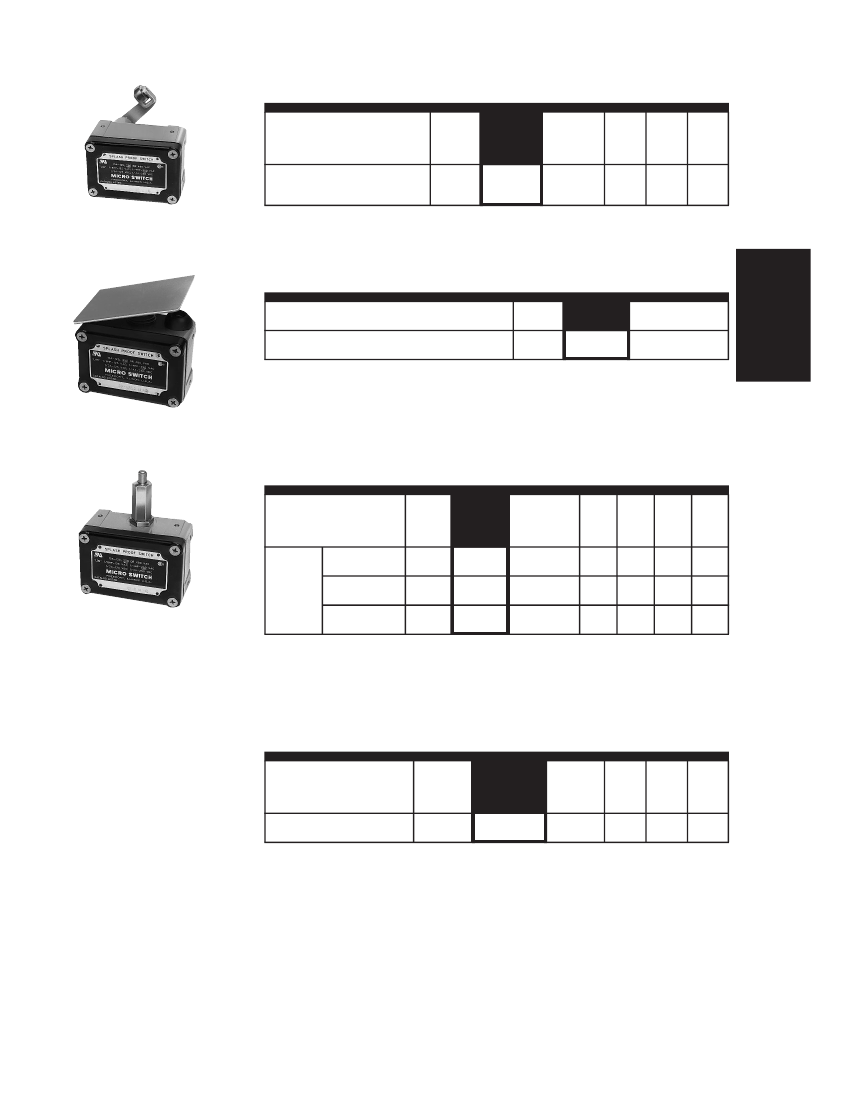

ROLLER LEVER ACTUATED SWITCHES
ORDER GUIDE
P.T.
D.T.
max.
max.
mm O.T. mm
in.
max.
in.
5,56
.219
(8°)
5,56
.219
(8°)
5,56
.219
(8°)
4,78
.250
(10°)
1,65
.065
(3.5°)
5,56
.219
(8°)
—
90°
0,18
.007
(.25°)
0,18
.007
(.25°)
0,3
.012
(.4°)
2,77
.109
(4°)
0,18
.007
(.25°)
2,77
.109
(4°)
—
Description
Roller
Lever is
field
adjustable
through
360
CW actuation*
SPDT
CW actuation*
SPDT will withstand
400°F for 100 hours
CW actuation*
High capacity.
SPDT
CW actuation*
DPDT
N Newtons
* Actuation is designated as CW (clockwise) or
CCW rotation, when looking at the switch
nameplate.
† Choice of levers available for use with OP-AR20:
6PA5-EX
(non-sparkling roller),
6PA6-OP
(steel
roller),
6PA127-EX
(nylon roller),
6PA130-EX
(CW).
6PA142-EX (CCW), and
6PA136-EX
(Aluminum
rod).
Elec.
Rating
A
Catalog
Listing
OP-AR
O.F.
2,22-5,56 N
.5-1.25 lbs.
2,22-5,56 N
.5-1.25 lbs.
3,34-8,90 N
.75-2 lbs.
2,22-6,67 N
.5-1.5 lbs.
1,11 N max.
2.5 lbs. max.
12,2 N max.
2.75 lbs.
max.
0,56 N max.
2 oz. max.
E
OP-AR400
90°
D
OPA-AR
25°
B
OPD-AR
25°
CCW actuation*
SPDT
CCW actuation*
Basic switch plunger
held depressed (normal
position) DPDT
CW or CCW actuation*
No lever return spring.
No mounting bracket
furnished. SPDT.
No lever furnished.†
CW actuation.* SPDT
A
OP-AR30
25°
B
OPD-AR30
25°
Characteristics: O.F. — Operating Force; P.T. —
Pretravel; O.T. — Overtravel; D.T. — Differential
Travel
A
OP-AR16
—
For rapid response – off the shelf
service, all
bold face
listings are
normally stocked items.
A
OP-AR20
0,08-0,23 N
.75-2 in. lb.
8°
90°
.25°
A108
Honeywell
Sensing and Control 1-800-537-6945 USA
1-815-235-6847 International 1-800-737-3360 Canada
Limit and Enclosed Switches
Enclosed Switches
CROSS ROLLER LEVER ACTUATED SWITCH
ORDER GUIDE
O.F.
max.
N
lbs.
2,22-5,56
.5-1.25
P.T.
max.
mm
in.
5,56
.219
(8°)
OP Series
Description
CW actuation*
Field adjustable through 360°.
SPDT
Elec.
Rating
A
Catalog
Listing
OP-CR
O.T.
min.
mm
in.
90°
max.
D.T.
max.
mm
in.
0,18
.007
(.25°)
MANUALLY ACTUATED SWITCH
Limit/Enclosed
ORDER GUIDE
Description
Large 3 x 3.5 inch paddle for fast, easy operation
SPDT
Elec.
Rating
A
Catalog
Listing
OP-AR50
O.F.
max.
11.1 Newtons
2.5 lbs. (approx.)
OVERTRAVEL PLUNGER ACTUATED SWITCHES
ORDER GUIDE
O.P.
mm
in.
47,2±1,52
1.859±.060
46±1,52
1.812±.060
46±1,52
1.812±.060
O.F.
max.
N
lbs.
13,3
3
8,90
2
13,3
3
P.T.
max.
mm
in.
1,98
.078
1,27
.050
2,77
.109
O.T.
min.
mm
in.
4,78
.188
3,18
.125
3,58
.141
D.T.
max.
mm
in.
0,10
.004
0,23
.009
1,52
.060
Description
In-line
actuation
SPDT
High Capacity
SPDT
DPDT
Elec.
Rating
A
D
B
Catalog
Listing
OP-Q
OPA-Q
OPD-Q
BOOT SEALED PLUNGER ACTUATED SWITCH
ORDER GUIDE
O.F.
max.
N
lbs.
15,5
3.5
P.T.
max.
mm
in.
1,98
.078
O.T.
min.
mm
in.
4,78
.188
D.T.
max.
mm
in.
0,10
.004
Description
In-line actuation
with boot seal
Elec.
Rating
A
Catalog
Listing
OP-N
* Clockwise actuation, when looking at the switch
nameplate.
N Newtons
Characteristics: O.F. — Operating Force; P.T. —
Pretravel; O.T. — Overtravel; D.T. — Differential
Travel; O.P. — Operating Position
Honeywell Sensing and Control 1-800-537-6945 USA
1-815-235-6847 International 1-800-737-3360 Canada
A109
Limit and Enclosed Switches
Enclosed Switches

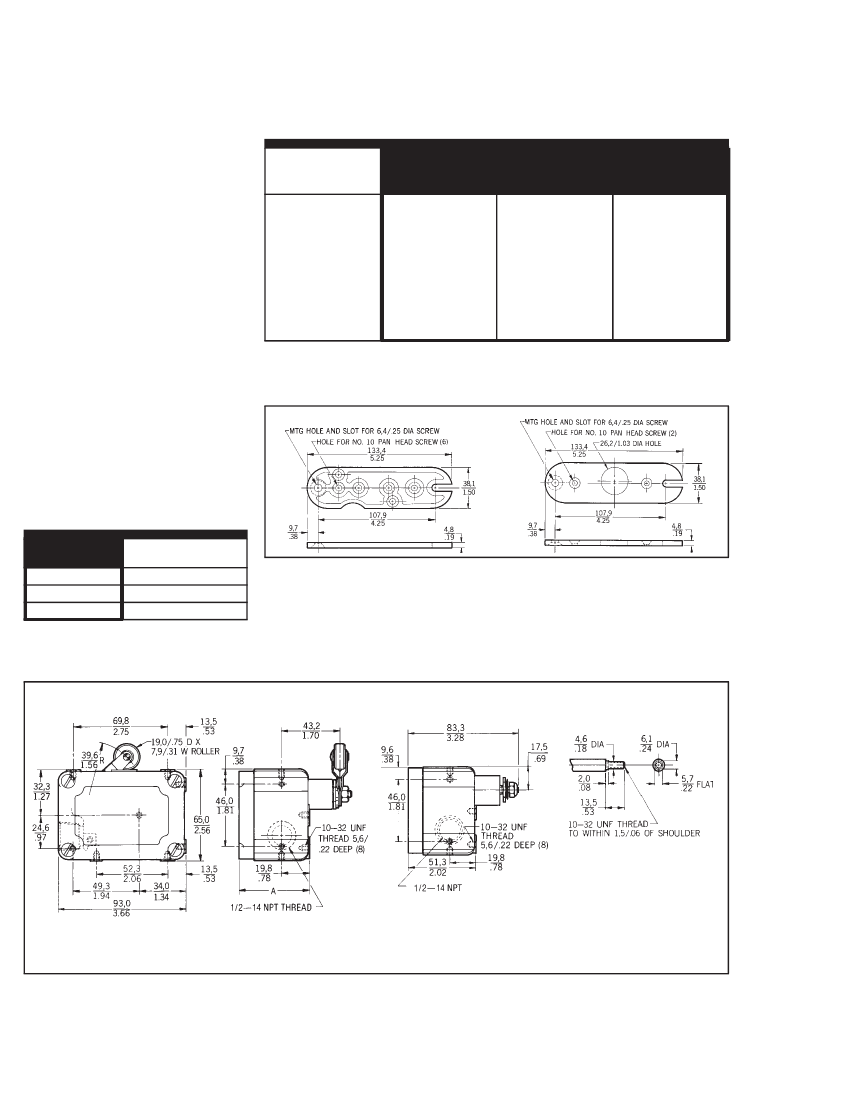

REPLACEMENT PARTS
In addition to the items shown below, these
replaceable internal levers are available:
33PA2-OP
for OP-AR, OP-AR20 and OP-CR; and
33PA3-OP
for OP-AR50.
Catalog Listing
Replacement Part Numbers
Switch Listing
OP-AR
OPA-AR
OPD-AR
OP-AR30
OPD-AR30
OP-AR16
OP-AR20
OP-Q
OPA-Q
OPD-Q
OP-CR
OP-AR50
Switching Unit
BZ-2R-P4
BA-2R-P4
DT-2R4-A7
BZ-2R-P4
DT-2R711-A7
BZ-2RW88-P5
BZ-2R-P4
BZ-2R-P4
BA-2R-P4
DT-2R-A7
BZ-2R-P4
BZ-2R-P4
Acutator
6PA6-OP
6PA6-OP
6PA6-OP
6PA6-OP
6PA6-OP
6PA6-OP
†
8PA7-OP
—
—
6PA131-EX
6PA134-OP
OP Series
Springs
33PA7-EX
33PA6-EX
33PA6-EX
33PA5-EX
33PA5-EX
—
33PA7-EX
—
—
—
33PA7-EX
33PA7-EX
† Levers for OP-AR20 are on pages A108 and A109.
MOUNTING BRACKETS
CONDUIT SEALING PACKETS
Catalog Listing
Packet
2PA6
2PA16
2PA1
Cable O.D. Inches
.400 – .435
.435 – .470
.530 – .570
15PA85-EX
is used for top, bottom, back or end
mounting. It is furnished with each switch, except
OP-AR16 and OP-AR62.
15AP86-EX is ordered separately for top mounting
of plunger switches.
(Switches may also be direct mounted using 10-
32 NF screws.)
(See page A99 for description.)
MOUNTING DIMENSIONS
(For reference only)
ROLLER LEVER
WITHOUT LEVER
Note: For additional mounting dimensions refer to EX drawings
on page A125 (cross roller lever) and page A126 (plunger and
manually actuated switches) which are dimensionally identical
to their OP counterparts.
A110
Honeywell
Sensing and Control 1-800-537-6945 USA
1-815-235-6847 International 1-800-737-3360 Canada
