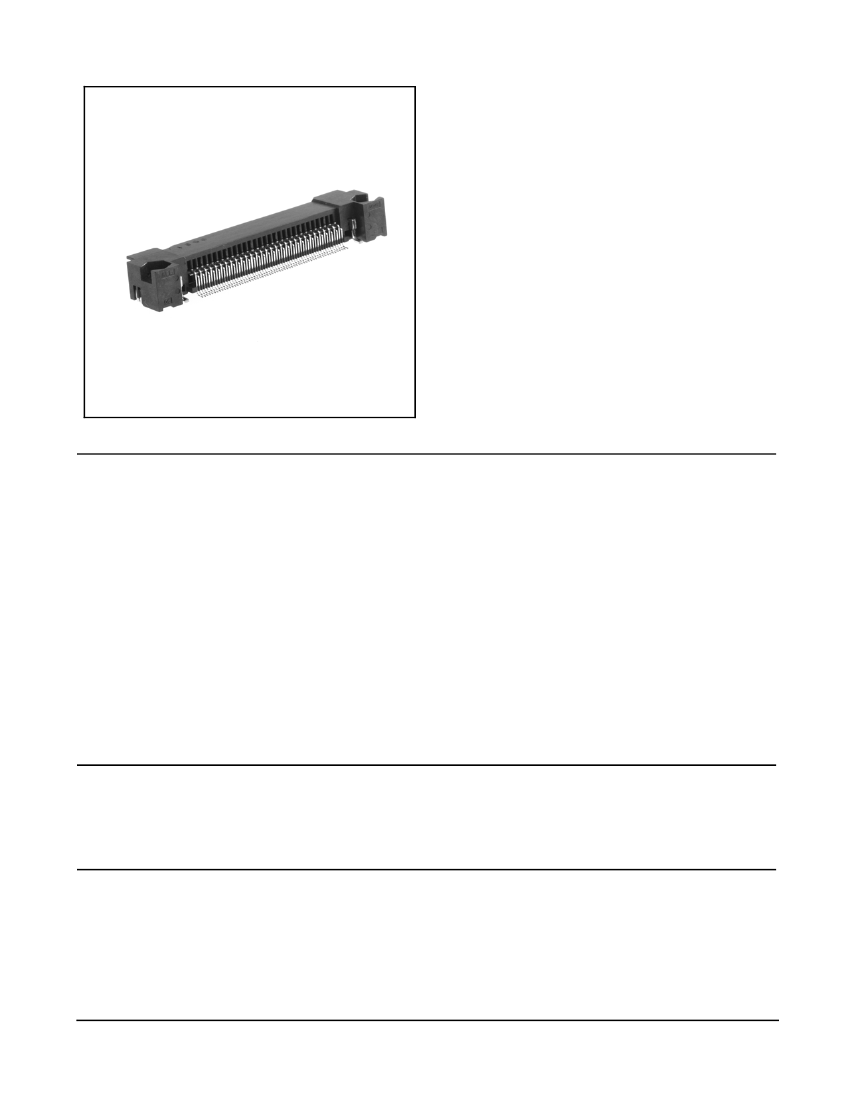

1 mm Right Angle, Surfacemount, With Pwr. Gnd. Option
•
•
•
•
PK10M Series
1 mm pitch connector system
Four mating heights available
Available power contacts rated at 5A
Available frame ground connection through
surfacemount retention clips
• Keyed design helps prevent mating
misalignment
• RoHS compliant* version (DA plating suffix)
available
Date Modified: January 8, 2007
TS-1151-04
Sheet 1 of 5
Physical
Insulation
Material:
Glass-Filled LCP
Flammability:
UL 94V-0
Color:
Black
Contact
Signal Contact:
Copper Alloy
Power Contact:
Copper Alloy
Retention Clips:
Copper Alloy
Contact Plating
Underplating:
120 µ" [ 3.0 µm ] Nickel
Wiping Area:
4
μ″
[ 0.10
μm
] min. Gold
Solder Tails:
Tin Alloy or Gold Flash (RoHS compliant)
Retention Clip Plating:
Tin Copper over 120 µ" [ 3.0 µm ] Nickel
Marking:
Orientation Triangle, Standoff Height Code, Lot Number
Electrical
Current Rating:
0.5 A per Signal Contact, 5 A Power Contact
Insulation Resistance:
1 × 10
3
MΩ min at 250 V
DC
Withstanding Voltage:
300 V
AC
for 1 minute
Environmental
Temperature Rating:
-55°C to +85°C
Process Rating:
Maximum
260°C
"RoHS compliant" means that the product or part does not contain any of the following substances in excess of the following maximum concentration values
in any homogeneous material, unless the substance is in an application that is exempt under RoHS: (a) 0.1% (by weight) for lead, mercury, hexavalent
chromium, polybrominated biphenyls or polybrominated diphenyl ethers; or (b) 0.01% (by weight) for cadmium. Unless otherwise stated by 3M in writing,
this information represents 3M's knowledge and belief based upon information provided by third party suppliers to 3M.
3M
Interconnect Solutions
http://www.3M.com/interconnects/
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M
™
Pak 10 Media Plug

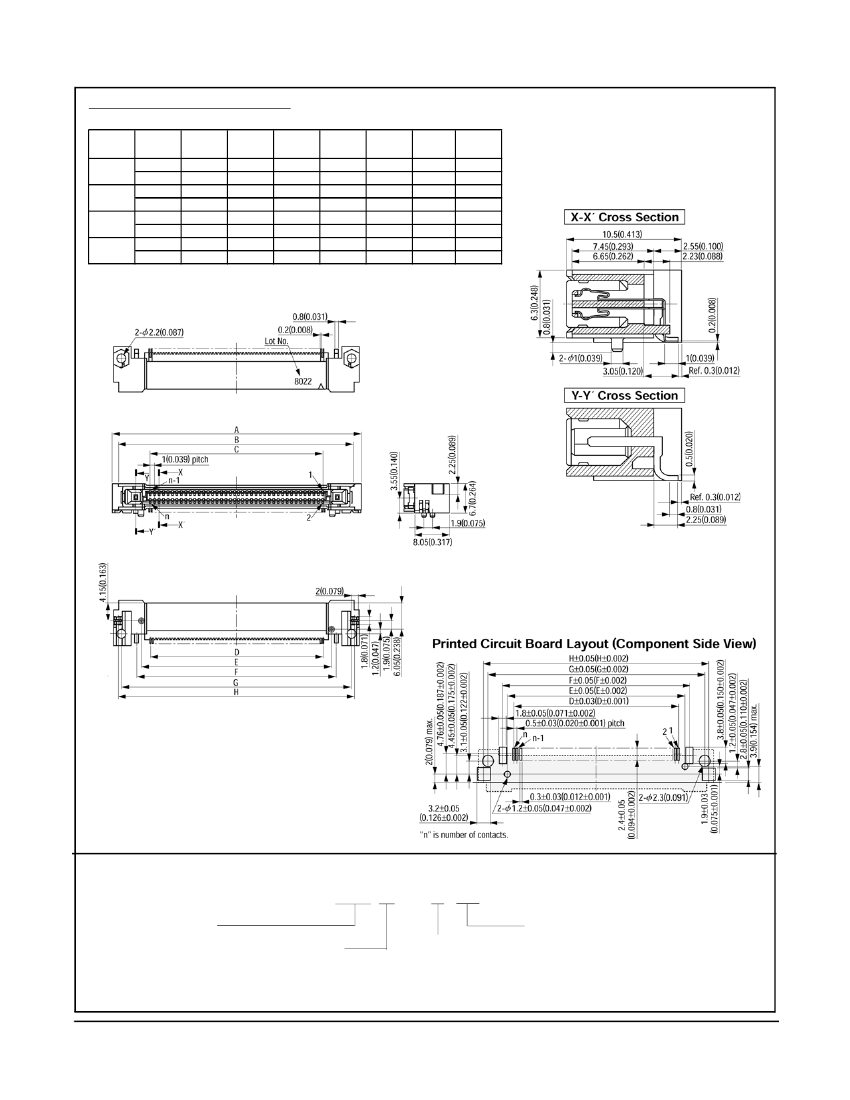

1 mm Right Angle, Surfacemount, With Pwr. Gnd. Option
Plug with Power Contacts and without Standoff
PK10M Series
Contact
Quantity
40
50
60
80
A
36.50
[1.437]
41.50
[1.634]
46.50
[1.831]
56.50
[2.224]
B
33.20
[1.307]
38.20
[1.504]
43.20
[1.701]
53.20
[2.094]
C
19.00
[0.748]
24.00
[0.945]
29.00
[1.142]
39.00
[1.535]
D
19.50
[0.768]
24.50
[0.965]
29.50
[1.161]
39.50
[1.555]
E
23.28
[0.917]
28.28
[1.113]
33.28
[1.310]
43.28
[1.704]
F
25.40
[1.000]
30.40
[1.197]
35.40
[1.394]
45.40
[1.787]
G
32.36
[1.274]
37.36
[1.471]
42.36
[1.668]
52.36
[2.061]
H
33.98
[1.338]
38.98
[1.535]
43.98
[1.731]
53.98
[2.125]
("N" is number of contacts)
Ordering Information
PK10M - XXXPX - SMX - XX
Contact Quantity
See Table
P = With Power Contacts
Omit = Without Power Contacts
Plating Suffix:
TGF = Gold flash with tin-lead tails
DA = Gold flash overall (RoHS compliant)
Standoff Height Code:
R = Without Standoff
1 = Standoff Height 1 mm [ 0.039″ ]
2 = Standoff Height 2 mm [ 0.079″ ]
3 = Standoff Height 3 mm [ 0.118″ ]
4 = Standoff Height 4 mm [ 0.157″ ]
TS-1151-04
Sheet 2 of 5
3M
Interconnect Solutions
http://www.3M.com/interconnects/
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M
™
Pak 10 Media Plug

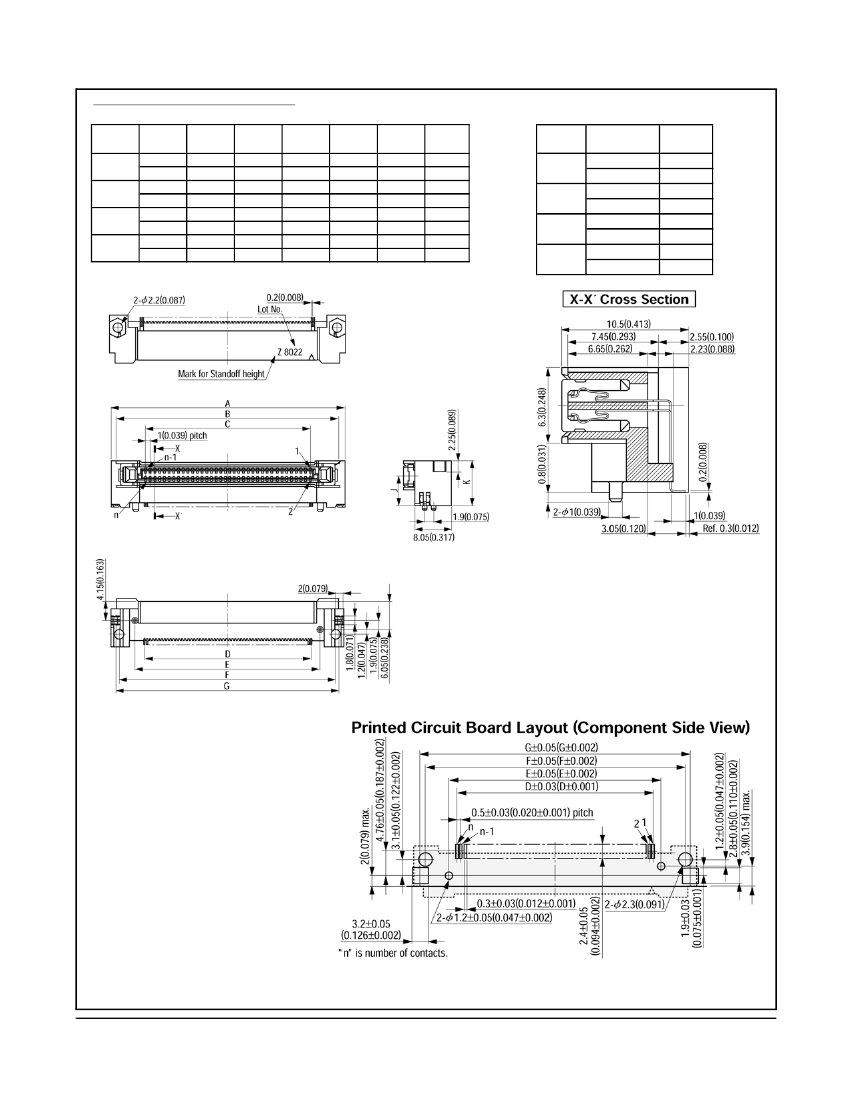

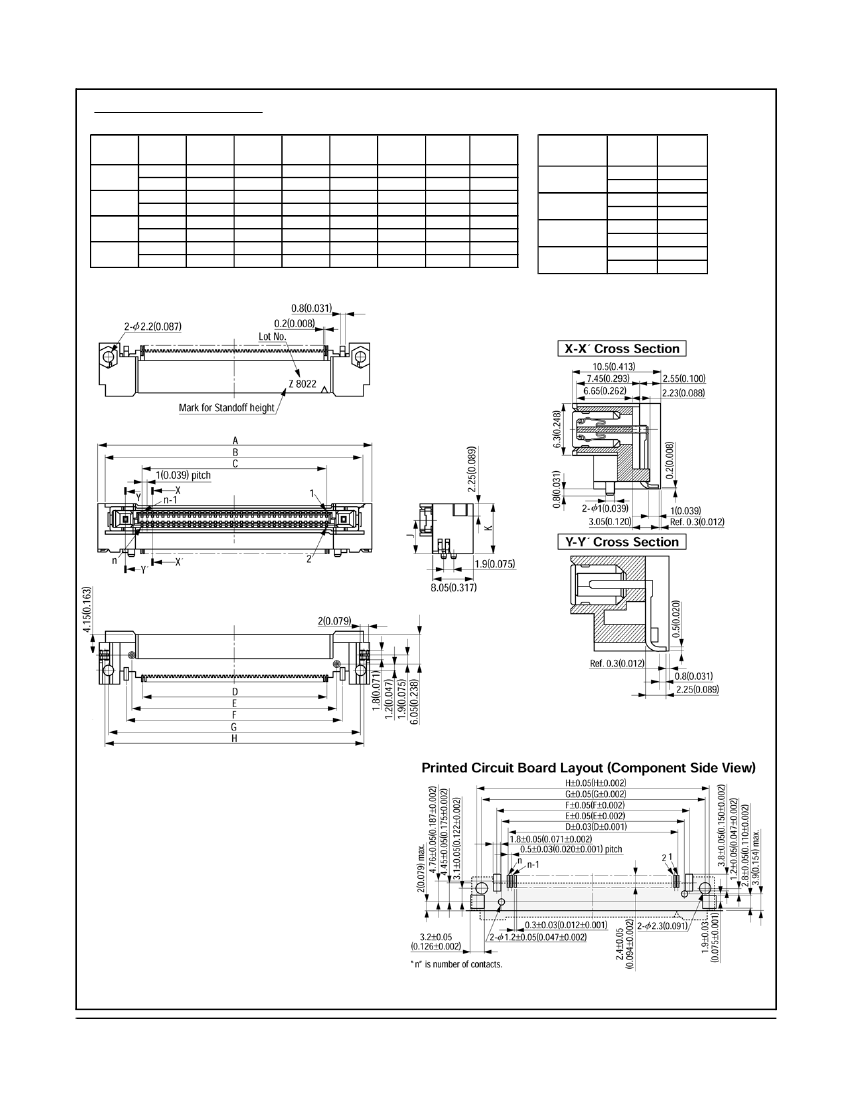

1 mm Right Angle, Surfacemount, With Pwr. Gnd. Option
Plug with Power Contacts and Standoff
PK10M Series
Contact
Quantity
40
50
60
80
A
36.50
[1.437]
41.50
[1.634]
46.50
[1.831]
56.50
[2.224]
B
33.20
[1.307]
38.20
[1.504]
43.20
[1.701]
53.20
[2.094]
C
19.00
[0.748]
24.00
[0.945]
29.00
[1.142]
39.00
[1.535]
D
19.50
[0.768]
24.50
[0.965]
29.50
[1.161]
39.50
[1.555]
E
23.28
[0.917]
28.28
[1.113]
33.28
[1.310]
43.28
[1.704]
F
25.40
[1.000]
30.40
[1.197]
35.40
[1.394]
45.40
[1.787]
G
32.36
[1.274]
37.36
[1.471]
42.36
[1.668]
52.36
[2.061]
H
33.98
[1.338]
38.98
[1.535]
43.98
[1.731]
53.98
[2.125]
Standoff
height
1
2
3
4
J
4.55
[0.179]
5.55
[0.219]
6.55
[0.258]
7.55
[0.297]
K
7.70
[0.303]
8.70
[0.343]
9.70
[0.382]
10.70
[0.421]
("N" is number of contacts)
TS-1151-04
Sheet 3 of 5
3M
Interconnect Solutions
http://www.3M.com/interconnects/
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M
™
Pak 10 Media Plug

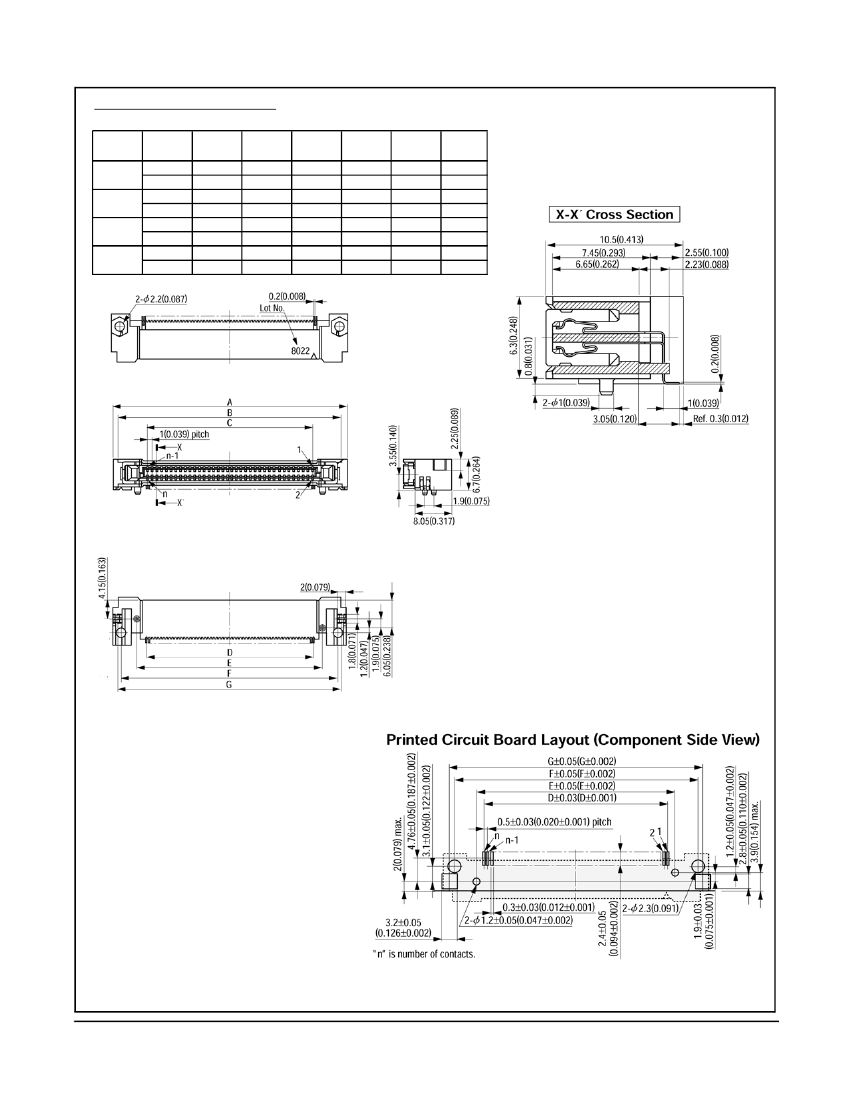

1 mm Right Angle, Surfacemount, With Pwr. Gnd. Option
Plug without Power Contacts and Standoff
PK10M Series
Contact
Quantity
40
50
60
80
A
34.50
[1.358]
39.50
[1.555]
44.50
[1.752]
54.50
[2.146]
B
31.20
[1.228]
36.20
[1.425]
41.20
[1.622]
51.20
[2.016]
C
19.00
[0.748]
24.00
[0.945]
29.00
[1.142]
39.00
[1.535]
D
19.50
[0.768]
24.50
[0.965]
29.50
[1.161]
39.50
[1.555]
E
23.28
[0.917]
28.28
[1.113]
33.28
[1.310]
43.28
[1.704]
F
30.36
[1.195]
35.36
[1.392]
40.36
[1.589]
50.36
[1.983]
G
31.98
[1.259]
36.98
[1.456]
41.98
[1.653]
51.98
[2.046]
("N" is number of contacts)
TS-1151-04
Sheet 4 of 5
3M
Interconnect Solutions
http://www.3M.com/interconnects/
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M
™
Pak 10 Media Plug
1 mm Right Angle, Surfacemount, With Pwr. Gnd. Option
